IBASSO DX120 DAP HiFi Music Player DAC AK4495 32bit 384kHz DSD128 Blue

IBASSO DX120 Baladeur Numérique DAP HiFi DAC AK4495 32bit 384kHz DSD128
The iBasso DX120 is a high-end digital music player (DAP) that delivers high-flying audio performance thanks to its clever design. DAC AK4495, USB XMOS XU208, Quad Core CPU, dual PLL / TCXO clock and fast charging make this DX120 an ideal companion for your listening sessions at home or on the go.

No customer reviews yet, login to write a review.

By buying this product you get 24 loyalty points


Reference : 13483
New product

249,17 €tax excl.

Including 0,04 € for green tax

- +

Produit garantie 2 ans

Accessories for this product


More info

iBasso DX120

DAP HiFi Music Player DAC AK4495 32bit 384kHz DSD128 Blue

iBasso DX120 Baladeur Numérique DAP HiFi DAC AK4495 32bit 384kHz DSD128

The iBasso DX120 is a high-end digital music player (DAP) that delivers high-flying audio performance thanks to its clever design. DAC AK4495, USB XMOS XU208, Quad Core CPU, dual PLL / TCXO clock and fast charging make this DX120 an ideal companion for your listening sessions at home or on the go.


AK4495 DAC

A large part of the development of the DX120 was to get the most out of the DAC AK4495 chip. The specifications of this chip display a THD+N at -105dB. In practice, it is quite difficult to achieve such a value. The engineers at iBasso have therefore worked on the design of a unique design, allowing to reach a THD+N of -111dB !

iBasso DX120 Baladeur Numérique DAP HiFi DAC AK4495 32bit 384kHz DSD128
iBasso DX120 Baladeur Numérique DAP HiFi DAC AK4495 32bit 384kHz DSD128

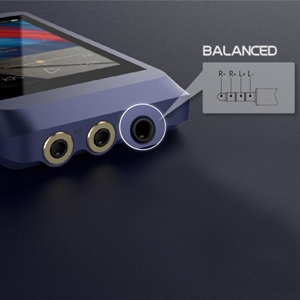

Balanced output

For its amplification section, the DX120 uses one AOP per channel, with a fully symmetrical output scheme. Thus, the output in 2.5mm symmetrical Jack format combined with the careful architecture of the DAP ensure low distortion and crosstalk.

TCXO + PLL Synchronization technology

To ensure an extremely low jitter, the DX120 integrates a combo of PLL and TCXO clocks. The phase noise reaches a value of -145dBc/Hz, the jitter is brought to <=35ps and the frequency stability is less than 1ppm for a sound reproduction of great transparency and precision.

iBasso DX120 Baladeur Numérique DAP HiFi DAC AK4495 32bit 384kHz DSD128
iBasso DX120 Baladeur Numérique DAP HiFi DAC AK4495 32bit 384kHz DSD128

A large power reserve

The internal design of this DAP allows it to be used with a wide range of headsets and IEMs, including demanding models. Indeed, it offers a power of 400mW for a load of 32 Ohm and an impressive restitution of low frequencies.

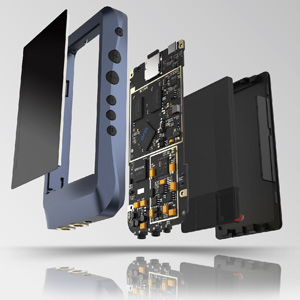

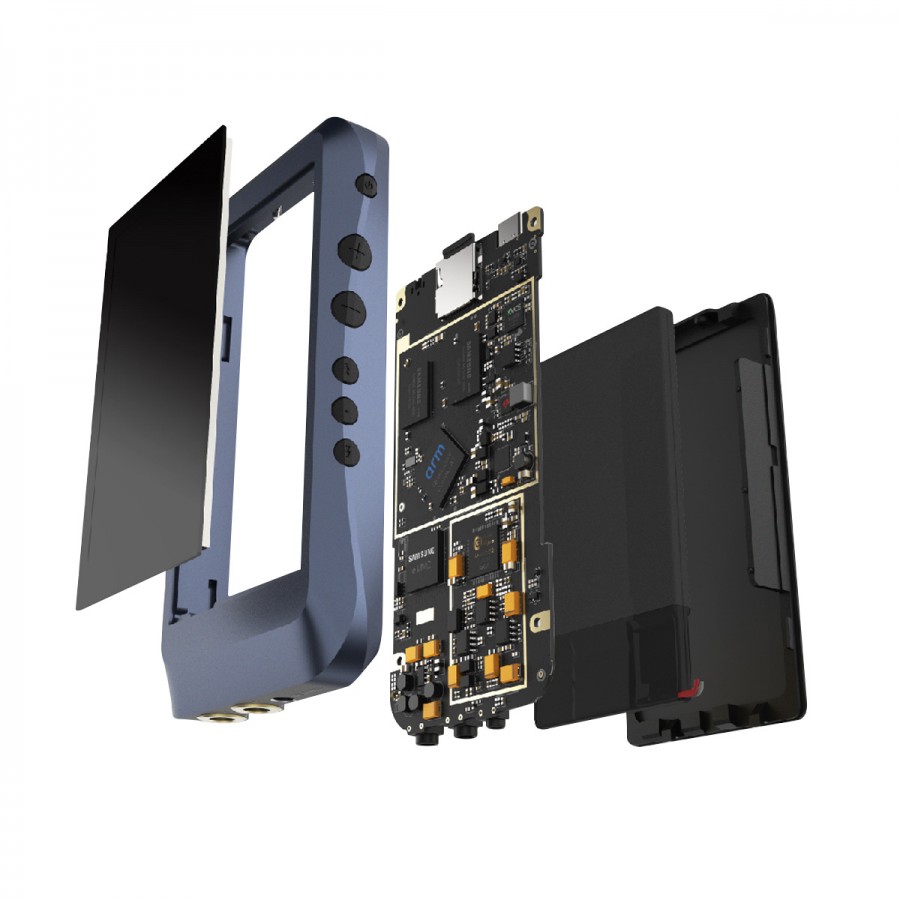

Carefully selected components

The iBasso DX120 features carefully selected components. Underneath its robust aluminium shell is a DAC AK4495 chip that supports high sampling rates, with PCM up to 32bit 384kHz and native DSD128. This chip is combined with a high-performance USB XMOS XU208 interface, a BQ25890 MaxCharge TI chip for device charge management and ultra-fast charging, and finally the PLL and TCXO clock combo for perfect signal synchronization.


Unbeatable speed of charging

The DAC therefore incorporates components that allow it to charge its battery extremely quickly. It supports both MTK-PE and QC2.0 technologies. It is thus possible to recharge the DX120 at 12V or 9V 1.5A, while remaining compatible with a more conventional 5V charge. These technologies allow a complete charge in only 2 hours, and then enjoy many hours of reading.

iBasso DX120 Baladeur Numérique DAP HiFi DAC AK4495 32bit 384kHz DSD128
iBasso DX120 Baladeur Numérique DAP HiFi DAC AK4495 32bit 384kHz DSD128

A beautiful touch screen for easy use

The DX120 is equipped with a beautiful 3.2" touch screen for a 480*800px resolution. As an IPS slab, it has high contrast, high brightness and above all wide viewing angles, allowing comfortable use, even in daylight and outdoors.

Equipped with the all-new Mango OS

The iBasso player carries the brand's latest operating system: Mango OS. It is still based on Linux but has been largely optimized and specially designed for portable audio systems. A GPU and Open GL technology have also been implemented in the device to relieve the CPU and ensure smooth navigation. In addition, the DMA (Direct Memory Access) process is used to quickly perform background tasks without cluttering the CPU unnecessarily. This gives the CPU more free computing power to decode audio files.

iBasso DX120 Baladeur Numérique DAP HiFi DAC AK4495 32bit 384kHz DSD128

The iBasso DX120's Jack outputs are not compatible with headphones and headphones with a TRRS Jack connector (3 separations on the Jack, for microphone or built-in volume control). If you have headphones or headphones with TRRS jack, it is necessary to use an adapter (sold separately, available as an accessory).

Technical characteristics

Specifications
Product typeDAP
OSMango OS
DACAK4495
Outputs1x Balanced Jack 2.5mm
1x Single-Ended Jack 3.5mm
1x Line Out Jack 3.5mm
1x Coaxial
ScreenÉcran IPS capacitif 3.2" 480*800px
Sampling ratePCM up to 32bit 384kHz
Native DSD up to DSD128
System clockTCXO and PLL
USB DAC FunctionUSB XMOS XU208 Interface, USB Thesycon driver
StorageSHDC and SDXC up to 2TB (not included)
Output voltageBalanced Jack 2.5mm : 3.6Vrms
Single-Ended Jack 3.5mm : 1.8Vrms
Line Out Jack 3.5mm : 1.8Vrms
Frequency responseBalanced Jack 2.5mm : 10Hz-45kHz +/-1dB
Single-Ended Jack 3.5mm : 10Hz-45kHz +/-1dB
Line Out Jack 3.5mm: 10Hz-45kHz +/-1dB
THD+NBalanced Jack 2.5mm : 0.00028%, -111dB (without load) / 0.00032%, -110dB (32 Ohm @ 2.4Vrms)
Single-Ended Jack 3.5mm : 0.00042%, -107dB (without load) / 0.00056%, -105dB (32 Ohm @ 1.2Vrms)
Line Out Jack 3.5mm : 0.00042%, -107dB (without load)
DNRBalanced Jack 2.5mm : 117dB
Single-Ended Jack 3.5mm : 115dB
Line Out Jack 3.5mm : 115dB
SNRBalanced Jack 2.5mm : 117dB
Single-Ended Jack 3.5mm : 115dB
Line Out Jack 3.5mm : 115dB
CrosstalkBalanced Jack 2.5mm : -116dB
Single-Ended Jack 3.5mm : -115dB
Output impedanceBalanced Jack 2.5mm : 0.36 Ohm
Single-Ended Jack 3.5mm : 0.24 Ohm
General
Autonomy16h in playback
Battery3.8V 3700mAh Li-Polymer
Quick ChargeQuick Charge 2.0 / MTK-PE
Dimensions63 x 113 x 15mm
Weight165g
ColorBlue
Package1x iBasso DX120
1x Protection case
1x Screen protector
1x USB-C Cable
1x Coaxial Câble

Data sheet
InputUSB 2.0
InputUSB-C
OutputJack 3.5mm
OutputUSB-C
OutputJack 2.5mm
OutputUSB 2.0
DAC ChipAK4495
Max sampling rate384kHz
Max sampling rateDSD128
ColorOther
ColorBlue
