OPUS 3 Digital Audio Player DAC PCM1792A 24Bit / 192kHz DSD256 WiFi Balanced

OPUS 3 Digital Audio Player DAC PCM1792A 24Bit / 192kHz DSD WiFi Bluetooth

No customer reviews yet, login to write a review.

By buying this product you get 81 loyalty points


Yes, notify me when available !
Reference : 11880
New product

819,00 €tax incl.

682,50 € tax excl.
Available on order

- +

Produit garantie 2 ans

Accessories


More info

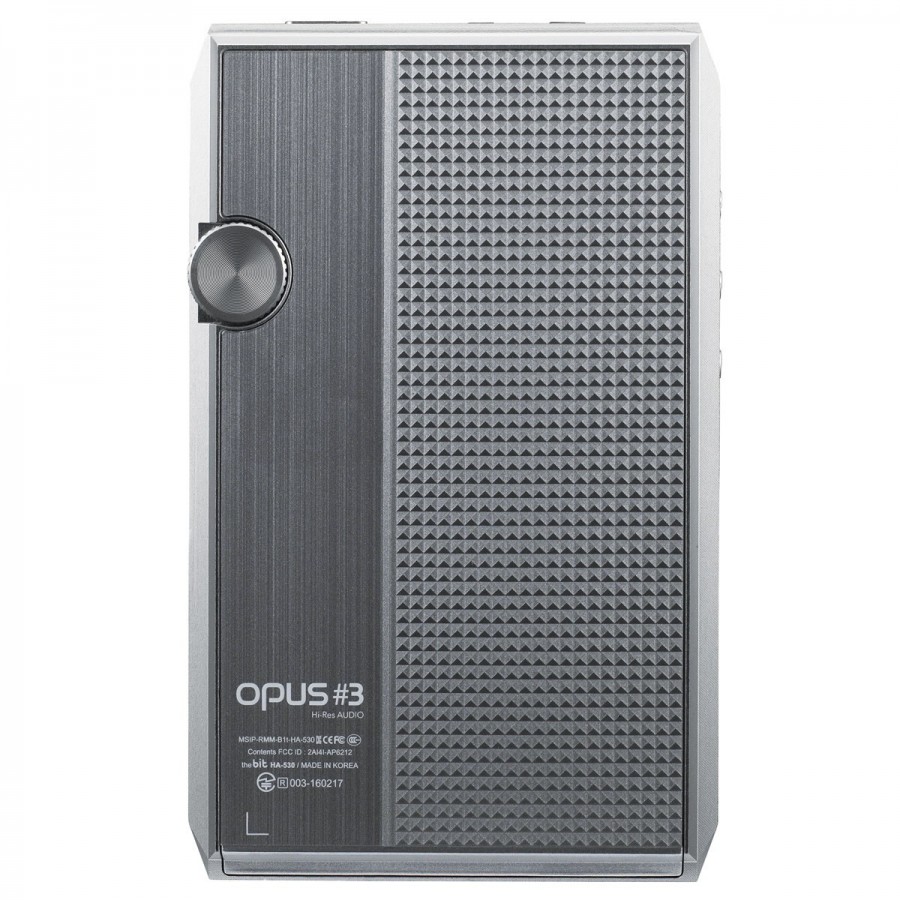

Here is the new DAP from Opus, the OPUS # 3! The newest solution for audiophiles that have high demands on the sound quality and audio performance of their playeref = "https://www.audiophonics.fr/fr/haute-fidelite-c-1325.html" target = "_ blank">HiFi. The OPUS 3 will allow you to enjoy your favorite music via streaming services and enjoy the benefits of 2.4GHz WiFi and Bluetooth 4.0.

OPUS # 3 has exceptional performance for playing native DSD files as well as Hi-Res files up to 24Bit / 192kHz. Its rare and sought-after PCM1792A (Burr-Brown) DAC provides a clear and brilliant sound in all circumstances.

This DAP has recovered all the advantages of the previous models and has been added all the necessary characteristics in order to be a modern portable audio player. It is designed to become the ultimate mobile HiFi solution, even for the most demanding Hi-Res enthusiasts. All this thanks to the expertise and professionalism of the OPUS engineers.

You pyou can also use it in PAC DAC, thanks to its PCM1792A conversion chip and its microUSB input with XMOS technology, and thus connect it directly to your amplifier via a cablee 3.5mm Jack - RCA Stereo .

OPUS 3

Test, test of OPUS 3 by AUDIOPHILE HEAVEN

OPUS 3 DAP Baladeur HiFi DAC

Main Features :

  • Machined metal body: fully aluminum
  • Display: 4 "TFT Touchscreen / IPS PANEL
  • Native DSD (DFF, DSF)
  • MQS (Mastering Quality Sound) support: 24Bit / 192kHz
  • Stereo / DSD128 (1bit 5.6MHz) Stereo / DSD256 (1Bit 11.2MHz) Stereo / DSD128 (1bit 5.6MHz) Stereo / DSD256
  • Output Level: Non-Balanced 2.5Vrms / Symmetric 3Vrms
  • Process and memory: ARM Cortex-A9 1.4GHz Quad-Core / DDR3 memory 1GB Li-Polymer battery: 4000mAh / 3.7V (Battery life up to 8.5h / charge of 4h)
  • Storage memory: 64GB internal (Possibility to extend an additional 256GB via microSD card)
  • Supports: Windows 7, 8 (32 / 64bit), MAC OSX 10.9 and higher
  • WiFi: 802.11 b / g / n (2.4GHz)
  • Bluetooth: V4.0 (AD2P, AVRCP)
  • OS: Customized version Android 5.1.1
  • Sleep mode: saves energy
  • User EQ: 10 different modes

Audio Features:

  • DAC: Burr-Brown PCM1792A
  • Usable in pure DAC: via USB XMOS
  • Clock (Jitter): 50ps
  • Frequency response: +/- 0.026dB (20Hz - 20kHz, non symmetrical and symmetrical) / +/- 0.3dB (10Hz - 70kHz, non symmetrical and symmetrical)
  • Signal Noise Ratio: Not Symmetric (114dB @ 1kHz) / Symmetrical (114dB @ 1kHz)
  • Crosstalk: Non-symmetrical (130dB @ 1kHz) / Symmetrical (135dB @ 1kHz)
  • THD + N: 0.0009% @ 1kHz
  • Output Impedance: Balanced Output 2.5mm (1 Ohm) / 3.5mm Jack Output (2 Ohm)

Connectors:

  • Micro USB Class 2.0 input: For charging and data transfers
  • Headphone Jack Jack 3.5mm
  • Optical Output (3.5mm Jack)

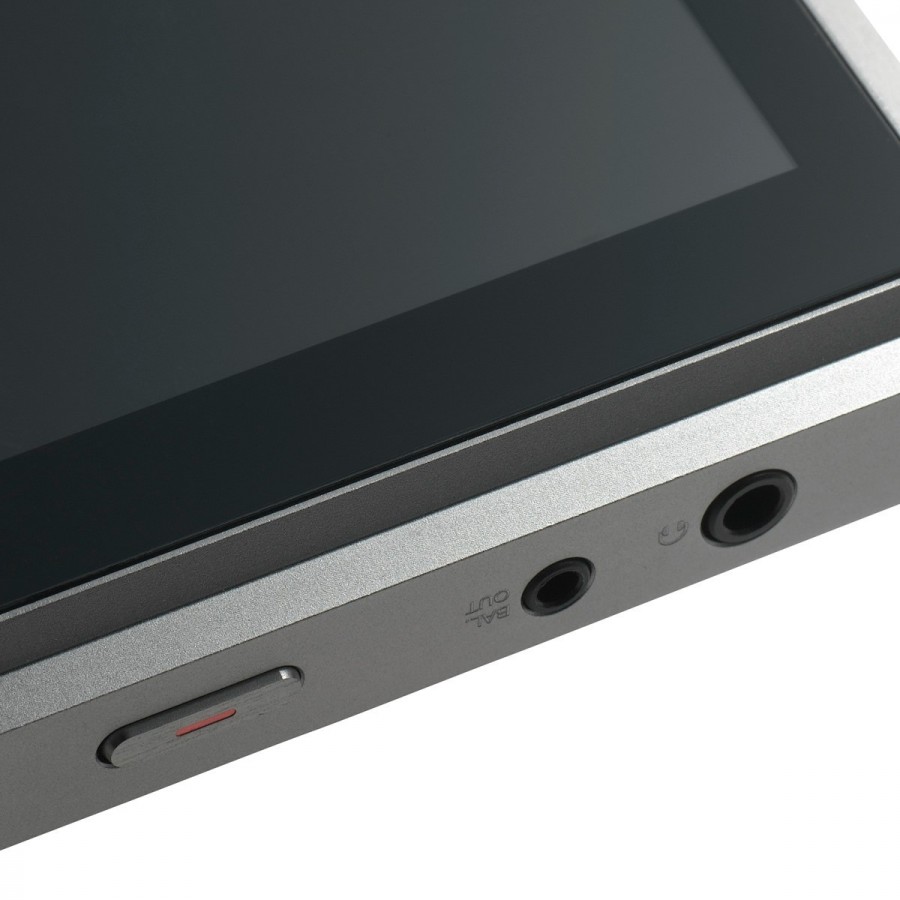

  • Symmetrical output: 2.5mm jack (4-pole support)

Dimensions / Packaging:

  • Dimensions: 74x117x18mm
  • Weight: 220g
  • Comes with Micro USB cable / Warranty Card / Manual (available as an attachment below)

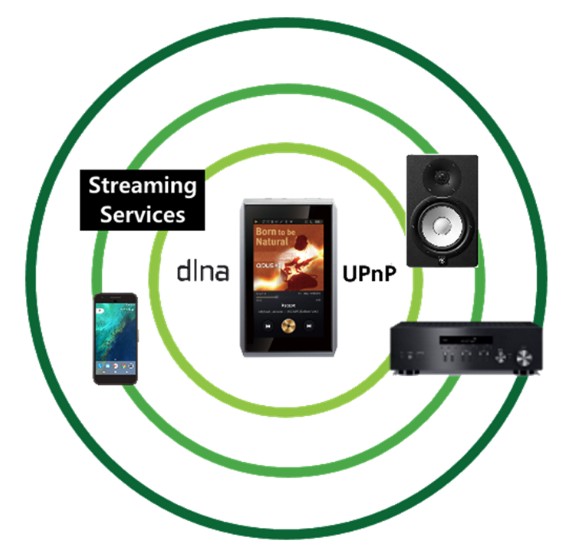

DLNA UPnP OPUS 3

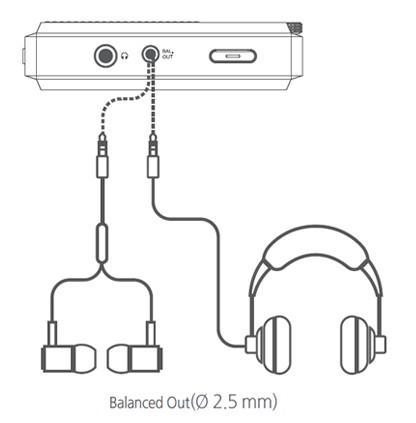

Connection OPUS 3 DAP

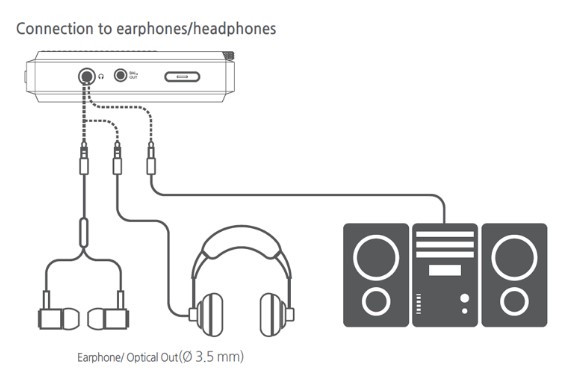

Connexion OPUS 3 DAP

Connexion OPUS 3 DAP


Data sheet
InputUSB XMOS
ColorNoir
ComponentPCM1792A
MaterialAluminium
StructureAluminium
Channel2 channels (Stéréo)
