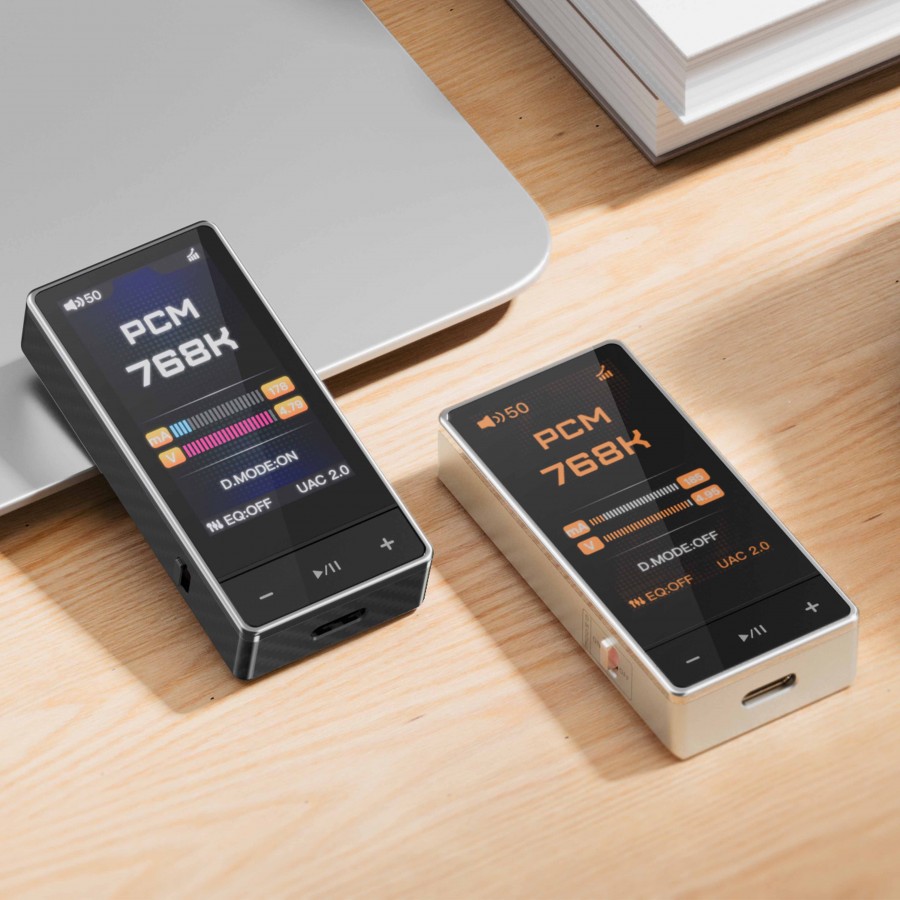

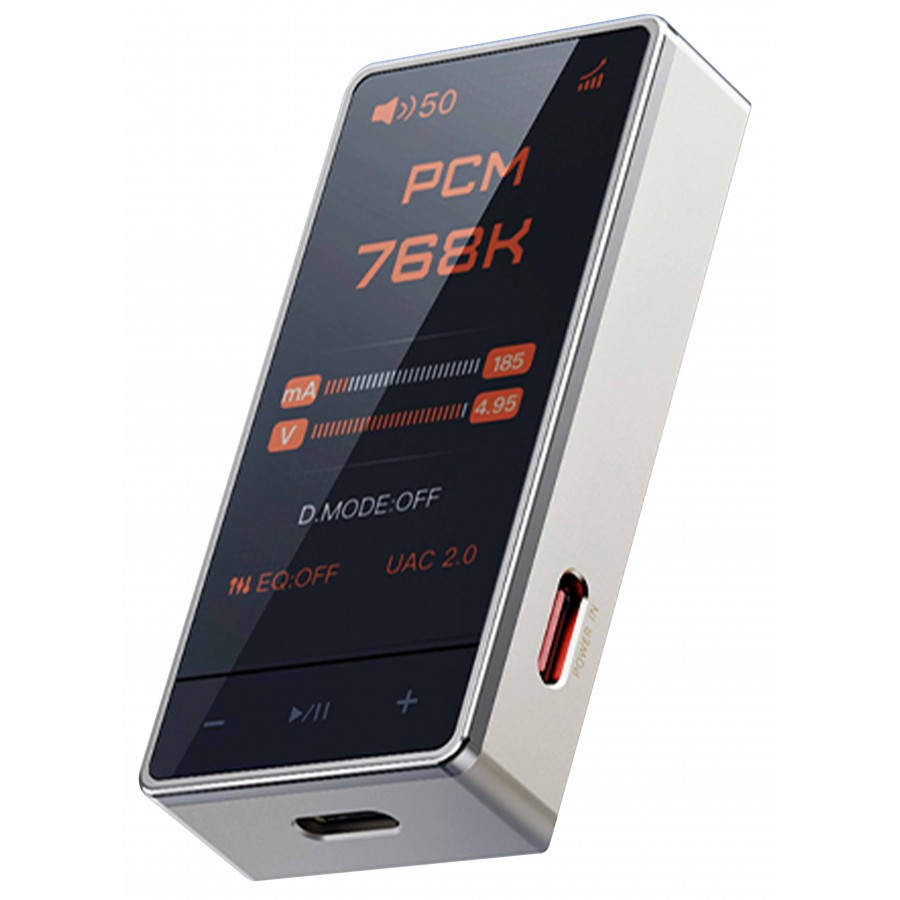

FIIO QX13 Portable DAC Headphone Amplifier Titanium Gold

With its QX13, FiiO offers us a relatively affordable portable DAC headphone amplifier based on quality components. Indeed, the QX13 is armed with an 8-channel ES9027PRO DAC chip, a USB XMOS-316 interface and no less than 6 AOPs. This chipset enables it to support high-definition sampling rates up to PCM 32bit 768kHz and DSD512, while offering up to 2x 900mW of output power under a 32-ohm load in desktop mode.

Average votes for this product
3.0 / 5

By buying this product you get 27 loyalty points


Reference : 20967
New product

279,00 €tax incl.

232,50 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 09-10-2025.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product


More info

FIIO QX13 Portable DAC Headphone Amplifier ES9027PRO XMOS XU-316 32bit 768kHz DSD512 Titanium Gold

Photo du FiiO QX13

With its QX13, FiiO offers us a relatively affordable portable DAC headphone amplifier based on quality components. Indeed, the QX13 is armed with an 8-channel ES9027PRO DAC chip, a USB XMOS-316 interface and no less than 6 AOPs. This chipset enables it to support high-definition sampling rates up to PCM 32bit 768kHz and DSD512, while offering up to 2x 900mW of output power under a 32-ohm load in desktop mode. In terms of inputs/outputs, the essentials are there, with a USB-C input and two headphone outputs: a 3.5mm jack/SPDIF headphone output and a balanced 4.4mm jack headphone output. The QX13 also boasts a robust aluminum body to limit external interference and regulate heat, and an attractive, scratch-resistant color display.

Photo du FIIO QX13

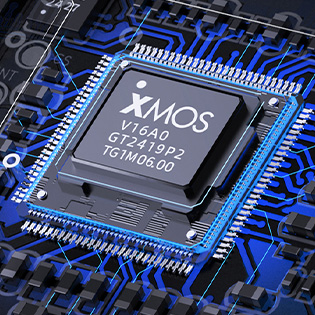

FiiO QX13: ES9027PRO DAC and XMOS-316 USB interface

The FiiO QX13 is blessed with a high-performance ES9027PRO 8-channel DAC chip based on Hyperstream IV architecture, and an XMOS-316 USB interface. ES9312 regulators support the DAC chip with a specific focus on jitter reduction. This chipset gives the QX13 the ability to support high-resolution sampling rates up to PCM 32bit 768kHz and DSD512, allowing you to enjoy the best of your streaming platforms or favorite local files. Furthermore, the USB interface also offers support for 10-band equalization via the FiiO Control App.

Interface USB du FIIO QX13
Les AOP du FIIO QX13

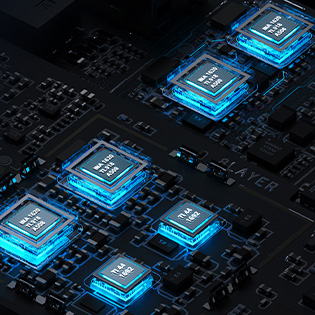

FiiO QX13: 6 AOP configuration

FiiO has chosen to integrate 4 INA1620 AOPs and 2 OPA1612 AOPs to ensure non-interference between the different channels and to bring wide dynamics to the final sound rendering, whatever the impedance load.

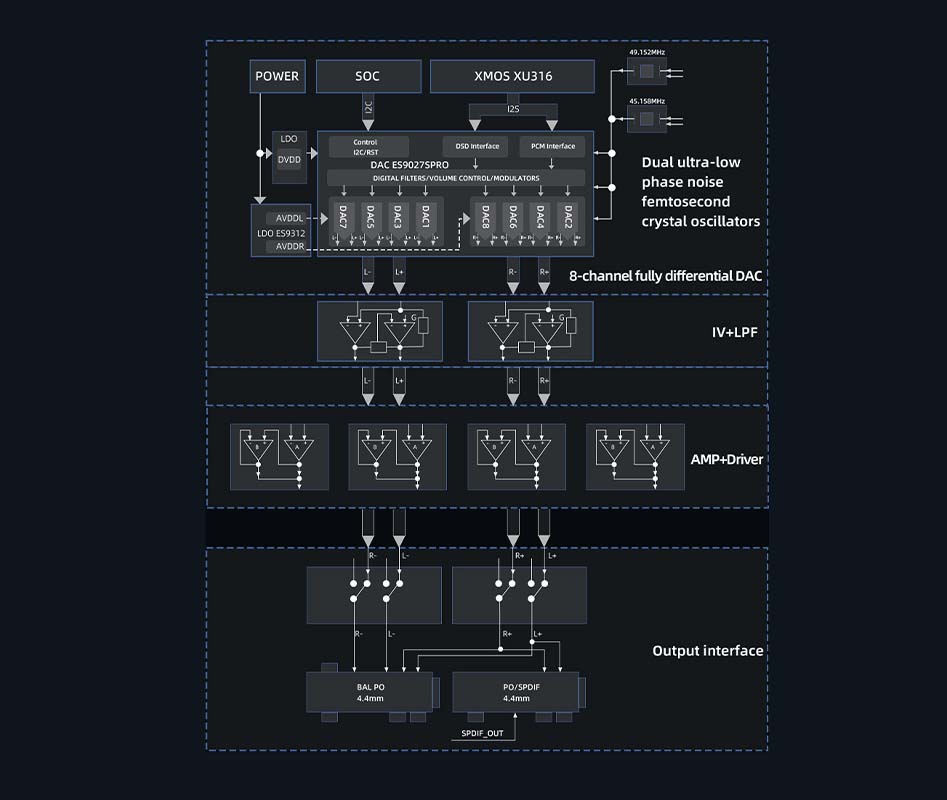

FiiO QX13: an audiophile architecture

The digital and analog parts are separated and isolated to limit interference and better manage heat dissipation. Each component is carefully selected to work in concert with its peers in the signal processing chain. The balanced architecture offers fine, clean signal processing for the most pleasing rendering at the QX13 output stage.

L'architecture du FIIO QX13

FiiO QX13: desktop mode for boosted power

In desktop mode, the QX13 benefits from a considerable gain in power, enabling it to drive a wide range of headphones and IEMs. In fact, it can deliver up to 2x 900mW of power at 32 ohms. This makes it possible to drive headphones with impedances ranging from 16 to 350 ohms.

Mode desktop du FIIO QX13

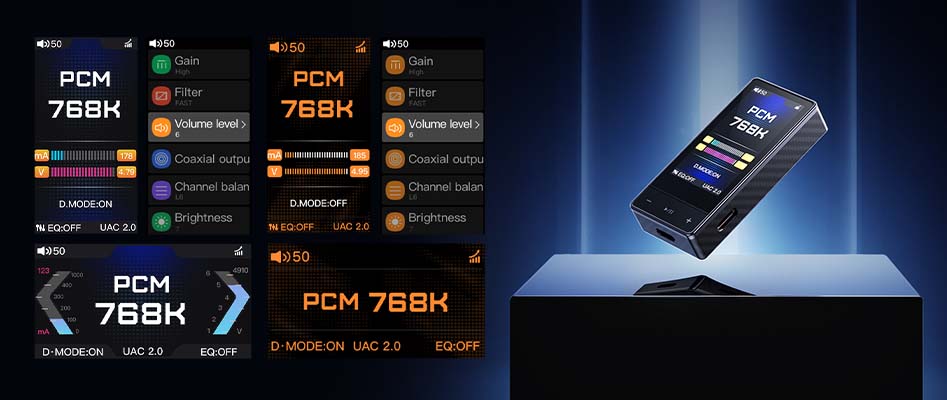

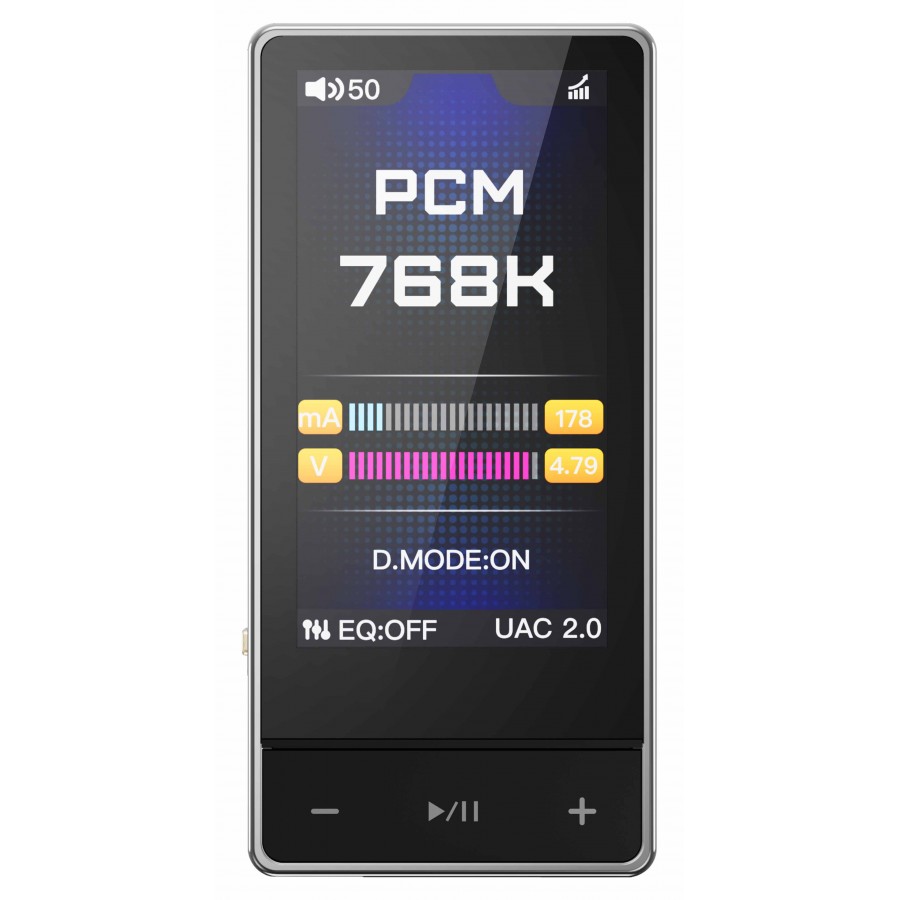

FiiO QX13: a 1.99-inch color screen

The QX13 features a 1.99-inch tempered glass color screen for easy viewing and configuration. Several UI interfaces are also available for complete customization.

L'écran couleur du FIIO QX13

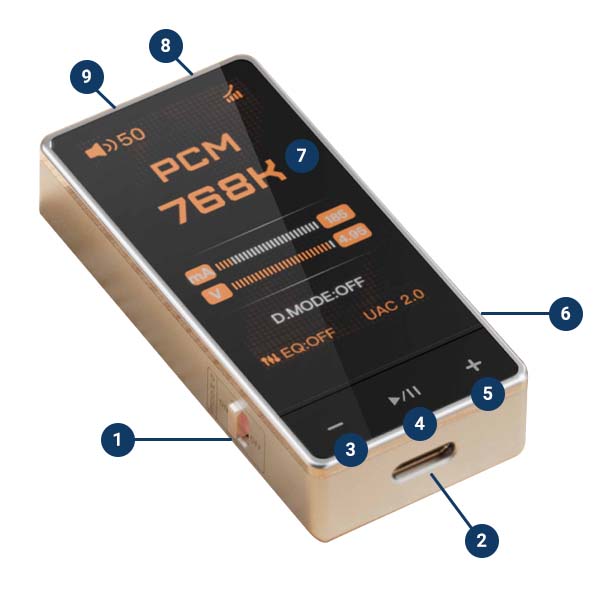

FiiO QX13 overview

Aperçu du FIIO QX13
1Switch mode desktop
2USB-C audio input / Power supply
3Volume control -
4Play/Pause
5Volume control +
6USB-C power port
7Tempered glass color display
8balanced 4.4mm jack headphone output
93.5mm jack headphone output/SPDIF

Technical characteristics

Specifications
Product typeDAC amplificateur casque portable
DAC chipES9027PRO
USB interfaceXMOS XU-316
OPA2x OPA1612
Hadphone amplifier OPA4x INA1620
Input1x USB-C
Outputs1x 3.5mm jack headphone output/SPDIF
1x Balanced 4.4mm headphone output
Suppoted sample ratesUSB DAC: PCM 32bit 768kHz, DSD512, MQA
Coaxial output: 24bit 96kHz
EQ adjustment10-band dynamic EQ control (±12dB)
8 built-in preset EQ styles
User-defined EQ support
Screen rotation
Recommended headphone impedance8~350Ω
GainLow/High (Desktop mode)
FiiO Control App compatibility
USB UAC1.0 compatibility (Switch, PS5, etc.)
Headphone output performance and settings (3.5 mm output, USB decoding, desktop mode, high gain)
Output powerL+R≥440mW+440mW (16Ω, THD+N<1%)
L+R≥310mW+310mW (32Ω, THD+N<1%)
L+R≥40mW+40mW (300Ω, THD+N<1%)
SNR≥124dB (A-weighted)
Frequency response20Hz~90kHz: attenuation<2.8dB
20Hz~20KHz: attenuation<0.07dB
Output impedance<1Ω
Crosstalk≥ 77dB
Peak output voltage9.8Vp-p
THD+N<0.0004% (1kHz/-2dB@32Ω)
Noise floor<2uV (A-weighted)
Headphone output performance and settings (4.4 mm output, USB decoding, desktop mode, high gain)
Output powerL+R≥480mW+480mW (16Ω, THD+N<1%)
L+R≥900mW+900mW (32Ω, THD+N<1%)
L+R≥125mW+125mW (300Ω, THD+N<1%)
SNR≥124dB (A-weighted)
Frequency response20Hz~70kHz: attenuation<2.8dB
20Hz~20KHz: attenuation<0.07dB
Output impedance<1.5Ω
Crosstalk≥113dB
Peak output voltage17.5Vp-p
THD+N<0.0006% (1kHz/-8dB@32Ω)
Noise floor<3.4uV (A-weighted)
Headphone output performance and settings (3.5 mm output, USB decoding, non-desktop mode, high gain)
Output powerL+R≥370mW+370mW (16Ω, THD+N<1%)
L+R≥250mW+250mW (32Ω, THD+N<1%)
L+R≥30mW+30mW (300Ω, THD+N<1%)
SNR≥123dB (A-weighted)
Frequency response20Hz~90kHz: attenuation<2.8dB
20Hz~20KHz: attenuation<0.07dB
Output impedance<1Ω
Crosstalk≥75dB
Peak output voltage8.7Vp-p
THD+N<0.0004% (1kHz/-2dB@32Ω)
Noise floor<2uV (A-weighted)
Headphone output performance and settings (4.4 mm output, USB decoding, non-desktop mode, high gain)
Output powerL+R≥470mW+470mW (16Ω, THD+N<1%)
L+R≥605mW+605mW (32Ω, THD+N<1%)
L+R≥70mW+70mW (300Ω, THD+N<1%)
SNR≥122dB (A-weighted)
Frequency response20Hz~90kHz: attenuation<2.8dB
20Hz~20KHz: attenuation<0.07dB
Output impedance<1.5Ω
Crosstalk≥113dB
Peak output voltage13Vp-p
THD+N<0.0006% (1kHz/-6dB@32Ω)
Noise floor<3.5uV (A-weighted)
General
Power supply5V 1A
Dimensions64.2x30.7x13 mm
Weight39.2g
ColorTitanium gold

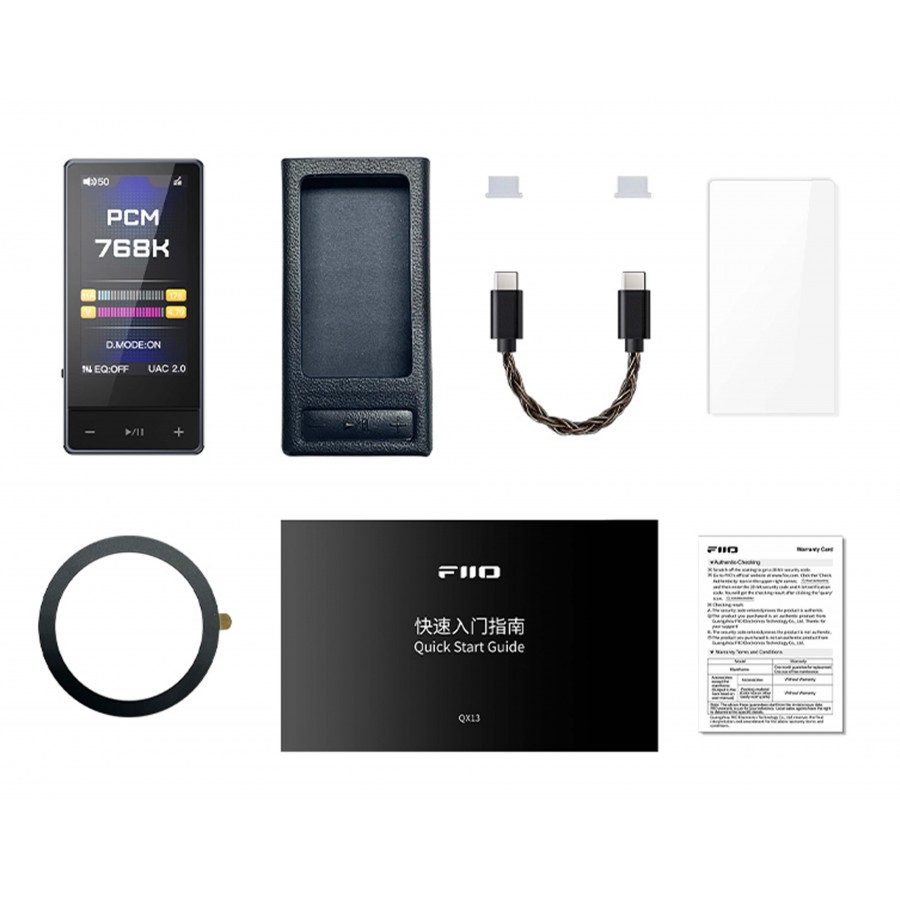

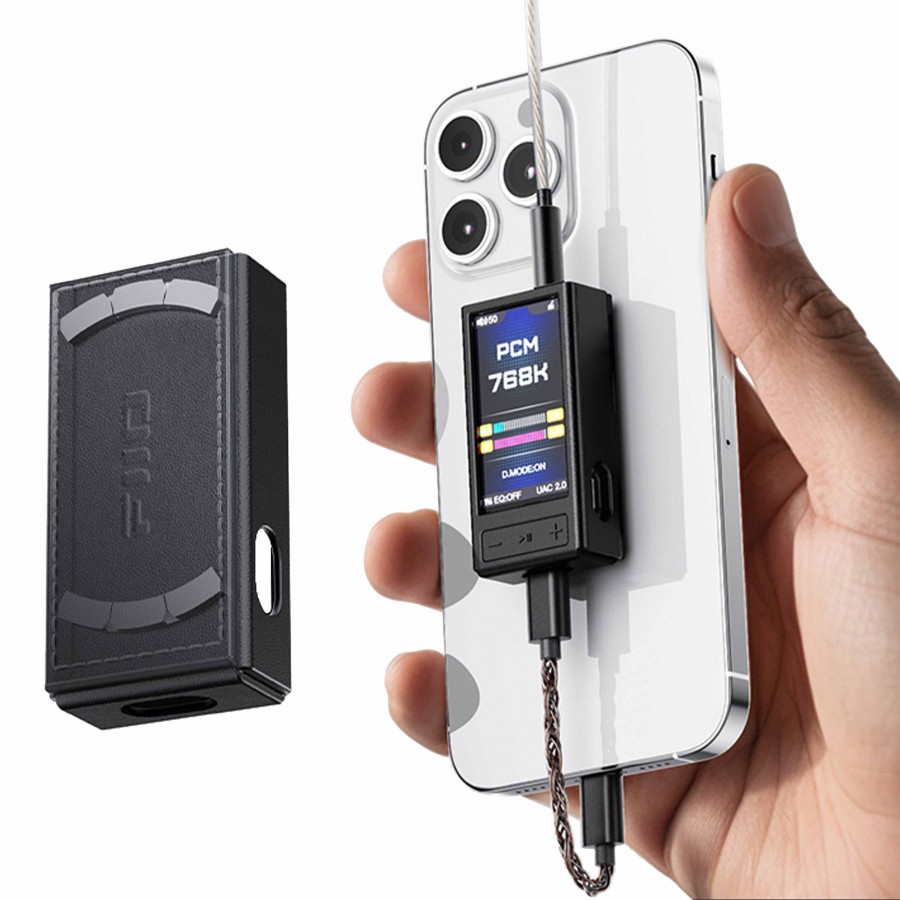

Package1x DAC Portable headphone amplifier
1x USB-C to USB-C cable
1x Leather case with magnetic attachment

Data sheet
InputUSB
OutputJack 4.4mm
OutputCoaxial SPDIF
OutputJack 3.5mm
DAC / ADC ChipES9027PRO
Max sampling rate768kHz
Max sampling rateDSD512
Max sampling rateMQA
ColorTitanium
ColorChampagne
ClassClass D / T
NetworkingNo
Remote ControlNo

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
3.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 3/5
Date :
Plutot bien mais ...
Pb 1 : le logiciel d'EQ Fiio Control ne marche pas. Ca connecte bien le QX13, vous faites votre EQ, vous sauvegardez en User1 et vous n'avez plus de son du tout. Vous reconnectez, vous constatez que le Device n'a pas sauvegardé l'EQ et vous espérez que ca marchera mieux dans une prochaine release du firmware !

Pb2 : Constatant que le Dac bouffe très vite la batterie du téléphone (Qobuz), vous achetez le estick qui semble super. Hélas vous découvrez qu'il est impossible de l'éteindre sans le débrancher de sa batterie et que l'étui qui prend les 2 n'est pas pratique du tout pour désolidariser le dac de sa batterie...

Sinon le son est excellent.
 (0)
 (0)
This review has been posted for FIIO QX13 Portable DAC Headphone Amplifier ES9027PRO XMOS XU-316 32bit 768kHz DSD512 Titanium Gold
