AUNE N7 Balanced Headphone Amplifier Preamplifier
By buying this product you get 38 loyalty points
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
Aune N7 Discrete Class A Balanced Headphone Amplifier Preamplifier 6570mW @ 32 Ohm
Aune's N7 is a powerful, discreet, fully balanced Class A headphone amplifier-preamplifier. It's based on a combination of JFET transistors for headphone amplification, an independent Class A preamplifier function and R2R volume control for optimal audio signal processing. The use of JFET transistors delivers a warm, smooth sound that will delight tube enthusiasts. Add to this an attractive 3" color display and a user-friendly interface for a pleasant listening experience and easy device control. In terms of connectivity, the N7 is well equipped with RCA and balanced XLR inputs, two 6.35mm jack and balanced 4.4mm jack headphone outputs, and two preamplified RCA and balanced XLR outputs.
Aune N7: JFET transistors for a warm sound
The use of JFET transistors in the N7 offers a sound similar to that of tubes. They provide a soft, warm sound signature, while optimizing signal processing as it enters the device.
Aune N7: R2R volume control
The Aune N7 features no less than 2 JRC volume control chips paired with AOPs to form a balanced 4-channel volume control. This offers extremely precise volume control with high stability between left and right channels.
Aune N7: A powerful headphone amplifier
By adjusting the gain, the N7 delivers the output power needed to drive headphones and IEMs with impedances from 16 to 600 Ohms without difficulty. In fact, with a high-gain 32-ohm load, it can deliver up to 6570mW of power.
| Aune N7 headphone output power | ||
|---|---|---|
| Load impedance | Unbalanced headphone output | Balanced headphone output |
| 32 ohm | 1900mW | 6570mW |
| 300 ohm | 213mW | 750mW |
| 600 ohm | 106mW | 370mW |
Aune N7: 3" color screen

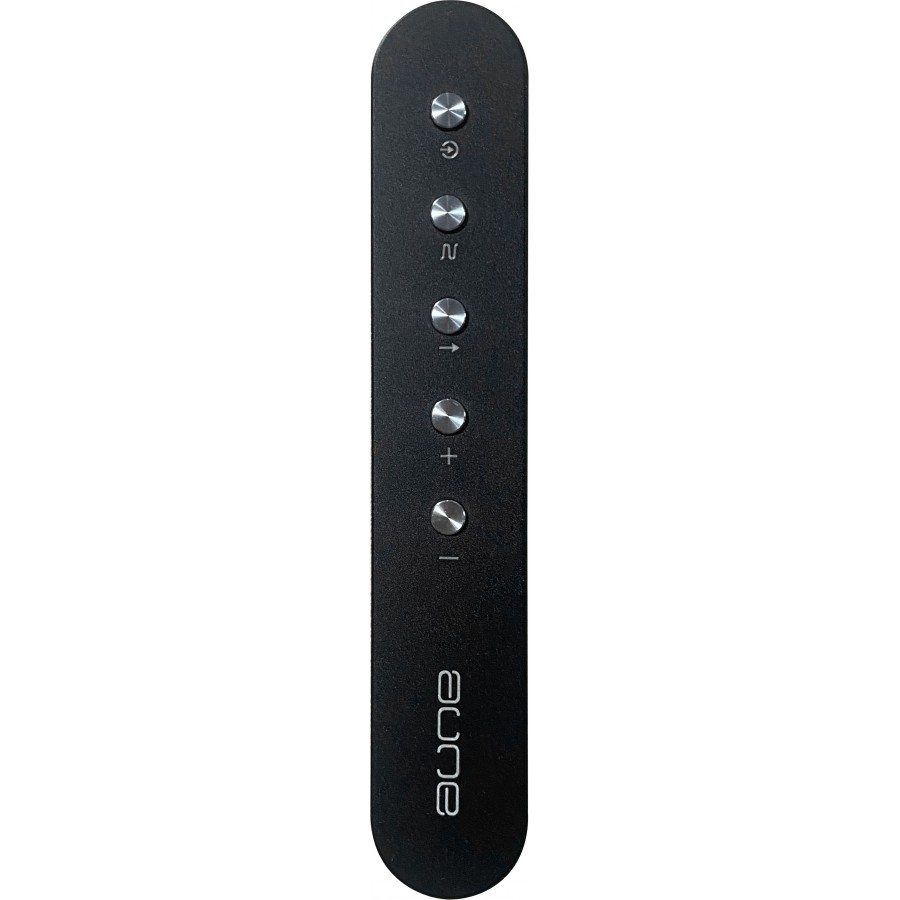

The N7 boasts a 3" color screen, a user-friendly interface and a remote control for remote control of device functions.

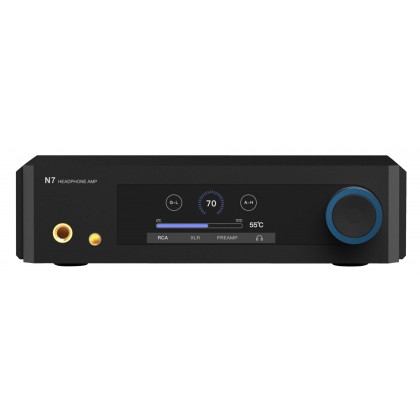

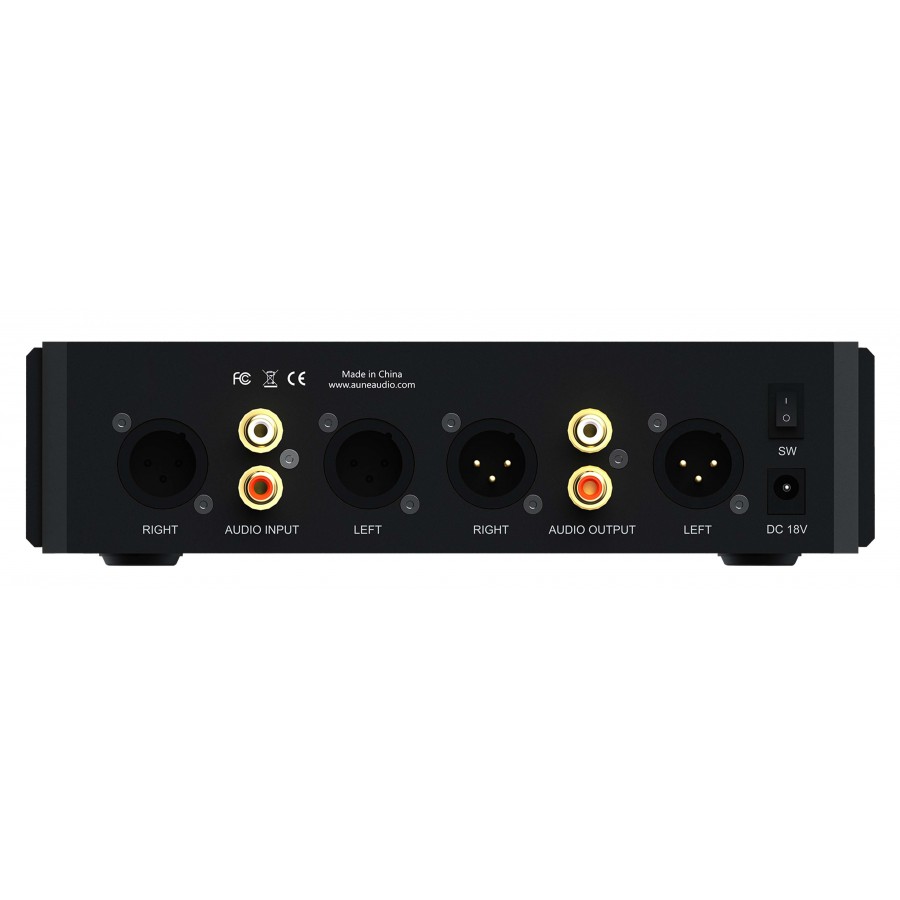

Aune N7 overview
| 1 | Single-ended 6.35mm headphone output |
| 2 | Balanced 4.4mm headphone output |
| 3 | IR receiver |
| 4 | Display |
| 5 | Multifunction button |
| 6 | Balanced XLR input |
| 7 | Single-ended RCA input |
| 8 | Balanced XLR output |
| 9 | Single-ended RCA output |
| 10 | 18V DC power supply via DC jack / Power on |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Headphone amplifier Preamplifier |
| Inputs | 1x Single-ended RCA input 1x Balanced XLR input |
| Outputs | 1x 6.35mm single-ended headphone output 1x 4.4mm balanced headphone output 1x Single-ended RCA line output 1x Balanced XLR line output |
| Input/output impedance | |
|---|---|
| RCA input impedance | 10kΩ |
| RCA output impedance | 200Ω |
| XLR input impedance | 22kΩ |
| XLR output impedance | 100Ω |
| Headphone outputs: 6.35mm jack, 4.4mm balanced jack | 1Ω |
| 6.35mm headphone output measures | |
|---|---|
| Frequency response (20Hz-80kHz) | ±0.05dB |
| THD+N | < 0.0004% @ 1kHz |
| SNR | > 105dB @ 600Ω |
| Crosstalk | < -100db @ 1khz 600Ω |
| 4.4mm headphone output measures | |
|---|---|
| Frequency response (20Hz-80kHz) | ±0.05dB |
| THD+N | < 0.0004% @ 1kHz |
| SNR | > 105dB @ 600Ω |
| Crosstalk | < -100db @ 1khz 600Ω |
| Gain-dependent output power | |
|---|---|
| 6.35mm headphone output (low gain) | 570mW @ 32Ω 190mW @ 100Ω 130mW @ 150Ω 79mW @ 250Ω 66mW @ 300Ω 42mW @ 470Ω 33mW @ 600Ω |
| Balanced 4.4mm headphone output (low gain) | 2150mW @ 32Ω 720mW @ 100Ω 500mW @ 150Ω 316mW @ 250Ω 270mW @ 300Ω 172mW @ 470Ω 135mW @ 600Ω |
| 6.35mm headphone output (high gain) | 1900mW @ 32Ω 616mW @ 100Ω 416mW @ 150Ω 252mW @ 250Ω 213mW @ 300Ω 136mW @ 470Ω 106mW @ 600Ω |
| Balanced 4.4mm headphone output (high gain) | 6570mW @ 32Ω 2190mW @ 100Ω 1500mW @ 150Ω 900mW @ 250Ω 750mW @ 300Ω 480mW @ 470Ω 370mW @ 600Ω |
| General | |
|---|---|
| Dimensions | 208 x 160 x 83mm |
| Color | Black |
| Package | 1x Aune N7 preamplifier headphone amplifier 1x 6.35mm jack to 3.5mm jack adapter 1x AC adapter and power cord 1x Remote control |
| Input | XLR |
| Input | RCA |
| Output | XLR |
| Output | Jack 4.4mm |
| Output | RCA |
| Output | Jack 6.35mm |
| Color | Black |
| Class | Class A / AB |
| Remote Control | Yes |
