Douk Audio K5 DAC Headphone Amplifier

New
The Douk Audio K5 is a DAC headphones amplifier based on an audiophile chipset for excellent performance. Its chipset comprises an ES9038Q2M DAC chip, a SA9312 DSP, an OPA1678 OPA and an SGM8262 amplifier chip. It is therefore able to support high-resolution sampling rates up to PCM 32 bit 384kHz and DSD256, while delivering up to 560mW of power @ 32 ohm, i.e. output power capable of powering audio headphones or IEMs with an impedance of 16 to 600 ohm.

No customer reviews yet, login to write a review.

By buying this product you get 9 loyalty points


Yes, notify me when available !
Reference : 20723
New product

99,00 €tax incl.

82,50 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Douk Audio K5 DAC Headphone Amplifier ES9038Q2M + SA9312 32bit 384kHz DSD256

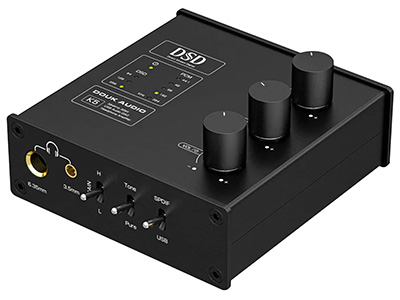

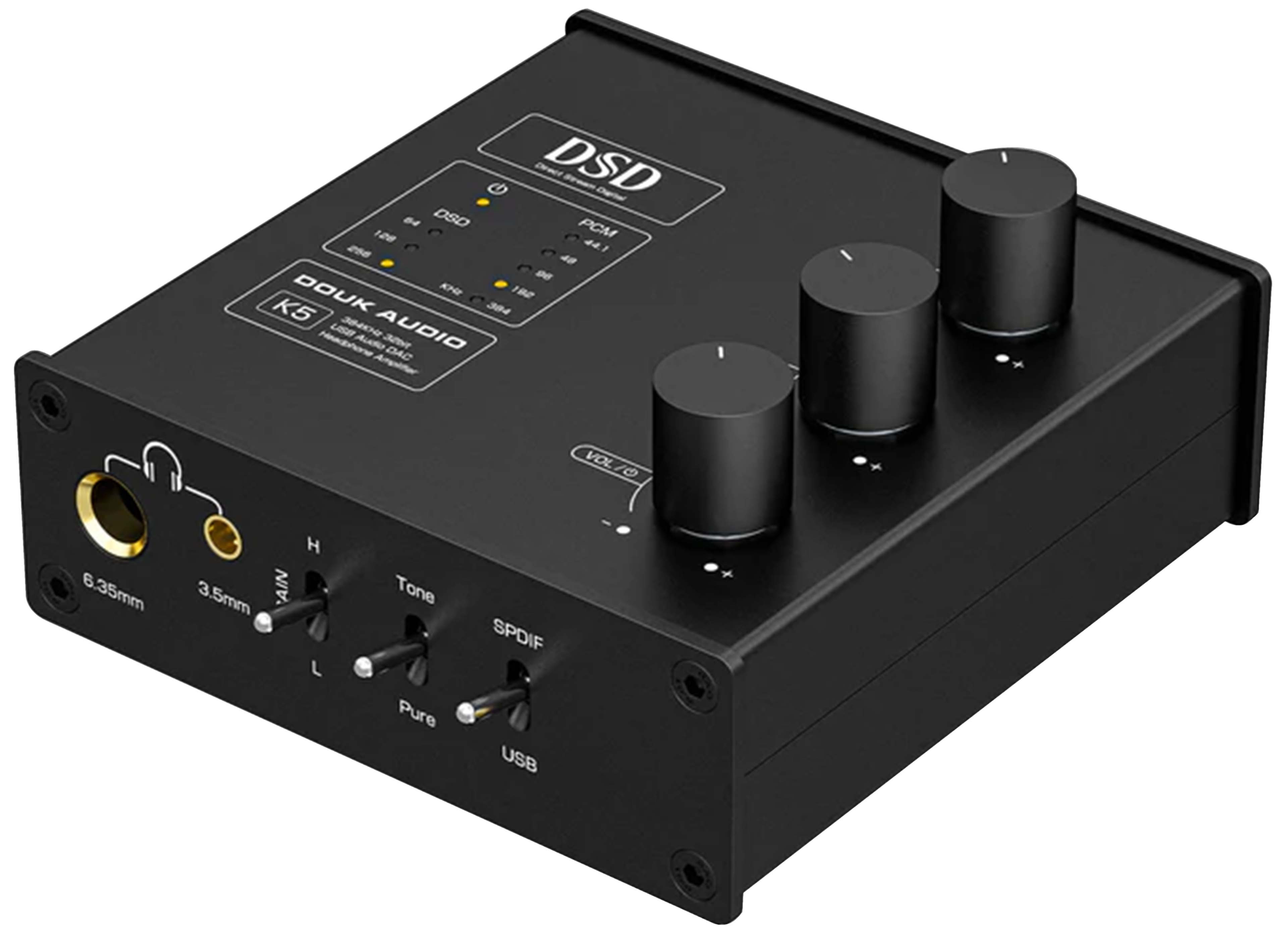

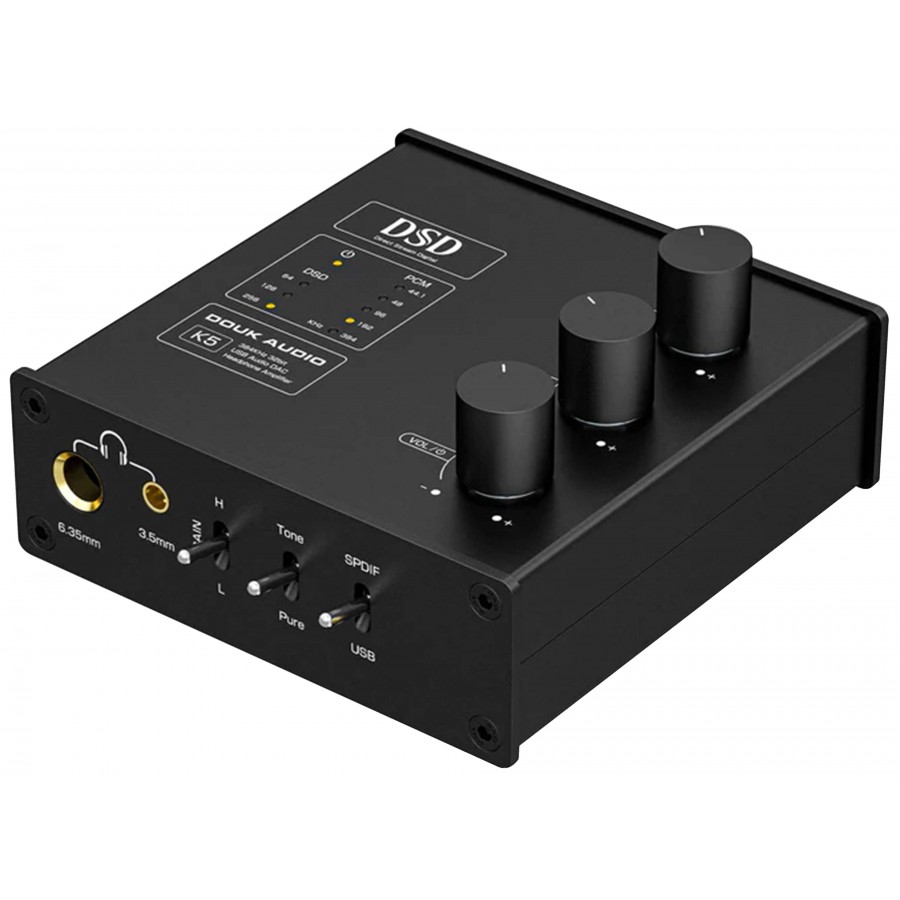

Douk Audio K5 picture

The Douk Audio K5 is a DAC headphones amplifier based on an audiophile chipset for excellent performance. Its chipset comprises an ES9038Q2M DAC chip, a SA9312 DSP, an OPA1678 OPA and an SGM8262 amplifier chip. It is therefore able to support high-resolution sampling rates up to PCM 32 bit 384kHz and DSD256, while delivering up to 560mW of power @ 32 ohm, i.e. output power capable of powering audio headphones or IEMs with an impedance of 16 to 600 ohm. Additional features include treble and bass tone control and gain adjustment. Furthermore, the Douk Audio K5's connectivity is quite extensive, with a USB-C input, a Toslink optical input, an RCA line output, a Toslink optical output and, of course, two headphones outputs: jack 3.5mm and jack 6.35mm. This desktop device is the perfect ally for anyone seeking audio quality and versatility of use.

Douk Audio K5: a high-performance DAC

Based on an ES9038Q2M chip and a SA9312 DSP/USB interface, the Douk Audio K5 supports sampling rates up to PCM 32bit 384kHz and DSD256, while offering an SNR of 121dB and a THD of just 0.0007% for rich, detailed, noise-free listening.

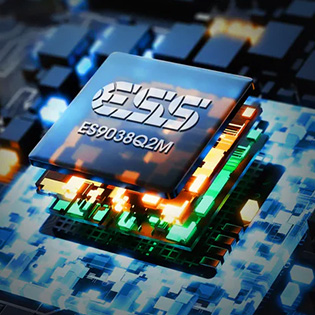

Photo of the Douk Audio K5 DAC chip

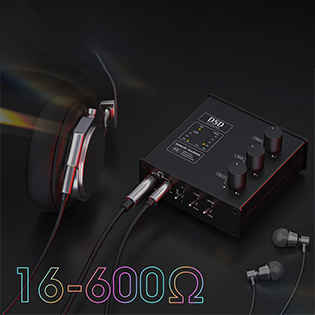

Douk Audio K5 in action with headphones

Douk Audio K5: a powerful headphones amplifier

On the headphone amplification side, OPA1678 AOPs and an SGM8262 amplifier chip deliver output power of up to 560mW @ 32 ohm on its 6.35mm jack headphone output, and up to 470mW @ 32 ohm on its 3.5mm jack headphone output. This power capability makes it compatible with many of the headphones and IEMs available on the market, whether they have an impedance of 16 ohms or 600 ohms.

Douk Audio K5: additional features

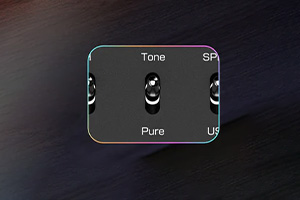

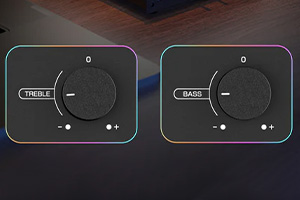

Tone control

Tone control

Thanks to two potentiometers, the user can adjust the bass and treble for a personalized rendering, or bypass the function so as not to distort the audio signal.

Gain control

Gain control

A Low (L) / High (H) gain control adjusts the headphones outputs to -6dB or 0dB.

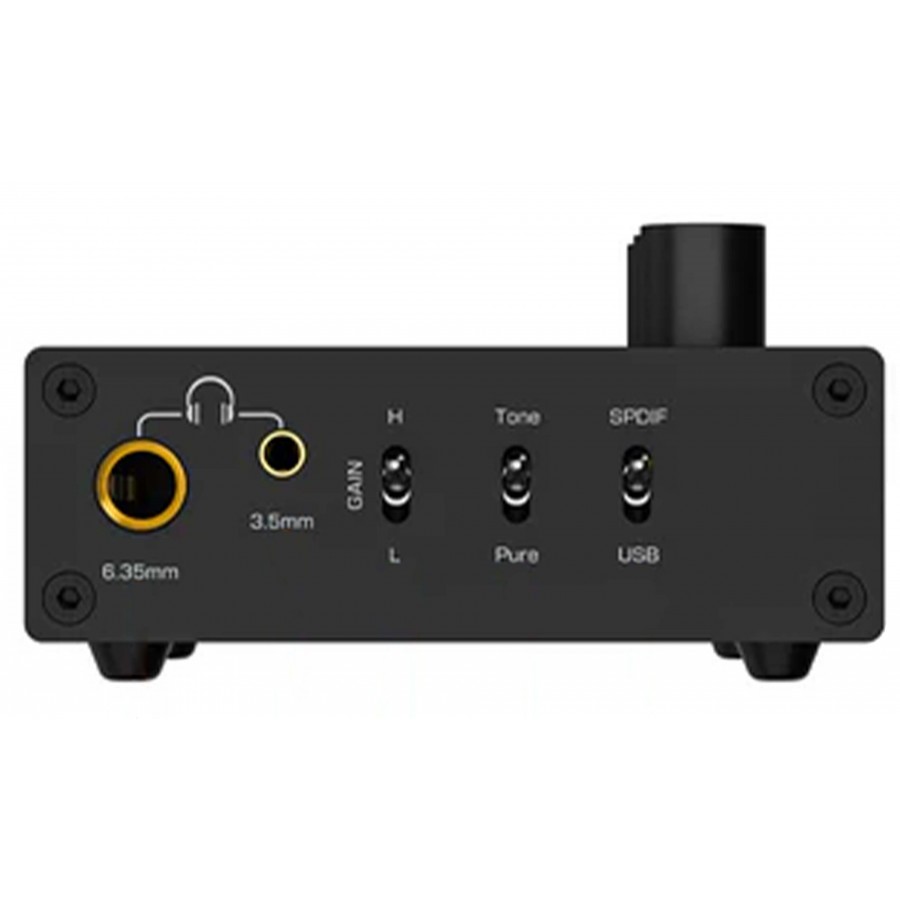

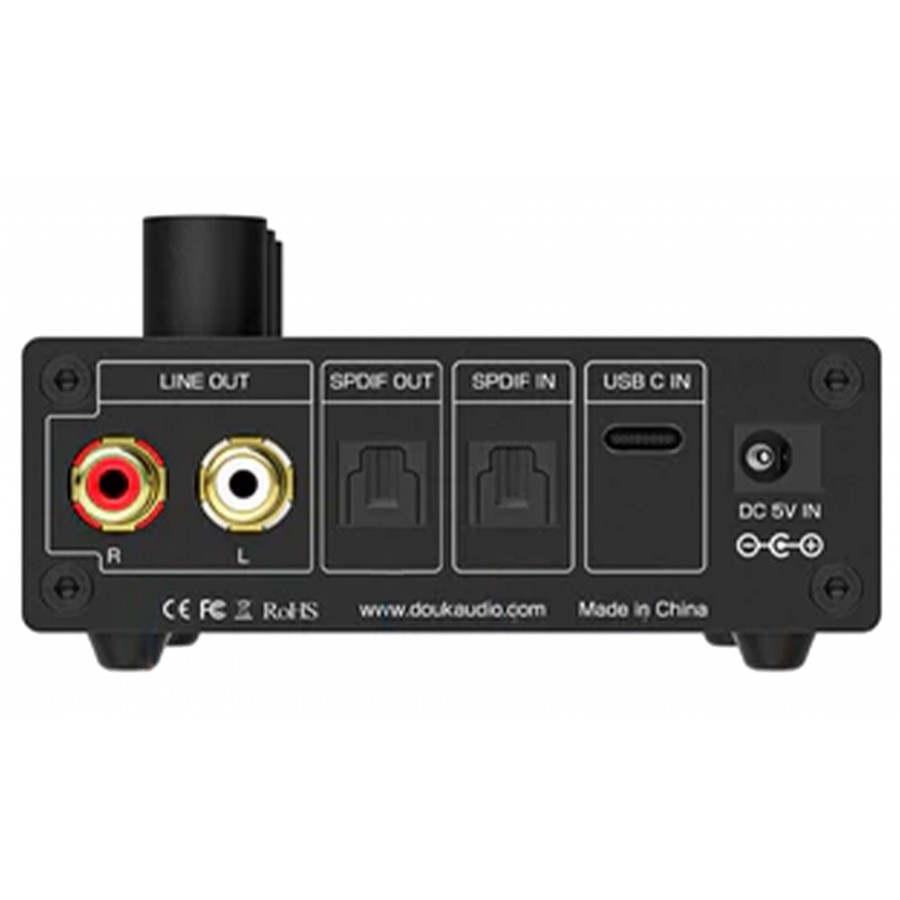

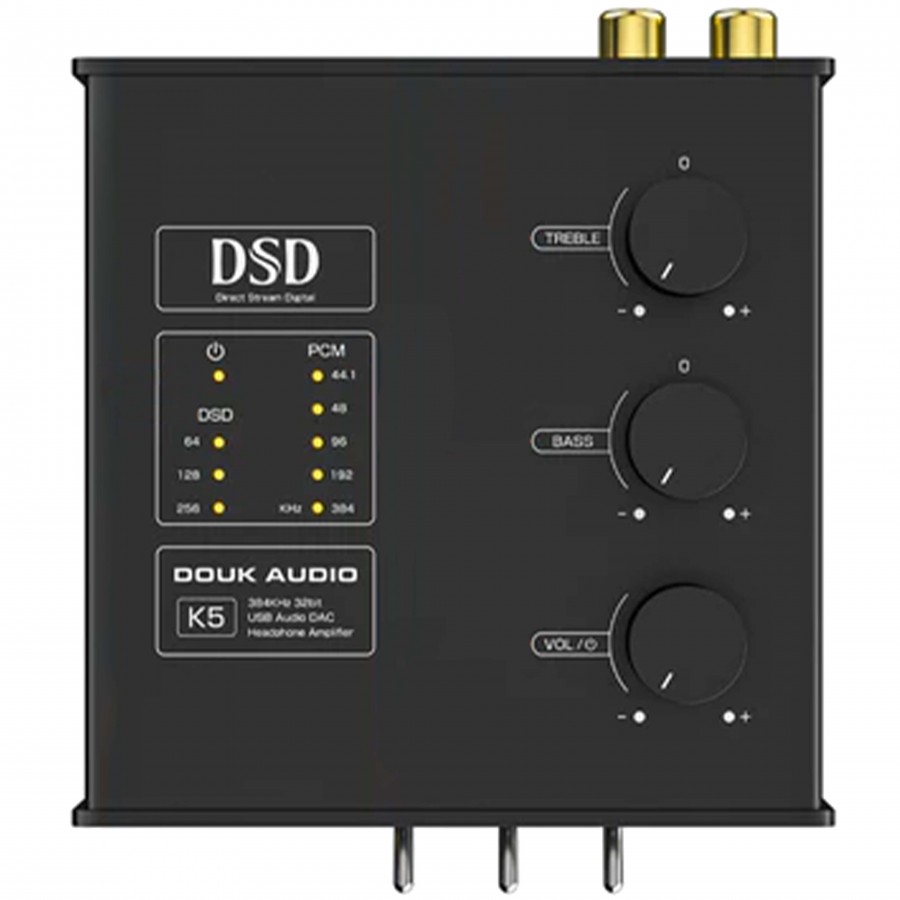

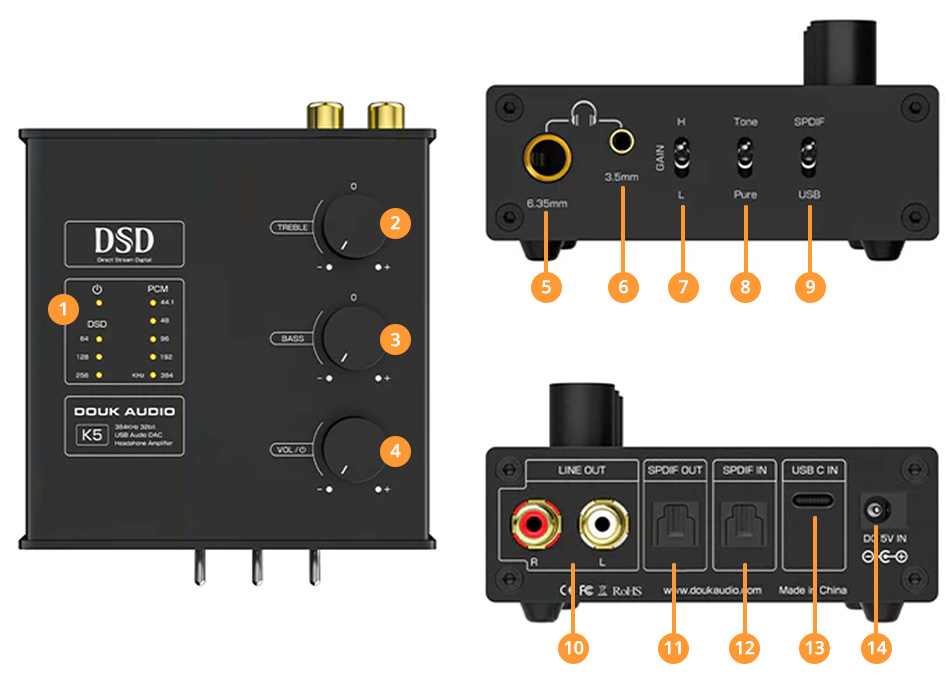

Douk Audio K5 overview

Douk Audio K5 overview
1Operating indicator LEDs
2Treble adjustment potentiometer
3Bass adjustment potentiometer
4Power on / volume control
56.35mm jack headphones output
63.5mm headphones output
7Gain adjustment
8Bypass activation or tone setting
9USB / Toslink input selector
10RCA output
11Toslink optical output
12Toslink optical input
13USB-C input
14Power supply 5V ≥2A via DC jack

Technical characteristics

Specifications
Product typeDAC Headphone amplifier
DAC chipES9038Q2M
USB interface / DSPSA9312
OPAOPA1678
Headphone amplifierSGM8262
Inputs1x USB-C input
1x Toslink optical input
Outputs1x RCA line output
1x Toslink optical output

1x 6.35mm headphones output
1x 3.5mm headphones output
Supported sample ratesUSB : PCM 32bit 384kHz, DSD256
Optical Toslink : PCM 24bit 192kHz, DSD DoP64
Frequency response20-40kHz (±0.3dB)
Treble adjustment3K-20KHz / ±10dB
Bass adjustment20-250Hz / ±10dB
Recommanded impedance16-600Ω
RCA ouput specifications
Output level2Vrms
THD+N< 0.0007%
SNR> 120dB
Channel separation< -80dB
Noise level<3μV (1KHz@300ohm)
Headphones output specifications
Gain settingsHigh (0dB) / Low (-6dB)
Output power (High gain / THD+N < 1%)6.35mm jack : 560mW @32Ω
3.5mm jack : 370mW @32Ω
Max. output voltage6.35mm jack : 4.25Vrms @ 32 ohm
3.5mm jack : 3.45Vrms @ 32 ohm
THD+N< 0.0008% @ 32Ω
SNR> 121dB @ 32Ω
Channel separation< -65dB @ 32Ω
Noise floor< 3μV
General
Power supplyDC 5V (≥2A) via jack DC 5.5*2.1mm or USB-C
Dimensions95*92*50mm
Net weight228g

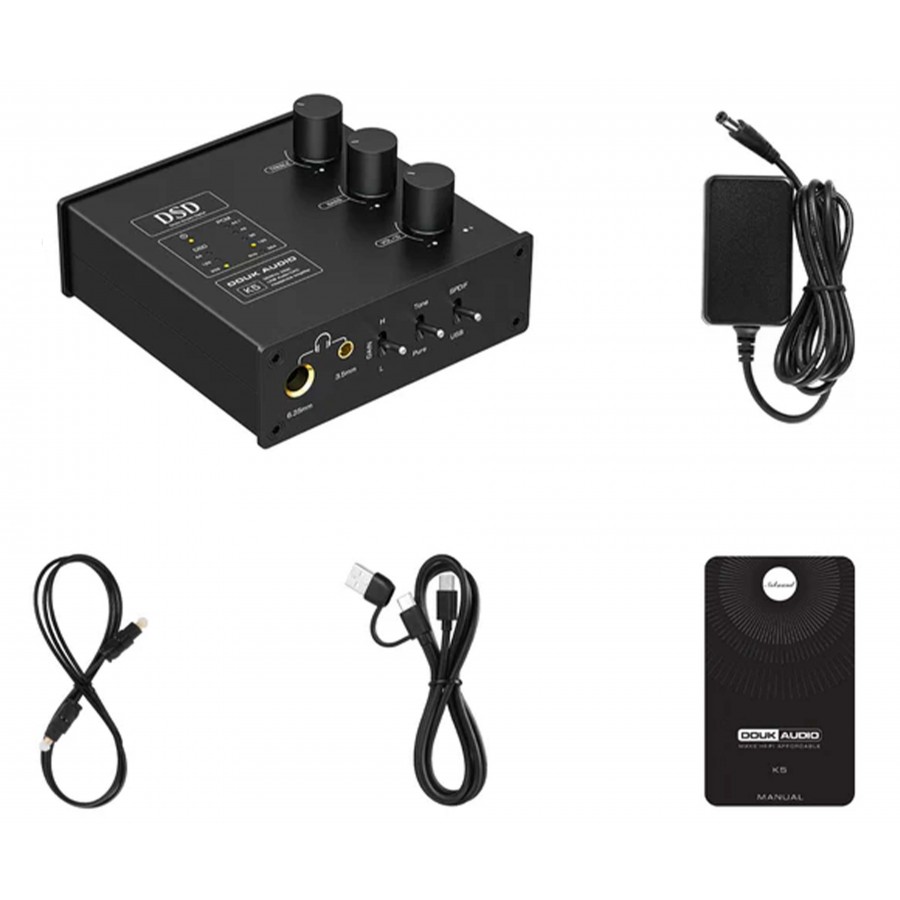

Package1x DAC Headphones amplifier K5
1x USB cable
1x Toslink optical cable
1x Mains adapter

Data sheet
InputOptical
InputUSB
OutputRCA
OutputJack 6.35mm
OutputOptical Toslink
OutputJack 3.5mm
DAC / ADC ChipES9038Q2M
Max sampling rateDSD256
Max sampling rate384kHz
ColorBlack
ClassClass D / T
NetworkingNo
Remote ControlNo
