FOSI AUDIO C3 DAC Headphone Amplifier
By buying this product you get 14 loyalty points
Fosi Audio C3 DAC Headphone Amplifier CS43131 XMOS XU316 2xTPA6120 20Hz-20kHz 32bit 384kHz DSD256
The Fosi Audio C3 is a DAC with integrated headphone amplifier designed for high-resolution conversion and dedicated amplification in a gaming environment. It supports high-resolution streams up to PCM 32bits 384kHz and DSD256 via its USB-C interface, relying on an XMOS XU316 architecture combined with a CS43131 chip in order to produce a detailed and stable signal, while the optical and coaxial inputs allow extended use with other sources in PCM 24bits 192kHz.
Designed for gaming and multimedia use, it combines headphone amplification, audio processing and accessible adjustments, allowing improved perception of useful in-game sounds while adapting the rendering to user preferences. This approach extends with two TPA6120 amplifiers delivering up to 2x320mW under 32Ω, ensuring compatibility with headphones from 16 to 300Ω, while spatialization functions and equalization via application facilitate integration into a setup focused on immersion and sound precision.
Fosi Audio C3: Performance and Amplification

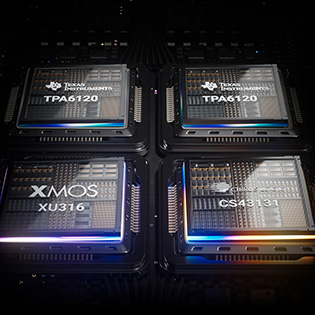

The Fosi Audio C3, thanks to its XMOS XU316 USB interface and CS43131 DAC chip, supports high-resolution audio streams up to PCM 32bits 384kHz and DSD256 via its USB-C input. The Toslink optical and SPDIF coaxial inputs support PCM up to 24bits 192kHz. The C3 thus provides an audiophile listening experience with faithful reproduction of details.
The circuit integrates two TI TPA6120 chips, allowing its 3.5mm jack headphone output a power of 2x320mW under 32Ω, enabling it to drive a wide range of headphones and earphones while revealing subtle details in gaming audio.
Fosi Audio C3: Gaming-oriented Features
Primarily designed for gaming use, the C3 integrates the StepSense™ feature allowing improved detection and amplification of footsteps, combined with multichannel support via activation of 7.1 audio enabling better distance perception and enhanced immersion.

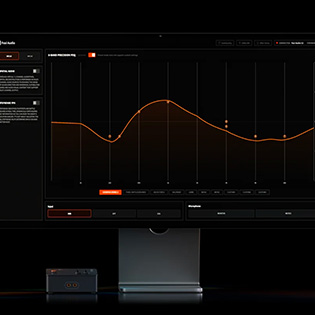

To support these features, the C3 is compatible with a web application allowing configuration through presets or via equalization controls.

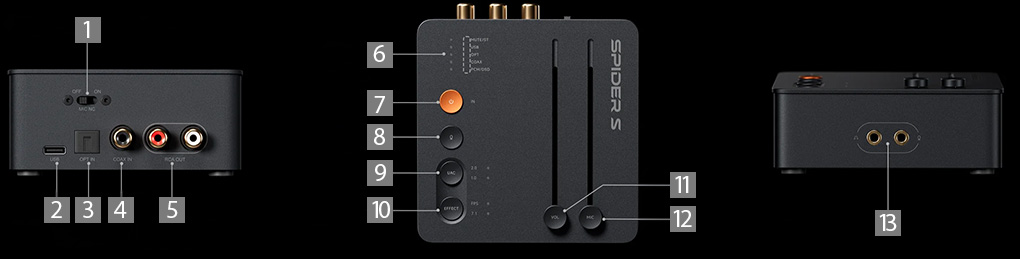

Overview of the Fosi Audio C3
| 1 | AI Noise reduction switch (ANC) |
| 2 | USB power input |
| 3 | Optical input |
| 4 | Coaxial input |
| 5 | RCA output |
| 6 | Indicators |
| 7 | On / Off / Input mode selector |
| 8 | Microphone mute button |
| 9 | UAC mode selector |
| 10 | FPS / 7.1 selector |
| 11 | Main volume control |
| 12 | Microphone level control |
| 13 | 3.5mm jack headphone and microphone |
Technical specifications
| Specifications | |
|---|---|
| Product type | DAC Headphone amplifier |
| USB interface | XMOS XU316 |
| DAC chip | Cirrus Logic CS43131 |
| Amplification chips | 2x Texas Instrument TPA6120 |
| Inputs | 1x USB-C (Power and Data) 1x Optical Toslink 1x Coaxial 1x 3.5mm Jack microphone input |
| Outputs | 1x Stereo RCA line output 1x 3.5mm Jack headphone output unbalanced |
| Supported sample rates | USB: PCM up to 32bit 384kHz, DSD up to DSD256 Optical Toslink / Coaxial: PCM up to 24bit 192kHz |
| Recommended headphone impedance | 16-300Ω |
| 3.5mm Jack unbalanced headphone output | |
|---|---|
| Output power | L+ R ≥ 2x 320mW (32Ω/THD+N<1%) |
| SNR | 123dB |
| THD+N | < 0.0004% |
| Dynamic range | 123dB |
| Noise level | ≤ 3μV |
| Frequency response | 20Hz-20kHz (±0.06dB) |
| RCA line output | |
|---|---|
| Output level | ≥ 2Vrms |
| SNR | 124dB |
| THD+N | < 0.0005% |
| Dynamic range | 124dB |
| Noise level | ≤ 3μV |
| Frequency response | 20Hz-20kHz (±0.1dB) |
| General | |
|---|---|
| Power supply | 5V DC |
| Dimensions | 94 x 93.8 x 43.8mm |
| Color | Black |
| Package contents | 1x Fosi Audio C3 1x USB-A/C to USB-C cable 1x 3.5mm Jack Y-split cable |
| Input | Jack 3.5mm |
| Input | Optical |
| Input | USB |
| Input | SPDIF |
| Output | Jack 3.5mm |
| Output | RCA |
| DAC / ADC Chip | CS43131 |
| Max sampling rate | DSD256 |
| Max sampling rate | 384kHz |
| Color | Black |
| Class | Class A / AB |
| Networking | No |
| Remote Control | Control app |
| Remote Control | No |
