SABAJ A10H Headphone Amplifier Class AB 1W 32 Ohm

SABAJ A10H Headphone Amplifier Class AB 1W 32 Ohm
Sabaj completes its A10 range with the A10h headphone amplifier, a high quality model based on an optimized architecture using carefully selected audio components. The amplifier uses a linear feedback circuit ensuring a very low level of distortion for an extremely precise and particularly transparent reproduction.

Average votes for this product
5.0 / 5

By buying this product you get 12 loyalty points


Reference : 15761
New product

129,00 €tax incl.

107,50 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 05-03-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Sabaj A10h

Headphone Amplifier Class AB 1W 32Ω

Sabaj A10h Amplificateur Casque Class AB 1W 32Ω

Sabaj completes its A10 range with the A10h headphone amplifier, a high quality model based on an optimized architecture using carefully selected audio components. The amplifier uses a linear feedback circuit ensuring a very low level of distortion for an extremely precise and particularly transparent reproduction.

Moreover, the A10h has a nice energy reserve allowing it to accompany very sensitive headphones or high impedance headphones. Its gain level is also adjustable in 3 levels, depending on the listening device used.

Sabaj A10h Amplificateur Casque Class AB 1W 32Ω

Two output mode

The A10h has two output modes: Pr0 for the headphone output and Pr1 for the RCA pre-out. The latter allows the connection to active speakers. The volume of each output mode is independent.

Sabaj A10h Amplificateur Casque Class AB 1W 32Ω

256-level relay volume control

The A10h features a low noise, high precision 256 level relay volume controller. This design allows for non-destructive volume control, having no negative impact on the sound reproduction of the device.

Sabaj A10h Amplificateur Casque Class AB 1W 32Ω
Sabaj A10h Amplificateur Casque Class AB 1W 32Ω

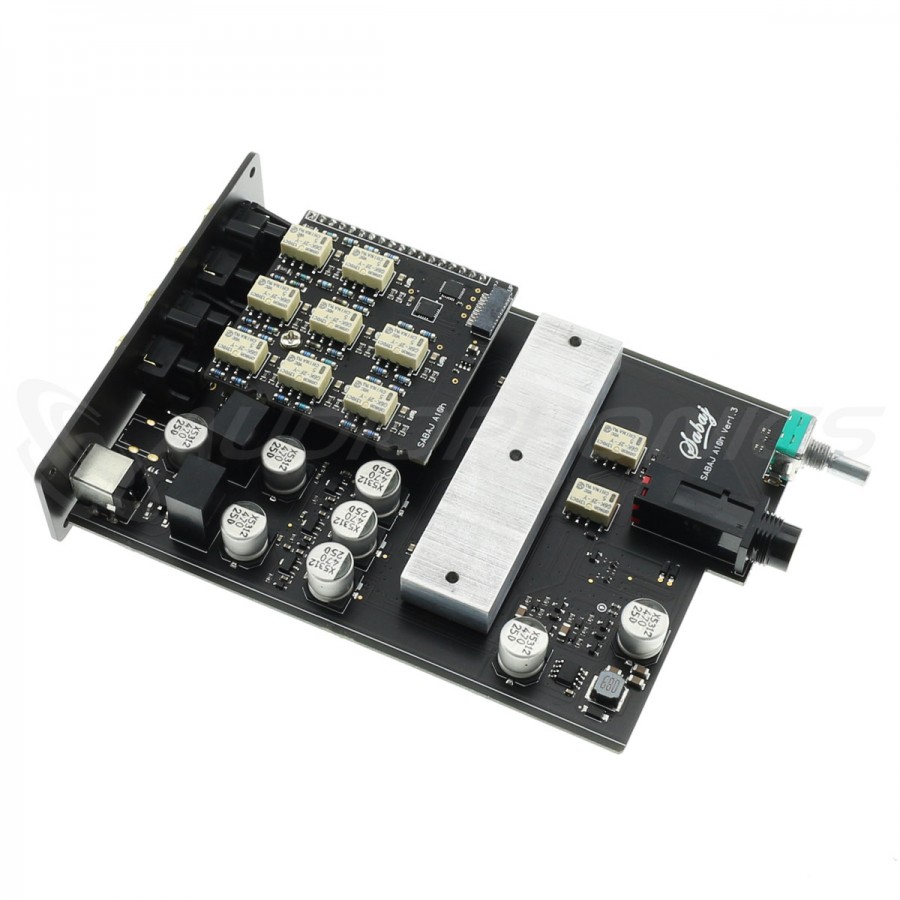

TPA6120A2 Amplifier

The amplifier stage of the Sabaj A10h is based on a TI TPA6120A2 amplifier chip with a Class AB structure. It is capable of providing a wide bandwidth, low noise and a wide dynamic range of 128dB.

A neat power supply stage

The power supply stage has also been optimized to provide the audio circuits with a clean and stable electrical signal. This is essential for a rich and neutral sound reproduction.

Sabaj A10h Amplificateur Casque Class AB 1W 32Ω
Sabaj A10h Amplificateur Casque Class AB 1W 32Ω
1IR Receiver
2Display
3RCA Input
4RCA Pre-Out
5Multi-function button
615VDC Power supply input


Technical characteristics

Specifications
Product typeHeadphone amplifier
Input1x Stereo RCA
Outputs1x Stereo RCA
1x Jack 6.35mm headphone output
Output power2W @ 16Ω
1W @ 32Ω
500mW @ 300Ω
250mW @ 600Ω
SNR130dB
Output noise2.1µV
THD+N-121dB, 0.00005% (1kHz, 32Ω)
-117dB, 0.0001% (20Hz-20kHz, 32Ω, -1dB)
THD< -125dB, 0.00006%
Input impedance47kΩ
Output impedanceNear 0Ω
Pre-out impedance 47Ω
Frequency response20Hz - 500kHz (-3dB)
GainLow : -6dB
Middle : 0dB
High : +9dB
General
Supply voltage15VDC
Consumption< 18W
Standby consumption< 0.1W
Dimensions100 x 165 x 32mm
Weight380g
ColorBlack
Package1x Sabaj A10h
1x Power supply
1x Remote control

THD+N

xxx

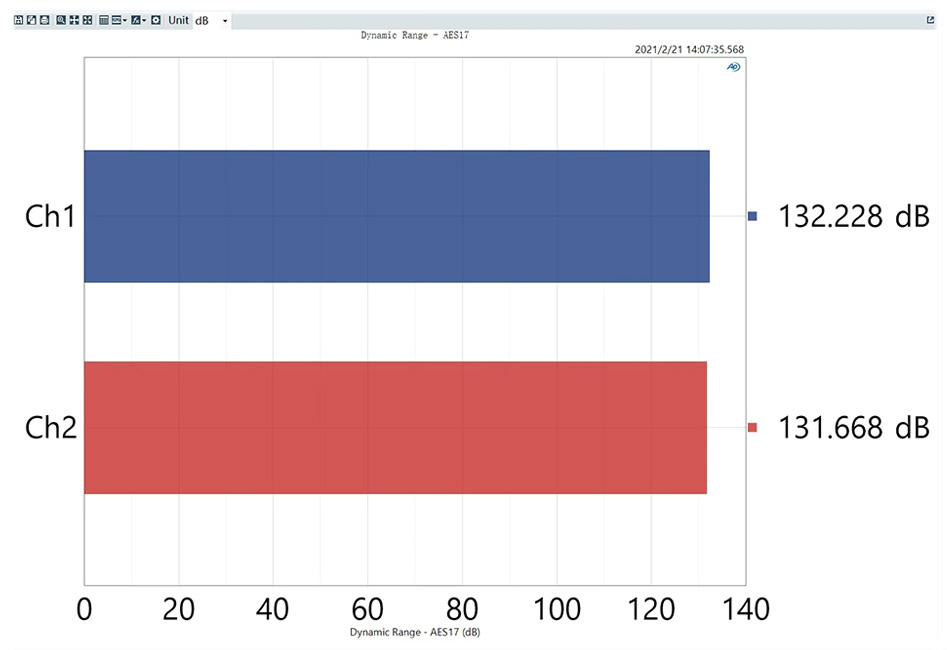

Plage dynamique

E1DA Cosmos ADC Symétrique ES9822Pro 32bit 384kHz

Réponse en fréquence

E1DA Cosmos ADC Symétrique ES9822Pro 32bit 384kHz

Data sheet
InputRCA
OutputJack 6.35mm
OutputRCA
ColorBlack
ClassClass A / AB
Remote ControlYes

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Bien mais pas parfait.
Utilisé principalement pour sa fonction contrôleur de volume entre un Topping D10S et un bloc stéréo Hypex.
Le Sabaj ne masque rien et semble apporter plus de réalisme et de cohérence à la scène sonore. C'est vraiment bon et convainquant.
Il apporte vraiment un plus à l'écoute,
Quelques points négatifs:
La télécommande est assez directive.
Un changement de volume déclenche des cliquetis assez audibles dans le boitier.
Et surtout un léger buzz dans les tweeters ou les compressions qui doit être signalé, indépendant du réglage de volume et inexistant si je branche le D10S directement sur l'amplificateur.
Cela s'est en partie résolu par l'utilisation de câble Mogami RCA vers les entrées XLR du Hypex. (STI400)
Attention sur mon installation les câbles bas de gamme accentuent ce défaut. On l'entend à vide à plusieurs mètres avec des câbles premier prix.
Sinon l'appareil vaut largement son prix et mérite de ce fait ses 5 étoiles malgré ces petits défauts.
Quelques entrées supplémentaires auraient été un plus.
 (0)
 (0)
This review has been posted for SABAJ A10H Headphone Amplifier Class AB 1W 32 Ohm
Note :
 5/5
Date :
Sabaj A10h
This neutral sounding amplifier surprised me incredibly with its open soundstage and very good separation of musical instruments. Also surprised by the sound quality with my HD650 and HD58X (incredible musical definition). The volume returned was more than enough to appreciate the perfect compatibility and goodness of the Sabaj A10h and HD650.
Comparisons made with:
-Violectric HPA V200.
-OTL MegaHertz.
-Schiit modi Multibit.
-Khadas Tone Board.
-Austrian Audio Hi-X65.
-Avantone Planar.
-Equalizer APO.
Thank you very much David Aubert who always very professional in recommending the products.
