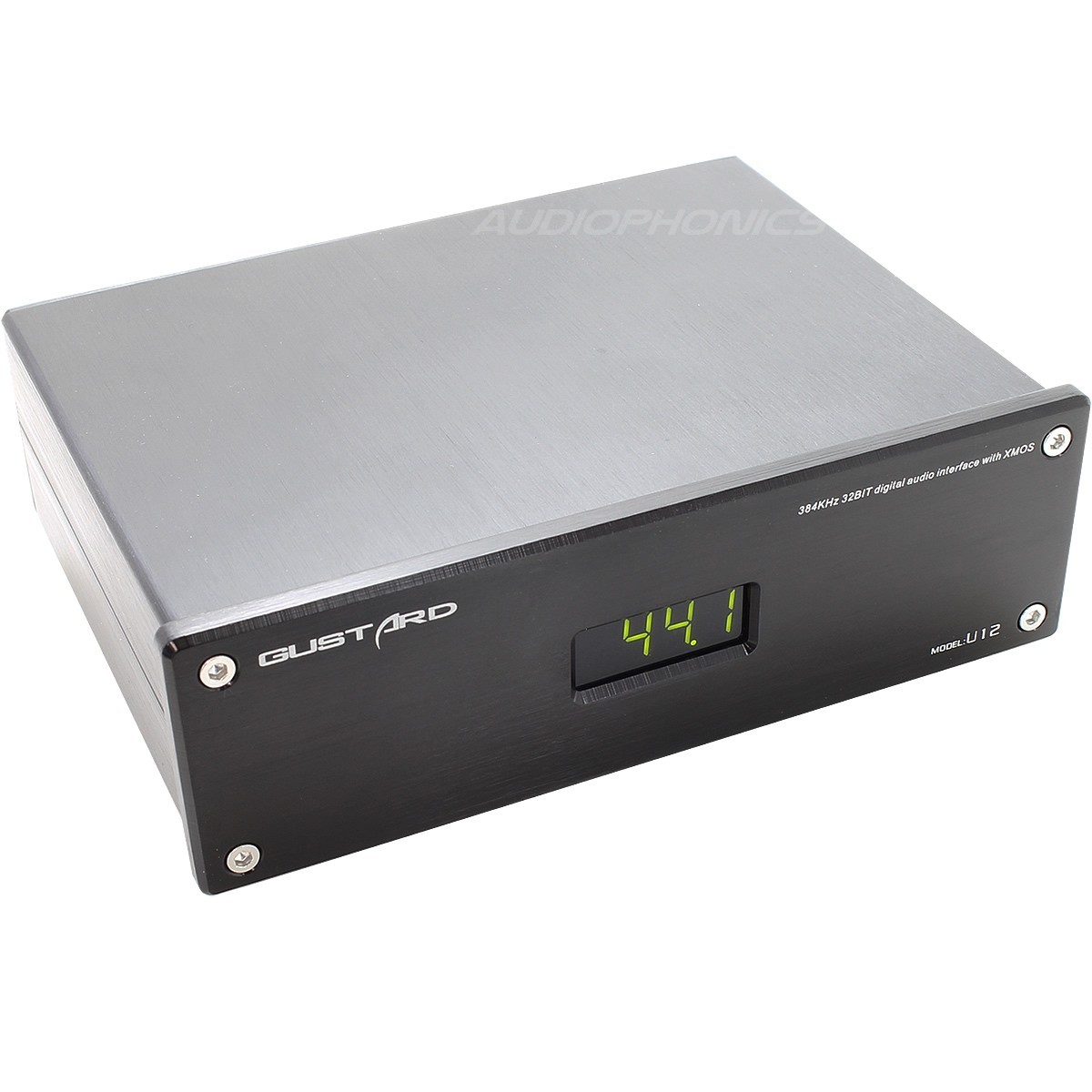

GUSTARD U12 XMOS USB interface I2S/SPDIF/AES EBU Out 32bit 384Khz

This USB interface Gustard U12 XMOS with a precision of 1PPM and a power of 500MIPS with FPGA processor offers a high level of resolution at a democratic price with a very low jitter.

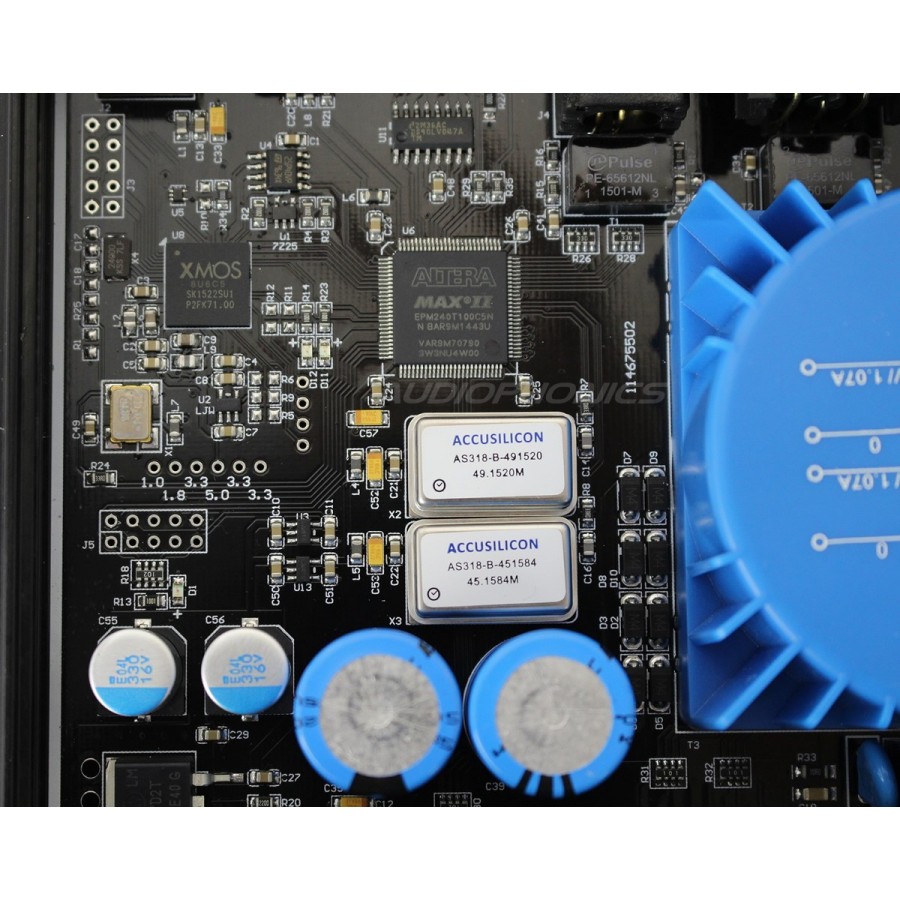

The quality of its components (two clocks XO 45.4584MHz and 49.1520MHz), its processorAltera MAX II FPGAwith 8MB of built-in memory, its isolation bridge on I2S output predestines its use on high-end Hi-Fi systems.

This Asynchronous USB interface decodes its I2S output of the DSD QUAD and DXD 32 bit 384Khz and totally ASIO bit perfect under Windows (requires a driver provided on mini CD).

This interface is largely repeated in the DAC gustard X20, the flagship of the brand.

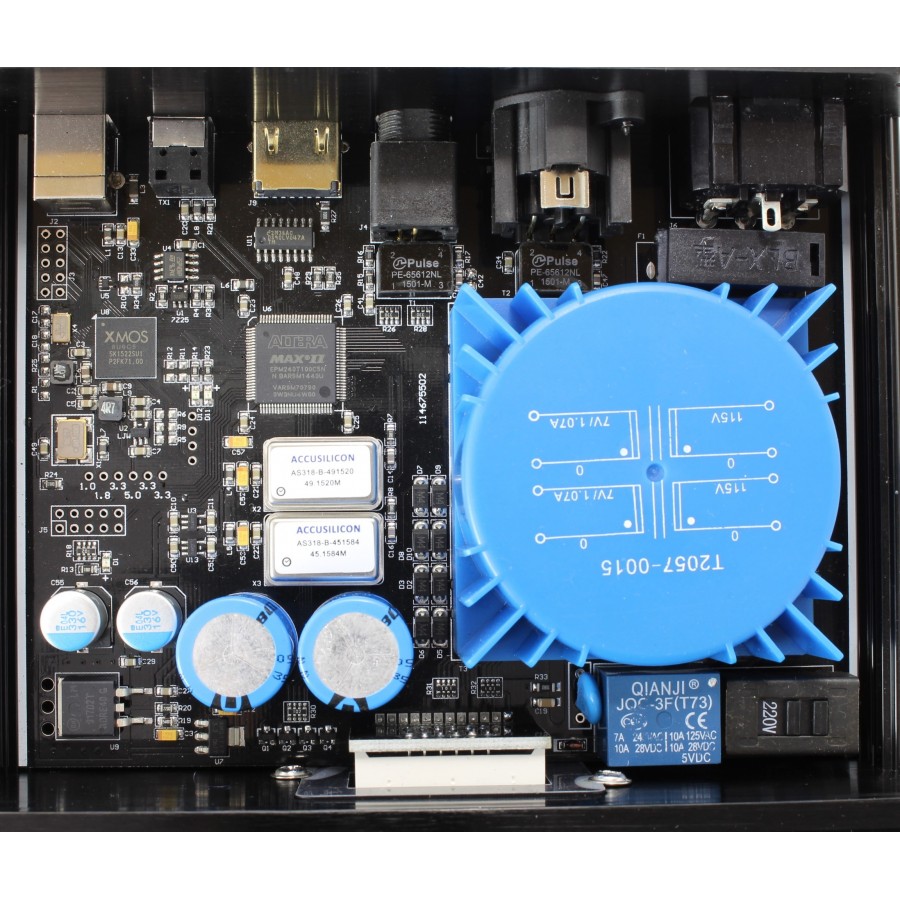

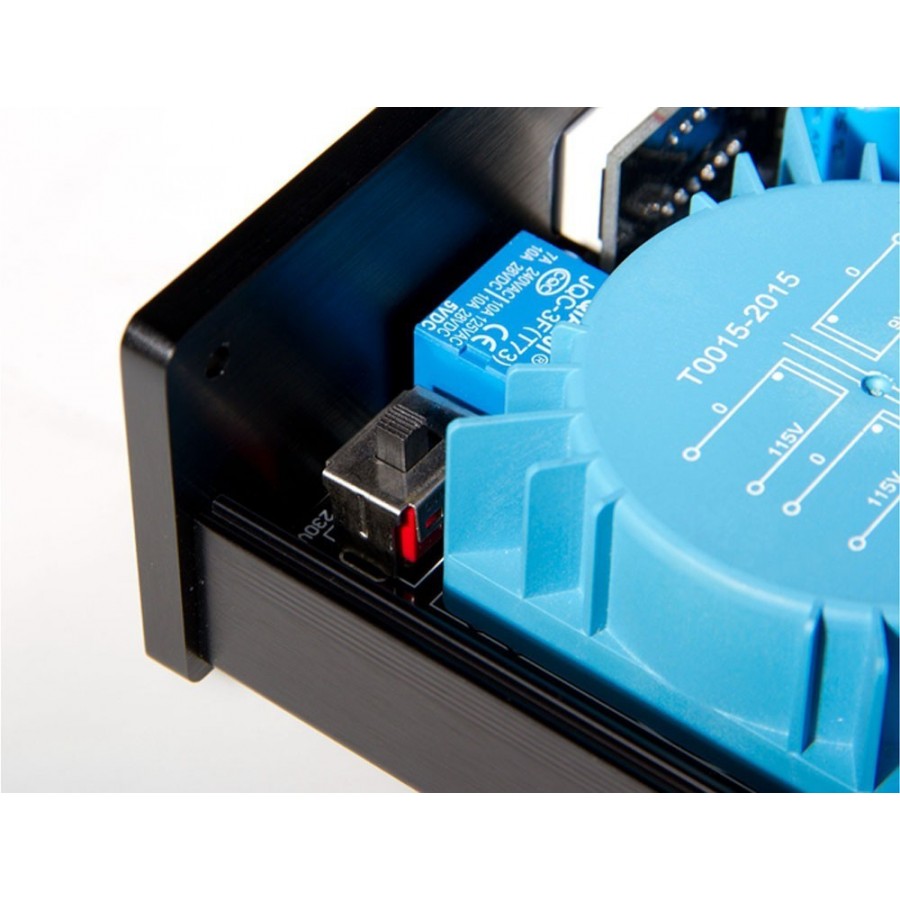

Its very neat linear power supply offers a very low level of noise guaranteeing the correct operation of the digital card preventing the jitter by electrical pollution.

An AES EBU I2S / HDMI USB interface dedicated to seasoned amateurs wishing to lose nothing of the integrity of their high definition dematerialized files.

HDMI / I2S compatibility :

The exitHDMI to I2S formatof the Gustard U12 XMOS interface is fully compatible with the entire range of DAC AUDIO GDand of courseGustard Audio.

Main Features :

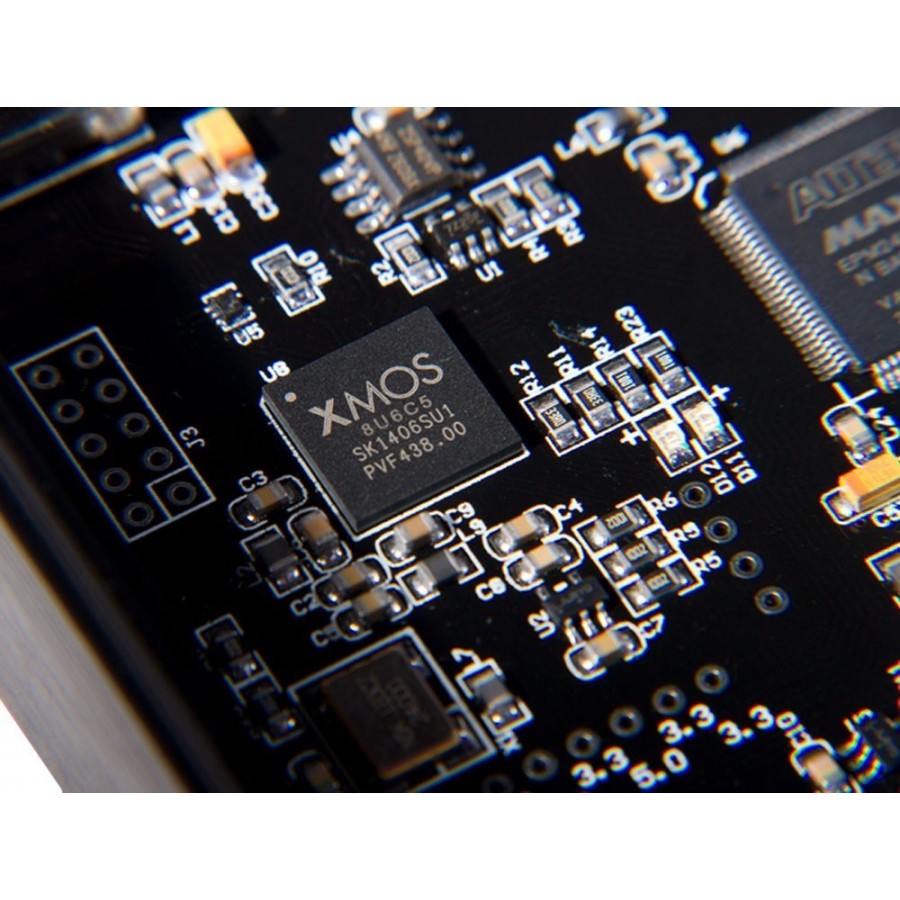

• USB interface type XMOS U8 32 bit 500MIPS with 8 cores 32Bit 384Khz.
• Double XO type clock full 45.4584Mhz and 49.1520Mhz (1PPM).
• Clock accuracy 45.4584Mhz: 0.167ps.
• Accuracy of the clock 49.1520Mhz: 0.205ps.

Digital Inputs:

One USB Audio class 2.0 input.

Digital Outputs:

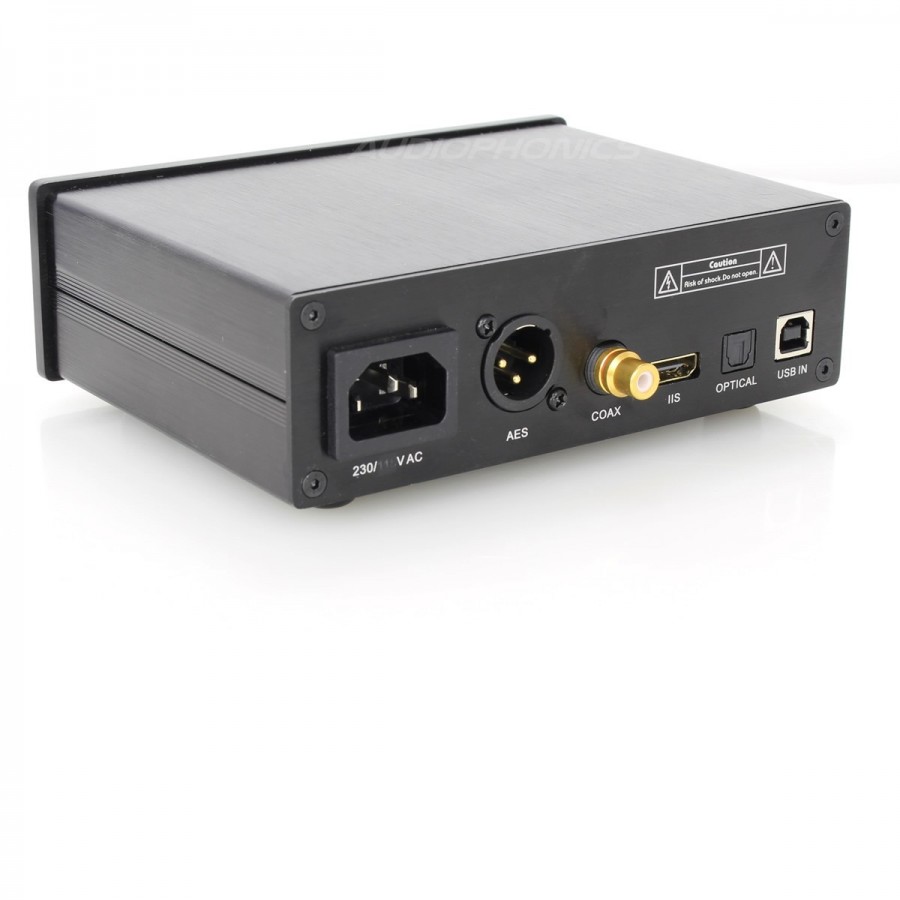

• An I2S output on HDMI (see wiring diagram) 32bit 384Khz.
• A standard output IEC60958 AES EBU 110Ohm XLR pins Gold plated 24bit 192Khz.
• A coaxial output to standard IEC60958 PTFE insulation 75Ohm Plated Gold 24bit 192Khz.
• A Toslink optical output with standard IEC60958 24bit 96Khz.

The bundle contains:

• An IEC power cord of 1m75.
• A mini CD containing the XMOS drivers.

Dimensions and weight:

• 225x190x80mm.
• Net weight 1kg.
• Weight with packaging 1.3kg.

[Img-17220-left-thickbox_default]

[Img-17219-left-thickbox_default]

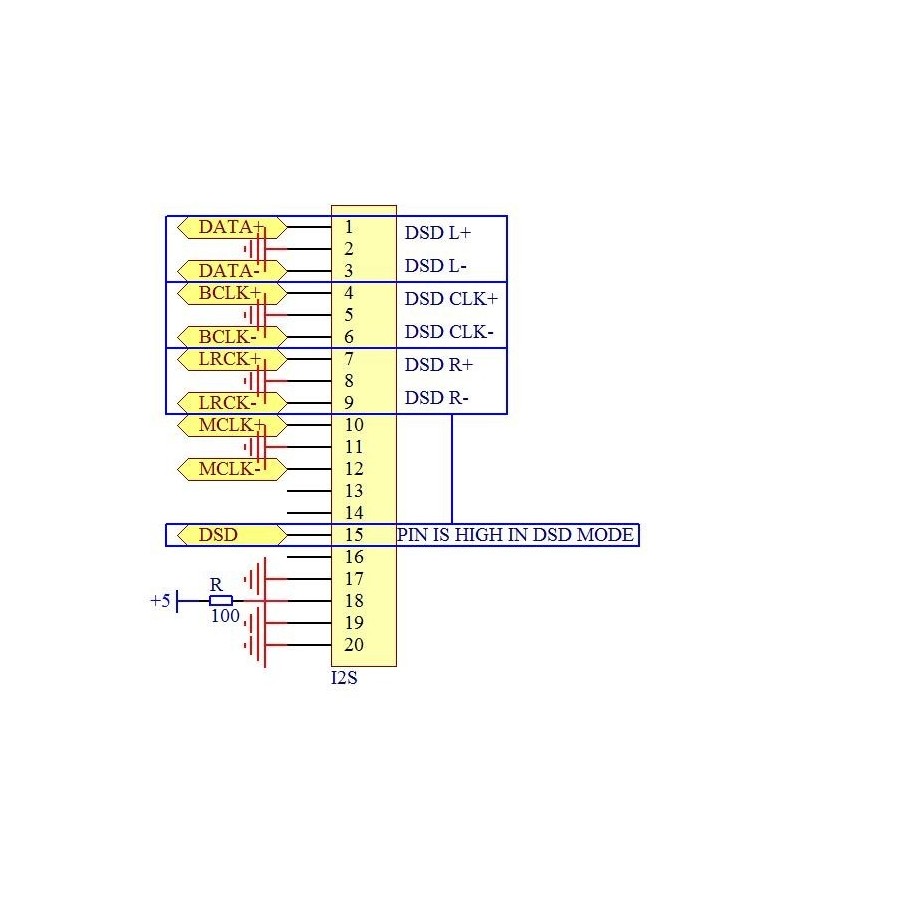

Output diagram I2S / HDMI.
