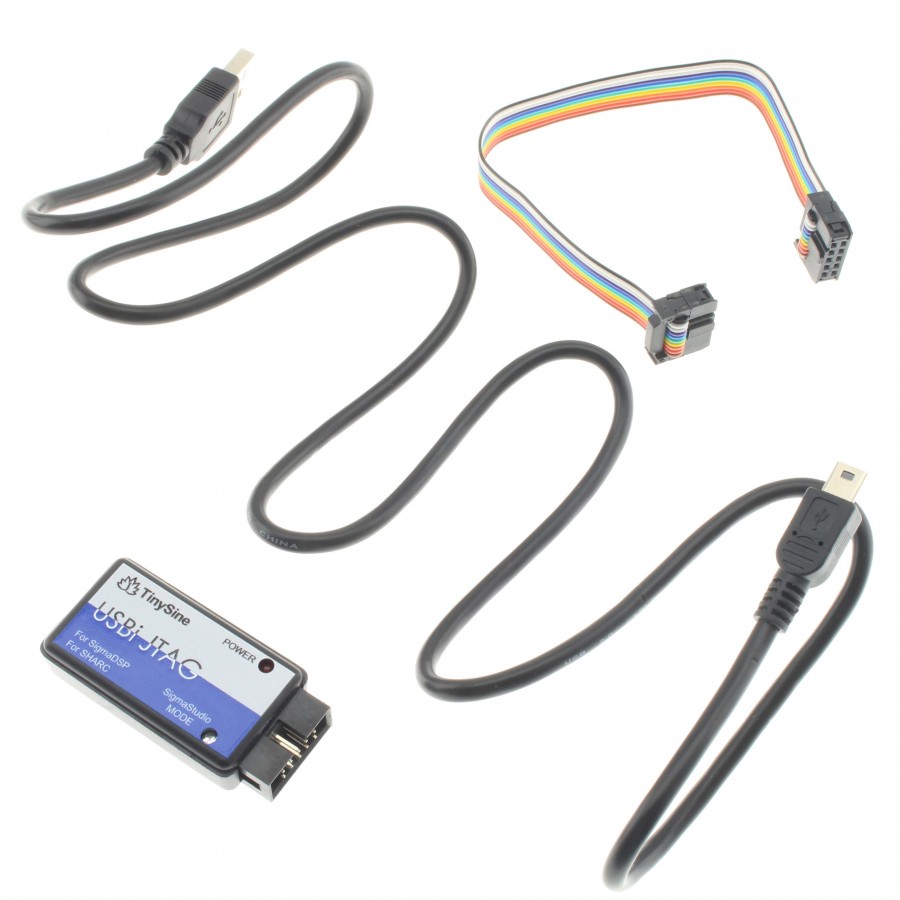

TINYSINE USBI JTAG DSP Sigma DSP Programmer

TINYSINE USBI JTAG DSP Sigma DSP Programmer
The USBi JTAG from TinySine is a USB programmer for DSP Sigma. It can be used to program chips using SigmaDSP signal processing technology. It is possible to use this programmer with the ADI SigmaStudio software. Experienced developers can use this tool to program their own firmware for a DSP module.

Average votes for this product
5.0 / 5

By buying this product you get 2 loyalty points


Reference : 14836
New product

23,90 €tax incl.

19,92 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 15-10-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

TinySine USBi JTAG

Programmateur Sigma DSP

TinySine USBi JTAG Programmateur Sigma DSP

The USBi JTAG from TinySine is a USB programmer for DSP Sigma. It can be used to program chips using SigmaDSP signal processing technology. It is possible to use this programmer with the ADI SigmaStudio software. Experienced developers can use this tool to program their own firmware for a DSP module.

Support of all SigmaDSP chipsets :

  • ADAU17xx Series
  • ADAU14xx Series
  • ADAU 144x Series
  • ADAU 145x Series
  • ADAU 146x Series
  • AD194x Series
  • DAU Series
Download ADI Sigma Studio

Technical characteristics

Specifications
Product typeSigma DSP programmer
Logic level3.3V
ConnectivityMini USB to SPI/I2C
Output voltage5V

Data sheet
InputUSB
OutputSPI
Max sampling rateNC
ColorBlack
ChannelN/A

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Très bien
Je l'utilise pour programmer un ADAU1701. La communication se fait parfaitement.
Attention, les alims sont en 5V.
Le pinout est imprimé sur le circuit imprimé:
I2C:
SCL pin1, SDA pin3, Reset pin 6, GND pin 10, 5V pin 4.
SPI:
MISO pin 5, MOSI pin 8, SCL pin 7, SS pin 9, Rst pin 6, Gnd pin 10 et 5V pin 4.
