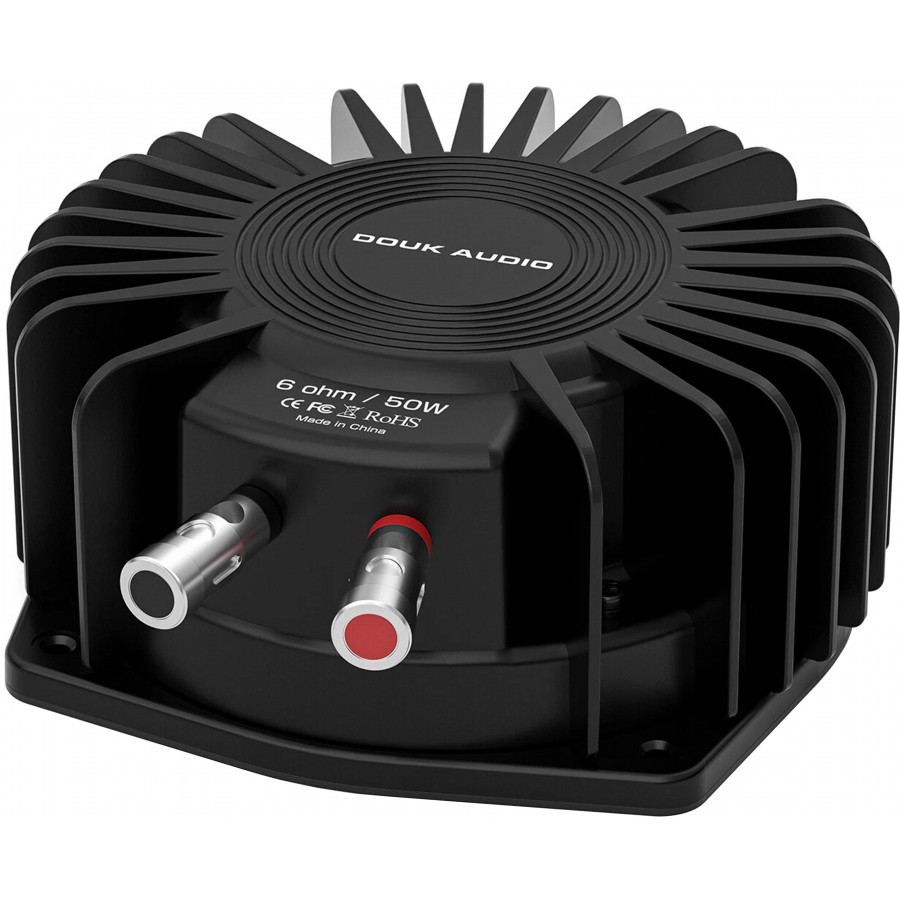

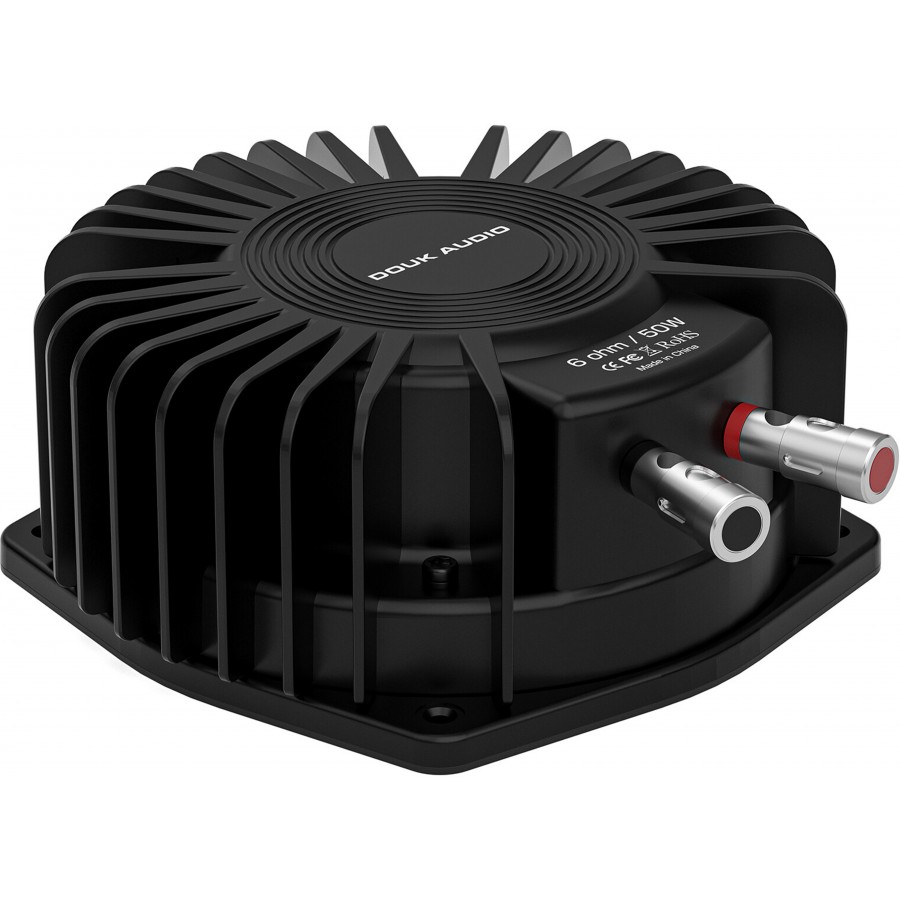

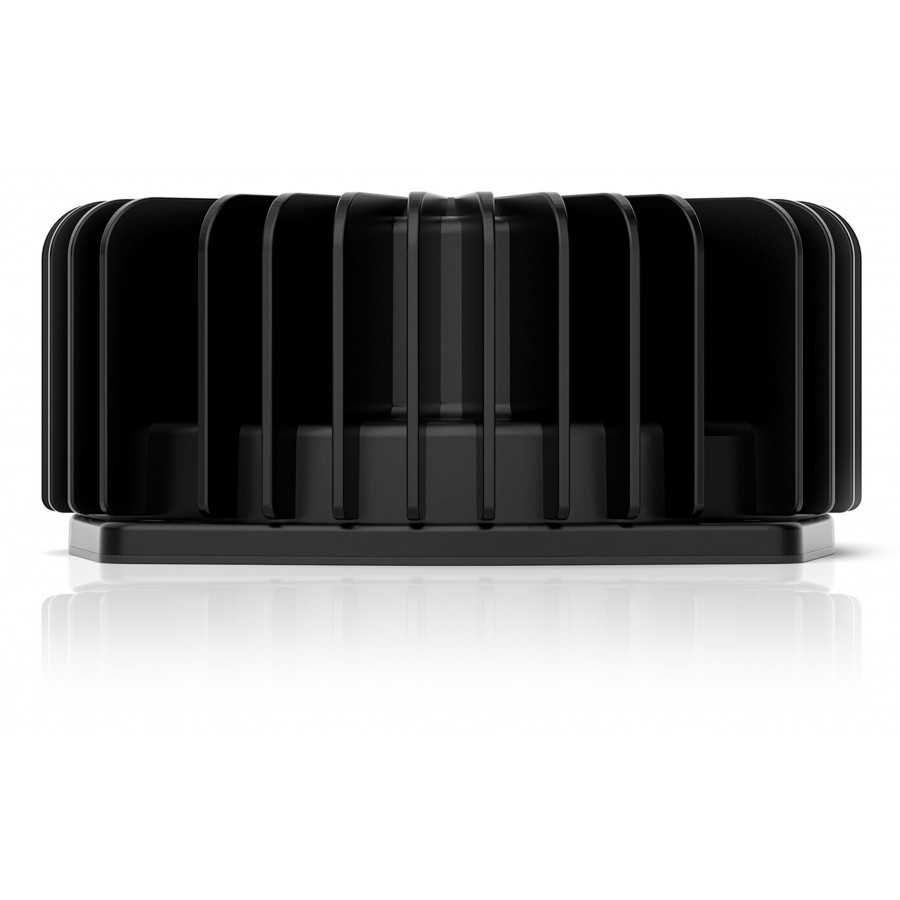

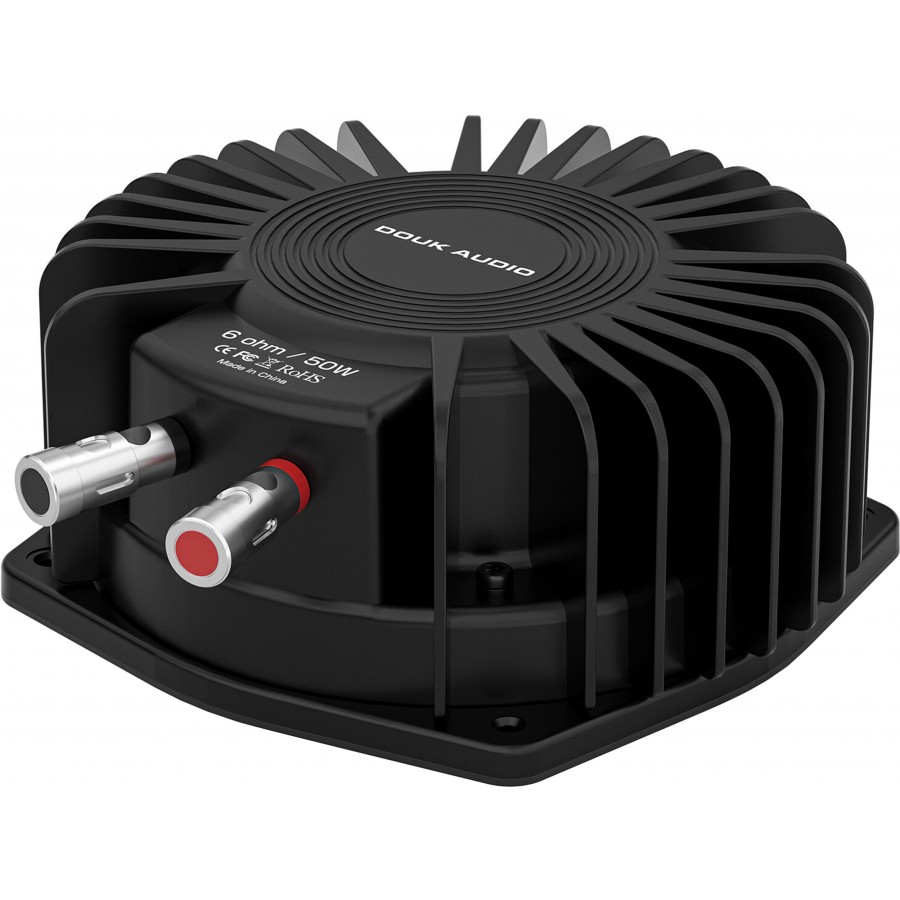

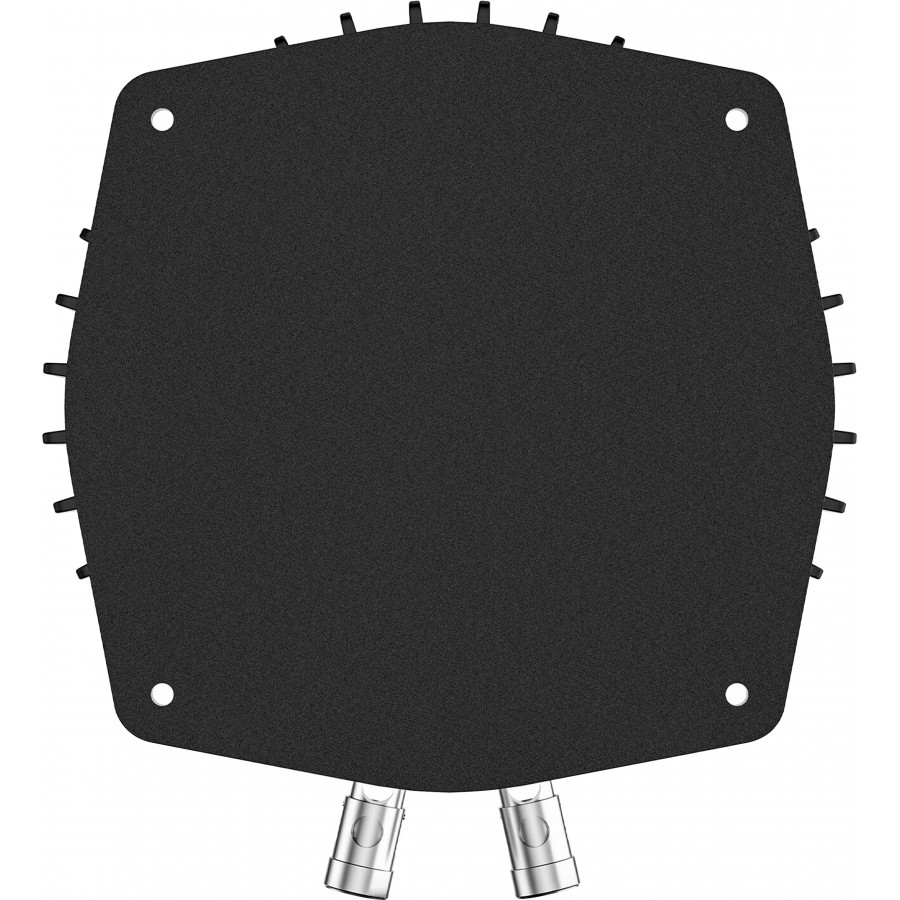

DOUK AUDIO BS-1 Speaker Driver Exciter Bass Shaker

New
This Douk Audio BS-1 bass shaker delivers deep, powerful bass. Combined with a suitable support and thanks to its perfectly controlled vibrations, it offers a particularly immersive rendering of low frequencies. More than just being heard, these frequencies can be felt for a listening experience of a whole new dimension. This type of vibrator is particularly appreciated in home cinema or gaming installations, where immersion is paramount.

No customer reviews yet, login to write a review.

By buying this product you get 5 loyalty points


Yes, notify me when available !
Reference : 20818
New product

56,90 €tax incl.

47,42 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Douk Audio BS-1 Speaker Driver Exciter Bass Shaker 50W 6 Ohm 20Hz-200Hz

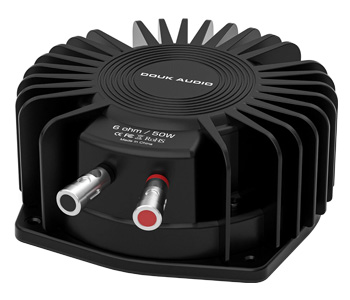

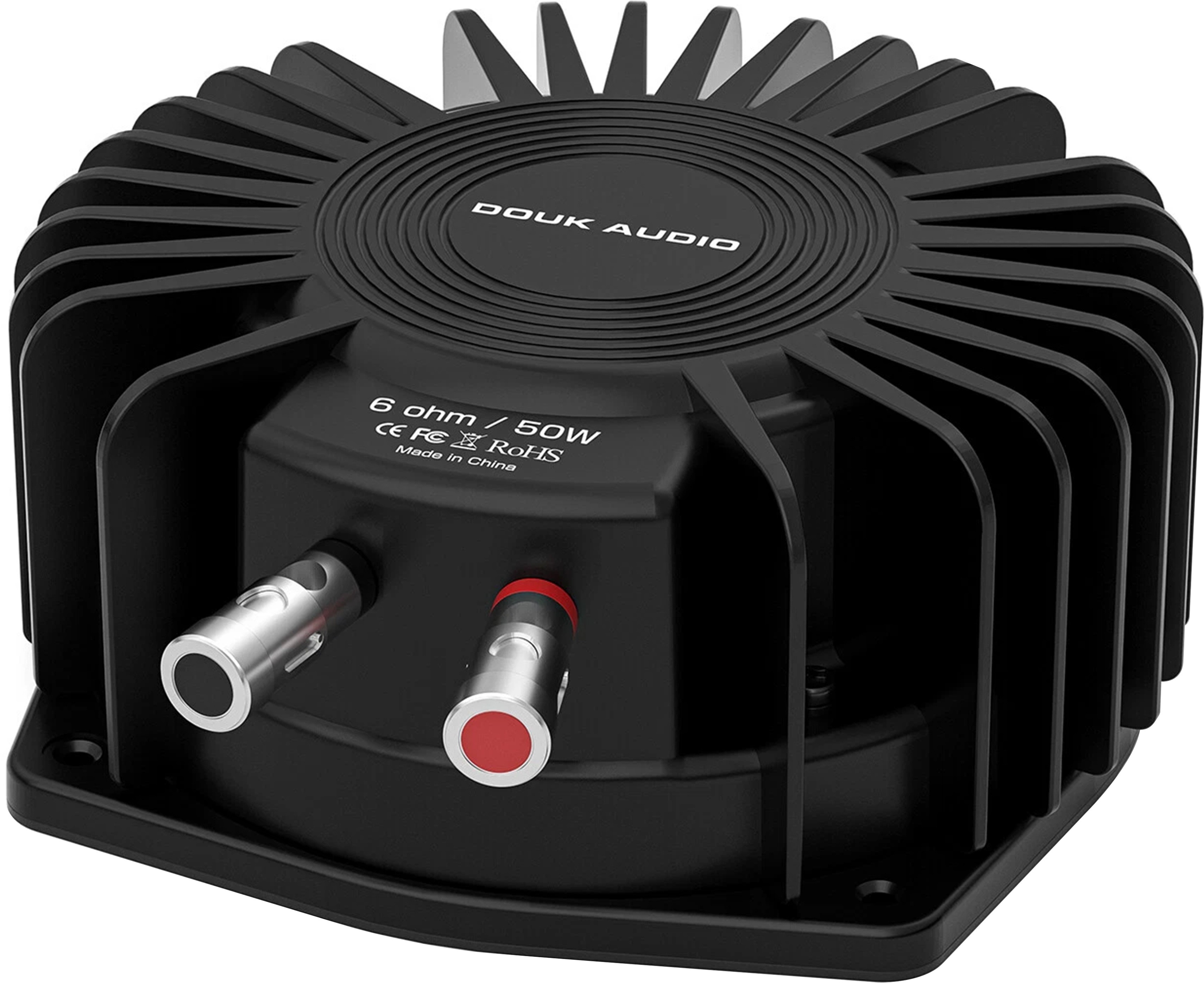

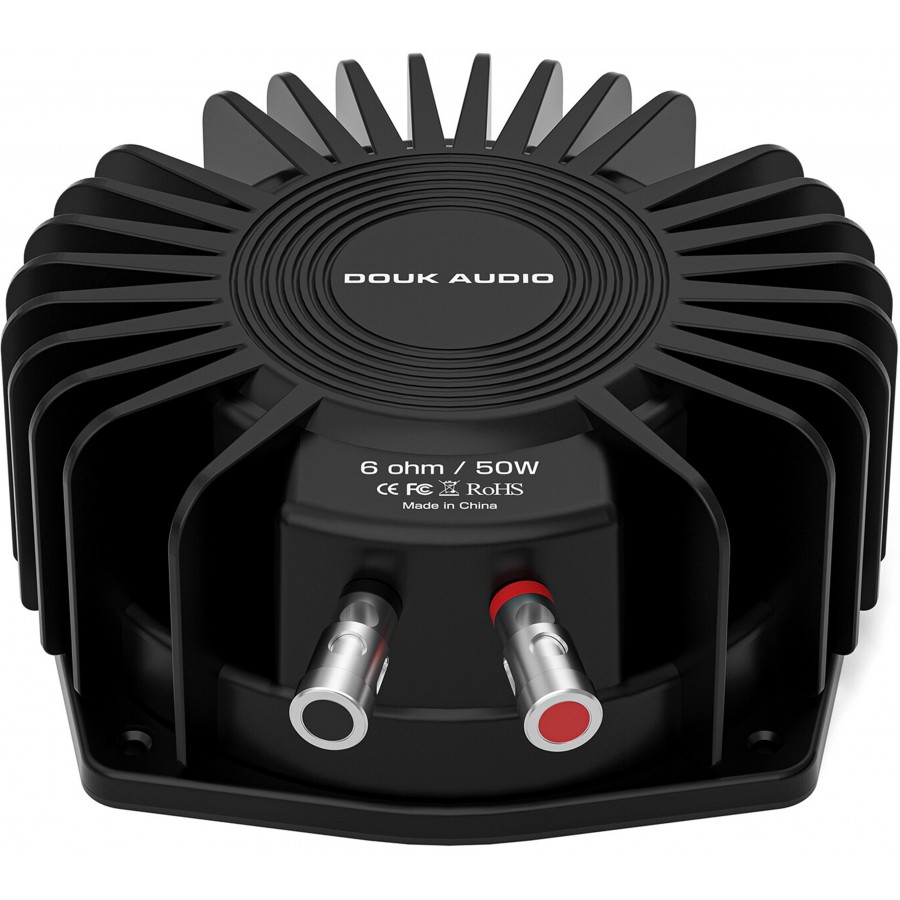

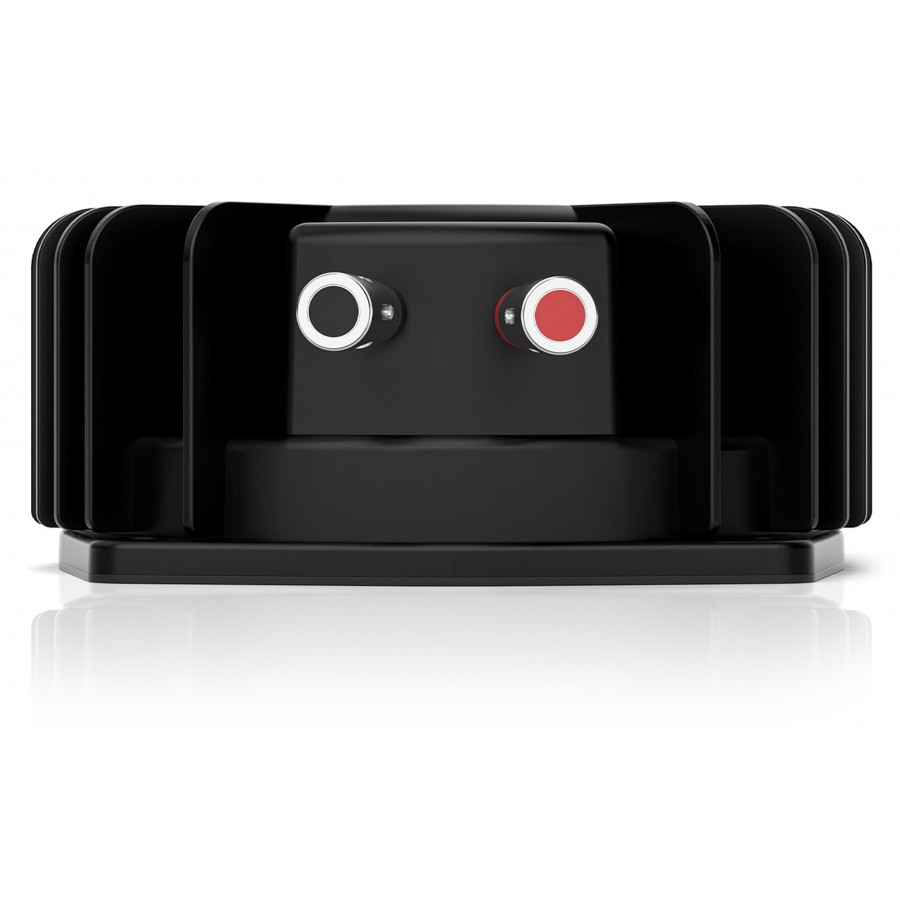

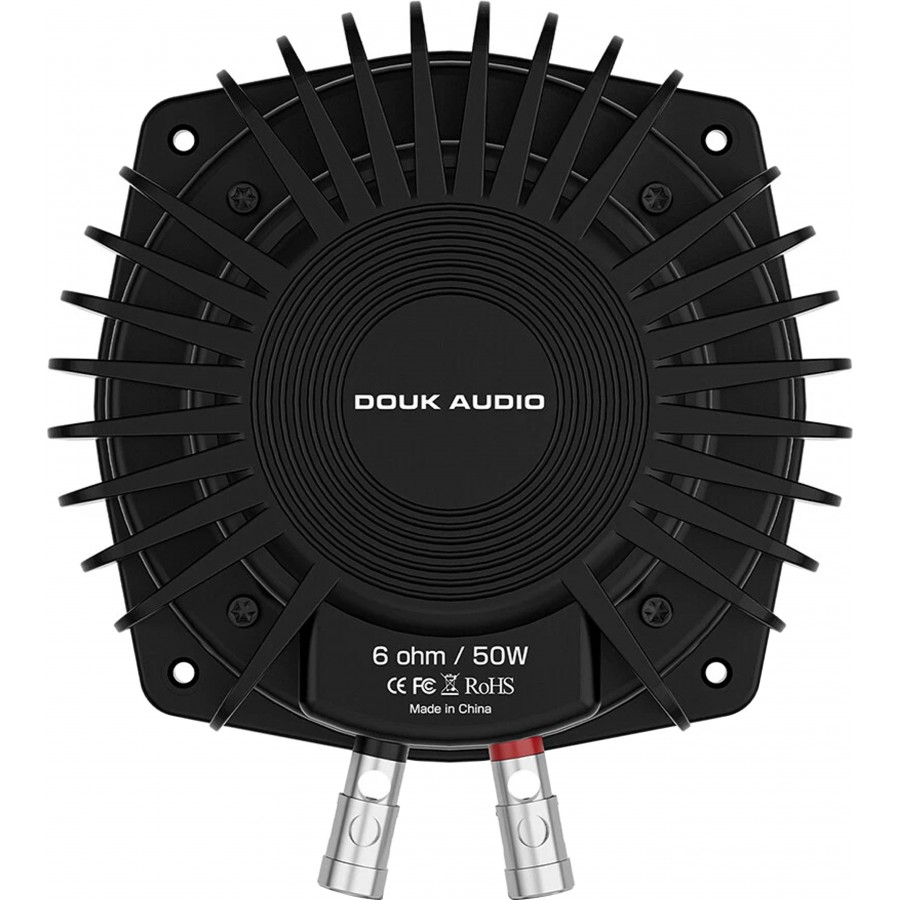

Douk Audio BS-1 picture

This Douk Audio BS-1 bass shaker delivers deep, powerful bass. Combined with a suitable support and thanks to its perfectly controlled vibrations, it offers a particularly immersive rendering of low frequencies. More than just being heard, these frequencies can be felt for a listening experience of a whole new dimension. This type of vibrator is particularly appreciated in home cinema or gaming installations, where immersion is paramount.

Key features:

  • The Douk Audio BS-1 represents a fully enhanced version of its predecessor, with greatly optimized performance. A redesigned heatsink dramatically improves output efficiency, while chrome-plated copper terminal blocks guarantee long-term durability and corrosion resistance.
  • The Douk Audio BS-1 bass shaker brings your movies and video games to life: unlike conventional speakers that offer a simple sound experience, the BS-1 adds depth and dimension to the sound of your audio system. Not only do you hear the sound, you feel it too, creating an unparalleled immersive experience.
  • The Douk Audio BS-1 is capable of handling 50W RMS (100W max.) at 6Ω. Unlike a subwoofer, which can overload your listening space, the BS-1 offers a perceived rendering that enhances listening even at lower sound volumes.
  • The Douk Audio BS-1 is very simple to set up and can easily be connected to an amplifier. We recommend installing the BS-1 under seats that are not fixed to the floor, to obtain the best vibratory performance.

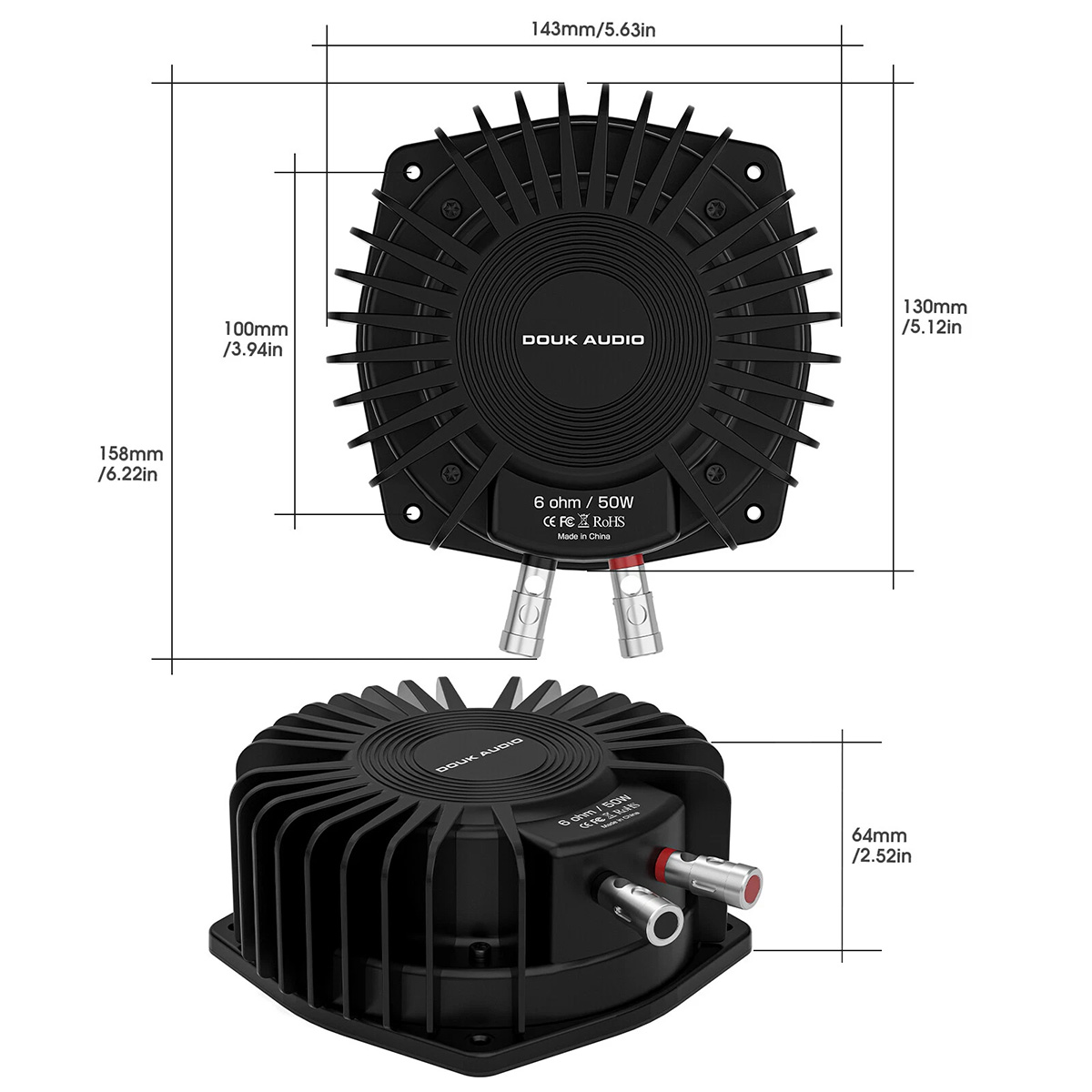

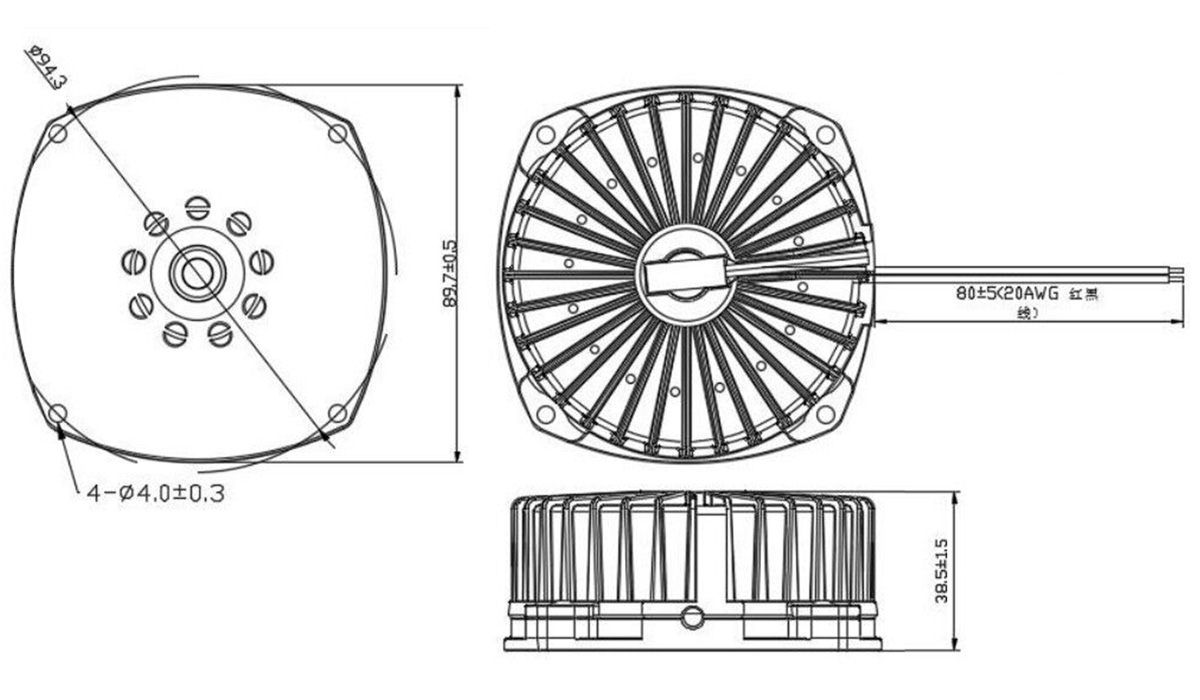

Douk Audio BS-1 dimensions Douk Audio BS-1 dimensions diagram

Douk Audio BS-1: Tips for use

  1. The nominal impedance of the Douk Audio BS-1 is 6Ω. When using a single unit, it should be connected to a bridged stereo or mono amplifier, in the same way as a passive subwoofer.

  2. Before installation and use, please consult your amplifier manual for the nominal impedance of your amplifier. Connecting 2, 4 or 8 BS-1 bass shakers can be used to obtain more bass power or for larger applications. Connecting two units in series increases impedance to 12Ω. Connecting two units in parallel reduces impedance to 3Ω.

  3. Before connecting the bass shaker amplifier, please consult the amplifier manual to check that it has the necessary power capacity to produce the wattage safely at different impedances.

  4. WARNING: Do not exceed 50W RMS per bass shaker. This value is multiplied by the number of bass shakers used (e.g. 100W RMS for two BS-1, 200W RMS for four BS-1).

Technical data

Specifications
Product typeExciter
Bass Shaker
Frequency response20Hz - 200Hz
Rated impedance6Ω
Resonance frequency30Hz
Power handlingRMS: 50W
Max: 100W
Max. vibration force30lbs/ft
Terminal block materialChrome-plated copper
General
ColorBlack
Dimensions158 x 143 x 64mm
Weight1.48kg
Package1x Douk Audio BS-1
