AUDIOPHONICS DA-S250NC Class D Integrated Amplifier NCore DAC ES9038Q2M Bluetooth 5.0 2x250W 4 Ohm 32bit 768kHz DSD256

AUDIOPHONICS DA-S250NC Class D Amplifier NCore DAC ES9038Q2M Bluetooth 5.0 2x250W 4 Ohm
Versatile and powerful, we offer you with DA-S250NC an integrated amplifier with digital inputs to which you can add speakers to enjoy your music in the best possible way. Combining a comfortable power amplification, a powerful DAC, a complete connectic and a precise volume control, this amplifier is a must have for those who wish to equip themselves with a qualitative sound system without having to add a multitude of devices dedicated to specific functions.

Average votes for this product
5.0 / 5

By buying this product you get 58 loyalty points


Reference : 16952
New product

582,50 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 09-02-2023.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Audiophonics DA-S250NC

Class D Integrated Amplifier NCore DAC ES9038Q2M Bluetooth 5.0 2x250W 4 Ohm 32bit 768kHz DSD256

Audiophonics DA-S250NC Amplificateur Intégré Class D NCore DAC ES9038Q2M Bluetooth 5.0 2x250W 4 Ohm 32bit 768kHz DSD512

Versatile and powerful, we offer you with DA-S250NC an integrated amplifier with digital inputs to which you can add speakers to enjoy your music in the best possible way. Combining a comfortable power amplification, a powerful DAC, a complete connectic and a precise volume control, this amplifier is a must have for those who wish to equip themselves with a qualitative sound system without having to add a multitude of devices dedicated to specific functions.

Audiophonics DA-S250NC Amplificateur Intégré Class D NCore DAC ES9038Q2M Bluetooth 5.0 2x250W 4 Ohm 32bit 768kHz DSD512

Incredibly effective amplification

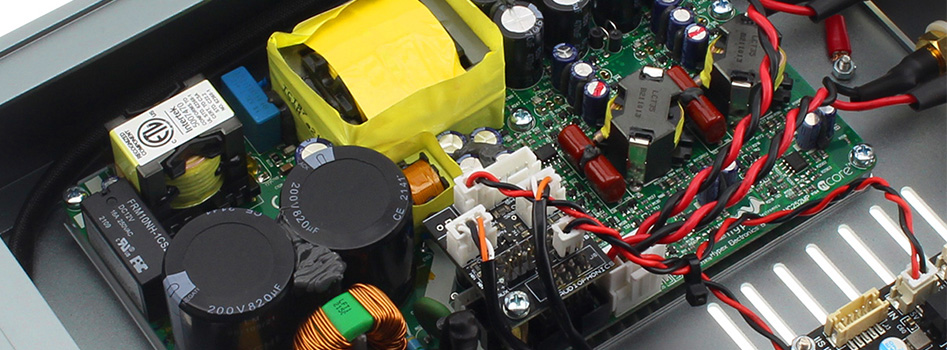

The real engine of this DA-S250NC, the Hypex NCore NC252MP Class D amplifier module delivers considerable power, up to 2x250W under 4Ω, with great efficiency and ease, while maintaining a compact size. Its main characteristic reveals itself in its great linearity and its ability to ensure a very low level of distortion. The DA-S250NC reveals a sound reproduction as transparent as detailed to present you your music as close as possible to its recording in studio.

The NCore NC252MP also features its own SMPS power supply, consisting of a regulated half-bridge converter with synchronous rectification on the main output rails. This design is ideally suited for integration with a Class D amplifier, providing the amplifier with a stable, clean electrical signal and capable of responding quickly to more sudden power requirements.

Audiophonics DA-S250NC Amplificateur Intégré Class D NCore DAC ES9038Q2M Bluetooth 5.0 2x250W 4 Ohm 32bit 768kHz DSD512

Enjoy your music in every detail

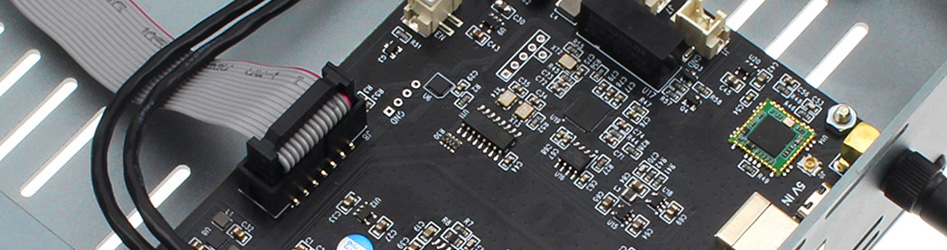

The DA-S250NC's digital-to-analog conversion is handled by a widely proven and audiophile-approved DAC, the ES9038Q2M from ESS Technology. This chip uses the patented HyperStream® II 32bit architecture and Time Domain Jitter Eliminator technology to deliver excellent performance. The result is incredibly accurate sound reproduction that captures every detail of your music.

This DAC also opens the door to very high resolution, supporting PCM audio streams up to 32bit 768kHz and DSD up to DSD256.

Audiophonics DA-S250NC Amplificateur Intégré Class D NCore DAC ES9038Q2M Bluetooth 5.0 2x250W 4 Ohm 32bit 768kHz DSD512

A complete connectivity to adapt to all your needs

The DA-S250NC offers a complete range of connections to easily integrate into your audio system and adapt to your use. Its rear panel features digital inputs, coaxial, optical Toslink and USB-B (XMOS). For the outputs, you can of course count on high quality speaker terminals, but also on a Pre-Out output via RCA.

This RCA output offers you several possibilities:
- connect an active subwoofer
- connect another integrated amplifier

Broadcast from your sofa

In addition to its physical connectivity, the DA-S250NC provides high quality Bluetooth 5.0 reception capability, which is extremely convenient and will allow you to stream and control your music wirelessly quickly and easily, directly from your smartphone or tablet for example.

Audiophonics DA-S250NC Amplificateur Intégré Class D NCore DAC ES9038Q2M Bluetooth 5.0 2x250W 4 Ohm 32bit 768kHz DSD512

A sober and modern design

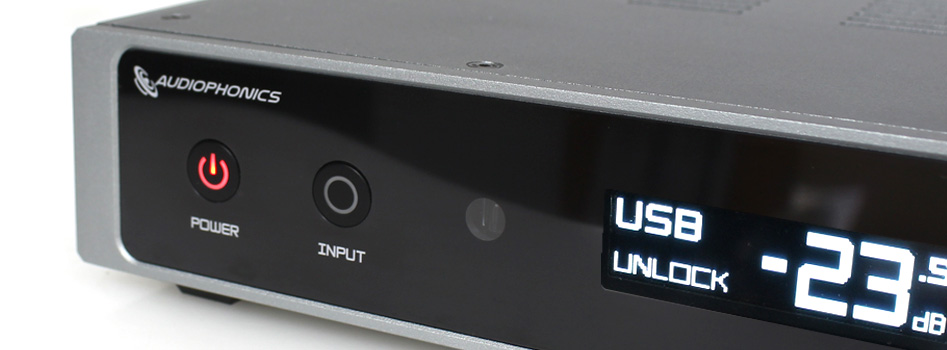

The components are perfectly protected by a robust aluminum case. Optimal heat dissipation is provided by a series of openings on the cover and rear panel, allowing for good airflow. The front panel of the DA-S250NC features a beautiful black acrylic front panel, a modern and elegant aesthetic touch. Behind this panel is a beautiful OLED screen, which displays the volume level, the active input or the type of signal received by the device. It will also allow you to navigate through the menus and access all the options of the DA-250NC.

Audiophonics DA-S250NC Amplificateur Intégré Class D NCore DAC ES9038Q2M Bluetooth 5.0 2x250W 4 Ohm 32bit 768kHz DSD512

Technical characteristics

Specifications
Product typeIntegrated amplifier
InputsBluetooth 5.0
1x USB-B
1x Coaxial
1x Optical Toslink
OutputsSpeaker terminals
1x Stereo RCA Pre-Out
AmplifierHypex NCore NC252MP
DACESS ES9038Q2M
USB InterfaceXMOS XU208
Output power2x 250W @ 4Ω
2x 150W @ 8Ω
Supported sampling ratesUSB : PCM up to 32bit 768kHz, DSD DoP up to DSD256
Coaxial / Optical : PCM up to 24bit 192kHz, DSD DoP up to DSD64
THD+N0.0015%
SNR121dB
OLED ScreenBrightness not adjustable, but switches off after 40 seconds
General
Power supply110-230V AC
ColorGray
Dimensions300*295*60mm
Weight2.4kg
CaseAll brushed aluminium / Black acrylic front
Package1x Audiophonics DA-S250NC
1x Remote control (batteries included)
1x Power cable
1x Bluetooth antenna


FFT measure - 5W - 4 Ohm
FFT DA-S250NC - 5W - 4 Ohm



FFT measure - 4.4V Rms No load

FFT DA-S250NC - 5W - No load


Data sheet
InputUSB
InputOptical
InputSPDIF
InputBluetooth
OutputSpeaker terminal
OutputRCA
ColorGray
Channel2 (Stereo)
ClassClass D / T
Amplifier chipHypex Ncore
Power (W)250.0

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Minimal but high quality
This amp has everything I really need. Power seems solid, UI is adequate, and the fit and finish of the enclosure is high quality. Shipping to the USA was fast and very reasonably priced.

There was a small firmware bug involving the mute relays clicking that needed fixing. Audiophonics was prompt about fixing it AND about providing me with requested support to flash it in the field. (This issue should be resolved for new shipments according to Audiophonics.)

This amp is a great way to try out modern Class-D without breaking the bank or buying a bunch of separates.
 (2)
 (0)
This review has been posted for AUDIOPHONICS DA-S250NC Class D Integrated Amplifier NCore DAC ES9038Q2M Bluetooth 5.0 2x250W 4 Ohm 32bit 768kHz DSD256
Note :
 5/5
Date :
On sait à quoi s'attendre!
Dès que j'ai vu cet amplificateur en stock, je me suis jeté dessus. J'avais besoin d'un bon ampli intégré, pour ne pas avoir plusieurs appareils, donc plusieurs boitiers.
Reçu vendredi dernier, en test tout le week-end, et bien... répond à toutes mes attentes!
DAC ES9038, NC252MP, XMOS... la précision et les watts sont bien là, et pas qu'un peu! Je n'ai pas encore réussi à aller à fond tellement c'est puissant et propre.
Son design sobre et classe fait qu'il s'intègre très bien au banc TV à côté des enceintes.
Télécommande réactive, bluetooh vraiment bien (Apt-X HD ou LDAC au choix).

Je ne peux que sur-recommander cet amplificateur réalisé par Audiophonics! Très bon boulot!
 (0)
 (0)
This review has been posted for AUDIOPHONICS DA-S250NC Class D Integrated Amplifier NCore DAC ES9038Q2M Bluetooth 5.0 2x250W 4 Ohm 32bit 768kHz DSD256
