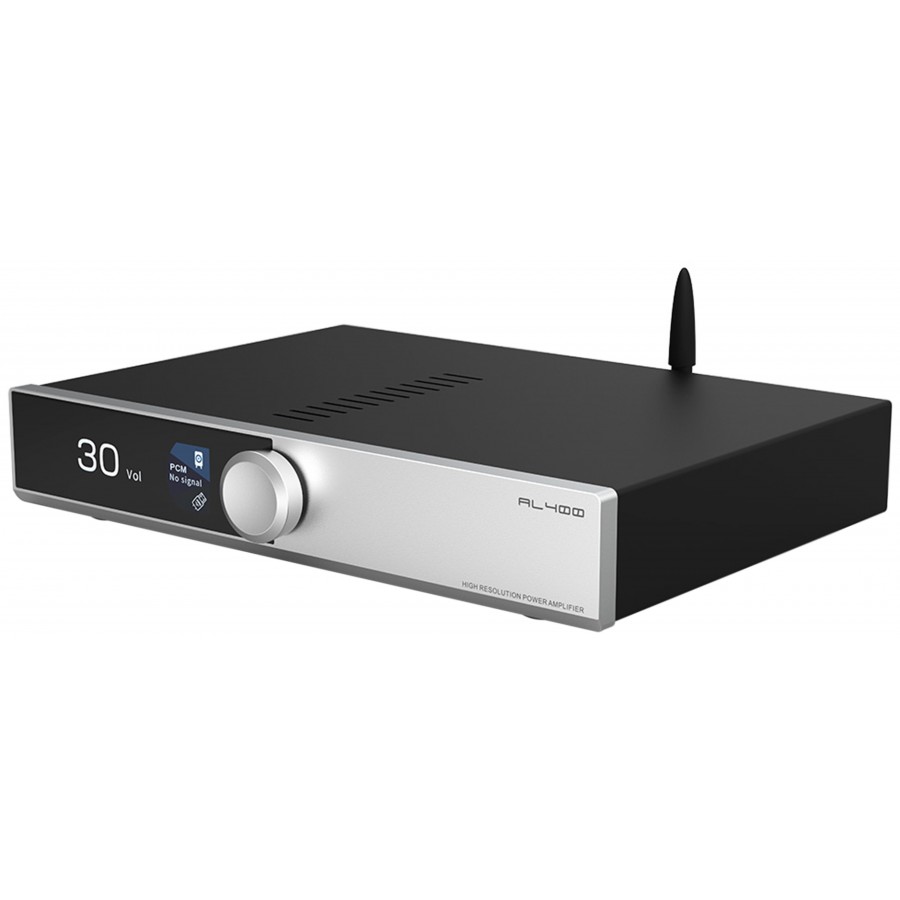

SMSL AL400 Integrated Amplifier 2.1 DAC Silver
By buying this product you get 29 loyalty points
![[GRADE B] MATRIX ELEMENT P2 Power Amplifier Class D Stereo 2x230W / Mono 1x850W 4 Ohm](https://www.audiophonics.fr/62087-thumb_default/matrix-element-p2-power-amplifier-class-d-stereo-2x230w-mono-1x850w-4-ohm.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
SMSL AL400 Integrated Amplifier 2.1 TPA3255 2x165W 4 Ohm DAC CS43131 32bit 768kHz DSD256 Silver

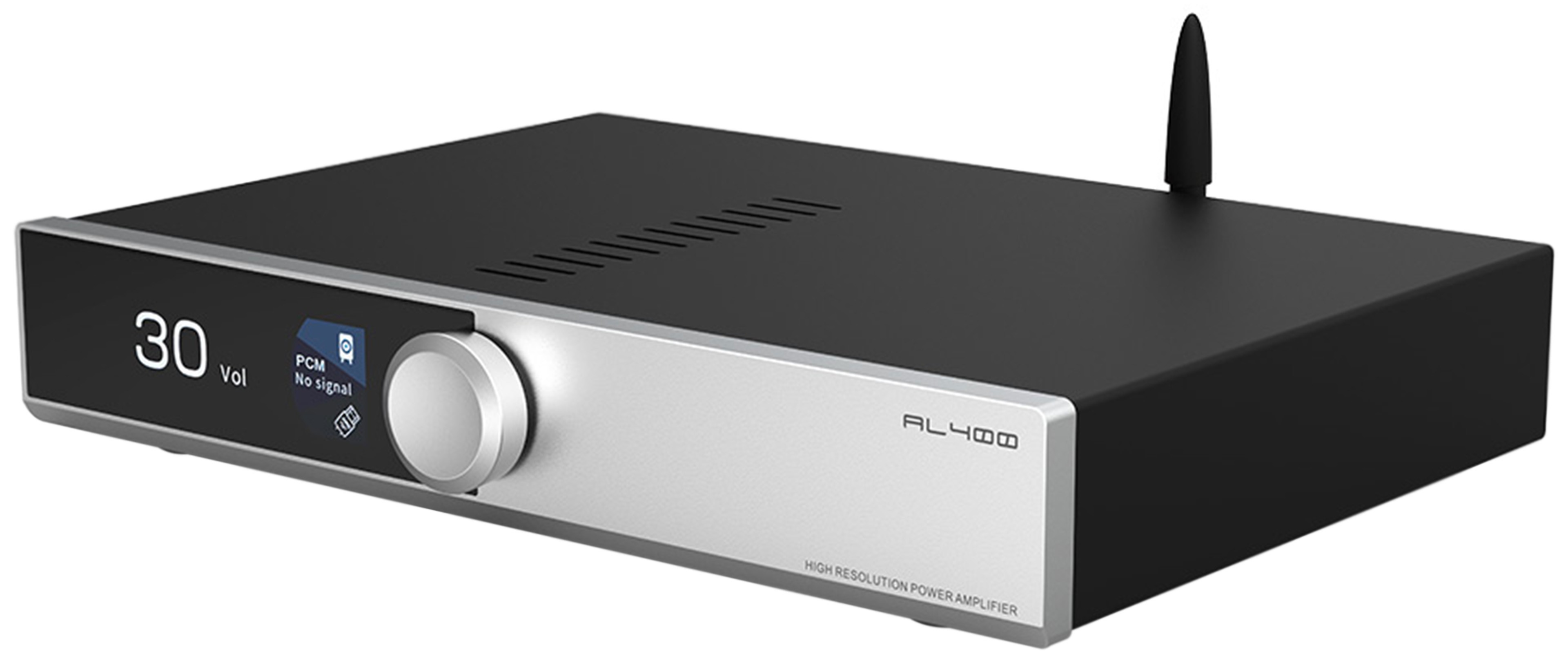

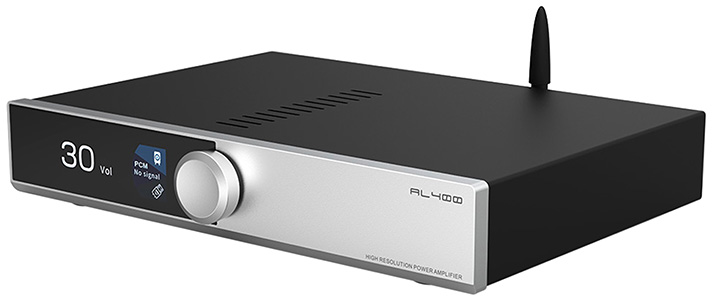

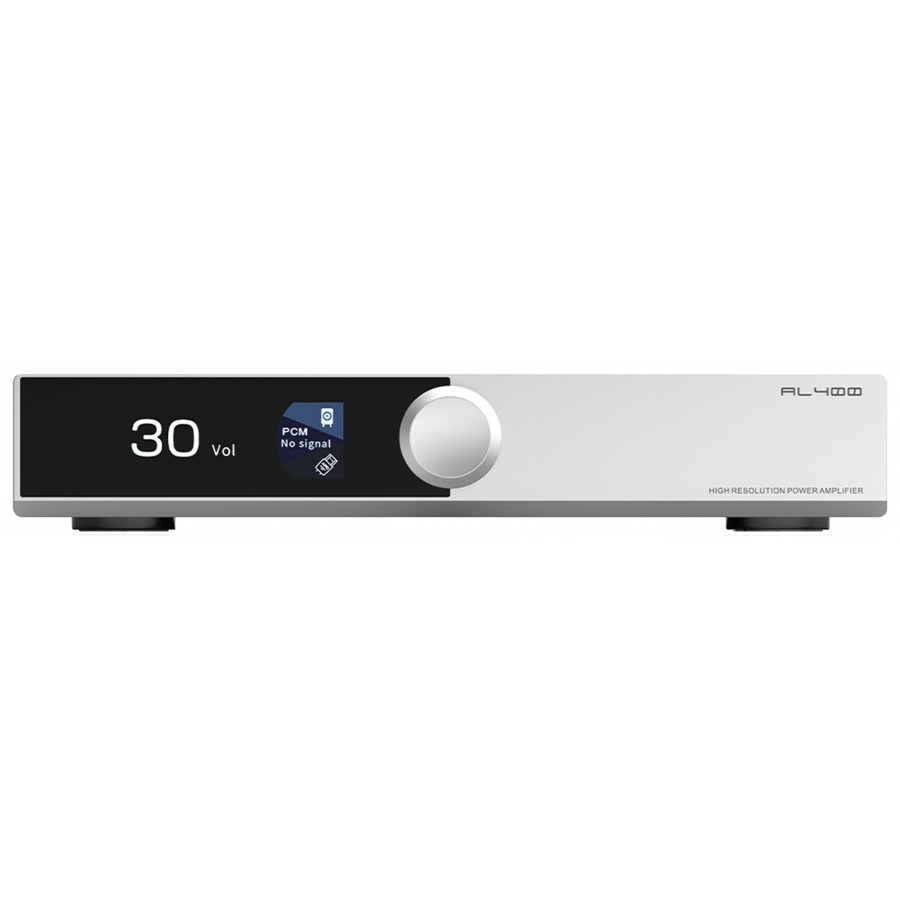

The SMSL AL400 is an integrated amplifier and DAC featuring high-performance architecture based on a TPA3255 amplifier chip and a Cirrus Logic CS43131 converter. It combines 2x165W power output into 4Ω with high-resolution 32bit 768kHz decoding, native DSD256, and full MQA support. Equipped with a parametric equaliser and dedicated subwoofer control, it is suitable for both stereo and 2.1 configurations. Its wide range of connections, including HDMI eARC, MM/MC phono input and high-resolution Bluetooth, make it a versatile control centre for your entire audio system.
SMSL AL400: 2x165W amplification

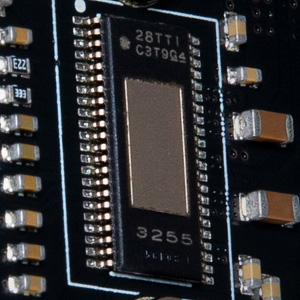

The AL400 incorporates a TPA3255 Class D amplifier chip, delivering 2x165W under 4Ω while maintaining a THD+N of 0.03%. Volume control is based on a Japanese-made ROHM BD37524FS-E circuit, an electronic process that ensures precise adjustment across the entire dynamic range without any measurable signal degradation. This solution limits the introduction of noise and distortion, even at low listening levels, unlike conventional mechanical potentiometers, which can cause channel imbalance and gradual deterioration.
SMSL AL400: Cirrus Logic DAC and XMOS interface

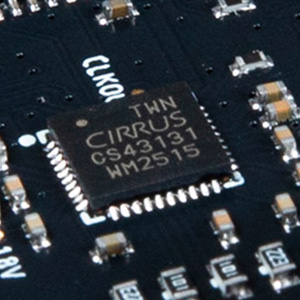

The DAC section of the AL400 is based on a Cirrus Logic CS43131 chip combined with an XMOS XU-316 USB processor. This combination supports files up to 32bit 768kHz PCM and DSD256. In addition, the AL400 also features full MQA and MQA-CD decoding, allowing you to enjoy your music regardless of format.
SMSL AL400: Multi-band equaliser
The AL400 features a multi-band equaliser that allows independent adjustment of treble, midrange and bass frequencies. Each frequency band has a gain control for targeted amplification or attenuation, as well as a Q control that defines the bandwidth affected by the correction. This module thus offers you acoustic correction that can be adapted to the characteristics of the listening room or the specific response of the speakers used, without the need for external equipment or additional software processing.
SMSL AL400: Dedicated subwoofer output

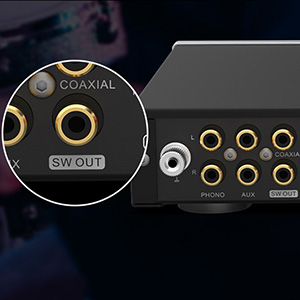

A dedicated subwoofer output allows for a 2.1 configuration with independent volume control from the main level. The AL400 offers four selectable low-pass cutoff frequencies (55Hz, 85Hz, 120Hz, 160Hz), allowing you to adjust the crossover point between the main speakers and the subwoofer according to their respective bass extension. A phase inverter offers a choice between 0° and 180°, a correction that is sometimes necessary to align the subwoofer's output with that of the speakers, particularly when their spatial positioning generates unwanted cancellations or reinforcements in the lower end of the spectrum.
SMSL AL400: A full range of connectors

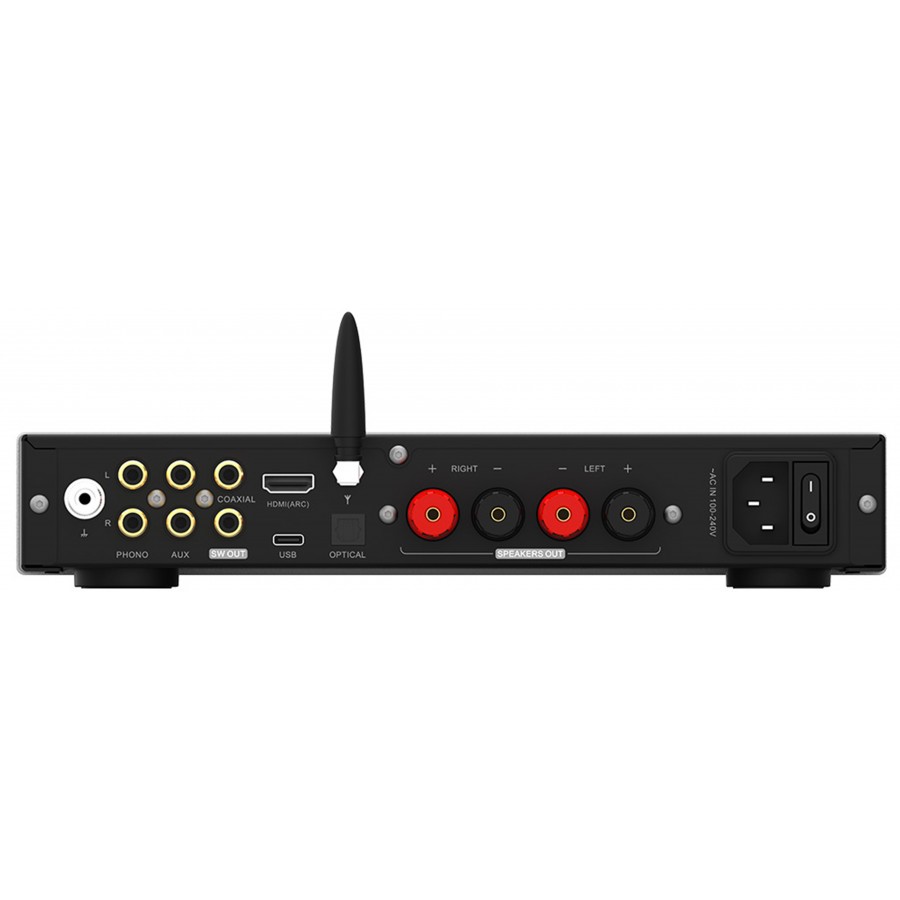

The AL400's connectivity covers all common digital and analogue sources. The HDMI eARC input allows volume control and automatic power-up via CEC protocol, the USB input uses the XMOS XU-316 processor to handle 32-bit/768kHz and DSD256 streams, and coaxial and optical inputs complete the digital options.

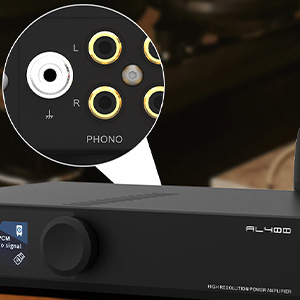

On the analogue side, a built-in phono preamplifier allows direct connection of a turntable equipped with MM (Moving Magnet) or MC (Moving Coil) cartridges, eliminating the need for an external preamplifier. An RCA line input handles other analogue sources.
Finally, the Bluetooth section supports LDAC, aptX Adaptive, aptX HD, AAC and SBC codecs, ensuring high-quality sound reproduction even when connected wirelessly.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Integrated amplifier DAC |
| Amplification type | Class D |
| Inputs | 1x Stereo RCA 1x USB-C 1x Coaxial 1x Optical Toslink 1x Phono 1x HDMI eARC Bluetooth |
| Outputs | Speaker terminals 1x Subwoofer |
| Total harmonic distortion more noise (THD+N) | 0.003% |
| Signal-to-noise ratio (SNR) | 101dB |
| Channel separation | 100dB |
| Input sensitivity / Input impedance | 560mV / 22kΩ |
| RMS output power | 2x165W @ 4Ω 2x85W @ 8Ω |
| USB transmission | Asynchronous |
| USB compatibility | Windows 7/8/8.1/9/10/11 Mac OSx Linux |
| MQA decoder | USB Coaxial OpticalToslink |
| MQA-CD decoder | Coaxial Optical Toslink |
| Supported sampling rates | USB : PCM up to 32bit 768kHz, native DSD up to DSD256 Coaxial / Optical : PCM up to 24bit 192kHz, DSD64 (DoP) |
| General | |
|---|---|
| Power supply voltage | 100-240V AC |
| Consumption | 40W |
| Dimensions | 254 x 45 x 210mm |
| Weight | 1.7kg |
| Color | Silver |
| Package | 1x SMSL AL400 1x Remote control 1x USB-A to USB-C cable 1x HDMI cable 1x Power cable |
| Input | USB |
| Input | SPDIF |
| Input | Bluetooth |
| Input | HDMI eARC |
| Input | RCA |
| Input | Optical |
| Input | Phono |
| Output | Speaker terminal |
| Output | Subwoofer |
| DAC / ADC Chip | CS43131 |
| Max sampling rate | DSD256 |
| Max sampling rate | MQA |
| Max sampling rate | 768kHz |
| Color | Silver |
| Channel | 2.1 |
| Class | Class D / T |
| Amplifier chip | TPA3255 |
| Power (W) | 165.0 |
| Networking | No |
| Remote Control | Yes |
