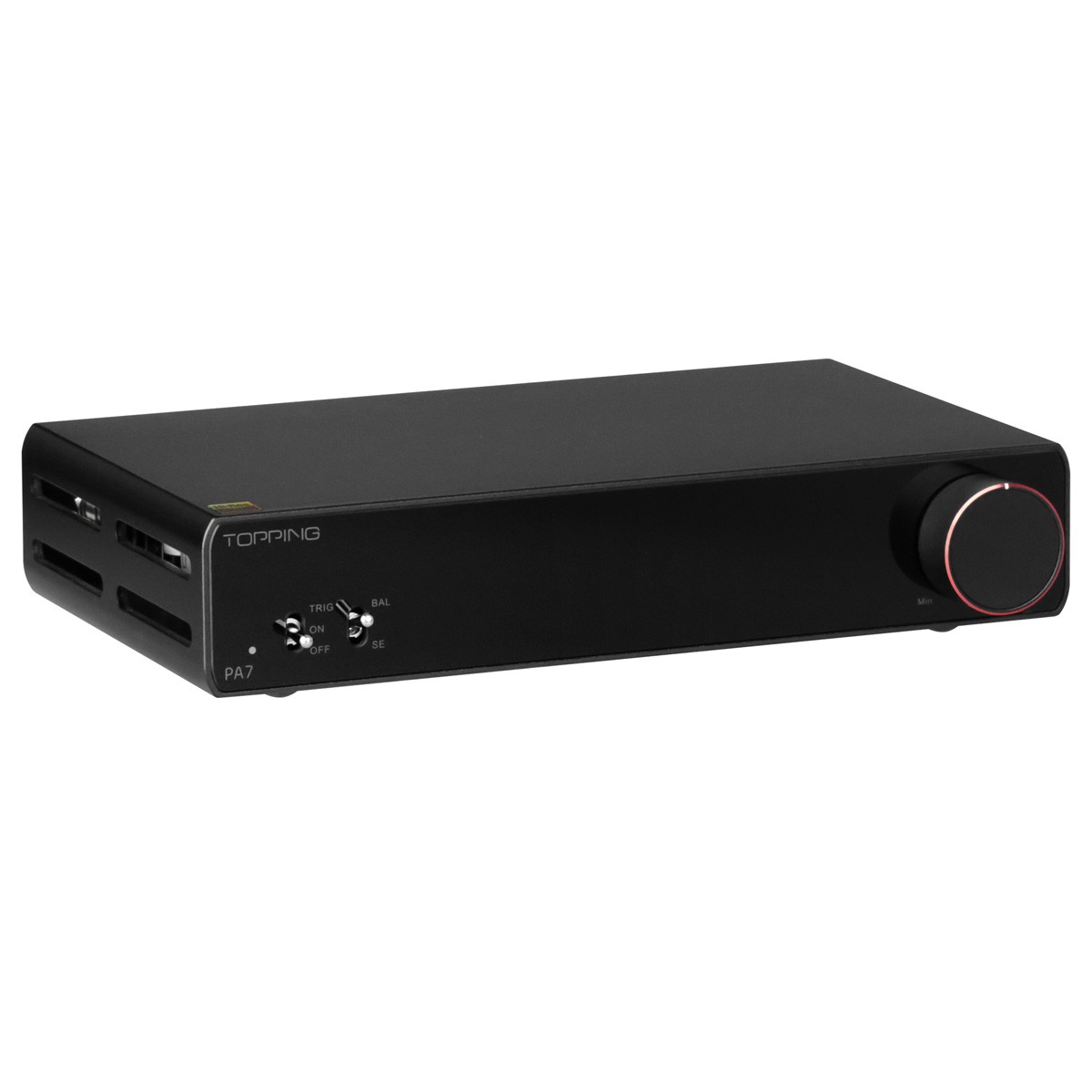

TOPPING PA7 Amplifier Class D Balanced 2x200W 4 Ohm Black

TOPPING PA7 Amplifier Class D Balanced 2x200W 4 Ohm Black
The Topping PA7 is a powerful amplifier, based on a Class D architecture and benefiting from an intelligent and particularly careful design. It is thus capable of developing a significant power while maintaining a very low level of distortion. The technologies used ensure a clear, precise and deep sound reproduction. In addition, the balanced structure of the PA7 provides effective transmission noise reduction.

Average votes for this product
5.0 / 5

By buying this product you get 49 loyalty points


Reference : 17642
New product

499,00 €tax incl.

415,83 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 16-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Topping PA7

Amplifier Class D Balanced 2x200W 4 Ohm Black

Topping PA7 Amplificateur Class D Symétrique 2x200W 4Ω Noir

The Topping PA7 is a powerful amplifier, based on a Class D architecture and benefiting from an intelligent and particularly careful design. It is thus capable of developing a significant power while maintaining a very low level of distortion. The technologies used ensure a clear, precise and deep sound reproduction. In addition, the balanced structure of the PA7 provides effective transmission noise reduction.

Topping PA7 Amplificateur Class D Symétrique 2x200W 4Ω Noir

Comparison between Topping PA7 and PA7 Plus

PA7

PA7 Plus

Output power

2*200W @ 4, THD+N < 1%
2*125W @ 8, THD+N < 1%

2*245W @ 4, THD+N < 1%
2*135W @ 8, THD+N < 1%

SNR

123dB

124dB

Dynamic range

123dB

124dB

Input sensitivity

Single-ended: 1.9Vrms
Balanced: 3.8Vrms

Single-ended: 2Vrms
Balanced: 4Vrms

Output level

83Vpp @ 4
89Vpp @ 8

90Vpp @ 4
91Vpp @ 8

Incredibly low distortion level

The PA7's performance in terms of distortion is close to that of a very good DAC. It always remains extremely low before clipping, ensuring a constant reproduction quality whatever the volume level.

Topping PA7 Amplificateur Class D Symétrique 2x200W 4Ω Noir
Topping PA7 Amplificateur Class D Symétrique 2x200W 4Ω Noir

Impressive power

The PA7, despite its compactness, is capable of delivering a significant power. It will indeed be able to deliver no less than 2x200W under 4Ω (1% THD+N) or 2x125W under 8Ω (1% THD+N). It is thus capable of powering greedy audio systems without difficulty while offering a beautiful dynamic.

Single-ended & balanced outputs

The Topping PA7 provides a double input connector. There is an XLR / Jack 6.35mm TRS combo for balanced transmission and a stereo RCA input for single-ended transmission.

Topping PA7 Amplificateur Class D Symétrique 2x200W 4Ω Noir
Topping PA7 Amplificateur Class D Symétrique 2x200W 4Ω Noir

Volume bypass

The Topping amplifier has a volume control. It is however possible to bypass this control to use the PA7 as a power amplifier, by associating an external preamplifier (not supplied).

12V Trigger

Equipped with a 12V trigger input, the PA7 can be connected to other devices to take advantage of an automatic on/off function of the system set up.

Topping PA7 Amplificateur Class D Symétrique 2x200W 4Ω Noir

Technical characteristics

Specifications
Product typeAmplifier
Amplification typeClass D
Inputs1* Balanced stereo XLR/TRS combo
1* Single-ended stereo RCA
OutputSpeaker outputs
Measurements
Single-endedBalanced
THD+N @ 1kHz (A-weighted)< 0.0005% @ 4Ω, 20W
< 0.0004% @ 8Ω, 20W
< 0.0004% @ 4Ω, 20W
< 0.0003% @ 8Ω, 20W
THD+N @ 20kBw (No-weighted)< 0.009% @ 4Ω, 20W
< 0.004% @ 8Ω, 20W
< 0.009% @ 4Ω, 20W
< 0.004% @ 8Ω, 20W
SNR @ Max out, 1kHz (A-weighted)123dB126dB
Dynamic range @ 1kHz (A-weighted)123dB126dB
Frequency response20Hz-40kHz (±1.5dB)20Hz-40kHz (±0.3dB)
Output level83Vpp @ 4Ω
89Vpp @ 8Ω
83Vpp @ 4Ω
89Vpp @ 8Ω
Noise (A-weighted)< 17µVrms< 17µVrms
Crosstalk @ 1kHz-96dB-116dB
Input sensitivity1.9Vrms3.8Vrms
Gain25.7dB19.8dB
Channel balance0.5dB0.5dB
Output power2*210W @ 4Ω, THD+N < 10%
2*150W @ 8Ω, THD+N < 10%
2*200W @ 4Ω, THD+N < 1%
2*125W @ 8Ω, THD+N < 1%
Load impedance4-8Ω
General
Dimensions (L*P*H)200*155*41mm
ColorBlack
Package1* Topping PA7
1* Supply voltage

Data sheet
InputRCA
InputXLR
InputJack 6.35mm
OutputSpeaker terminal
ColorBlack
Channel2 (Stereo)
ClassClass D / T
Amplifier chipN/A
Power (W)200.0
Remote ControlNo
