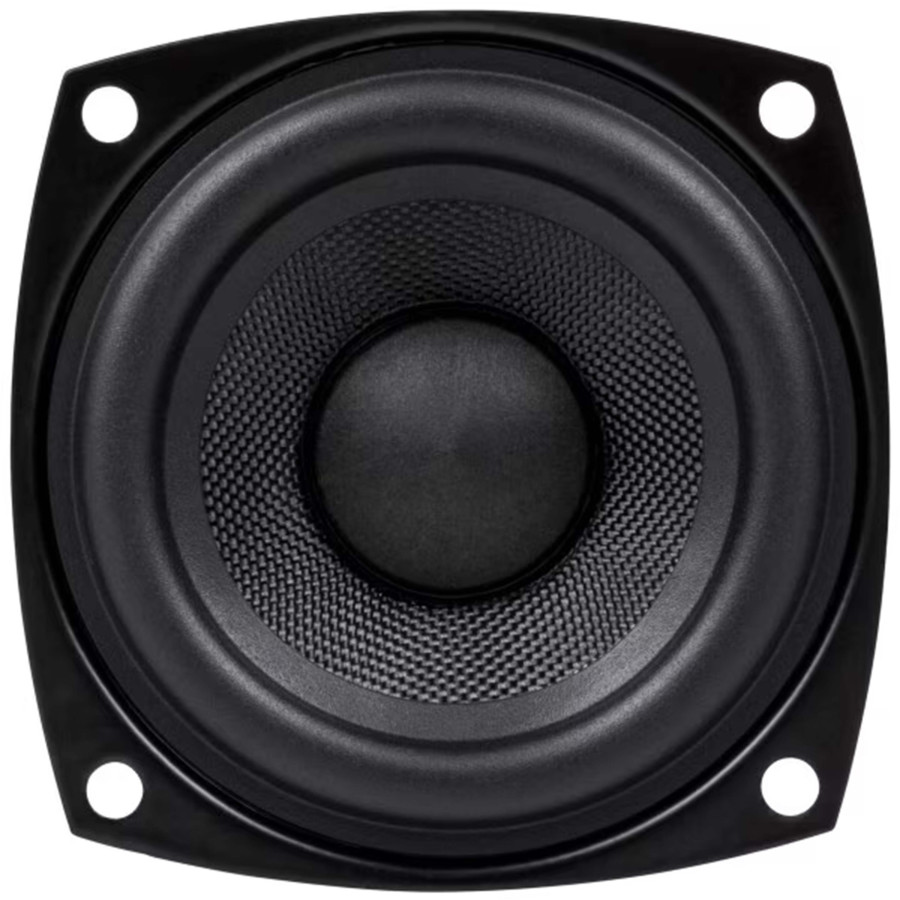

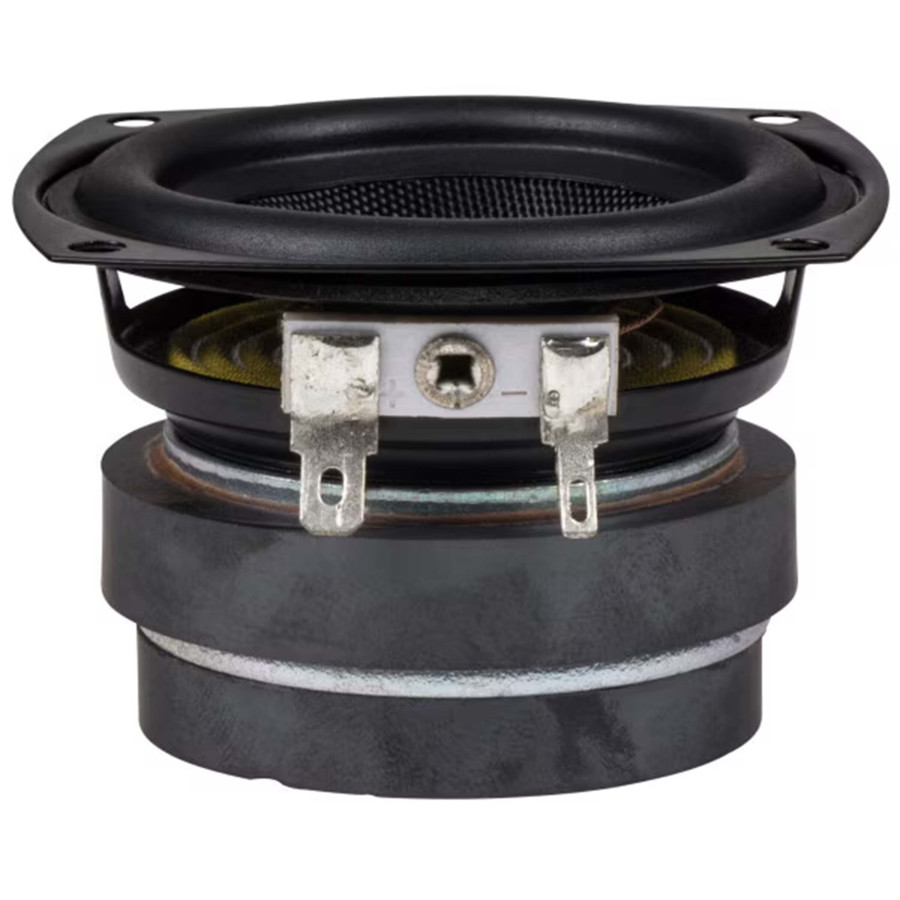

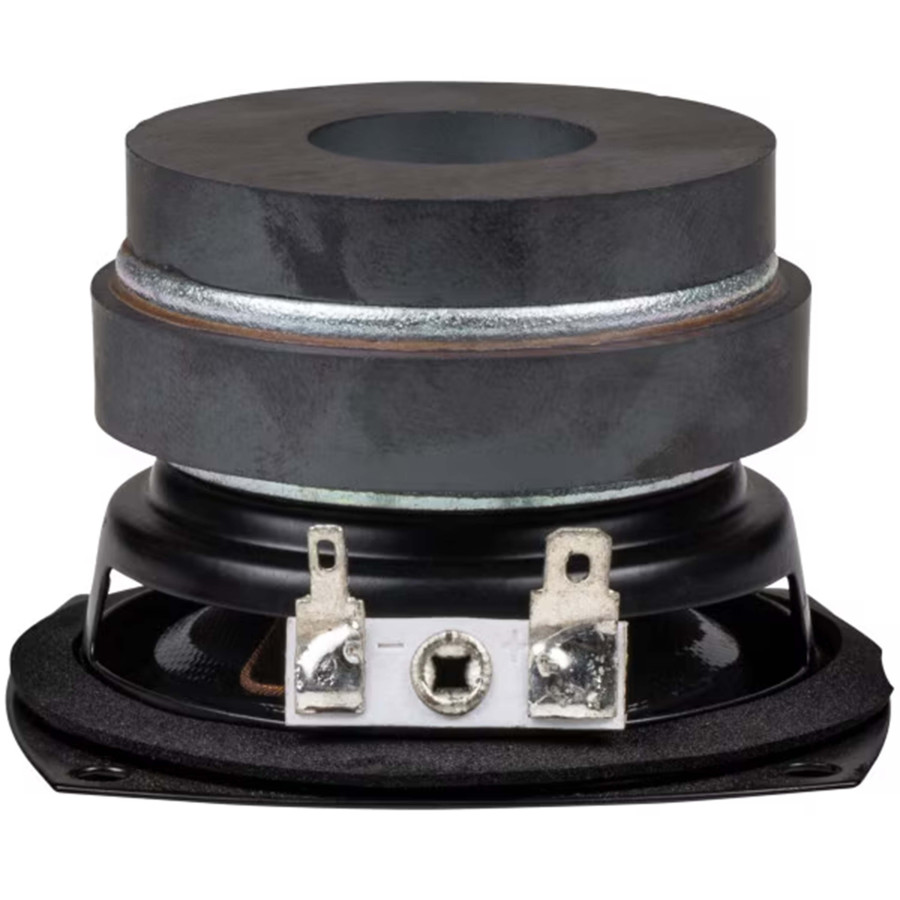

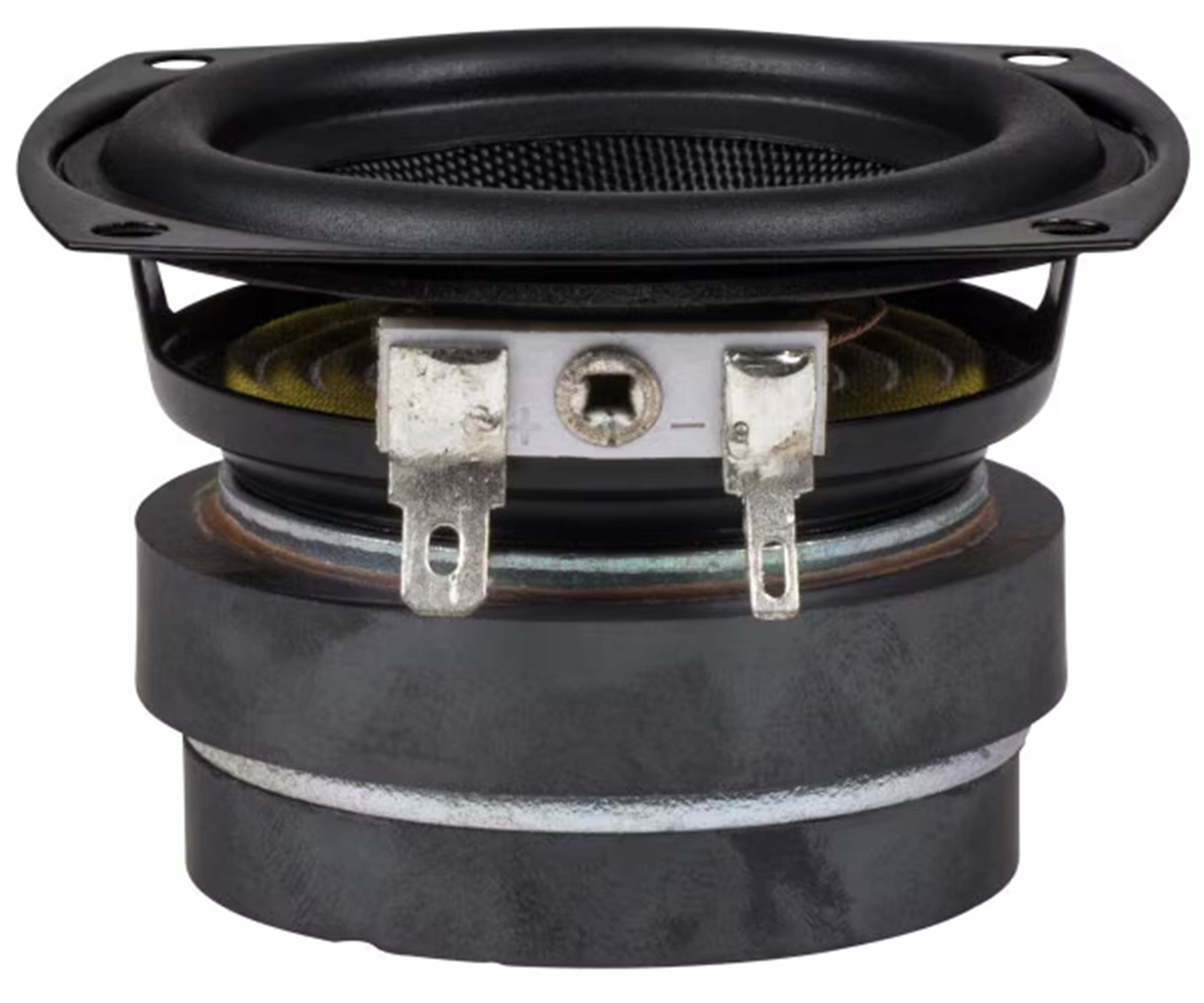

DAYTON AUDIO CE65W-8 Full Range Speaker Driver

The Dayton Audio CE65W-8 is a compact 2-1/2" (Ø63.5 mm) full-range speaker designed for applications requiring extended sound reproduction in a reduced form factor. It features a woven fiberglass diaphragm providing a wide frequency response, combined with a rubber surround and a large flat spider ensuring good mechanical durability. Its shielded magnetic motor allows use near sensitive electronic equipment, while its optimized magnetic structure ensures efficient diaphragm control and dynamic sound reproduction. With a nominal impedance of 8Ω, an RMS power handling of 7W, a sensitivity of 83dB (2.83V/1m), and a frequency response ranging from 105Hz to 16kHz, the CE65W-8 is a suitable solution for compact speakers, multimedia systems, embedded audio devices, and DIY projects requiring a versatile and space-saving full-range transducer.

DAYTON AUDIO CE65W-8: A compact and versatile design

With its 2-1/2" nominal diameter and compact form factor, the Dayton Audio CE65W-8 easily integrates into numerous small audio projects. Its robust design combines a woven fiberglass diaphragm, a rubber surround, and a large flat spider to ensure reliable mechanical performance and stable reproduction across a wide frequency range.

DAYTON AUDIO CE65W-8: Full-range speaker with shielded motor

The CE65W-8 features a shielded magnetic structure allowing use near displays or other sensitive electronic components. Its large motor contributes to improved diaphragm control and transducer efficiency, while its 20mm voice coil allows a maximum linear excursion of 2mm.

DAYTON AUDIO CE65W-8: Ideal for compact audio applications

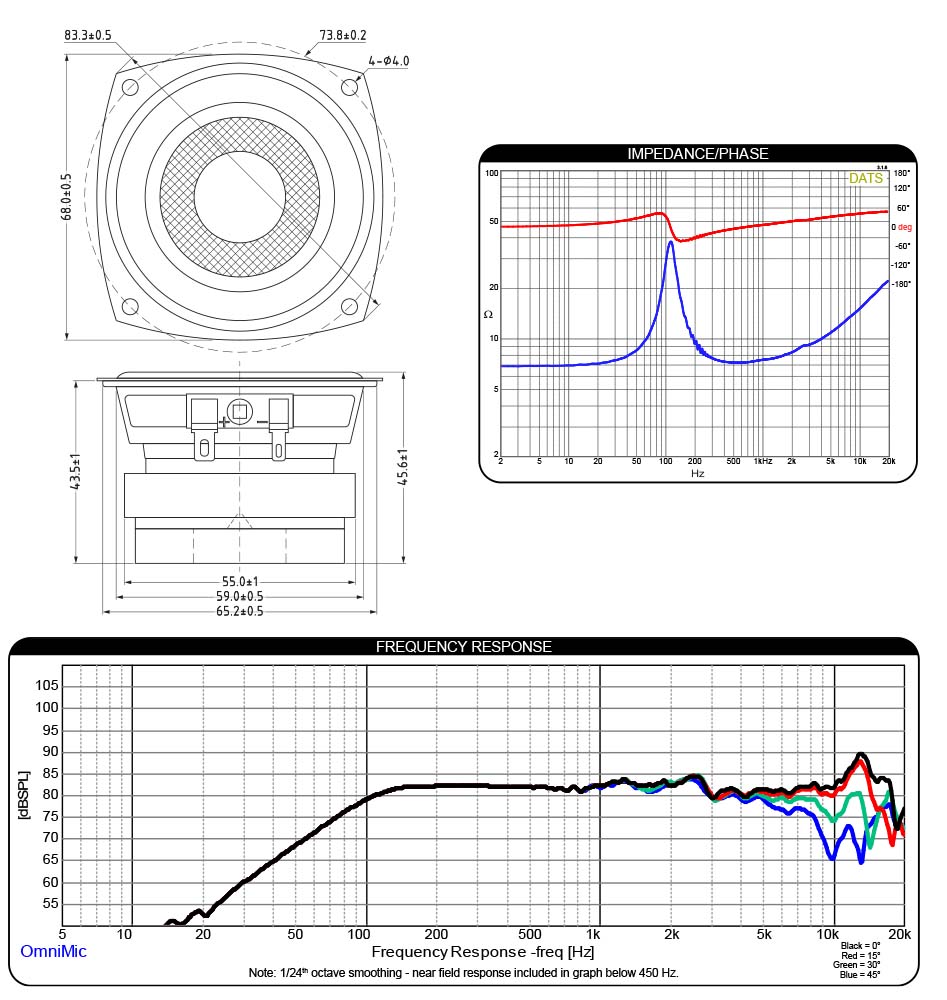

Thanks to its 105Hz to 16kHz frequency response, 8Ω impedance, and 7W RMS power handling, the CE65W-8 is perfectly suited for compact speakers, multimedia audio systems, DIY electronic projects, and other applications requiring an affordable and high-performance full-range speaker.
