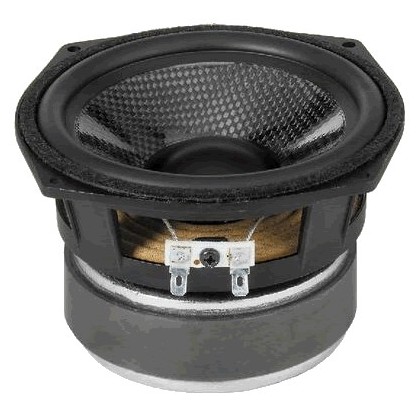

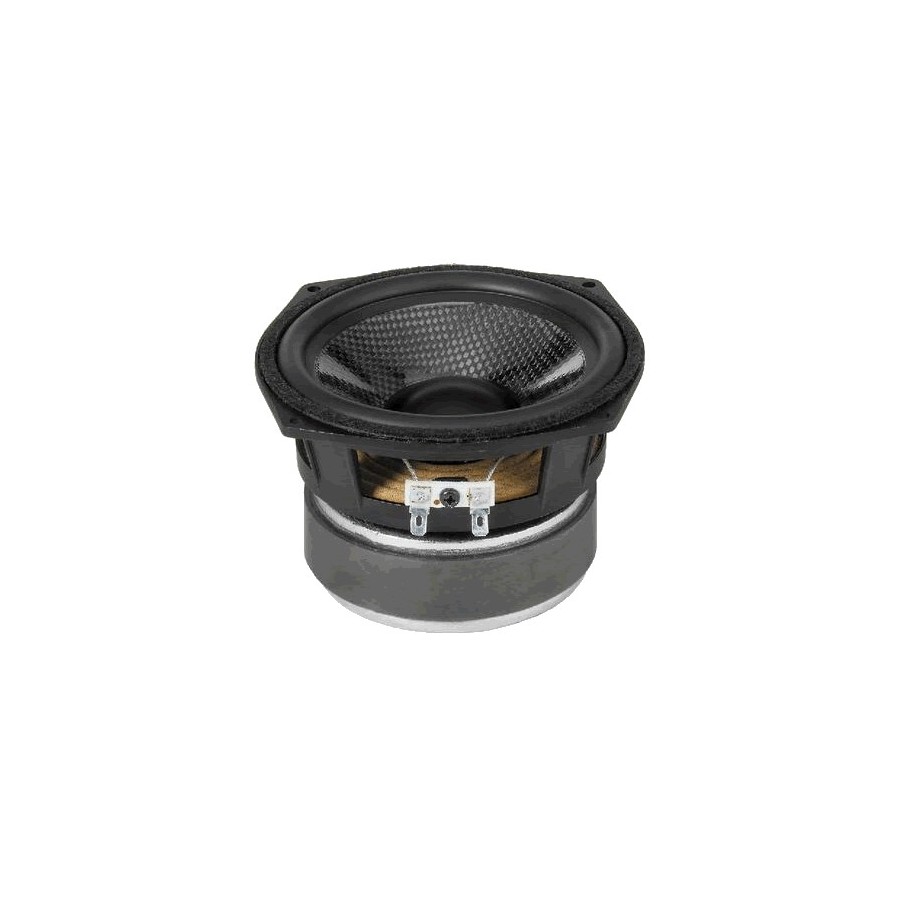

MONACOR SPH-135C Speaker Driver Midbass 50W 8 Ohm 88dB Ø13cm

Monacor SPH-135C
Average votes for this product
5.0 / 5

By buying this product you get 7 loyalty points


Yes, notify me when available !
Reference : 831
New product

75,00 €tax incl.

62,50 € tax excl.
Including 0,30 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info
Hi-Fi, 80 W MAX , 8 Ω Bass-Stereo Speaker

Parameters for exceptional bass reproduction. For 2-channel library, satellite or Appolito systems, bass-reflex or close.




 Impedance (Z) 8 Ω

 Resonance frequency (fs) 40 Hz

 Maximum bandwidth f3-8000 Hz

 Freq. cut. (Fmax). 4000 Hz

 Maximum power 80 W MAX

 Rated power (P) 50 W RMS

 Pressure sound. (1W / 1m) 88 dB

 Compliance susp. (Cms) 1.35 mm / N

 Moving mass (Mms) 12 g

 Mechanical resistance (Rms) 0.7 kg / s

 Mechanical overvoltage. (Qms) 4.48

 Electrical overvoltage (Qes) 0.43

Fact. total surge (Qts)0.39

 Volume equ. (VAS) 17 l
  </ Font>
 DC resistance. (Re) 6 Ω

 Inductance coil. (The) 0.75 mH

 Coil diameter 35.5 mm

 Coil holder Kapton

 Height winding 13 mm

 Air gap height 6 mm

 Linear Excursion (X MAX ) ± 3.5 mm

 Stransmission surface (Sd) 95 cm 2

 Flight. air displaced (Vd) 33.3 cm 3

 Force factor (BxL) 6.5 Tm

 Ref. (No) 0.2%

 Magnet diameter 100 mm

 Magnet Weight 17.7 oz.

 cutting Ø 122 mm

 Mounting depth 75 mm

 Dimensions 133 x 133 mm

 Weight 1.5 kg

 Recommended Min Volume

closed8 l

 bass reflex 17 l

















Data sheet
Speaker Power (W RMS)50.0
Speaker TypeMidbass
Impedance (Ω)8
Loudspeaker diameter (mm)130.0
Diaphragm typeCarbon fiber
Efficiency / Sensitivity (dB)88.0
Max Linear Excursion (Xmax) (mm)3.5
Lowest frequency (Hz)N/A
Highest frequency (Hz)8000

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Altoparlante Favoloso. Bassi e gamma media incredibile.
L'altoparlante è realizzato con grande attenzione ai dettagli. Cestello in alluminio, membrana in carbonio, magnete in ferrite e supporto bobina in Kapton. Il MONACOR SPH-135C sottoposto ai test ha fornito prestazioni piuttosto valide. I parametri rilevati sono sensibilmente difformi con quelli dichiarati dal costruttore. La frequenza di risonanza inferiore a 40 Hz e la ragguardevole tenuta in potenza permettono di ottenere prestazioni di rilievo in gamma bassa. Risposta in frequenza regolare a vantaggio della progettazione del filtro crossover che, par tali motivi sarà di semplice realizzazione. Qts e il BL elevati permettono una sensibilità di buon livello. E' un ottimo altoparlante, con apprezzabili caratteristiche che ne permettono l'impiego in sistemi a due vie di qualità. Ho personalmente adottato l'altoparlante in sistema bass-reflex, da 12 litri netti accordato a 50 Hz dove riesce a scendere in frequenza fino a 46,5 Hz (-3 db).
 (0)
 (0)
This review has been posted for MONACOR SPH-135C Speaker Driver Midbass 50W 8 Ohm 88dB Ø13cm
