TECTONIC TEBM65C20F-4 Full Range BMR Speaker

Tectonic's BMR range consists of full-range speakers designed to cover a very wide part of the audible spectrum. For example, the TEBM65C20F-4 features an extended frequency response from 60Hz to 20kHz, as well as wide directivity.

Average votes for this product
5.0 / 5
  Based on 1 customers reviews.

By buying this product you get 3 loyalty points


Yes, notify me when available !
Reference : 20751
New product

34,90 €tax incl.

29,08 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Tectonic TEBM65C20F-4 Full Range BMR Speaker 30W 4 Ohm 81dB 60Hz-20kHz Ø7.62cm

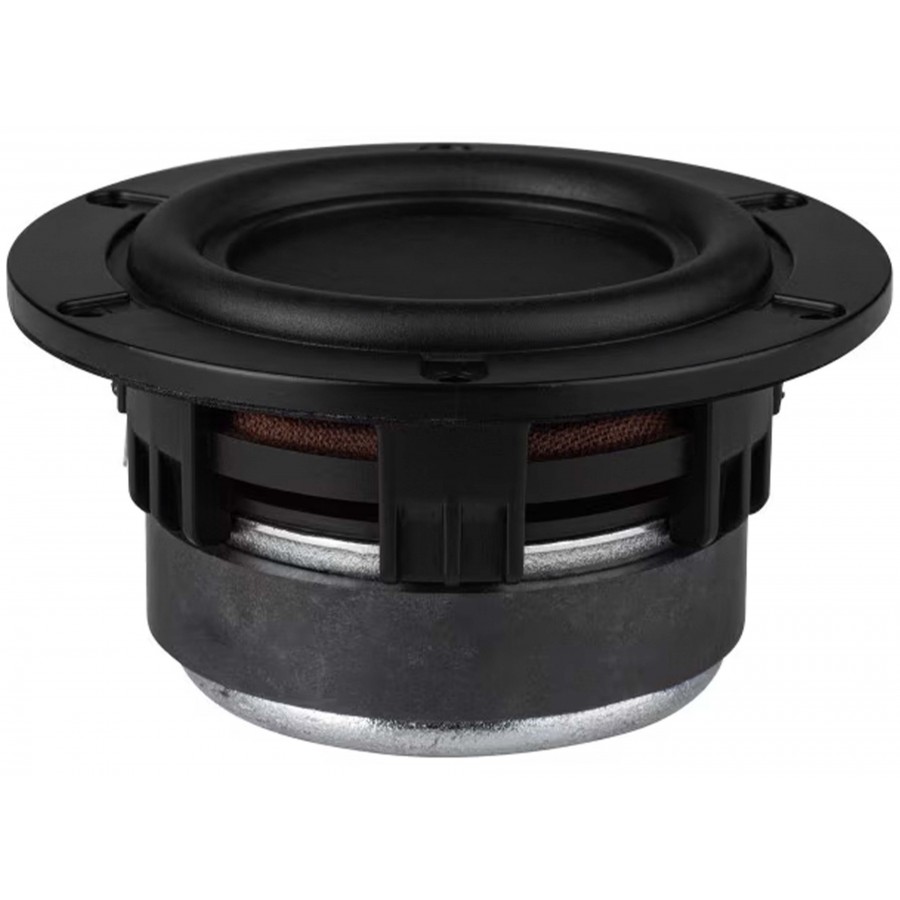

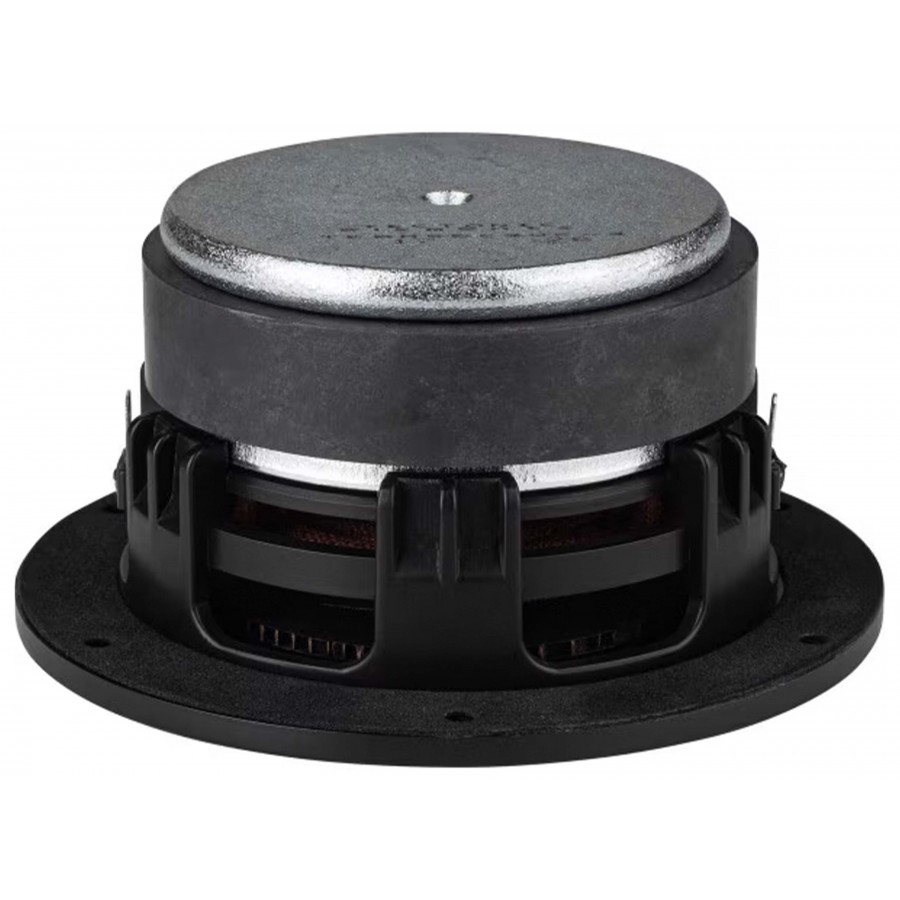

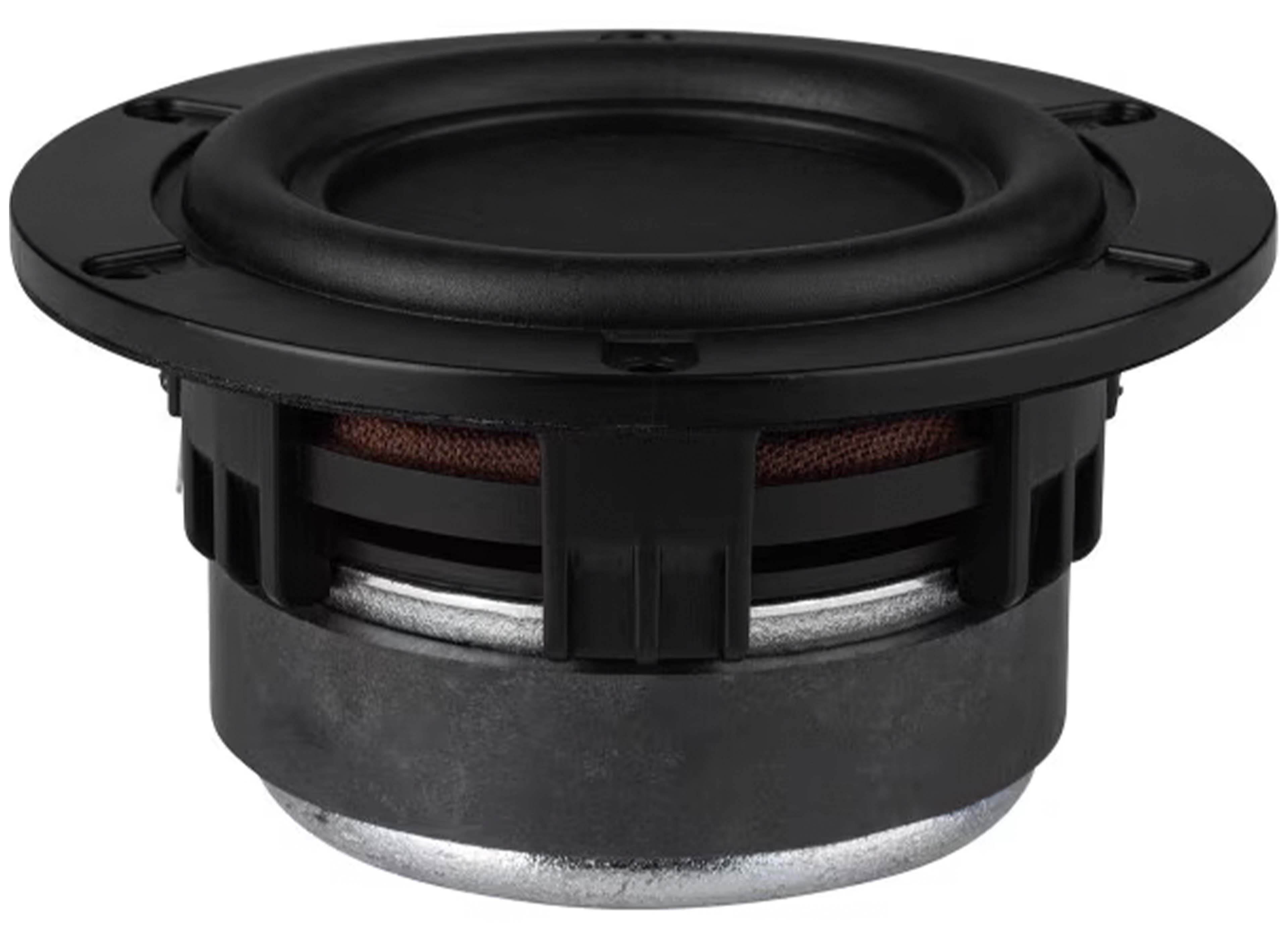

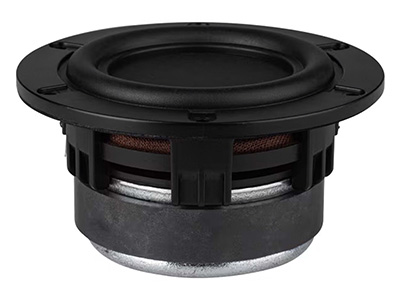

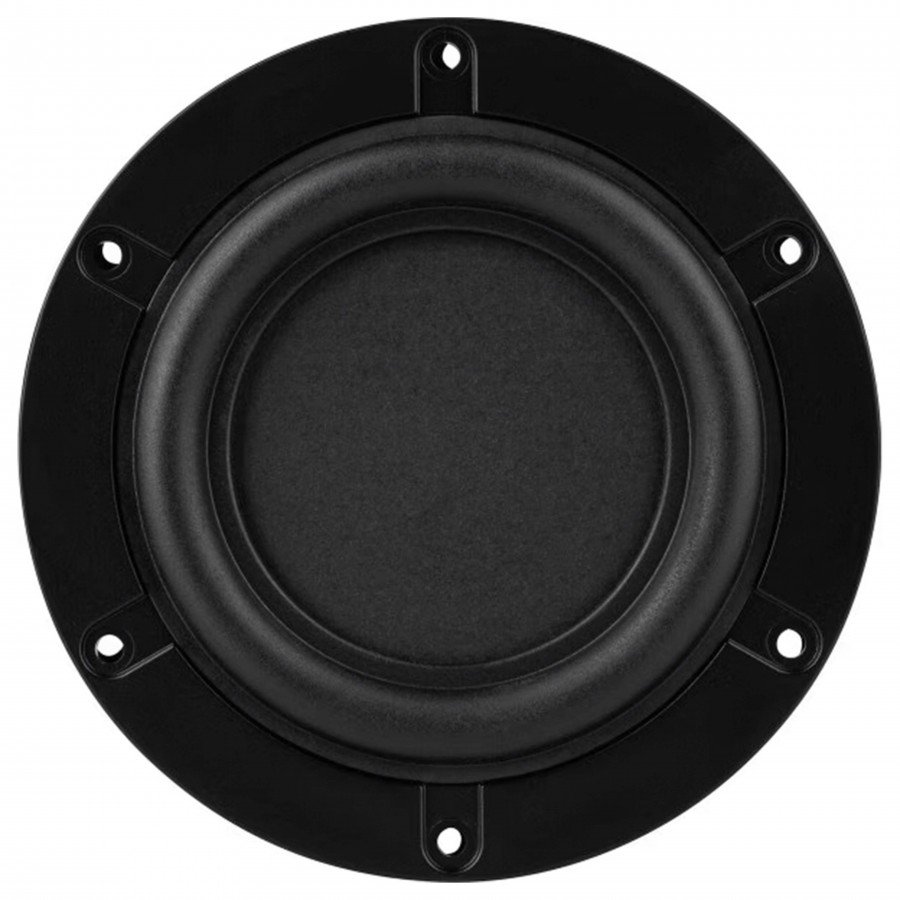

Photo of Tectonic speaker TEBM65C20F-4

Tectonic's BMR range consists of full-range speakers designed to cover a very wide part of the audible spectrum. For example, the TEBM65C20F-4 features an extended frequency response from 60Hz to 20kHz, as well as wide directivity. Furthermore, Tectonic combines flexible wave technology and a piston mode of operation to ensure high audio performance despite a very small speaker format.

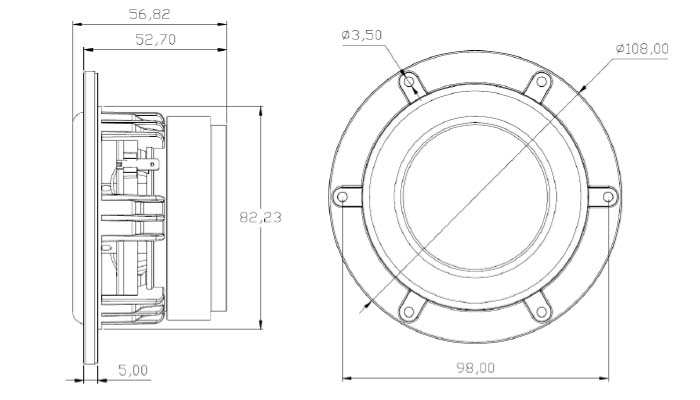

Tectonic TEBM65C20F-4 speaker dimensions

Tectonic TEBM65C20F-4 loudspeaker dimensions

Technical characteristics

Specifications
Product typeFull-range loudspeaker
Nominal diameter7.6cm (3-1/2")
Power Handling (RMS)30W
Power Handling (MAX)60W
Impedance4 ohm
Frequency Response60Hz-20kHz
Sensitivity81dB 2.83V/1m
Voice Coil Diameter2.54cm (1")
Thiele-small parameters
Resonant Frequency (Fs)97Hz
DC Resistance (Re)3.8Ω
Voice Coil Inductance (Le)0.03mH
Mechanical Q (Qms)7
Electromagnetic Q (Qes)0.94
Total Q (Qts)0.83
Compliance Equivalent Volume (Vas)0.035ft³
Mechanical Compliance of Suspension (Cms)0.47mm/N
BL Product (BL)3.75T·m
Surface Area of Cone (Sd)37.2cm²
Material
Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialFerrite
Mounting information
Overall Outside Diameter10.16 (4.25")
Baffle Cutout Diameter7.62cm (3.25")
Depth5.08cm (2.125")
# Mounting Holes6
Recommanded enclosure volume
Sealed Volume0.06ft³
Sealed F3101.3Hz
Vented Volume0.08ft³
Vented F375.1Hz
Général
Weight1.65kg
Package1x Haut-parleur large bande Tectonic TEBM65C20F-4

Data sheet
Speaker Power (W RMS)30
Speaker TypeFull range
Impedance (Ω)4
Loudspeaker diameter (mm)76.0
Diaphragm typePaper
Efficiency / Sensitivity (dB)81.0
Max Linear Excursion (Xmax) (mm)10.0
Lowest frequency (Hz)60
Highest frequency (Hz)20000

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Excellent Full range drivers
Set this up with manufacturer specified 1.6 L cabinets (non ported) made of PETG (3D Printed Boxes). The Clarity of the drivers are remarkable for such a small size. These drivers can be run by themselves eliminating the need for a crossover and tweeter setup.

Bass is a bit on the weaker side. Complementing it with a subwoofer driver is a necessity if you are looking for a rumble.

Overall highly recommended drivers as they are quiet the underdog in the DIY space. Hope more people buy this and enjoy these.
