AMC kit Dual regulated power supply +/- 1.5V to 30VDC 5A LM1084

Attention here is a kit to be assembled.

This kit, when assembled, allows you to obtain two regulated voltages between +/- 1.5V min and +/- 30 Vmax (depending on the transformer used).

Features:/ Strong>

• Amperage: maximum 5A
• Dual output voltages: from +/- 1.5 to +/- 30VDC
• Control: LM1084 Low drop out (line control 0.015%, load control: 0.1%, ripple rejection 75dB and output noise RMS 0.003%).
• Quality components: BHC Aerovox, Nichicon, Wima ...
• Dimensions: 99.5 x 86.2 x 2.4 (H) mm
• Weight: 180 g

BOM: List of components in PDF

Components are subject to change without notice

Product shipped without manual

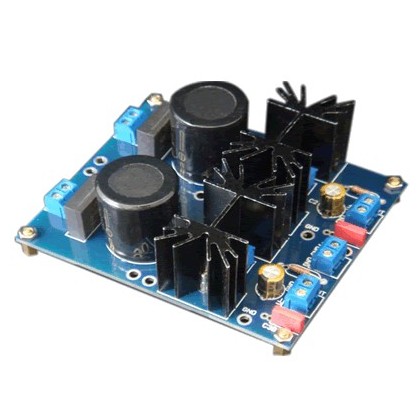

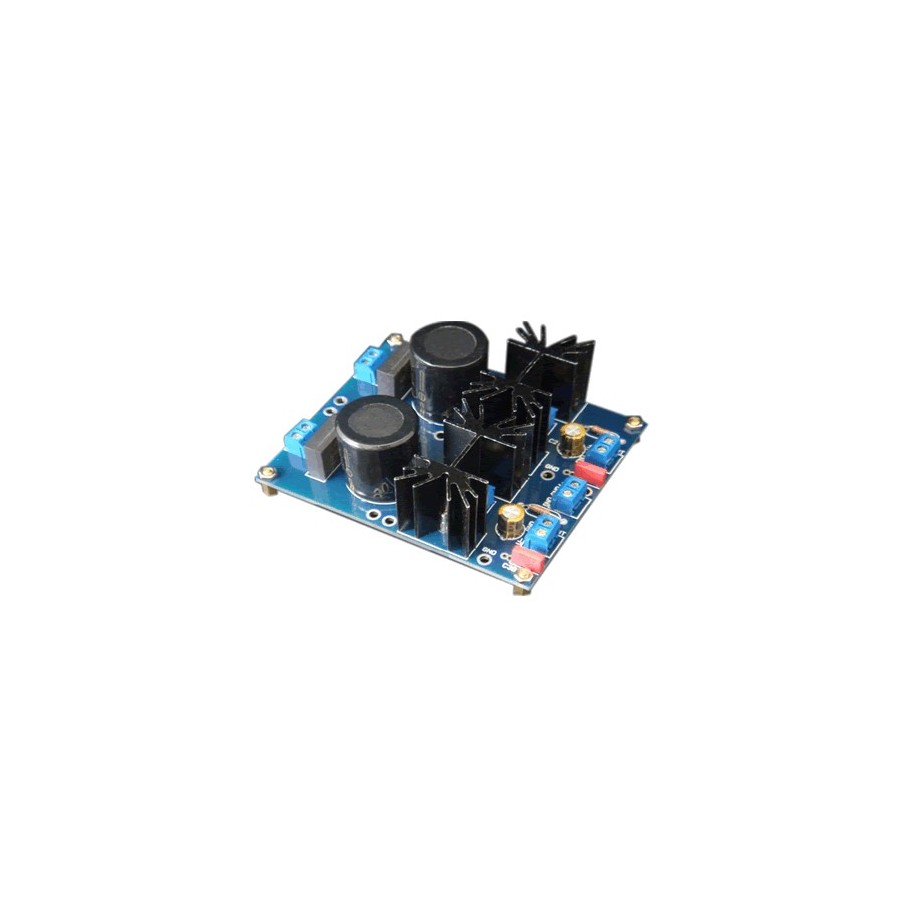

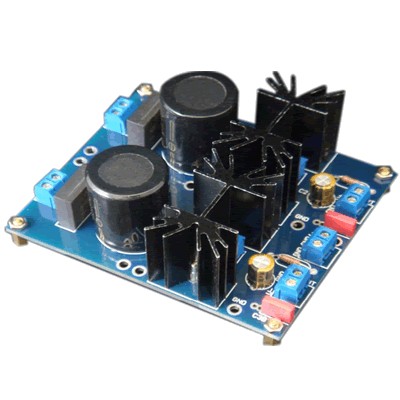

Assembled module

Diagram:
