ASCILAB A6B Bookshelf Speakers Black (Pair)

New
The AsciLab A6B are passive bookshelf speakers offering precise, powerful sound reproduction in a compact format. These 2-way speakers feature a 1“ alumina ceramic dome tweeter with custom waveguide and phase tapping, combined with a 6.5” PURIFI aluminum woofer, all housed in an enclosure with two Purifi passive radiators.

No customer reviews yet, login to write a review.

By buying this product you get 379 loyalty points


Yes, notify me when available !
Reference : 20934
New product

3 790,00 €tax incl.

3 158,33 € tax excl.
Including 0,05 € for green tax

This product is temporarily unavailable.
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

This product will soon be available for pre-order.

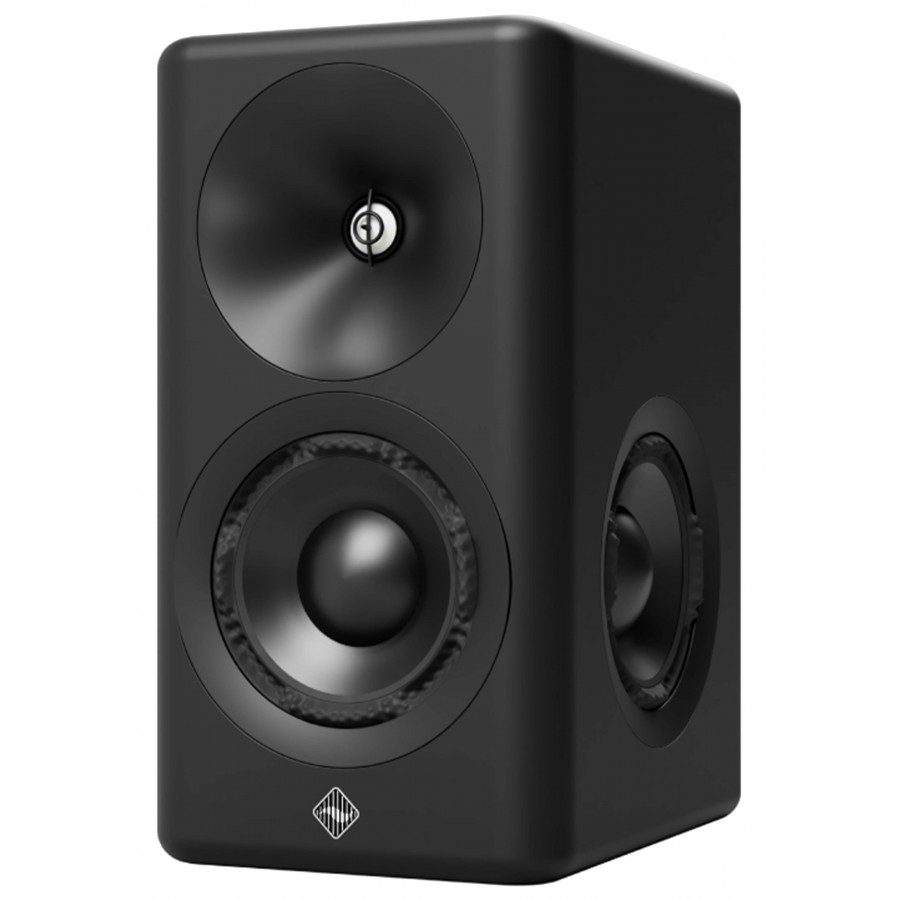

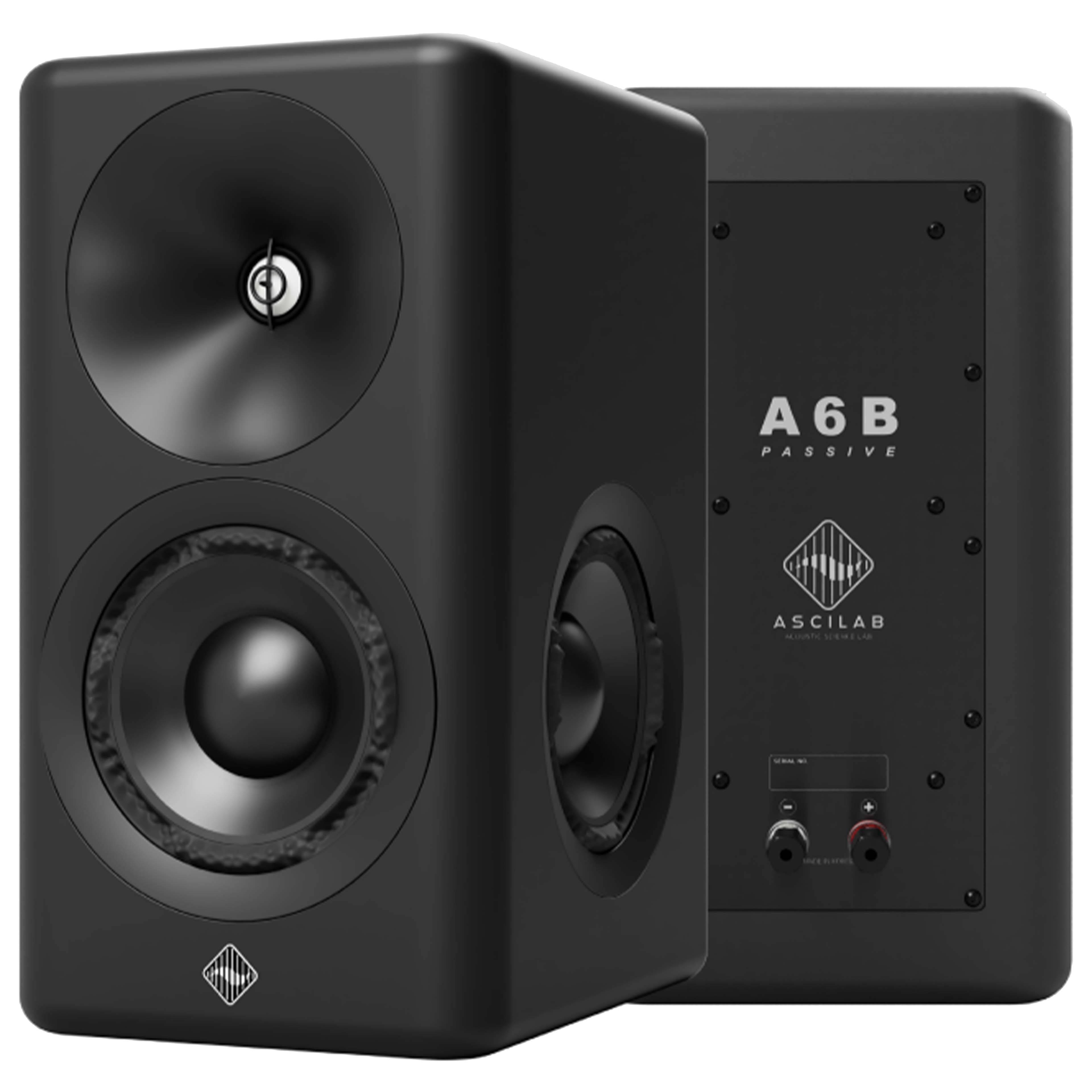

AsciLab A6B
Bookshelf Speakers 500W 4 Ohm 82dB Black (Pair)

Ascilab A6B photo


The AsciLab A6B are passive bookshelf speakers offering precise, powerful sound reproduction in a compact format. These 2-way speakers feature a 1“ alumina ceramic dome tweeter with custom waveguide and phase tapping, combined with a 6.5” Purifi aluminum woofer, all housed in an enclosure with two Purifi passive radiators. The Purifi 6.5" passive radiators provide a considerable boost at low frequencies. The frequency response of the A6B goes down to 32Hz (-6dB). Their design allows for lower crossover points and reduced distortion, for an extremely clear sound reproduction. The A6B feature a fourth-order crossover at 1kHz, optimized via Klippel NFS, and support up to 500W of amplification. These premium loudspeakers are ideal for demanding audiophile or professional studio use.

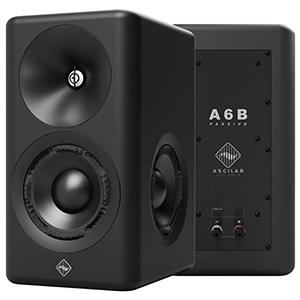

C6B designs

AsciLab A6B: Tweeters optimized for controlled sound dispersion

AsciLab A6B tweeters feature a waveguide and internal phase plug designed to precisely manage sound dispersion. These elements avoid phase interference, reduce internal resonance and improve off-axis dispersion. The advantages of this type of configuration translate into a more linear frequency response, reduced distortion and better spatialization of sound, offering a more coherent soundstage.

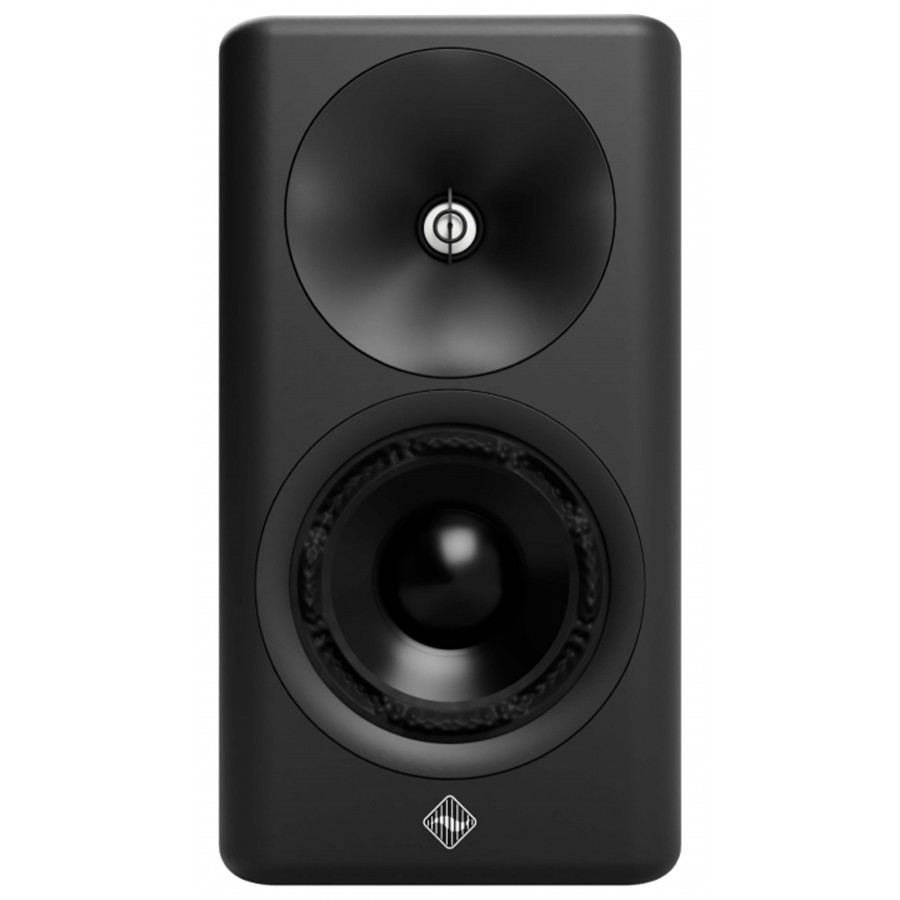

Zoom in on the A6B tweeter
Zoom in on the A6B woofer

AsciLab A6B: 6.5" Purifi woofer with aluminum cone

Despite their relatively compact size, the 6.5" Purifi woofers of the AsciLab A6B speakers are capable of sounding spaces of up to 25m², thanks to their powerful, well-defined bass. The aluminum cone ensures perfect low-frequency reproduction. It provides exceptional rigidity for faithful, distortion-free reproduction, even at high volume, thanks to a strong limitation of cone deformation at high sound pressure. Powerful and dynamic, these Purifi woofers deliver near-perfect performance.

AsciLab A6B: two 6.5" Purifi passive radiators for deep bass

AsciLab A6B speakers feature a passive radiator at the rear. These limit unwanted resonance while optimizing low-frequency reproduction. This solution also helps reduce distortion at high volumes, unlike a bass-reflex port, which can generate turbulence. AsciLab has also chosen to integrate two passive radiators to maintain a relatively compact speaker design.

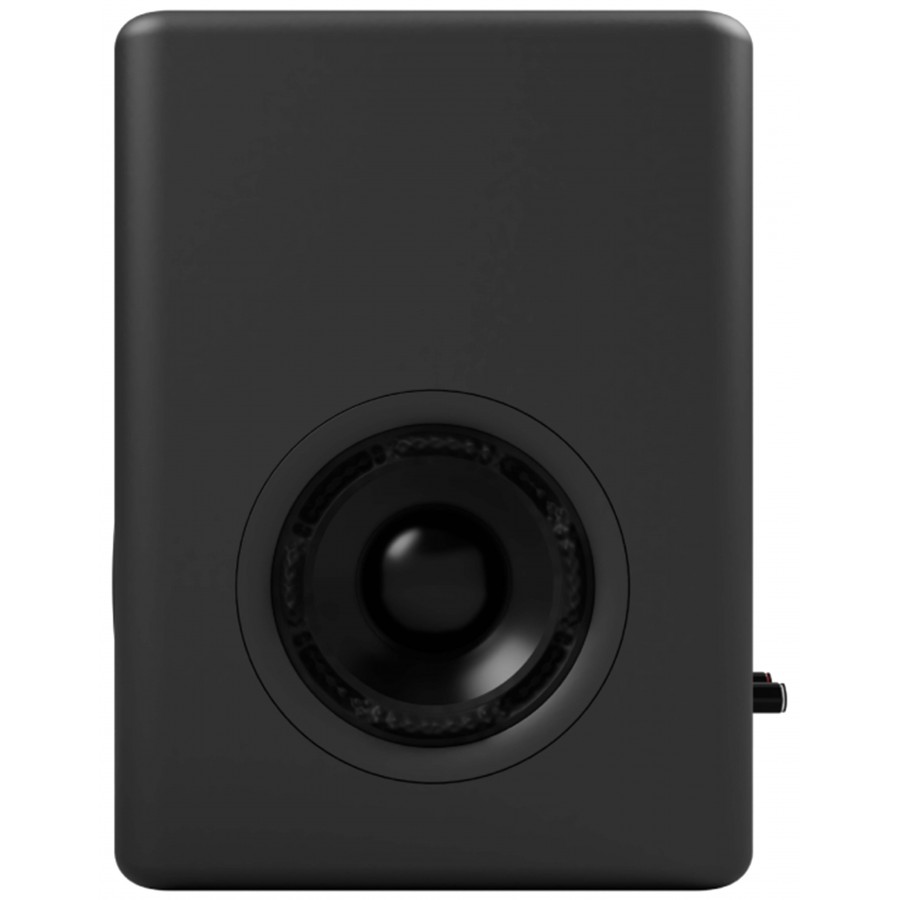

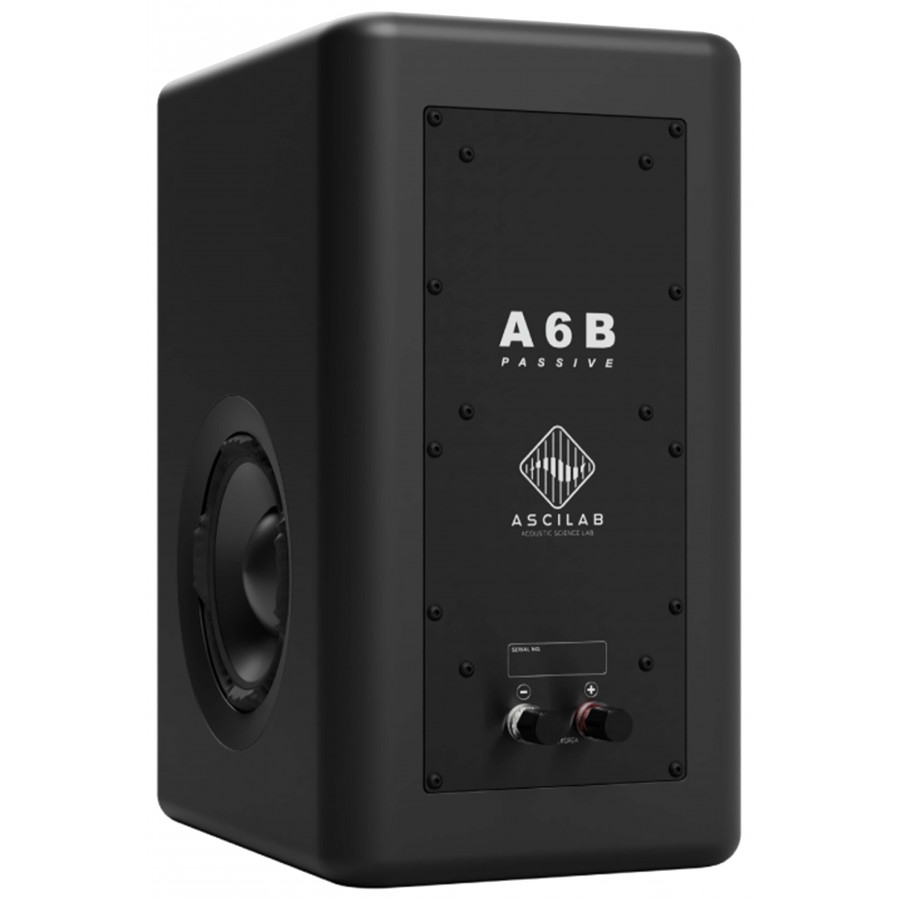

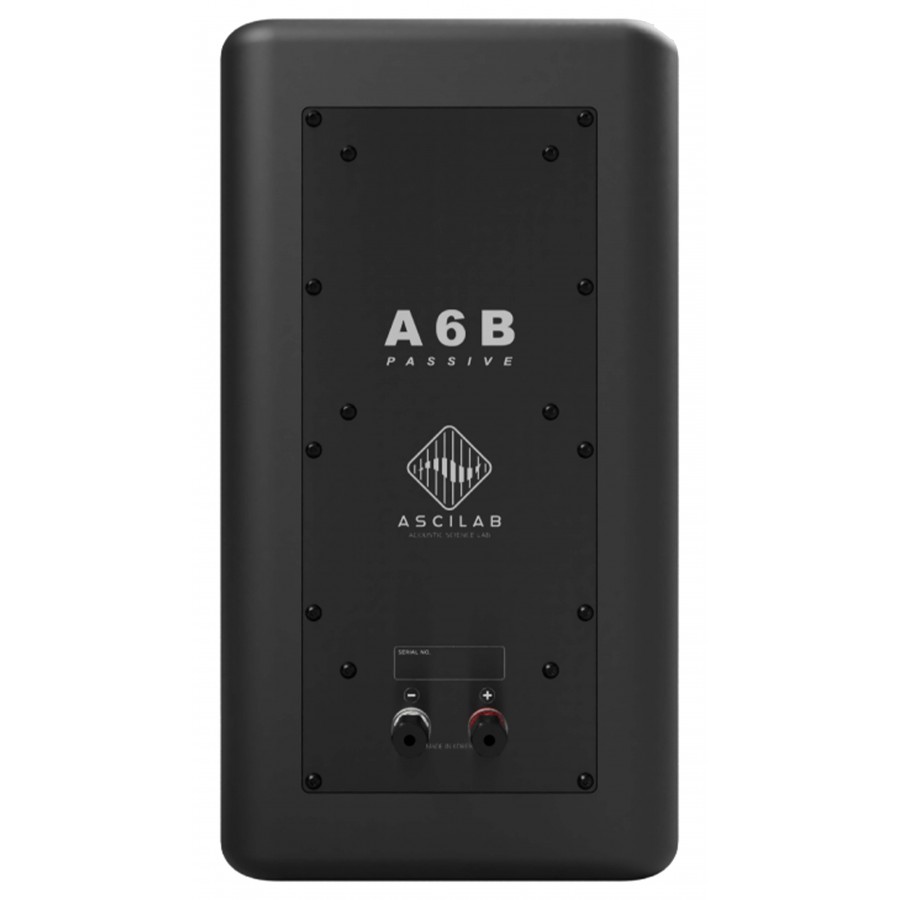

A6B passive radiator

AsciLab A6B: non-magnetic crossover system and precise adjustment

The materials used in the A6B crossover system are non-magnetic, to avoid any hysteresis effects that could cause energy dissipation and distortion. Furthermore, each loudspeaker is tuned using a Klippel NFS system, for precise rendering.

The AsciLab A6B crossover system and tuning

Technical characteristics

Specifications
Product typePassive speakers
Channel number2-way
Tweeter1" alumina ceramic dome tweeter
Woofer6.5" aluminum cone woofer
DesignWith two passive radiators
Enclosure materialMDF
FinishMate
Crossover frequency1kHz
Sensitivity82dB @ 2.83V / 1M
SPL Max. (Full-bandwidth)102dB SPL
SPL Max. (>100Hz)106dB SPL
Frequency response-3dB @ 37Hz / -6dB @ 32Hz
ImpedanceNominal 4 ohm
Recommended amplification50W - 500W
Connection to speaker terminals4mm Banana
Bare wires
Spades
General
Dimensions40.5 x 22 x 30cm
Weight12.3kg/speakers
ColorBlack
Package1x Pair of AsciLab A6B speakers

Data sheet
ColorBlack
Impedance (Ω)4
Efficiency / Sensitivity (dB)82.0
Lowest frequency (Hz)N/A
Highest frequency (Hz)N/A
Power (W)500.0
Number of ways2
Number of loudspeakers4
Speaker typePassive
Speaker form factorBookshelf speaker
