Swans S3W - Portable speakers Integrated TA2024 amplifier
Thanks to their compact size, these speakers are specially designed for use with a laptop.
They also have an additional input on the volume button for another mobile device (Ipod, Iphone ...)
These speakers despite their size, are able to reproduce the low frequencies unlike a laptop.
But the main target of the manufacturer is to obtain the best overall sound quality.

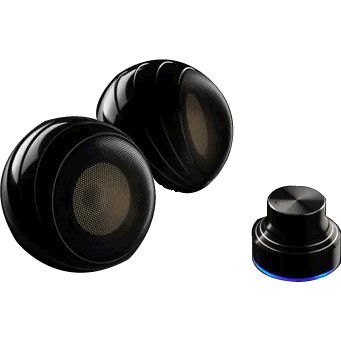

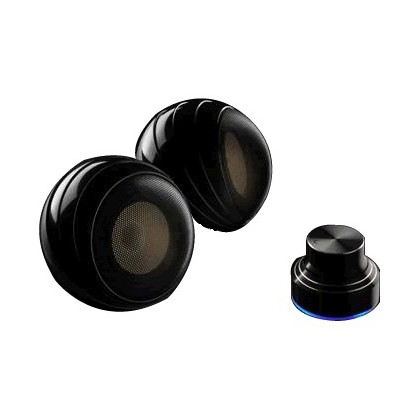

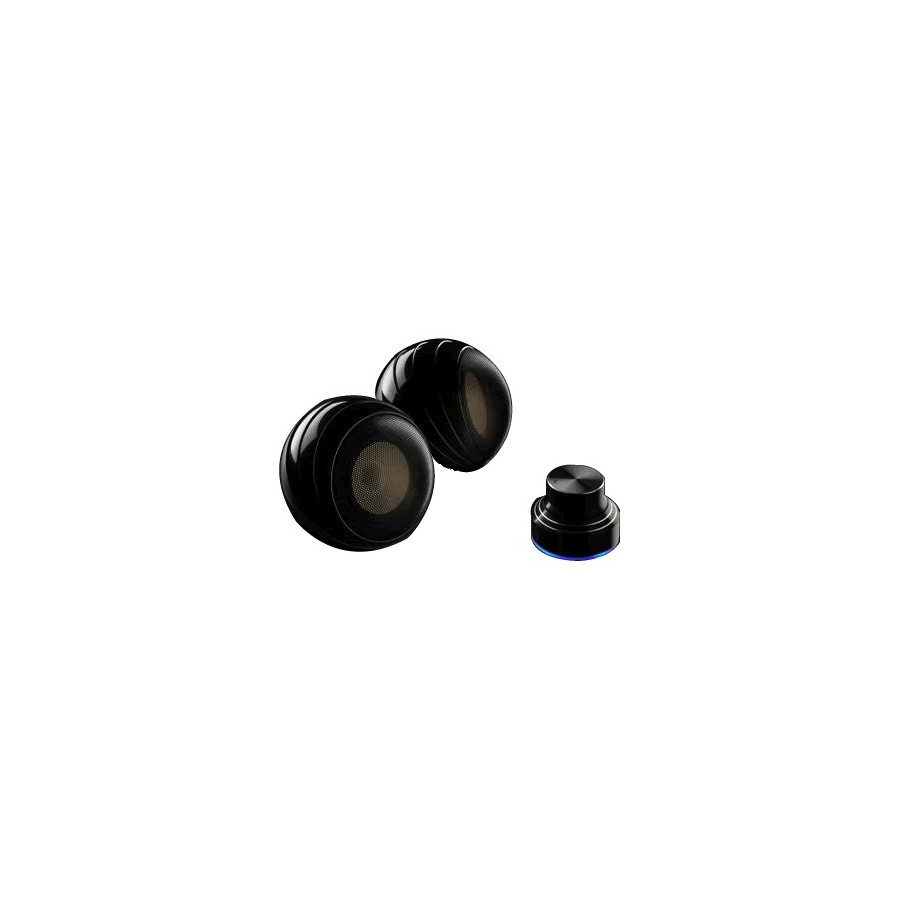

This kit is composed of 2 speakers and a stylish volume button, which also contains the amplifier, which limits the number of cord on the desk.
The amplification is entrusted to a well-known Class-D chip of the Hifi market, the Tripath TA2024.
This amplification chip coupled with small wideband speakers achieves a very good quality in the human voice register, which are gentle and natural.
| Model | HiVi S3W |
| System Series | Swans 2.0 Multimedia Series |
| System Type | One-way order vented box system |
| Drivers Configuration | Full range: C3N |
| Frequency Range | 65Hz-20kHz |
| Harmonic Distortion | 200Hz-20kHz≤1% (2.83V / 1m) |
| Sensitivity | 85dB (2.83V / 1m) |
| Nominal Impedance | 8Ω |
| Power Range | 1-15W |
| Amplifiers System (TA2024) |
| Rated Power | 2 × 5W |
| Frequency Range | 60Hz-20KH |
| Signal-to-Noise | 80dB |
| Harmonic Distortion | THD <0.05% (8Ω, 1kHz, 1W) |
| Input sensitivity | 300mV |
| Input impedance | 33KΩ |
| Other Parameter |
| Dimension (W × H × D (mm)) | 122 × 122 × 110 |
| Net Weight | 0.6kg |
