Portable DAC Headphone Amplifier CS43198 Balanced 32bit 384kHz DSD256

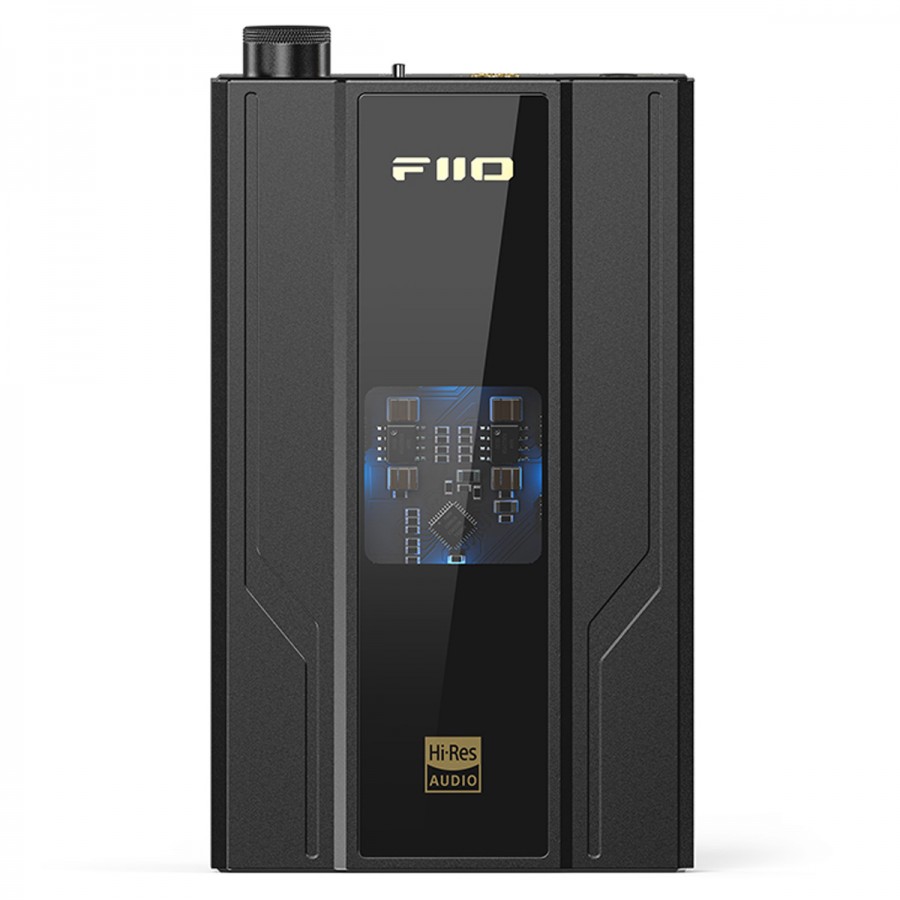

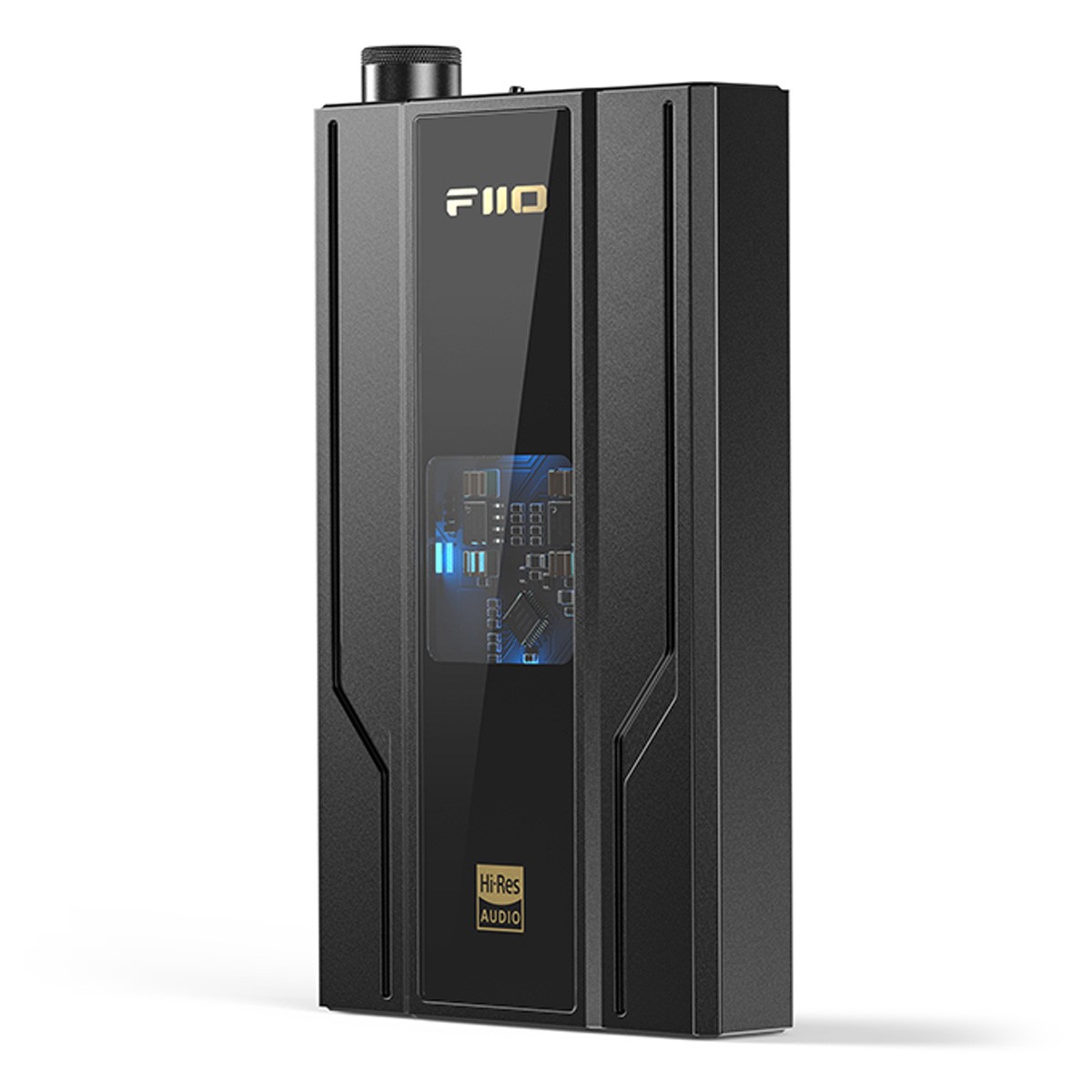

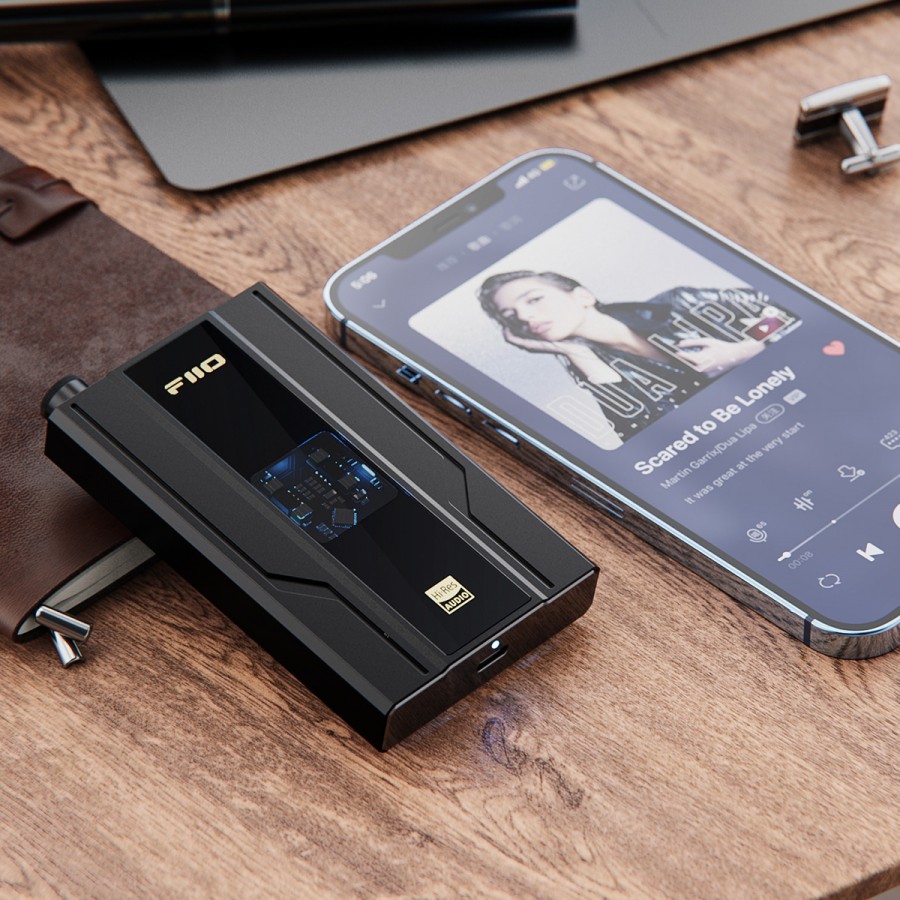

The ideal companion for any smartphone without headphone output, the FiiO Q11 is a high-performance, stylish and affordable portable DAC and headphone amplifier combo. It allows you to enjoy a quality listening experience at home or on the go, to make the most of your music.
The Q11's digital-to-analog conversion stage uses a high-performance CS43198 DAC chip to ensure efficient decoding of the audio stream and thus provide accurate and faithful sound reproduction. This chip also supports high resolution formats, up to 32bit 384kHz PCM and DSD256.
The amplifier section of the FiiO Q11 provides a comfortable power output of up to 650mW on its balanced output. It can therefore be combined with high impedance headphones as well as with high sensitivity headphones.
Q11 | Q1 Mark II | |
---|---|---|
Single-ended output power | ≥ 310mW @ 16Ω, THD+N < 1%, USB input | ≥ 112mW @ 16Ω, THD+N < 1%, AUX input |
≥ 165mW @ 32Ω, THD+N < 1%, USB input | ≥ 75mW @ 32Ω, THD+N < 1%, AUX input | |
≥ 19mW @ 300Ω, THD+N < 1%, USB input | ≥ 11mW @ 300Ω, THD+N < 1%, AUX input | |
Balanced output power | ≥ 640mW @ 16Ω, THD+N < 1%, USB input | ≥ 240mW @ 16Ω, THD+N < 1%, AUX input |
≥ 650mW @ 32Ω, THD+N < 1%, USB input | ≥ 220mW @ 32Ω, THD+N < 1%, AUX input | |
≥ 75mW @ 300Ω, THD+N < 1%, USB input | ≥ 45mW @ 300Ω, THD+N < 1%, AUX input |

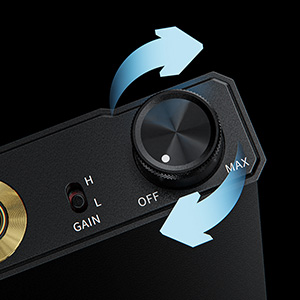

This adaptability of the Q11 to many headphones and earphones is reinforced by a two-level gain control, which can be changed at any time depending on the equipment used. A knob allows a quick and precise adjustment of the volume level.

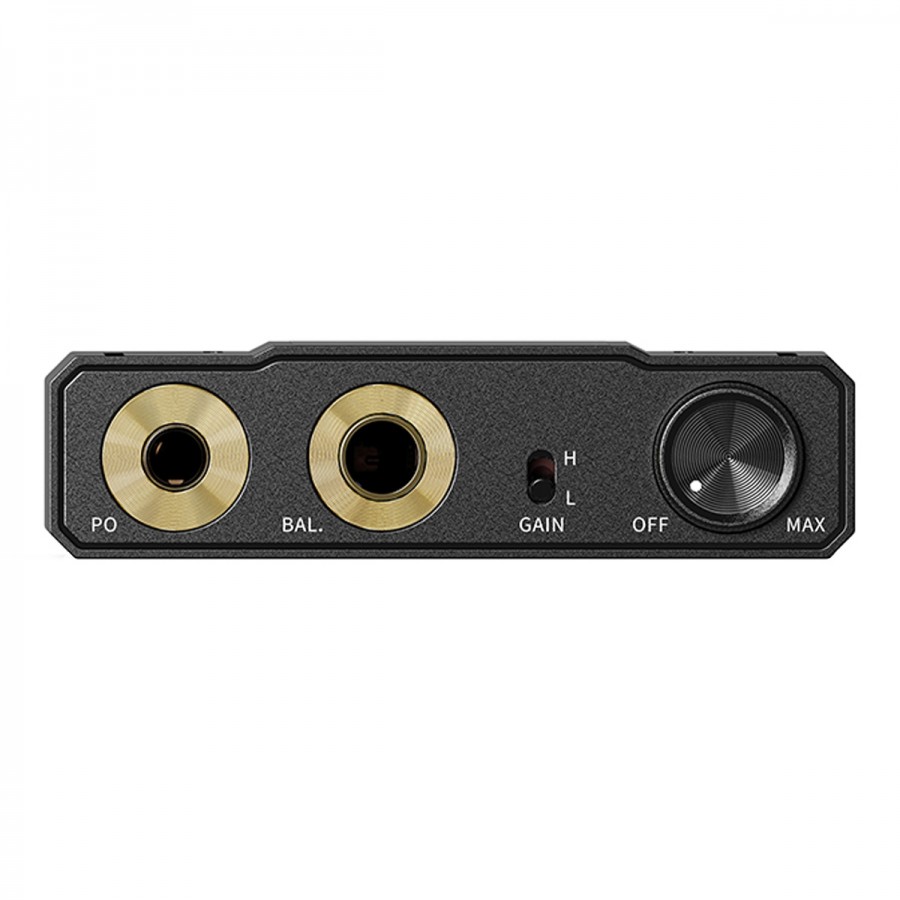

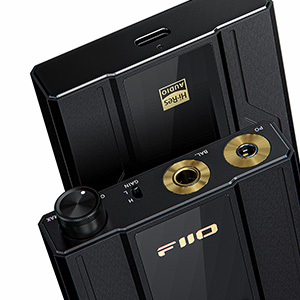

The FiiO Q11 has two outputs, the first one in single-ended Jack 3.5mm format and the second one in balanced Jack 4.4mm format, always with a view to versatility and adaptability. The Jack 3.5mm output can also be used as a coaxial output.

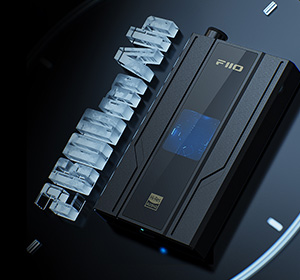

With its 2600mAh battery, the FiiO Q11 can reach an autonomy of more than 13h. It can thus accompany you on the move for a listening throughout the day.

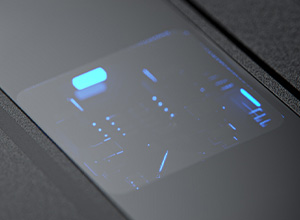

The small open window on the FiiO Q11's circuitry also features an LED indicator, changing color depending on the sample rate of the file being played. The Q11 can also be controlled by the free FiiO Control mobile application, allowing to activate or deactivate the LED indicator but also to access options such as audio filters.
Specifications | |
---|---|
Product type | Portable DAC and headphone amplifier |

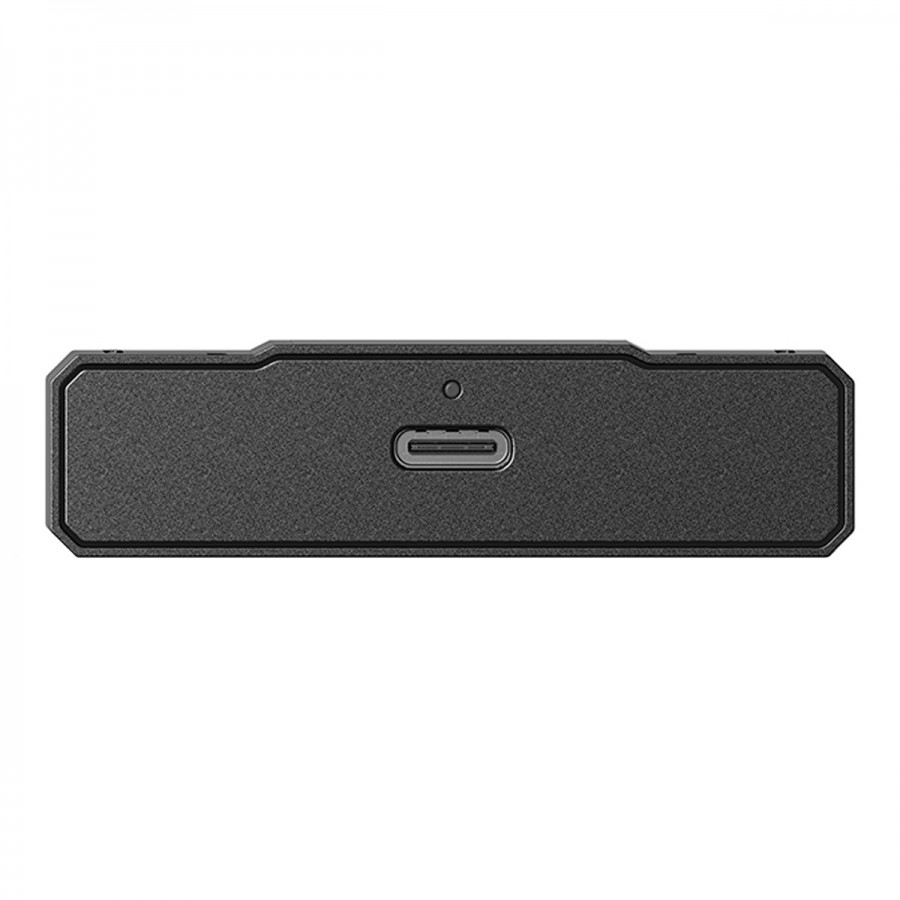

Input | 1* USB-C |
Outputs | 1* Single-ended Jack 3.5mm 1* Balanced Jack 4.4mm |
DAC chip | CS43198 |
Supported sampling rates | PCM up to 32bit 384kHz Native DSD up to DSD256 |
Output power | Single-ended: 165mW à 32Ω Balanced: 650mW @ 32Ω |
Battery | 2600mAh |
Battery life | > 13h |
SNR | Single-ended: ≥ 122dB @ 32Ω, A-weighted Balanced: ≥ 125dB @ 32Ω, A-weighted |
Noise floor | Single-ended: < 1.8µV (A-weighted) Balanced: < 2.4µV (A-weighted) |
Output impedance | Single-ended: < 1.2Ω @ charge 32Ω Balanced: < 2.0Ω @ charge 32Ω |
THD+N | Single-ended: < 0.0006% @ 1kHz, 32Ω Balanced: < 0.0006% @ 1kHz, 32Ω |
General | |
---|---|
Dimensions | 60.5*105.7*16mm |
Weight | 150g |
Color | Black |
Package | 1* FiiO Q11 1* USB-A to USB-C cable 1* USB-C to USB-C OTG cable 1* USB-C to Lightning OTG cable 1* Silicon strap 1* Silicon pad |
Input | USB |
Output | Jack 3.5mm |
Output | Jack 4.4mm |
DAC / ADC Chip | CS43198 |
Max sampling rate | 384kHz |
Max sampling rate | DSD256 |
Color | Black |
Class | Class D / T |
Networking | No |
Remote Control | No |
