FiiO Snowsky Melody Portable DAC Headphone Amplifier 2x CS43131 32bit 384kHz DSD256 Walnut

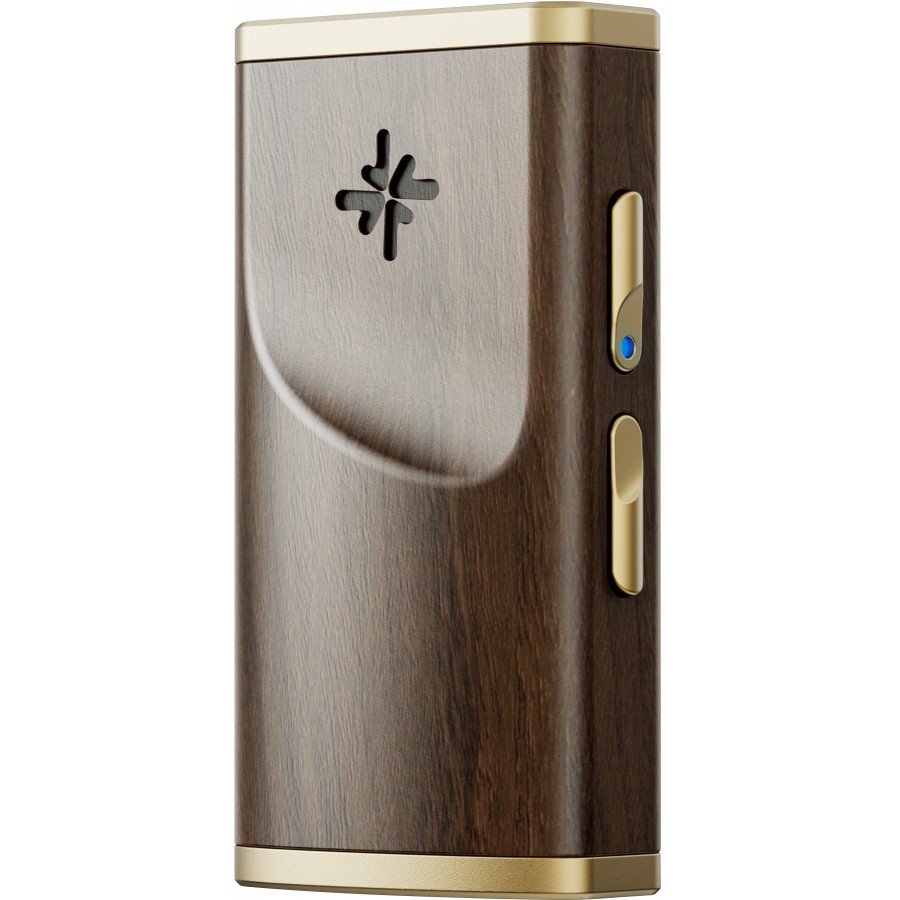

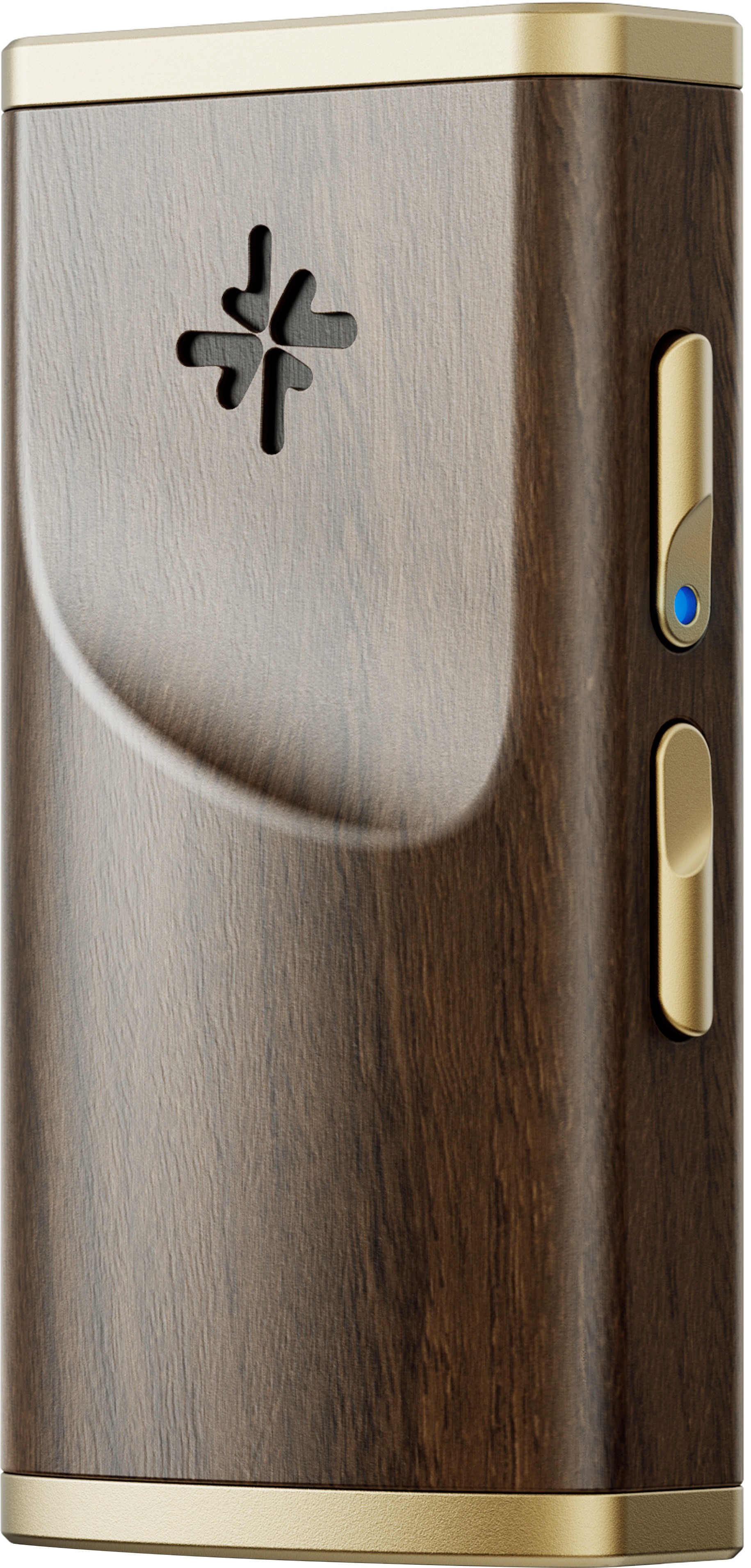

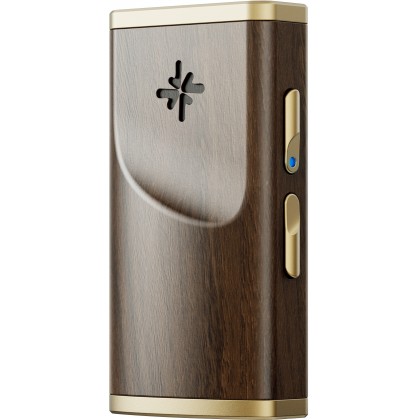

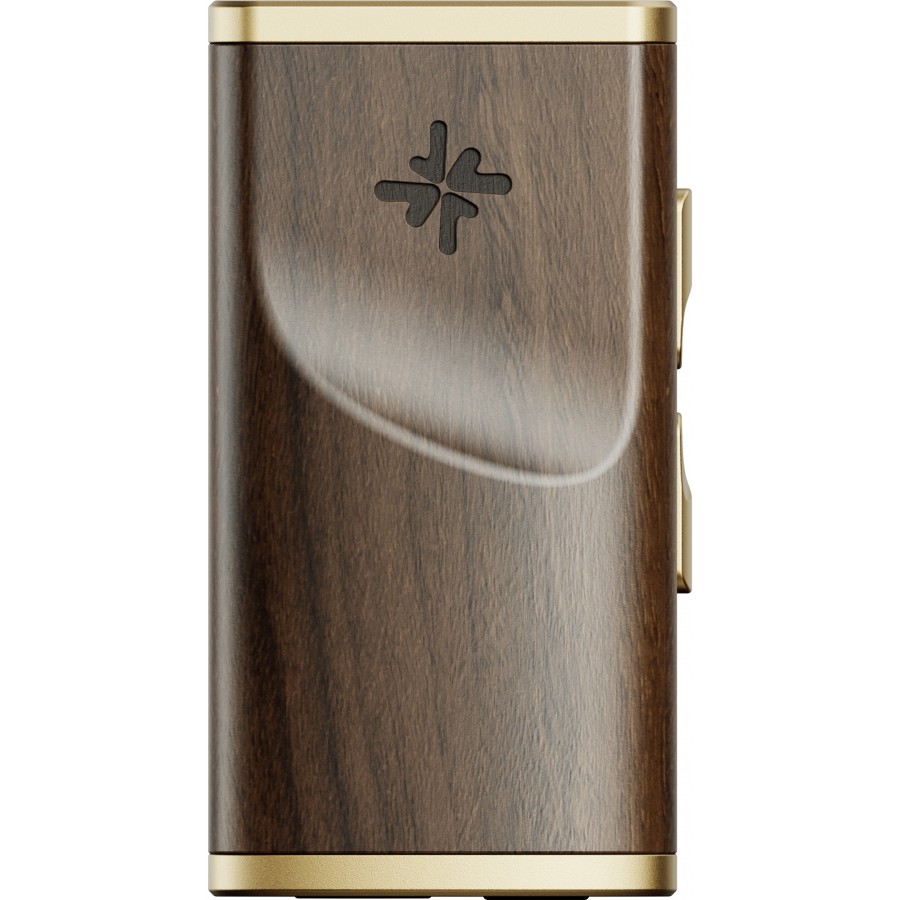

The FiiO Melody is a small, portable USB DAC and headphone amplifier with a unique design and an attractive wooden housing. Its digital-to-analog conversion stage is equipped with two CS43131 DAC chips, enabling it to support sampling rates up to PCM 32-bit 384 kHz and DSD256.
The Melody's input is via a USB-C connector and the output is either via an single-ende d3.5mm jack or a balanced 4.4mm jack. The 3.5mm jack output also supports coaxial SPDIF and is compatible with wired controls and microphones. In addition, the Melody is compatible with the FiiO Control app, which includes a 10-band parametric equalizer.
The headphone amplifier stage of the FiiO Melody delivers 2x100mW of power into 32Ω on its unbalanced 3.5mm jack output and 2x250mW into 32Ω on its balanced 4.4mm jack output.
The Melody is equipped with two side buttons for controlling volume and skipping to the next/previous track. In addition, one of the buttons is equipped with an LED indicator for the sampling rate.
The FiiO Melody's microprocessor helps deliver excellent sound quality while limiting the device's power consumption and heat generation. When playback stops, the Melody goes into standby mode and its power consumption drops below 10mA. This means it won't drain the battery of your smartphone or DAP when not in use.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Portable DAC and headphone amplifier |
| Input | 1x USB-C |
| Outputs | 1x Single-ended Jack 3.5mm / Coaxial combo 1x Balanced Jack 4.4mm |
| DAC chips | 2x CS43131 |
| USB interface | SPV5048 |
| Supported sampling rates | PCM up to 32bit 384kHz DSD up to DSD256 Coaxial: PCM up to 32bit 384kHz |
| Adaptive impedance | Single-ended: 16~150Ω Balanced: 16~300Ω |
| Firmware update | Via USB |
| Control app | FiiO Control |
| Compatibility | Android iOS Windows Mac |
| UAC support | UAC 1.0 UAC 2.0 |
| Single-ended Jack 3.5mm headphone output performances | |
|---|---|
| Output power | ≥ 2x116mW @ 16Ω, THD+N < 1% ≥ 2x100mW @ 32Ω, THD+N < 1% ≥ 2x13mW @ 300Ω, THD+N < 1% |
| Frequency response | 20Hz~20kHz, attenuation ≤ 0.1dB 20Hz~50kHz, attenuation ≤ 0.2dB |
| THD+N | < 0.00066% (0dB, 32Ω) |
| Max output voltage | ≥ 2.3V (32Ω, THD+N < 1%) |
| Output impedance | < 0.9Ω |
| Crosstalk | ≥ 76dB (1kHz, 32Ω) |
| SNR | ≥ 123dB (32Ω, A-wt) |
| Balanced Jack 4.4mm headphone output performances | |
|---|---|
| Output power | ≥ 2x127mW @ 16Ω, THD+N < 1% ≥ 2x250mW @ 32Ω, THD+N < 1% ≥ 2x54mW @ 300Ω, THD+N < 1% |
| Frequency response | 20Hz~20kHz, attenuation ≤ 0.1dB 20Hz~50kHz, attenuation ≤ 0.1dB |
| THD+N | < 0.0003% (0dB, 32Ω) |
| Max output voltage | ≥ 4V (32Ω, THD+N < 1%) |
| Output impedance | < 1Ω |
| Crosstalk | ≥ 121dB (1kHz, 32Ω) |
| SNR | ≥ 127dB (32Ω, A-wt) |
| General | |
|---|---|
| Dimensions | 42 x 22.5 x 11.5mm |
| Weight | ~ 10g |
| Color | Walnut |
| Package | 1x FiiO Melody 1x USB-C cable |
