DIY W & M Audio Tornado ELECAUDIO RI-24GB + RS-24GB cable kit 1.5m

Kit câble DIY W&M Audio Tornado SK-01 CR + SK-02 CR 1.5m

No customer reviews yet, login to write a review.

By buying this product you get 7 loyalty points


Reference : 8322
New product

75,00 €tax incl.

62,50 € tax excl.
Including 0,01 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Audiophonics offers here cables in kit for more ease.

All necessary components are provided to build a high-end complete line cable based on a W & M Audio driver and high quality ELECAUDIO connectors.

This kit includes:

  • 1.5mx WM-AUDIO TORNADO Double Shielded Cable Shielding 3x4.0mm² Ø 12.9mm
  • 1 x ELECAUDIO RS-24GB Plug SCHUKO Fiber Glass Plate Gold
  • 1 x ELECAUDIO RI-24GB Plug IEC Fiber Glass Gold Plated
  • 1 x ELECAUDIO DF-03 Extensible braided nylon sheath (PET)
  • 6 x ELECAUDIO EC-4G Copper OCC Plugs Gold plated for cable 4,00mm²

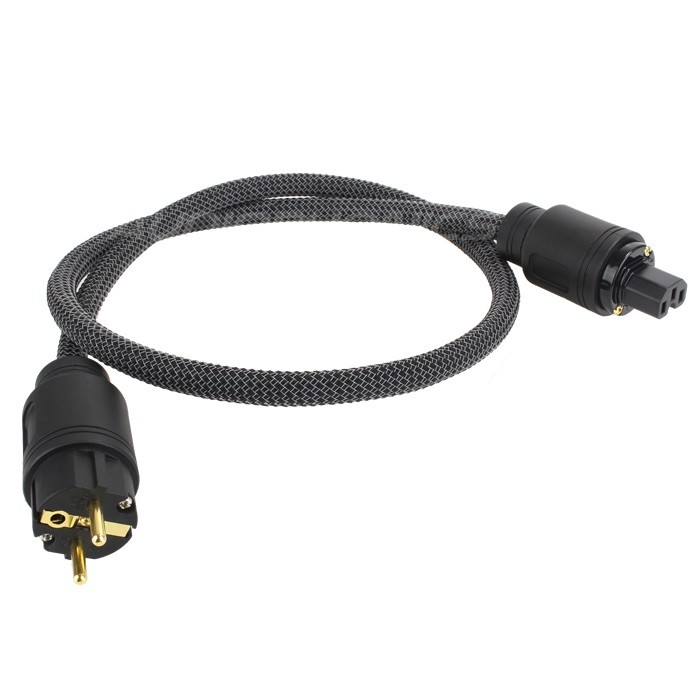

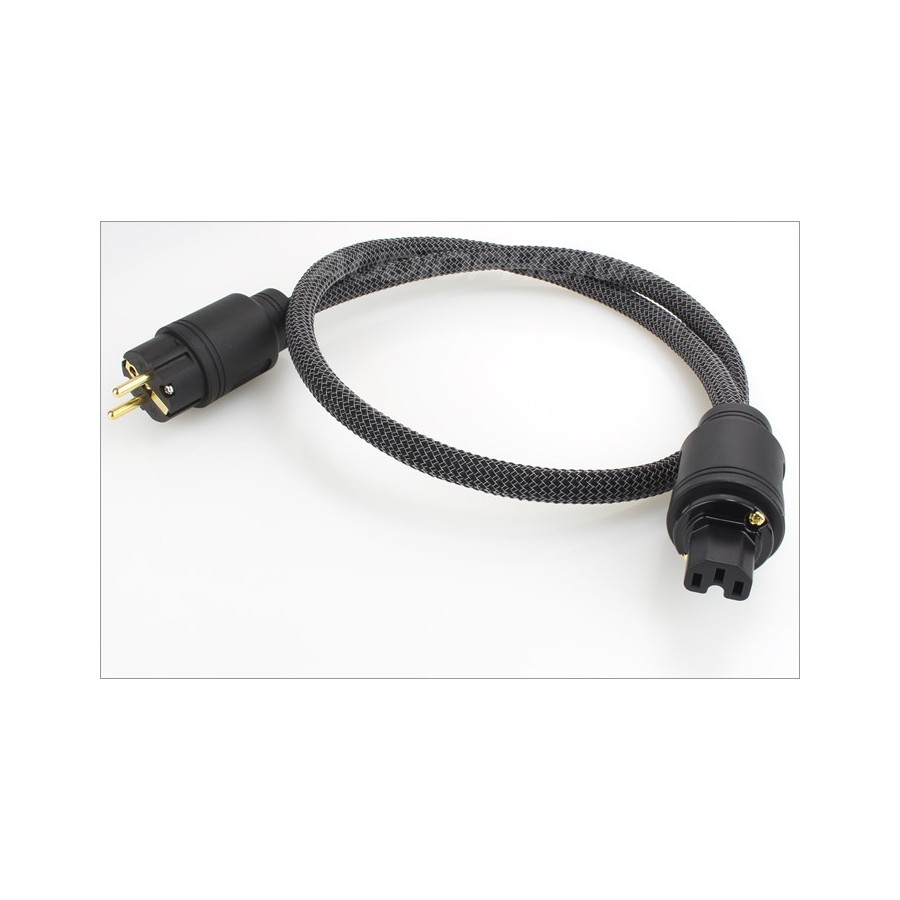

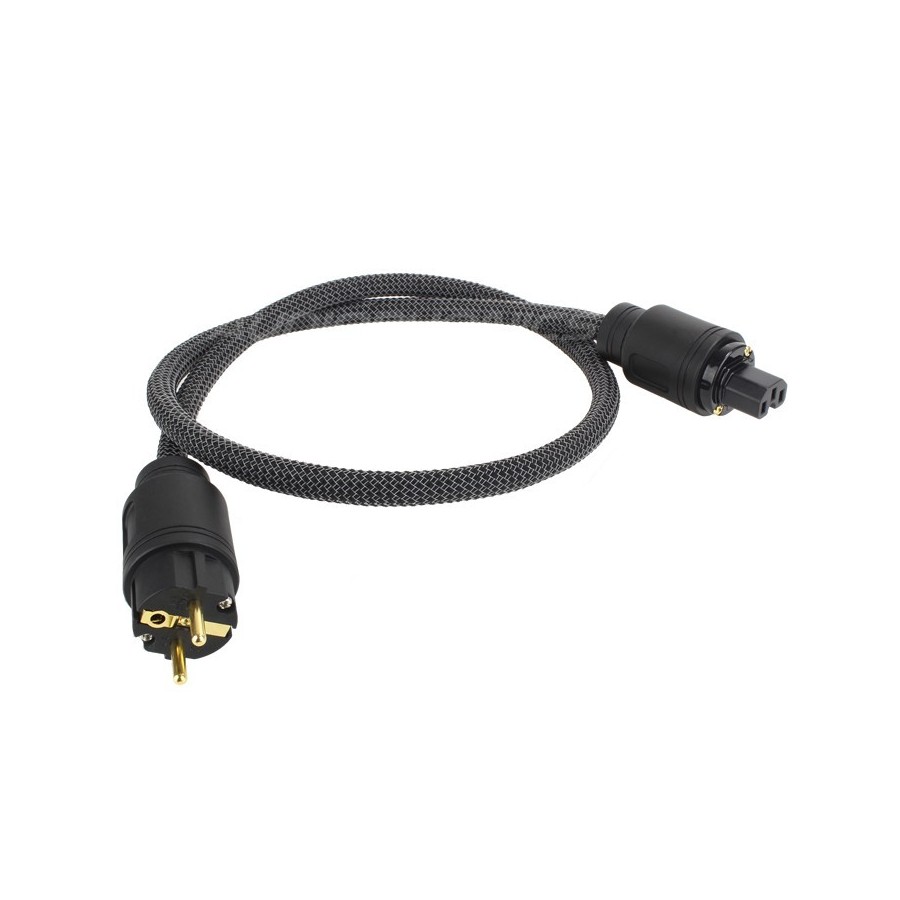

Result when mounted:


If you want this cable mounted, we offer a mounting package.
Please go to
the filee to take advantage of our offer:

https://www.audiophonics.fr/images2/5188/5188_CABLE_ASSEMBLY_5.jpg

W & M Audio Power cable Tornado shielded 3x4mm²

This 3x4mm² section cable has double shielding against electromagnetic interference
This shielding consists of a metal strip in addition to a copper braid.

It will guarantee a fine and detailed sound reproduction.

  • Outside Diameter: 12.9mm
  • Section: 3x4mm²
  • Double shielding strap + copper braid

Cable also sold at the cut

ELECAUDIO RI-24GB Connector IEC Fiber Glass Gold plated

IEC socket for making a mains cable or for a replacement

  • Body: 30% Glass Fiber and 66% Nylon
  • 16A 250V
  • Accept conductors up to 15mm² (Ø 4.5mm)
  • Screw-in contacts
  • All contacts are gold plated
  • Body Length: 95mm
  • Max Connector Diameter: 42mm
  • Acceptable cable diameter: from 13.5 to 16.5mm
  • Weight: 76g

ELECAUDIO IEC

IEC connector also sold individually

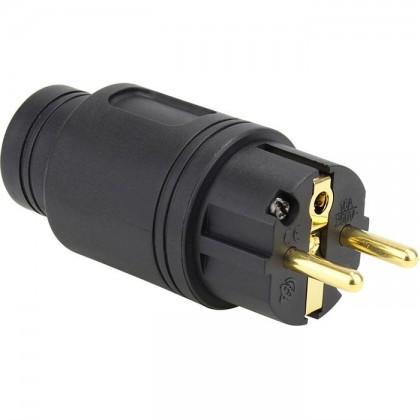

ELECAUDIO RS-24GB SCHUKO Fiber Glass Plated Silver / Gold

SCHUKO plug for making a mains cable or for a replacement

    • Body: 30% Glass Fiber and 66% Nylon
    • 16A 250V
    • Accept conductors up to 15mm²
    • Screw-in contacts
    • All contacts are silver / gold plated
    • Body Length: 103.7mm
  • Max Connector Diameter: 42mm
  • Acceptable cable diameter: from 13.5 to 16.5mm
  • Weight: 92g

ELECAUDIO SCHUKO

Schuko connector also sold individually


Data sheet
Length (m)1.5
Number of conductors3
Section (mm²)4.00
