AUDIOPHONICS Trigger Micro-USB 5V 230 V Slave Power Supply Device

AUDIOPHONICS Trigger Micro-USB 5V 230 V Slave Power Supply Device

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Reference : 13244
New product

20,75 €tax excl.

Including 0,04 € for green tax
Available

- +

Shipping date: 26-08-2019.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info
Trigger USB / sector

Trigger 5V Micro-USB / IEC


Turn your USB ports into a sector-based trigger thanks to this Audiophonics module and made in France, in our workshops.

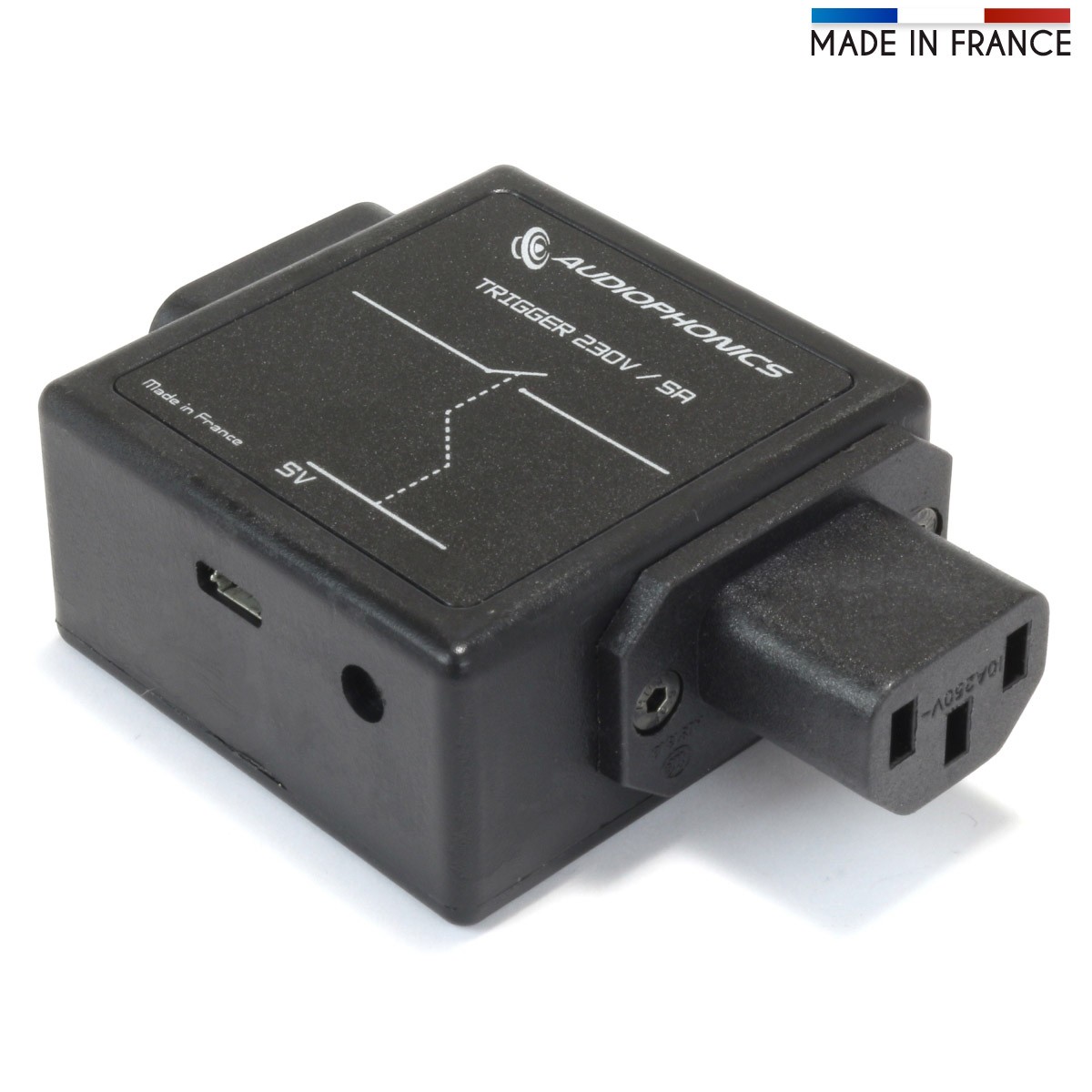

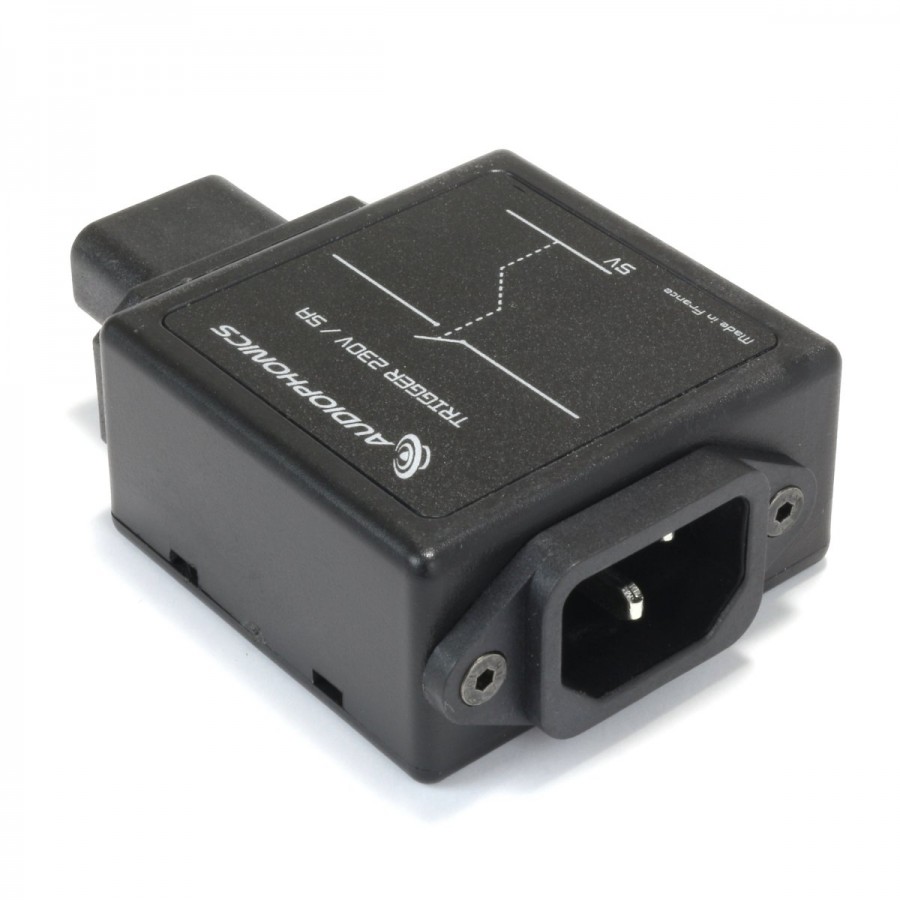

Theis device has an IEC inlet and IEC output (sector). By default, no current flows between the two connectors.

A micro-USB port is on the side of the device. When this input is fed with a 5V DC (USB), it closes the circuit between the input and the IEC IEC output, which allows current to pass.


This type of accessory can be used in a variety of fields. In the case of an audio installation, it will be particularly useful for setting up the lighting of a preamp, DSP, amplificateur..etc from Raspberry Pi based device. By extension, the same principle applies to any device with a powered USB port : simply connect one of the ports of the master device to the trigger Module

Trigger master usb
Specifications
Typetrigger receptor on 230V Module
target voltage5V
Amperage max10A 230V
InputIEC C13 Female
Trigger InputMicro-USB
OutputIEC C14 male
Consumption (5V input)0.36W
5V input400 Ohm / 30mA
Dimensions82 x 58 x 28.5 mm
Weight66g
Made in France

Data sheet
InputIEC C14
InputMicro USB
OutputIEC C13
ColorBlack
Output voltage (V)230
Output current (A)10
Input voltage (V)230V
