AUDIOPHONICS Stereo Buffer Module OPA OP275 V2.2

Average votes for this product
4.8 / 5

By buying this product you get 3 loyalty points


Reference : 4227
New product

34,90 €tax incl.

29,08 € tax excl.

- +


Shipping date: 12-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

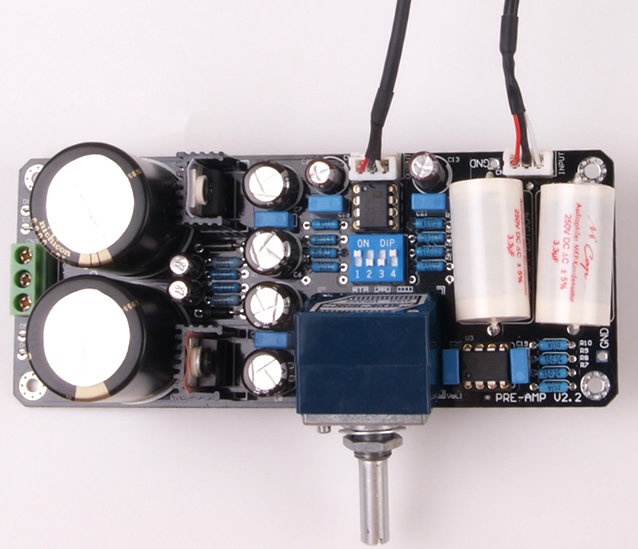

The AUDIOPHONICS 4227 V2.2 module is used to buffer and amplify a stereo signal independently and qualitatively.

A simple transformer 2x15V low power can feed it.
Semi-scalable design, this card incorporates 2 OP AMPs operational sockets mounted on sockets to be upgraded at will.

They are supported by a power supply consisting of 2 "Great supply" capacitors each of 2200uF / 20V and 4 NICHICON NRSZ 220uF / 35V supported by several MKP capacitors.

Characteristics :

  • Connection of Inputs / Outputs by terminal blocks (CN1 input - CN2 output).
  • Signal input by 3-point connector
  • Board supplied bare, assembled and ready to be powered (Power supply from a 2X15V transformer)
  • Adjustable LM317 / 337 controllers
  • 2 AD OP275 Operational Amplifiers on DIP8 Interchangeable Media

Specifications:

  • Default Gain: 18dB (modifiable)
  • Input impedance: 100-130kohm
  • Output impedance : 600 Ohm
  • Max output level : 8.5Vrms
  • Bandwidth : 6Hz-24kHz
  • THD : 0.006%
  • Power Supply: 2X15V Transformer
  • Dimensions: 130 x 53 x 45mm (L x W x H)

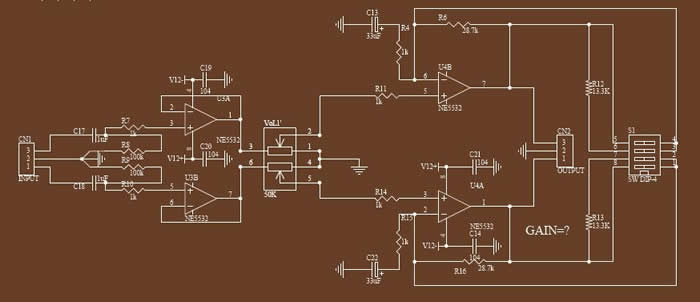

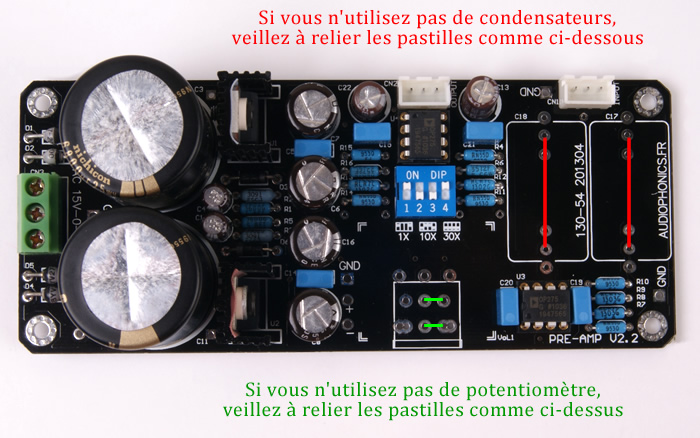

  • Gain adjustable by means of DIP switch present in the middle of the PCB (x1, x10, x30)
  • Weight: 240g
