[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver
The Pro version for D802C improves Bluetooth module (CSRA64215) and a gains a more efficient USB chip CM6422 than its previous model.
This amplifier is a very comprehensive tool that comes standard with a 192kHz 24bit digital to analog converter associated with an S / PDIF interface AKM AK4113, an ADC Wolfson WM88782S and Audio / DSP VIA VT1630A interface.
![[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver](https://www.audiophonics.fr/45454-thickbox_default/-grade-b-fx-audio-d802c-pro-amplifier-fda-bluetooth-42-nfc-class-d-sta326-2x80w-4-ohm-silver.jpg "[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver")
![[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver](https://www.audiophonics.fr/45453-thickbox_default/-grade-b-fx-audio-d802c-pro-amplifier-fda-bluetooth-42-nfc-class-d-sta326-2x80w-4-ohm-silver.jpg "[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver")
![[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver](https://www.audiophonics.fr/45455-thickbox_default/-grade-b-fx-audio-d802c-pro-amplifier-fda-bluetooth-42-nfc-class-d-sta326-2x80w-4-ohm-silver.jpg "[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver")
![[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver](https://www.audiophonics.fr/45456-thickbox_default/-grade-b-fx-audio-d802c-pro-amplifier-fda-bluetooth-42-nfc-class-d-sta326-2x80w-4-ohm-silver.jpg "[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver")
![[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver](https://www.audiophonics.fr/45457-thickbox_default/-grade-b-fx-audio-d802c-pro-amplifier-fda-bluetooth-42-nfc-class-d-sta326-2x80w-4-ohm-silver.jpg "[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver")
![[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver](https://www.audiophonics.fr/45458-thickbox_default/-grade-b-fx-audio-d802c-pro-amplifier-fda-bluetooth-42-nfc-class-d-sta326-2x80w-4-ohm-silver.jpg "[GRADE B] FX-AUDIO D802C PRO Amplifier FDA Bluetooth 4.2 NFC Class D STA326 2x80W 4 Ohm Silver")
By buying this product you get 14 loyalty points
![[GRADE S] MOGAMI W3103 Speaker Cable OFC Copper 2x4.mm² Ø12mm 2.9m](https://www.audiophonics.fr/60807-thumb_default/mogami-w3103-speaker-cable-ofc-copper-2x4mm-o12mm.jpg)
![[GRADE S] FURUTECH FP-S55N LIMITED EDITION Power Cable OFC Copper Silver Gold Nano Liquid Alpha Treatment 5.26mm² Ø18mm 2.65m](https://www.audiophonics.fr/60802-thumb_default/furutech-fp-s55n-limited-edition-power-cable-ofc-copper-silver-gold-nano-liquid-alpha-treatment-526mm-o18mm.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60791-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60786-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
![[GRADE B] IFI AUDIO ZEN CAN Class A Balanced Headphone Amplifier 15.2V](https://www.audiophonics.fr/60782-thumb_default/ifi-audio-zen-can-class-a-balanced-headphone-amplifier-152v.jpg)
Refurbished product - Grade B
Impacts and/or scratches on the case.
Full-Digital Amplifier Pro D802C
FDA-8Ω 2x50W 24bit / 192kHz STA326 / AK4113 / CM6642
This amplifier is a very comprehensive tool that comes standard with a 192kHz 24bit digital to analog converter associated with an S / PDIF interface AKM AK4113, an ADC Wolfson WM88782S and Audio / DSP VIA VT1630A interface.

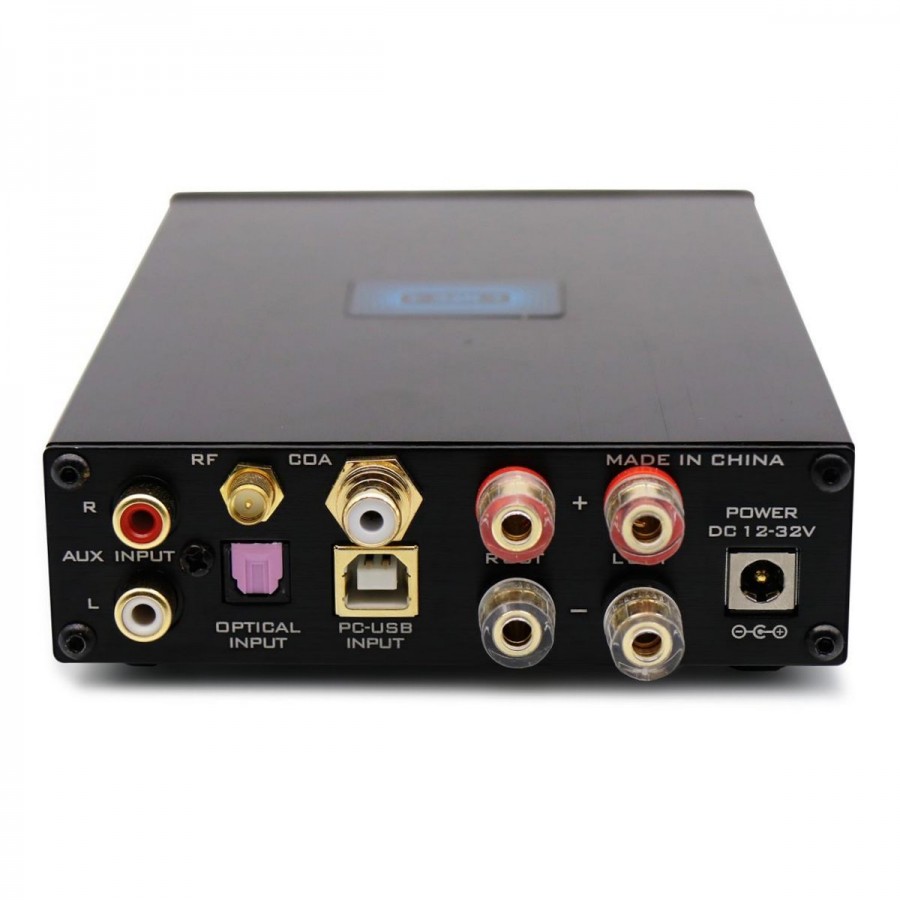

An increasingly comprehensive connectivity
With its wide range of functionality and highly developed connectivity, the D802C Pro Audio at FX has all the assets to become a sound performance system the keystone.
The D802CPRO said amplifier is a "Full Digital" ie the S / PDIF signal is converted into I2s by AK4113, then directly amplified by a digital audio interface STA326. To do this, it has three digital inputs USB, S / PDIF coaxial and optical Toslink.
This team is also a stereo RCA auxiliary input and a USB audio jack supports OTG. We can connect him an Android smartphone.
Bluetooth 4.2

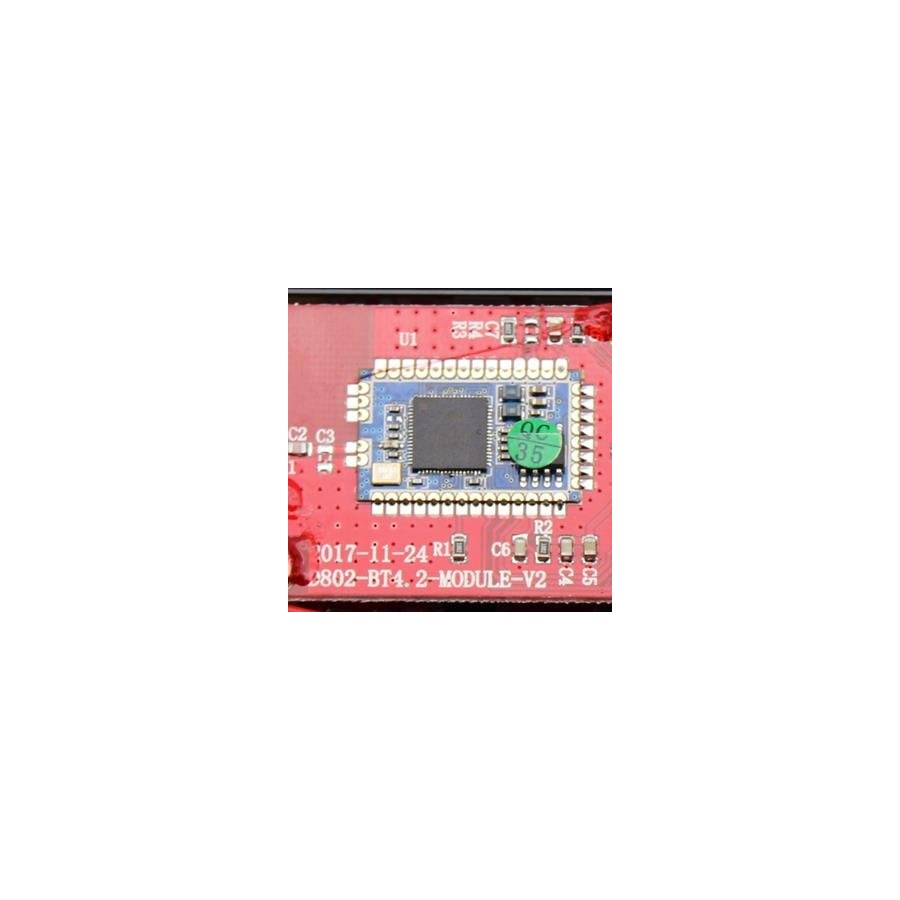

Unlike its predecessor, the PRO model embeds a CSRA64215 chip. It is therefore compatible with the latest versions of the Bluetooth protocol and works with the 4.2 standard. Wireless connectivity thus gains in performance and speed.
This standard is also less energy, which means that use with a mobile reader (like eg smartphone) consume less battery while ensuring a stable and accurate digital stream.
CM6642 Chip High Speed USB - audio class
The control chip / CM6642 conversion can work with resolutions up to 24 bit / 192kHz.
This chip natively supports decoding audio and has interesting specifications codecs for the general sound quality of the device (SNR and THD + N ≥100dB @ 1kHz ≤-85dB ≤0.005%
To facilitate installation, compatibility, and avoid wasting time on the software configuration, this amplifier requires no driver to operate. The USB input is automatically recognized by all devices. Including smartphones also benefit from OTG support.

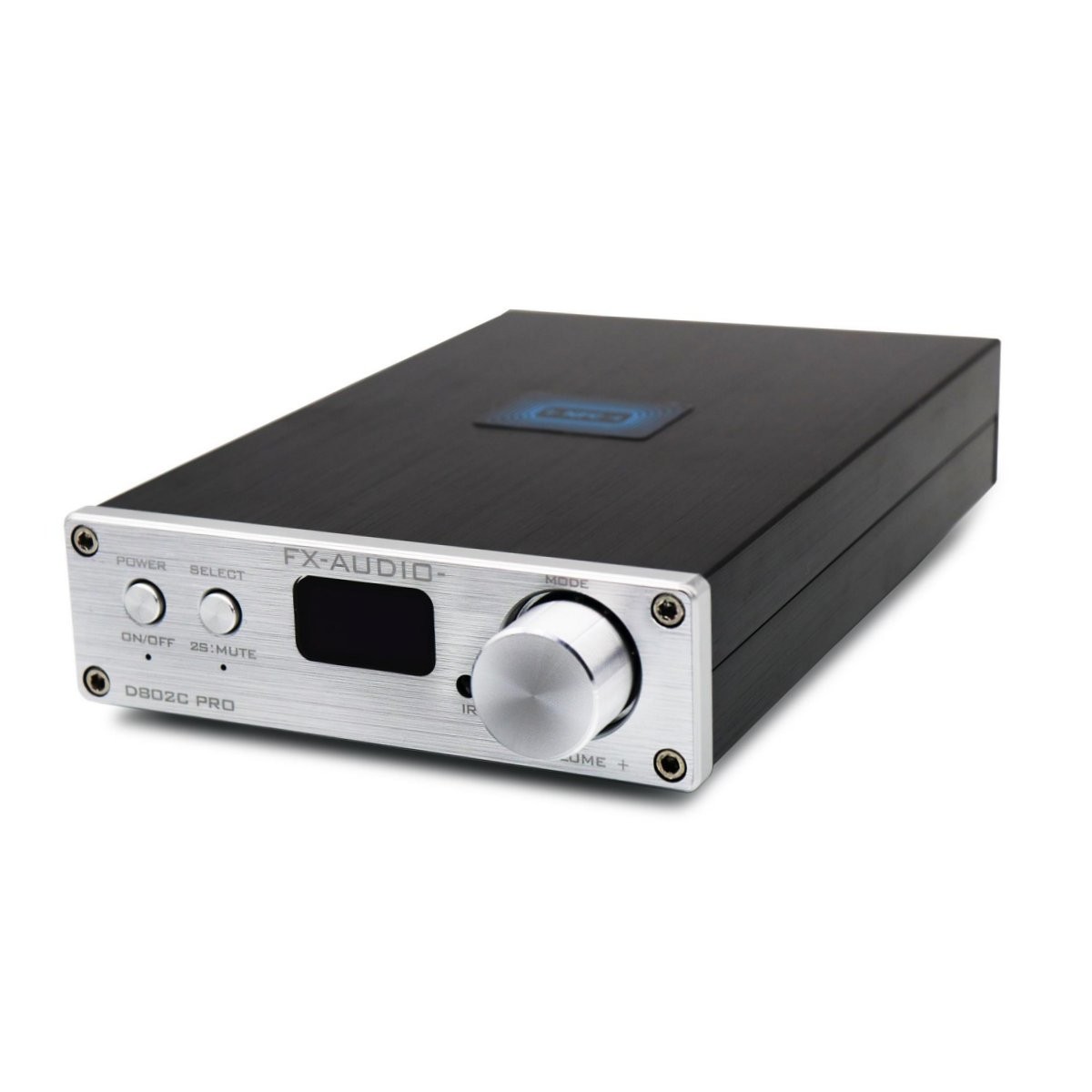

Control panel and volume knob
This amplifier offers a neat control interface. There is a power-on button, a select button, a rotary volume control and a backlit control panel ..
For ease and comfort, it can also be controlled remotely via a remote control to a receiver I / R on the front.
Alternatively, the traditional interface is complete enough to let the onscreen user make their own settings with ease. It is even possible to specify an equalizer.
This amplifier emits a slight breath into the speakers during silent passages in the music. Although the phenomenon is very slight, it is still important to take into account when using desktop speakers with close listening.
| Specifications | |
|---|---|
| Type | Full Digital Amplifier |
| Power Output | 4Ω: 2x80W 8Ω: 2x50W |
| Supported sampling rates (max) | 24bit 192kHz |
| Inputs | Bluetooth, Auxiliary, Optical, Coaxial, USB |
| Output | Pregnant R + L |
| Impedance | 4-8Ω |
| THD | 0.09% (± 0.2dB) |
| SNR | 84dB |
| Interface control | Remote control / Control Panel |
| DC power supply | 32V 5A (supplied) |
| Color | Black |
| Weight | 1.25kg |
| Dimensions | 17.8x11.6x3.5 cm |
| Viewing | Digital display (OLED) - with sample rate |
| Frequency response | 18Hz - 22kHz |
| Clock | High accuracy |
| Remote Support | Yes (IR) - (supplied without its CR2032) |
| Audio / DSP controller | VIA VT 1630A |
| Input | RCA |
| Input | Optical |
| Input | SPDIF |
| Input | Bluetooth |
| Output | Speaker terminal |
| Color | Black |
| Color | Silver |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | STA326 |
| Power (W) | 50.0 |
| Refurbished Grade | Grade B |
