[GRADE A] FOSI AUDIO DS2 Headphone Amplifier Portable DAC

3/4 front view of the FOSI AUDIO DS2
-10%
Refurbished product - Grade A

The Fosi Audio DS2, the evolution of the DS1, is an extremely compact headphone amplifier/portable DAC. It's ideal for enjoying superior sound reproduction with a source such as a smartphone, tablet or your laptop. In fact, it incorporates two CS43131 DAC/headphone amplifier chips and a SA9312 USB interface. This enables the Fosi Audio DS2 to support high-resolution streams up to PCM 32bit 384kHz and DSD256, all with a THD+N of 0.001% and an SNR of 130dB.

No customer reviews yet, login to write a review.


Reduced price!
Reference : 19387
Refurbished
Limited special offer

59,90 €tax incl.

-10%

54,00 €tax incl.

45,00 € tax excl.
Including 0,05 € for green tax

- +


Last items in stock !
Shipping date: 25-06-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Refurbished product - Grade A

Damaged cardboard packaging.

FOSI AUDIO DS2 Headphone Amplifier Portable DAC 2x CS43131 Balanced 32bit 384kHz DSD256

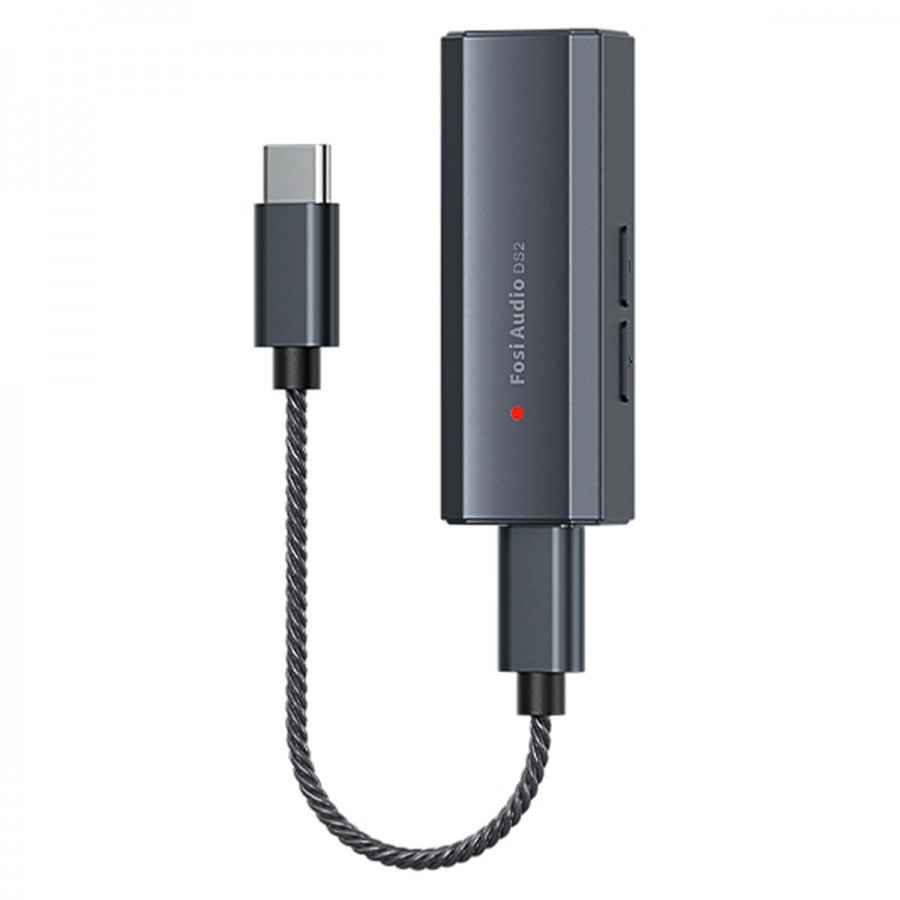

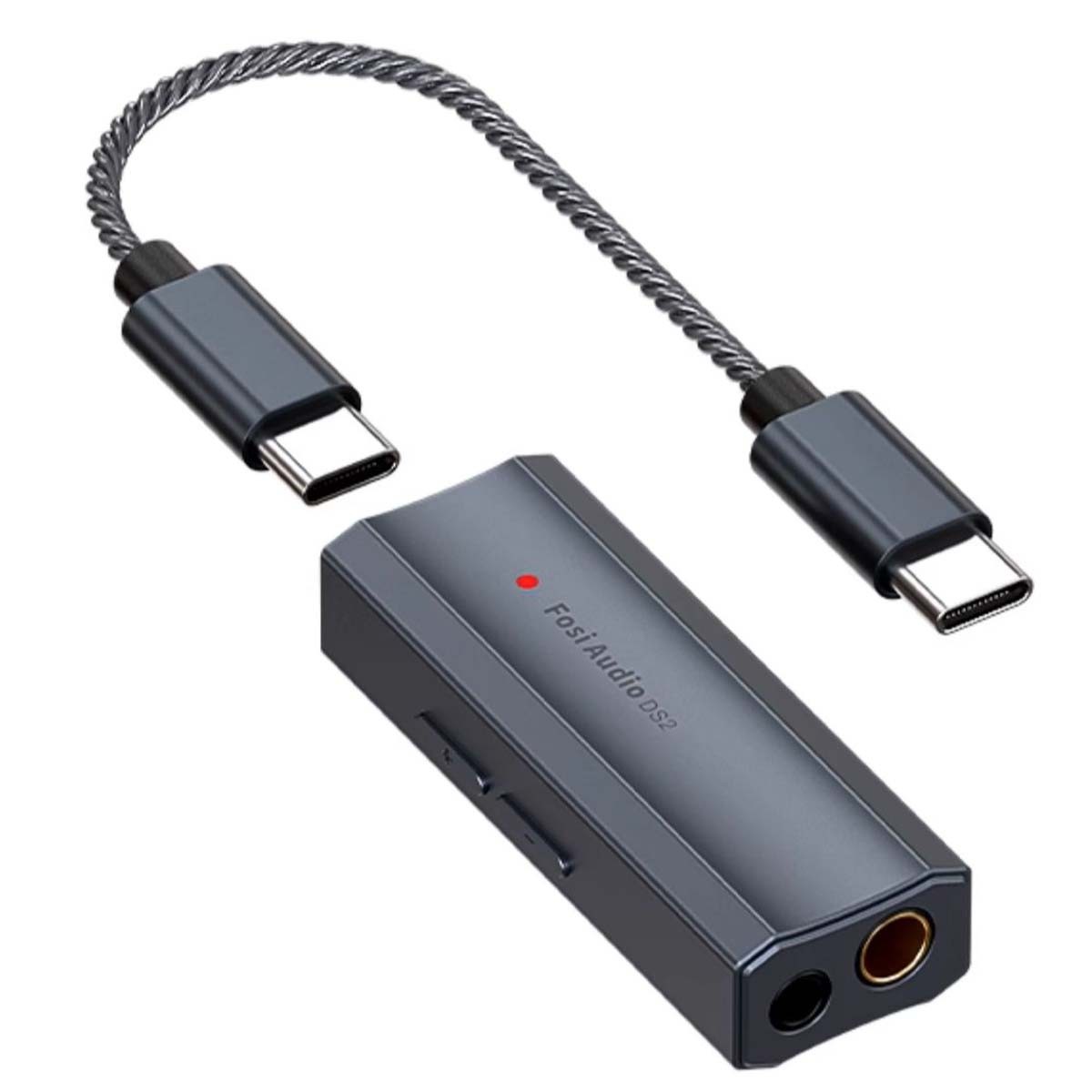

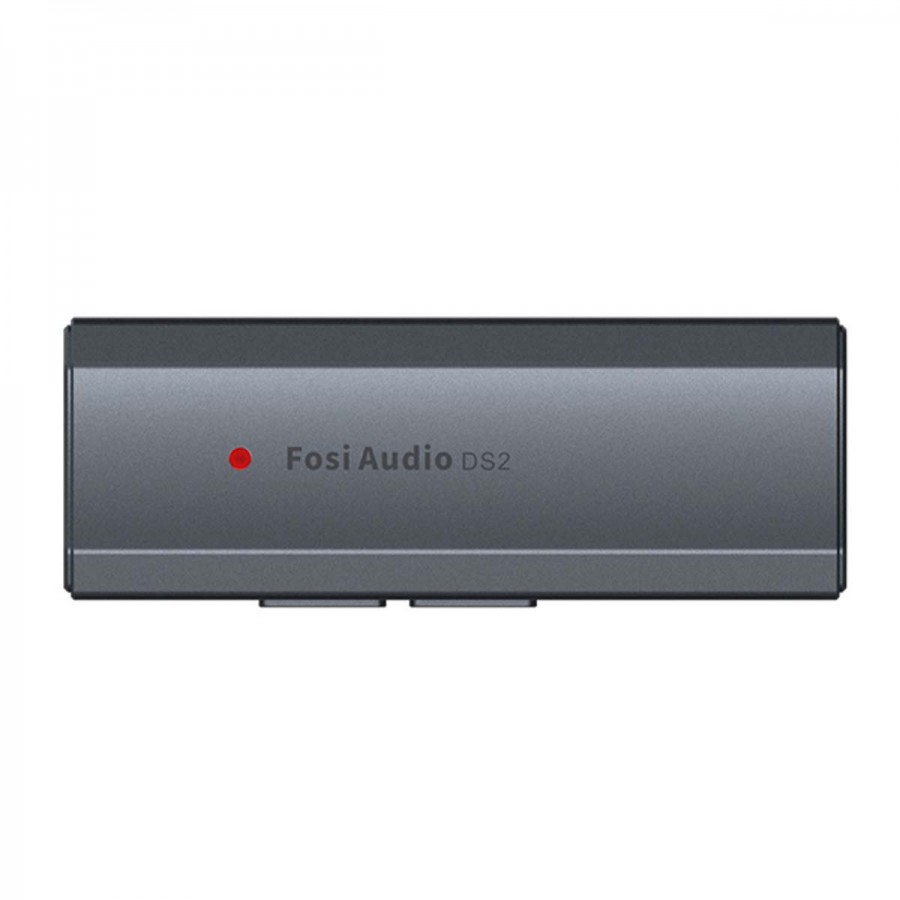

Fosi Audio DS2 picture

The Fosi Audio DS2, the evolution of the DS1, is an extremely compact headphone amplifier/portable DAC. It's ideal for enjoying superior sound reproduction with a source such as a smartphone, tablet or your laptop. In fact, it incorporates two CS43131 DAC/headphone amplifier chips and a SA9312 USB interface. This enables the Fosi Audio DS2 to support high-resolution streams up to PCM 32bit 384kHz and DSD256, all with a THD+N of 0.001% and an SNR of 130dB.
Moreover, the DS2's output power enables it to drive most headphones on the market with impedances ranging from 16 ohm to 300 ohm. It delivers 130mW under 32 ohms on its 3.5mm jack output and 510mW under 32ohm on its 4.4mm balanced jack output. In addition to its USB-C input and headphone outputs, the DS2 features a 60-step volume control accessible via two control buttons located on one of its sides. Finally, it is compatible with a large number of plug-and-play systems such as Android, IOS and Windows.

Technical characteristics

Specifications
Product typePortable DAC headphone amplifier
Chipset2x Cirrus Logic CS43131
1x USB interface SA9312

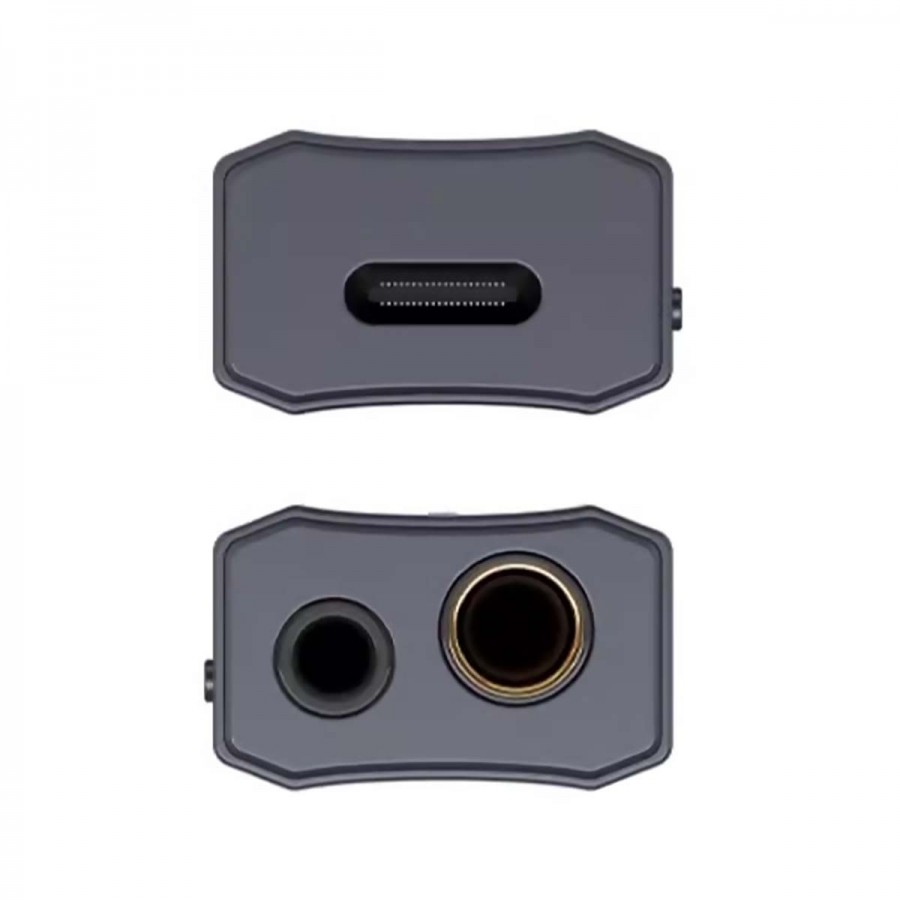

Inputs1x USB-C
Outputs1x 3.5mm headphone output
1x 4.4mm balanced headphone output
Supported sample ratesPCM 32bit 384kHz, DSD256
Recommended headphone impedance32Ω-300Ω
Volume control
4.4MM JACK BALANCED HEADPHONE OUTPUT MEASUREMENTS
Output power510mW (@32ohm)
Frequency response20Hz-20kHz
SNR130dB
Dynamic range130dB
THD0.0001%
Noise level1.6uV
Crosstalk117dB
SINAD106dB
3.5MM JACK HEADPHONE OUTPUT MEASUREMENTS
Output power130mW (@32ohm)
Frequency response20Hz-20kHz
SNR130dB
Dynamic range126dB
THD0.0001%
Noise level1uV
SINAD109dB
General
Dimensions53 xd 19 x 12mm
Net weight15g
ColorGrey
Package1x FiiO DS2 portable DAC headphone amplifier
1x USB-C to USB-C cable

Data sheet
InputUSB
OutputJack 4.4mm
OutputJack 3.5mm
DAC / ADC ChipCS43131
Max sampling rateDSD256
Max sampling rate384kHz
ColorGray
ClassN/A
NetworkingNo
Remote ControlNo
Refurbished GradeGrade A
