Input Selector Volume Control Module with LCD Screen and Remote Control

Input Selector Volume Control Module with LCD Screen and Remote Control
This set of modules, once assembled, allows the creation of a complete volume controller and source selector. It consists of a volume control module, LCD display, input/output module, power supply and remote control.

Average votes for this product
5.0 / 5

By buying this product you get 6 loyalty points


Yes, notify me when available !
Reference : 14351
New product

65,83 €tax excl.

- +

Available on order

Produit garantie 2 ans

Accessories for this product


More info

Input Selector and Volume Control Module

With LCD screen and remote control

Module contrôle de volume sélecteur de source avec écran LDC et télécommande

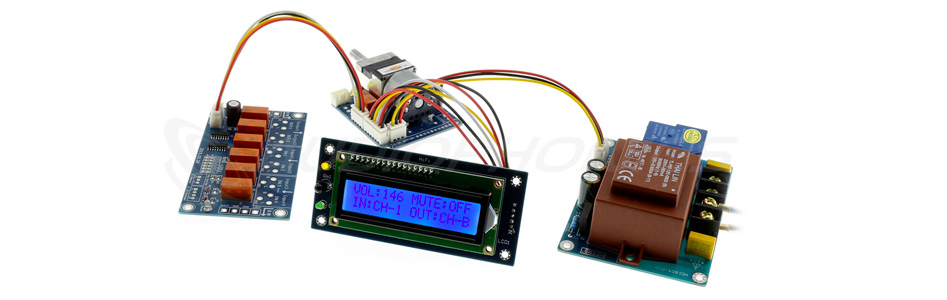

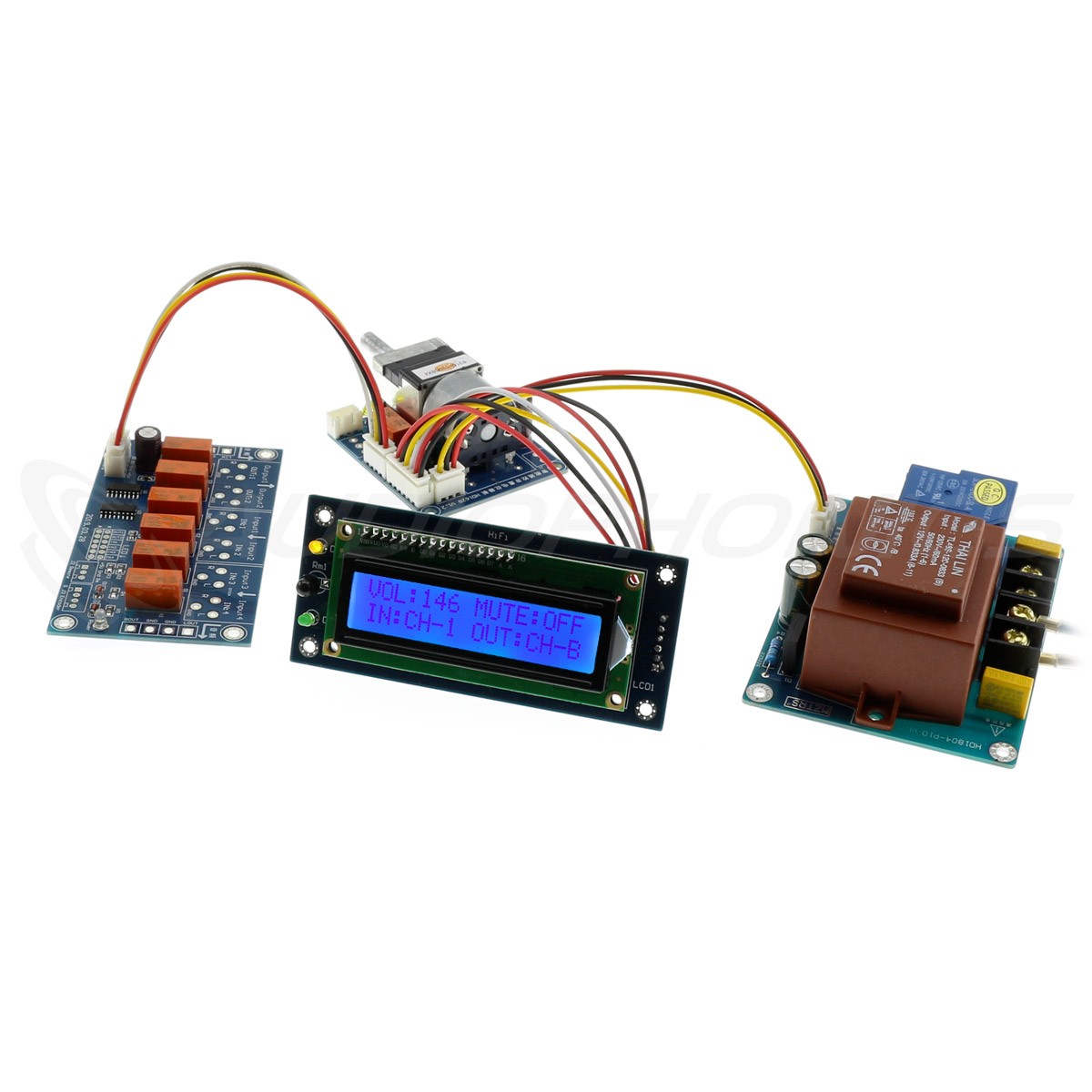

This set of modules, once assembled, allows the creation of a complete volume controller and source selector. It consists of a volume control module, LCD display, input/output module, power supply and remote control.

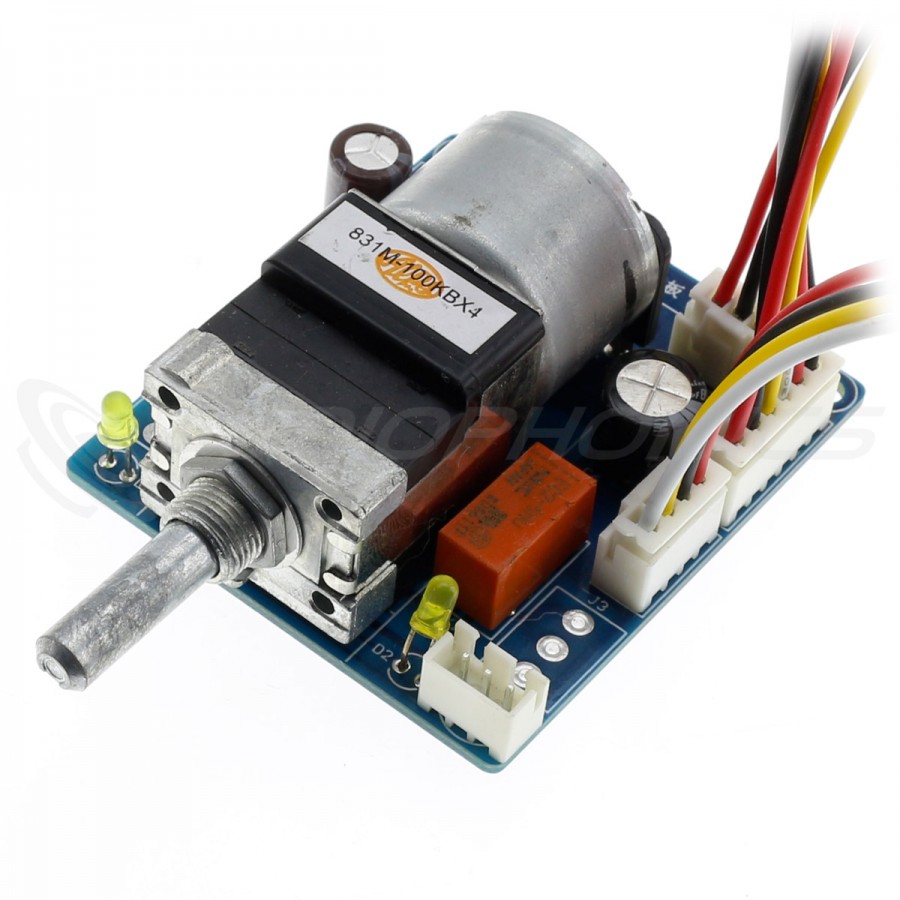

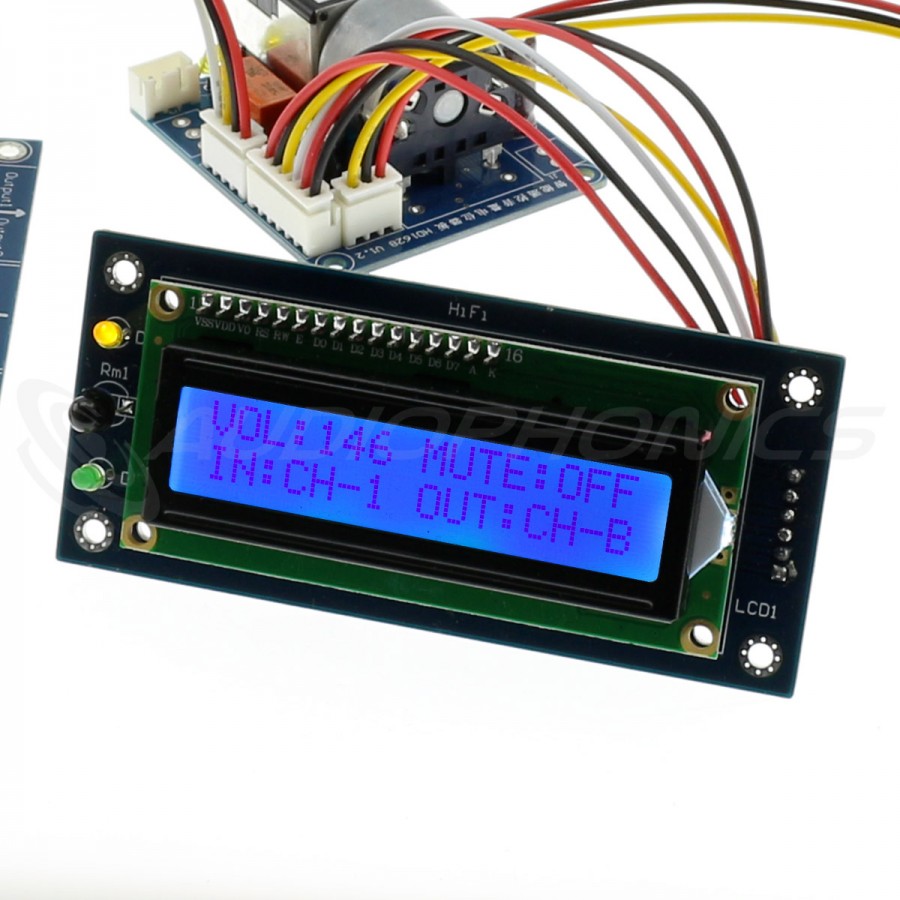

The whole benefits from a very good manufacturing quality, embedding quality components on double-sided PCBs. The volume control module is notably equipped with a motorized potentiometer ALPS 831M-100KBX4. The display allows it to show the current volume level, the mute mode, as well as the active input and output.

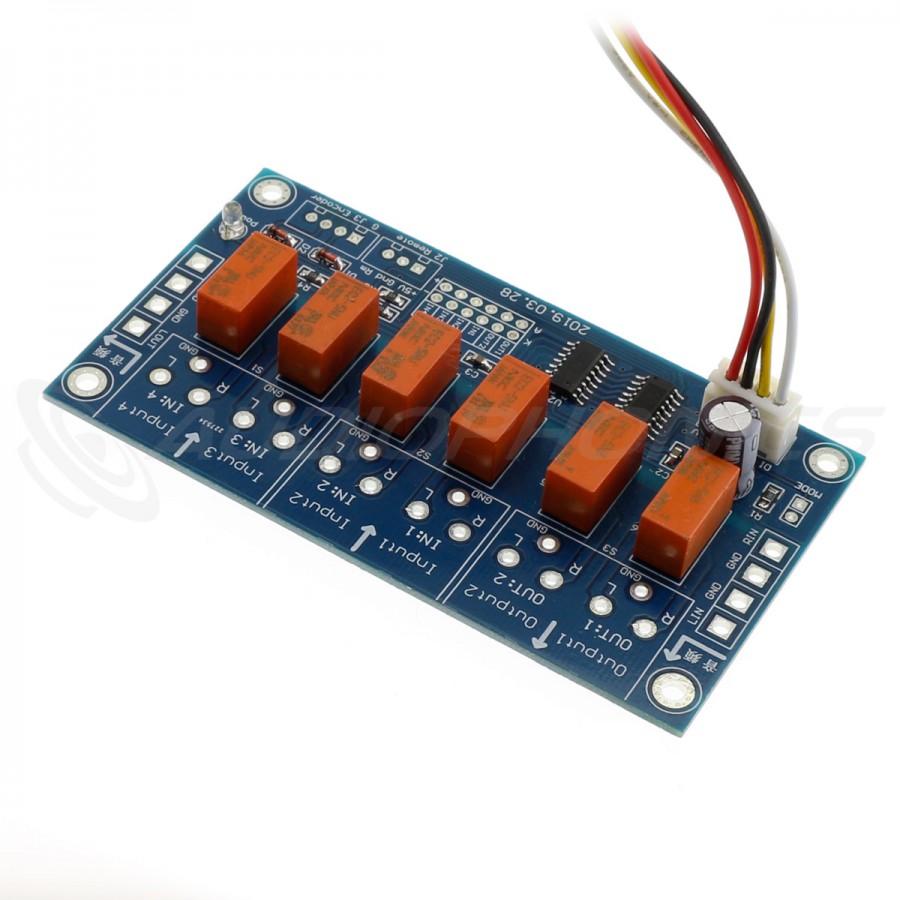

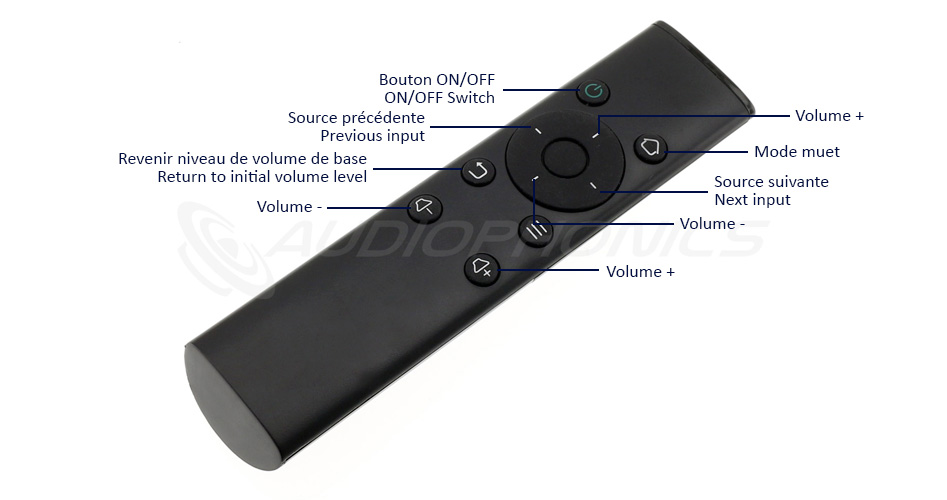

The input/output module consists of 4 stereo inputs and 2 stereo outputs. The associated remote control allows you to switch the module on or off, control the volume level or select an active source.

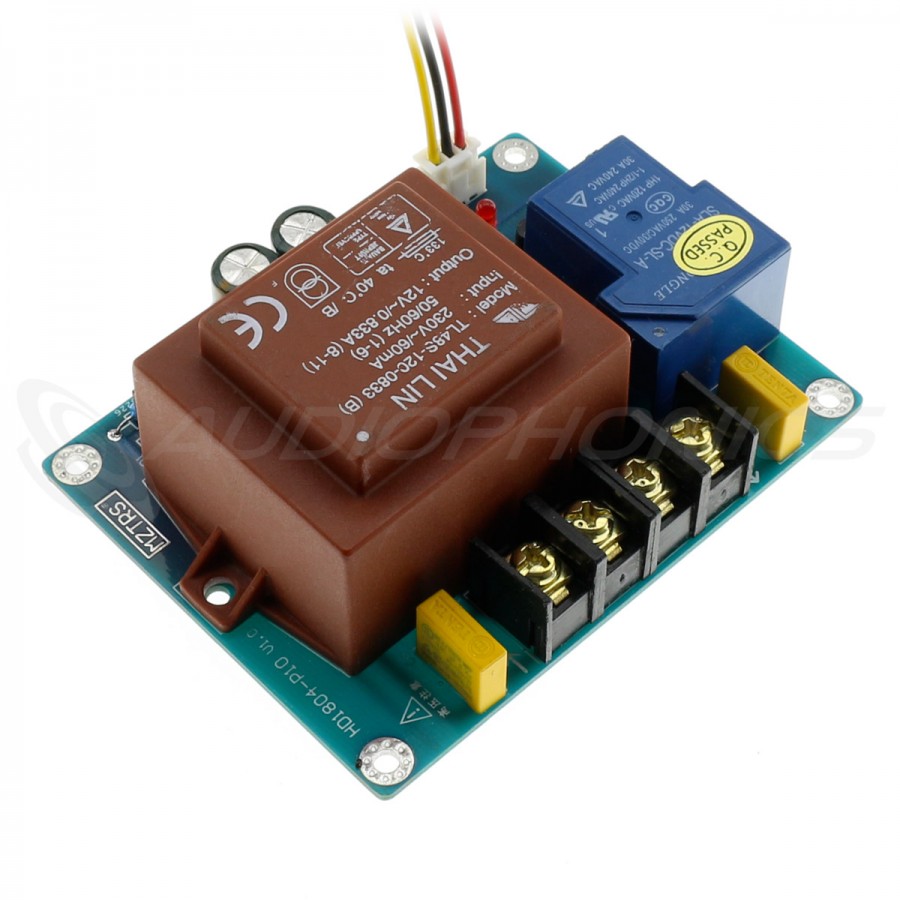

The power supply module benefits from one AC input and one AC output, making it possible not only to supply all the modules but also to power an amplifier module or external device, while taking advantage of the on/off commands of these modules.

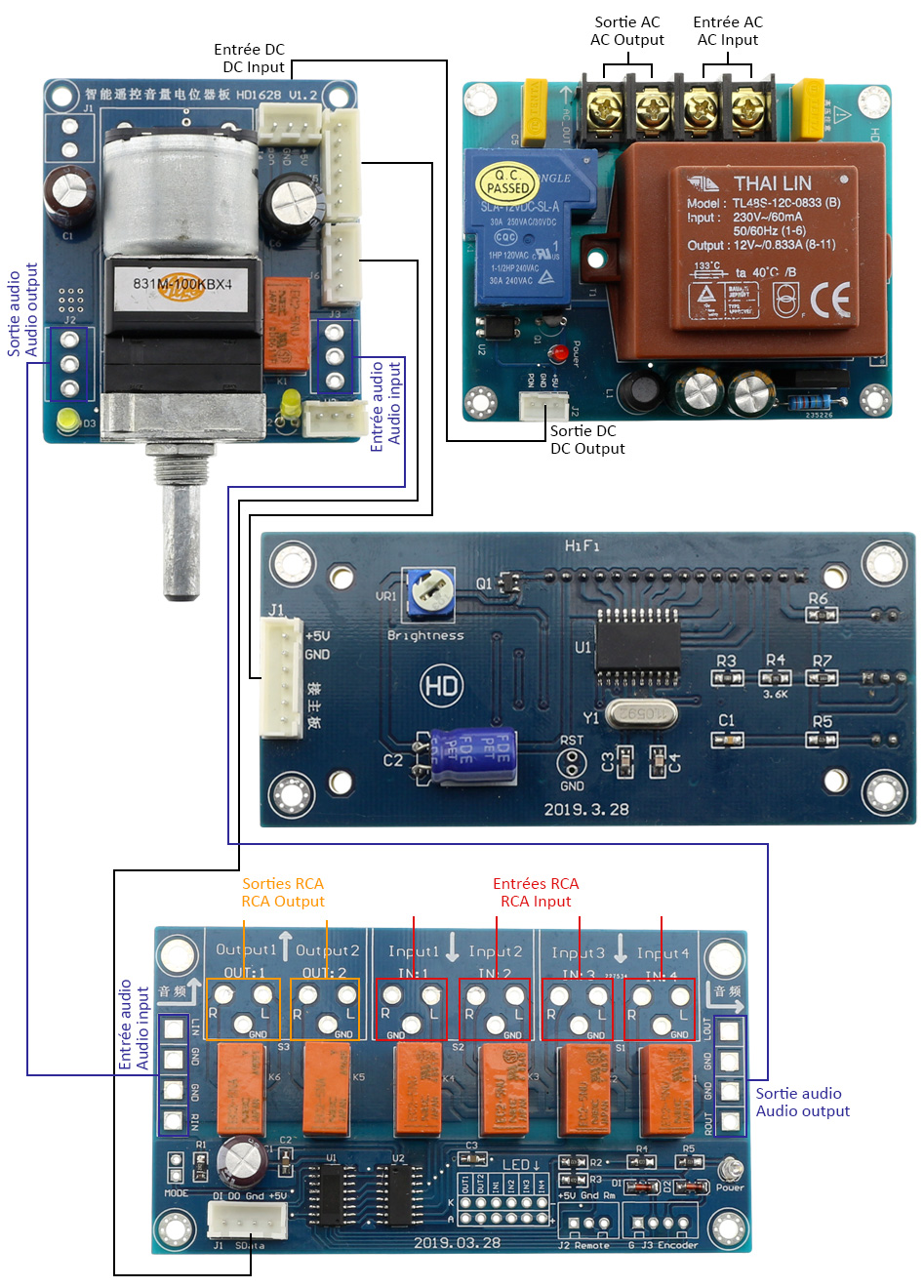

Wiring of these modules requires soldering and the addition of wiring wires (sold separately). RCA sockets can also be added on the inputs and outputs (sold separately).

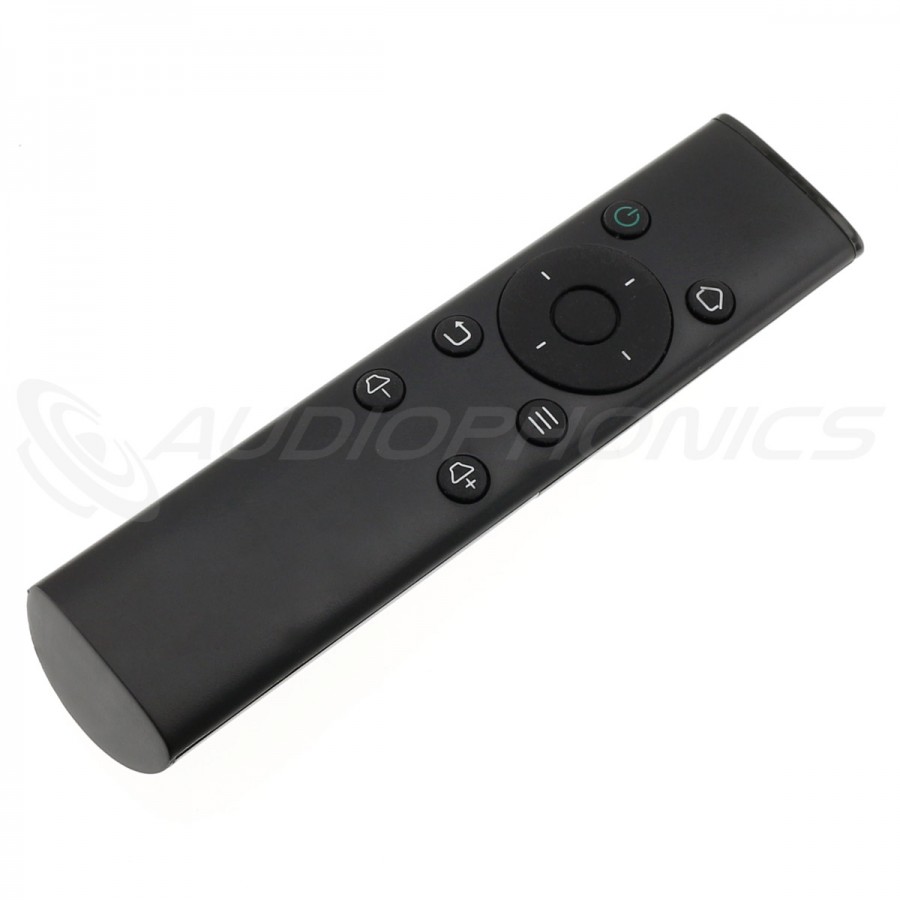

The remote control uses two AAA batteries (sold separately).

Module contrôle de volume sélecteur de source avec écran LDC et télécommande Module contrôle de volume sélecteur de source avec écran LDC et télécommande

Technical characteristics

Specifications
Product typePreamplifier and input selector module
Inputs4x Stereo input
Outputs2x Stereo output
ScreenLCD 65 x 14mm
Motorized potentiometerALPS 831M-100KBX4
AC power230V
General
Module dimensionsVolume control module: 52 x 60mm
Screen: 100 x 45mm
Input/Output module: 100 x 55mm
Power supply module: 93 x 72mm
Fixation holes spacingVolume control module: 46mm
Screen: 90 x 35.5mm
Input/Output module: 92 x 46mm
Power supply module: 85 x 64mm
Package1x Volume control module
1x Screen module
1x Inputs/Outputs module
1x POwer supply module
1x Remote control
1x XH 2.54mm 3 wires cable
1x XH 2.54mm 4 wires cable
1x XH 2.54mm 6 wires cable

Data sheet
InputRCA
OutputRCA
ColorGray
Efficiency / Sensitivity (dB)88
Lowest frequency46
Highest frequency30000
