LHY AUDIO RPI PRO Streamer Digital Transport 8GB Silver
By buying this product you get 109 loyalty points
![[GRADE A] ASCILAB C8C Bookshelf Speakers Cardioid 3-way 1x100W + 2x250W Black (Pair)](https://www.audiophonics.fr/71347-thumb_default/ascilab-c8c-black-sba.jpg)

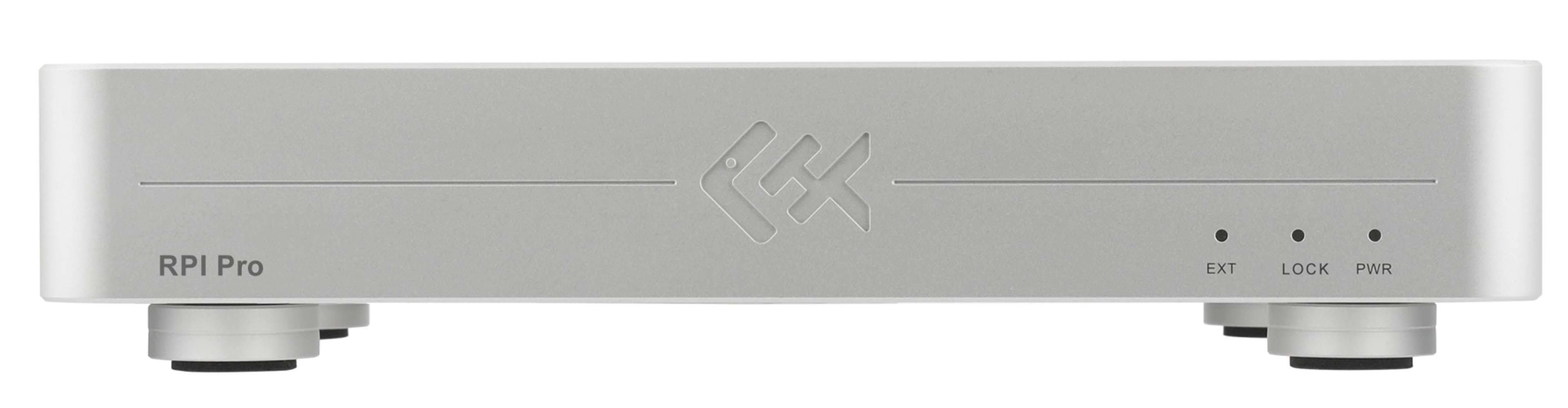

LHY Audio RPI Pro Streamer Digital Transport Roon Bridge NAA UPnP AirPlay Squeezelite 8GB Silver
The LHY Audio RPI Pro is a streamer based on the well-known Raspberry Pi CM4 module, integrating the RoPieee operating system for support of numerous streaming protocols: Roon Bridge, Airplay, Spotify Connect, Tidal Connect, Squeezelite, UPnP, NAA. Moode OS is also available for the RPI Pro if desired. In addition, it features a low-noise SC-OCXO clock system for ultra-precise signal processing. In terms of connectivity, it includes an HDMI video output, an isolated USB 2.0 output, SFP and RJ45 connectors, as well as a 10MHz external clock input via BNC and a TF card slot.
LHY Audio RPI Pro: An optimized architecture
The LHY Audio RPI Pro features an optimized architecture with high-quality components, filtered power supply, and a precise clock for clean signal processing.
LHY Audio RPI Pro: Flexible operating system
Inside the LHY Audio RPI Pro is a Raspberry Pi 4 and the ability to use two different operating systems by swapping the TF card. You can choose to use RoPieee, which directly integrates Roon Bridge, Squeezelite, Airplay, Spotify Connect, Tidal Connect, and UPnP, or opt for the MoOde operating system.
LHY Audio RPI Pro: Optimized clock
The ultra high-precision clock of the LHY Audio RPI Pro uses ultra-low noise OCXO oscillators. In addition, the Skyworks PLL chip, locked to the 10 MHz OCXO reference, generates multiple system clocks for the CM4, network, and USB subsystems. A BNC connector for an external clock is also available to further enhance your system.
LHY Audio RPI Pro: Galvanically isolated USB output
The USB audio signal comes directly from the CM4 to avoid any degradation. An Analog Devices ADuM3165 chip also provides galvanic isolation for USB by eliminating any interference coming from the source.
LHY Audio RPI Pro: Power supply
The power supply of the LHY Audio RPI Pro features a high-current toroidal transformer with a 30VA Talema core and multi-stage EMI filtering. Advanced matrix filtering combines high-speed rectification with high-capacity premium capacitors, while three independent low-noise rails meet the demands of high-speed digital applications.

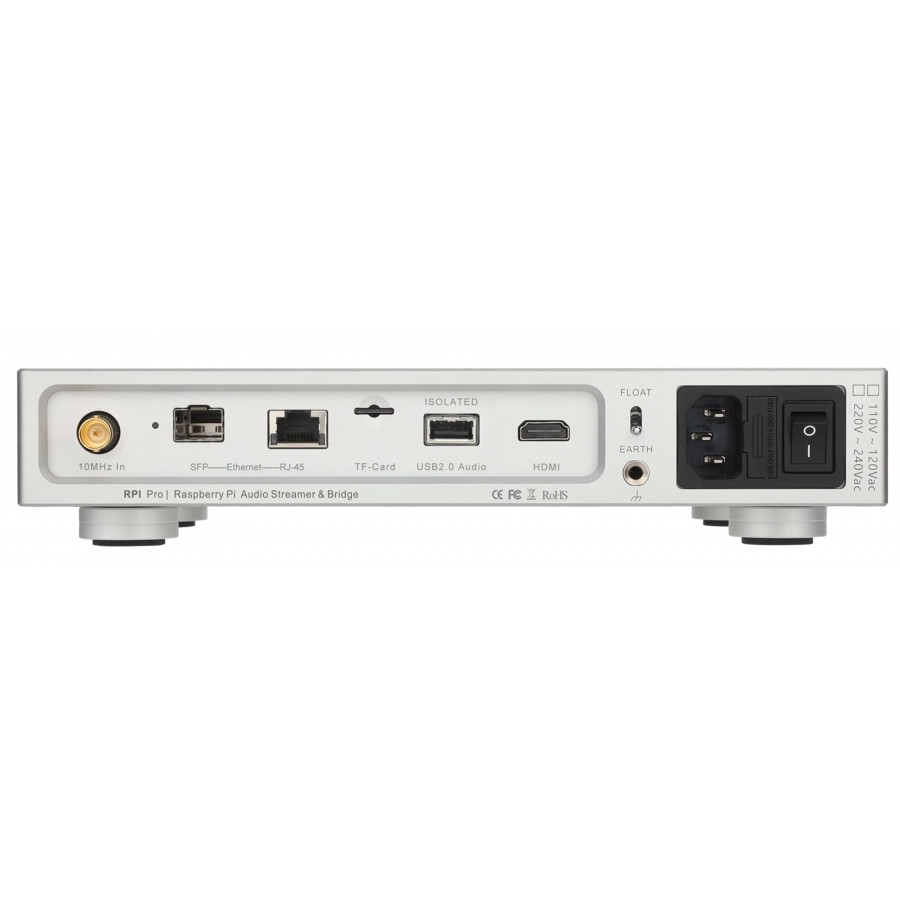

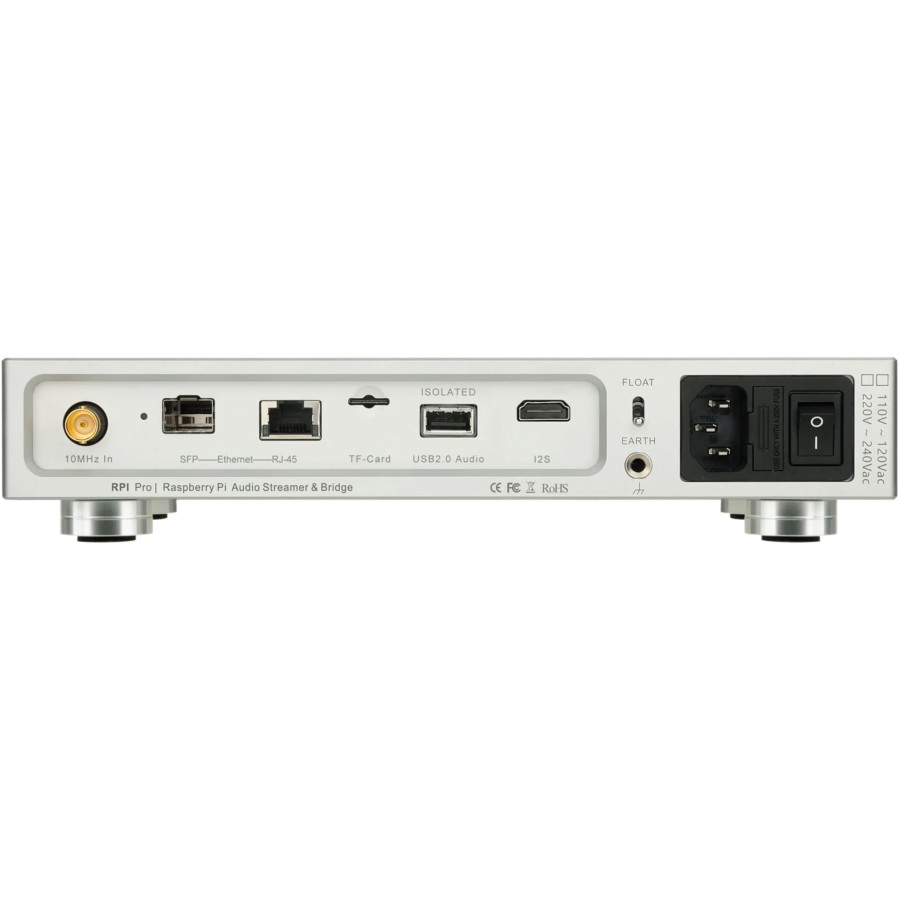

Overview of the LHY Audio RPI Pro
| 1 | 10MHz external clock input |
| 2 | SFP Ethernet port |
| 3 | RJ45 Ethernet port |
| 4 | TF card slot |
| 5 | Isolated USB 2.0 output |
| 6 | HDMI video output for system status display |
| 7 | Grounding |
| 8 | AC power input |
Technical specifications
| Specifications | |
|---|---|
| Product type | Streamer |
| Raspberry Pi module | Raspberry PI CM4 |
| Software | Ropieee + Moode OS preinstalled |
| Input | WiFi |
| Output | Isolated USB-A 2.0 output |
| Network interface | RJ45: auto negotiation 10/100/1000 Mbps SFP: supports copper/fiber modules, auto negotiation 10/100/1000 Mbps Note: RJ45 and SFP ports cannot be connected simultaneously to the same LAN |
| External clock connector | BNC connector (10MHz at 50 ohms, sine/square wave, 7–14dBm / 0.5–1V peak) |
| Other connectivity | Video output via HDMI |
| Integrated OCXO | Phase noise: -100 dBc @ 1Hz offset (typ.) Frequency stability: ±0.3 ppb Frequency accuracy: ±1 ppm |
| Supported sampling rates | PCM up to 32bit 768kHz DSD up to DSD512 |
| Ground lift switch | |
| Supported streaming protocols via RoPieee | Roon Bridge, Airplay, Spotify Connect, Tidal Connect, Squeezelite, UPnP, NAA |
| General | |
|---|---|
| Power supply | 220V-240V AC |
| Power consumption | Standby: 8W Operating: 12W |
| Fuse | 5×20 mm, T2.0AL (110–120VAC) 5×20 mm, T1.0AL (220–240VAC) |
| Dimensions | 275 × 240 × 50mm |
| Weight | 5.5kg |
| Package | 1x LHY Audio RPI Pro 2x TF Card 1x Cat6 Ethernet cable 1x AC power cable |
| Input | WiFi |
| Output | USB |
| DAC / ADC Chip | NC |
| Max sampling rate | DSD512 |
| Max sampling rate | 768kHz |
| Color | Silver |
| Remote Control | No |
| Streaming services & Network protocols | Roon / Roon Bridge / Roon Ready |
| Streaming services & Network protocols | AirPlay |
| Streaming services & Network protocols | Tidal Connect |
| Streaming services & Network protocols | UpnP |
| Streaming services & Network protocols | DLNA |
| Streaming services & Network protocols | Spotify Connect |
