SMC-1030 Audio Streamer WiFi Bluetooth DLNA UPnP DAB+ FM

TTI SMC-1040 Audio Streamer WiFi Bluetooth DLNA UPnP DAB+ FM
The SMC-1030 is a high-performance DAC and Hi-Res network drive combo that offers new features not common on this type of device. It offers a very good listening quality, supporting many file formats, up to a sampling rate of 24bit 192kHz.

Average votes for this product
5.0 / 5

By buying this product you get 34 loyalty points


Reference : 14614
New product

349,00 €tax incl.

290,83 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

SMC-1030

Audio Streamer WiFi Bluetooth DLNA UPnP DAB+ FM

TTI SMC-1040 Lecteur Réseau Audio WiFi Bluetooth DLNA UPnP DAB+ FM

The SMC-1030 is a high-performance DAC and Hi-Res network drive combo that offers new features not common on this type of device. It offers a very good listening quality, supporting many file formats, up to a sampling rate of 24bit 192kHz.

The particularity of the device comes in particular from its connectivity and connectivity, which is complete but above all rare. While it offers WiFi (DLNA, UPnP, Spotify Connect) and Bluetooth 4.1 connectivity, which is quite common, as well as a USB-A 2.0 input, an RJ45 input, an Optical Toslink output and a Coaxial SPDIF output, it is its DVB-C and FM connectivity as well as its DAB+ support that make the SMC-1030 a unique streamer. The SMC-1040 is therefore able to broadcast both analogue FM radio and the newer DAB+ digital radio, which offers a much better quality of reproduction. More than 20,000 international internet radio stations are now available.

The SMC-1030 also functions as an advanced local radio. With this FM broadcast capability, it is possible to transmit an audio signal to an FM frequency to compatible devices such as FM radios and HiFi receivers. For example, you will be able to play music on your favourite streaming service and transmit the signal via an FM frequency.

TTI SMC-1030 Lecteur Réseau Audio WiFi Bluetooth DLNA UPnP DAB+ FM TTI SMC-1030 Lecteur Réseau Audio WiFi Bluetooth DLNA UPnP DAB+ FM

Android / iOS App

Application SMC-1040 Android / iOS

Technical characteristics

Specifications
Product typeStreamer
CPU3300 MIPS Processor (1125 DMIPS)
DRAM512MB DDR3
Internal storage8MB NOR Flash
512MB NAND

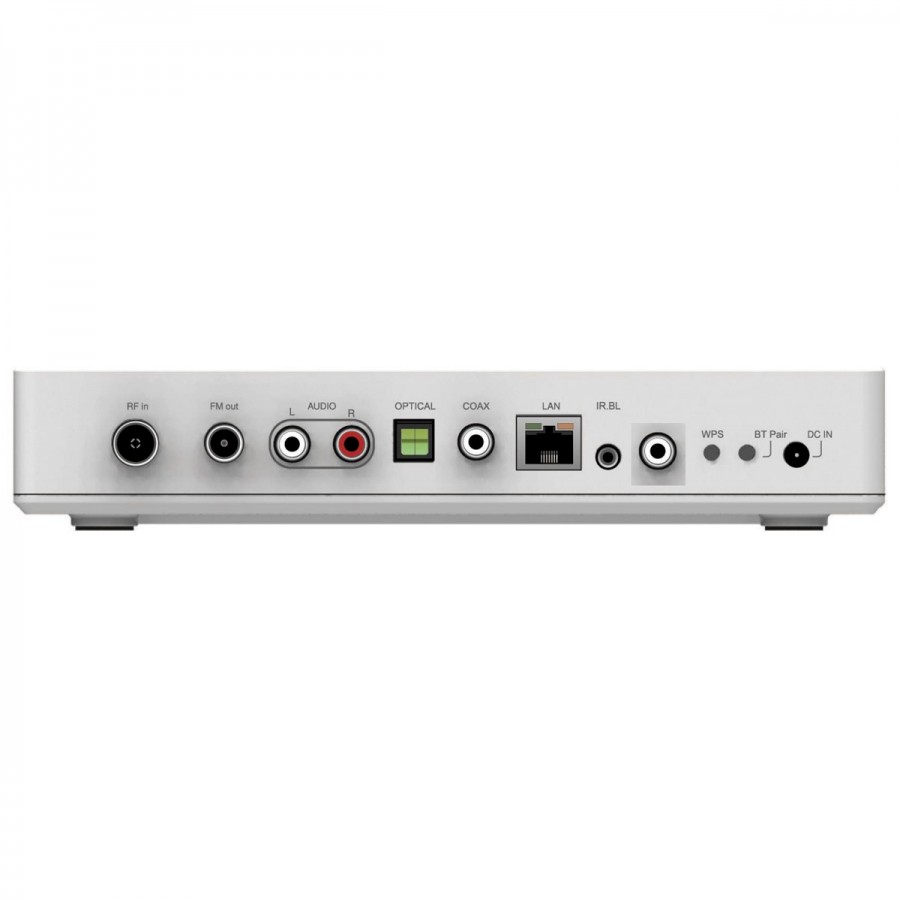

Inputs / Connectivity1x USB-A 2.0 (5V 1A)
1x F-Connector (DVB-C 75 Ohm)
DAB+ (DAB+ Digital radio / FM Analog radio)
Bluetooth 4.1
1x RJ45
WiFi
Outputs1x Stereo RCA
1x Optical Toslink
1x Coaxial SPDIF
1x FM Output
StreamingDLNA
UPnP
Bluetooth
Spotify Connect
Web radio
Supported sampling ratesPCM up to 24bit 192kHz
FM Output frequency87.5MHz - 108MHz
IR ReceiverRC5 Protocol
IR InterfaceFor control of other compatible devices
Control by appiOS
Android
ScreenOLED
Bluetooth pairing via NFC
Supported codecsDolby Digital, Dolby Digital Plus, FLAC, WMA, MP3, AAW, AAW-HE, AAW+, AIFF, OGG Vorbis, WAV, MKA, APE, TS, TRP
Pass-ThroughDolby Digital AC3 5.1
Ethernet10/100Mbps
WiFi2x2 802.11n (2.4Ghz)
802.11ac (5GHz)
Operating temperature range0°C - 45°C
Genral
Supply voltage12VDC 12W (power supply included)
Dimensions22.5 x 15 x 4cm
Weight350g
Package1x TTI SMC-1030
1x IR RCU Remote control
1x Power adapter 12V / 1A

Data sheet
InputBluetooth
InputWiFi
InputRJ45
OutputCoaxial SPDIF
OutputWiFi
OutputOptical Toslink
OutputBluetooth
DAC / ADC ChipNC
Max sampling rate192kHz
ColorGray
Streaming services & Network protocolsDLNA
Streaming services & Network protocolsSpotify Connect
Streaming services & Network protocolsWeb radios
Streaming services & Network protocolsAirPlay

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :
