Audio Video Streamer DAC ES9038PRO MQA 32bit 768KHz DSD512
Zidoo's Neo X is a high-end integrated audio-visual solution for audiophiles offering multiple features and a particularly complete connectivity. A powerful network player, it integrates high-performance components including a conversion stage based on a high-end ESS ES9038Pro DAC chip. On the video side, it supports 4K@60Hz UHD and Dolby Vision streams as well as HDR10 technology.
The Neo X uses a 32bit ES9038Pro DAC taking advantage of HyperStream technology to decode audio streams. It is the highest performance DAC model proposed by ESS. It ensures a dynamic range of 140dB and allows a rich, precise and natural sound reproduction.
The Neo X's linear power supply stage is equipped with two large toroidal transformers. This dual linear power supply allows the digital and analog audio circuits to be powered independently, providing a particularly clean and stable electrical signal to each component. Compared to a standard power supply, this one delivers a large amount of power with high efficiency, significantly reducing EMI interference for better audio and video quality.
In addition to the ES9038Pro DAC, the Neo X incorporates numerous high-end circuits, such as a fully balanced multi-level filter, HiFi processing components and professional hardware calibration. Its high SNR of 118dB, crosstalk of -128dB and ultra-low distortion significantly reduce background noise and provide great timbre neutrality.
MQA (Master Quality Authenticated) is a technology that restores the sound of the original recording. The MQA master file is fully authenticated and light enough for streaming and downloading. The Neo X adopts MQA technology to receive and decode these files and deliver exceptional sound quality.
The Neo X is equipped with a USB XMOS interface, in combination with the ESS ES9038Pro DAC, an excellent alternative to traditional sound cards. The USB DAC input supports PCM streams up to 32bit 768kHz and Native DSD up to DSD512.
The Zidoo Neo X is capable of simply connecting to a smartphone via Bluetooth, allowing you to stream your music remotely. The Bluetooth reception is based on the use of a Qualcomm CSR8675 chip, compatible with SBC, AAC, aptX, aptX LL, aptX HD and LDAC codecs. It is thus able to provide a sound quality at the level of that of the CD in Bluetooth.
The Neo X Profite features a headphone amplifier with balanced 4.4mm jack and single-ended 6.35mm jack outputs. This makes it comparable to a desktop headphone amplifier, with balanced linear amplification circuitry, multi-level AOP, high-end resistors and precise calibration. It is powerful and capable of handling even the most demanding headphones, thanks to a two-stage gain control.
The Zidoo Neo X also adopts a balanced circuit for analog audio signal processing. All signals from the DAC to the analog outputs are transmitted in a balanced fashion. This architecture allows for better noise immunity and increased audio quality. The output can be balanced XLR or single-ended RCA.
The Neo X conversion circuitry uses two high-precision Accusilicon femtosecond clocks (45.1584MHz and 49.152MHz), corresponding to the 44.1kHz and 48kHd sampling multipliers. These clocks allow perfect synchronization of the signal to reduce jitter and improve decoding accuracy.
To achieve excellent sound quality and low distortion, the Neo X uses gold-plated circuitry and high-end components carefully selected for their audio performance. These include WIMA and ELNA capacitors and Omron relays. Every detail has been thought of to improve the audio quality of the device.
With multiple digital inputs, including Coaxil, AES/EBU and USB, the Neo X can be used with CD players, computers, digital set-top boxes, etc. The different signals can be easily selected to suit many source devices.
As a digital audio decoder, Neo X supports high sample rates and audio formats. It is compatible with FLAC, WAV, APE, DTS and many others. It is also capable of playing DSD512 streams via formats such as SACD, ISO, DFF, DSF and DSD, as well as decoding and playing MQA files. It also supports CD playback and ripping (via the use of an external CD player).
The operating system of the digital audio decoder supports decoding and playback of almost all formats. It also allows adding music from different devices for efficient management. It generates file matching to automatically generate a database and metadata.
Neo X also supports online playback from many streaming services. Playback can be started directly from a device connected to the same LAN as the Neo X, via AirPlay, Spotify and DLNA.
Offering several digital filtering modes, the Neo X can be adapted to your listening and your equipment. It offers 7 PCM and 4 DSD filters, as well as custom equalizer settings.
The Neo X is equipped with a very powerful Realtek RTD1619DR hexa-core 64bit A55 processor. This processor is 50% more powerful than the previous generation models. A larger bus and a higher response and calculation speed guarantee excellent audio and video playback.
Zidoo has been working for many years on the development and design of audiovisual equipment. After 4 years of work, the brand has developed a powerful OS for the Neo X, based on Android, offering an intuitive interface, smooth operation, high system compatibility and stability.

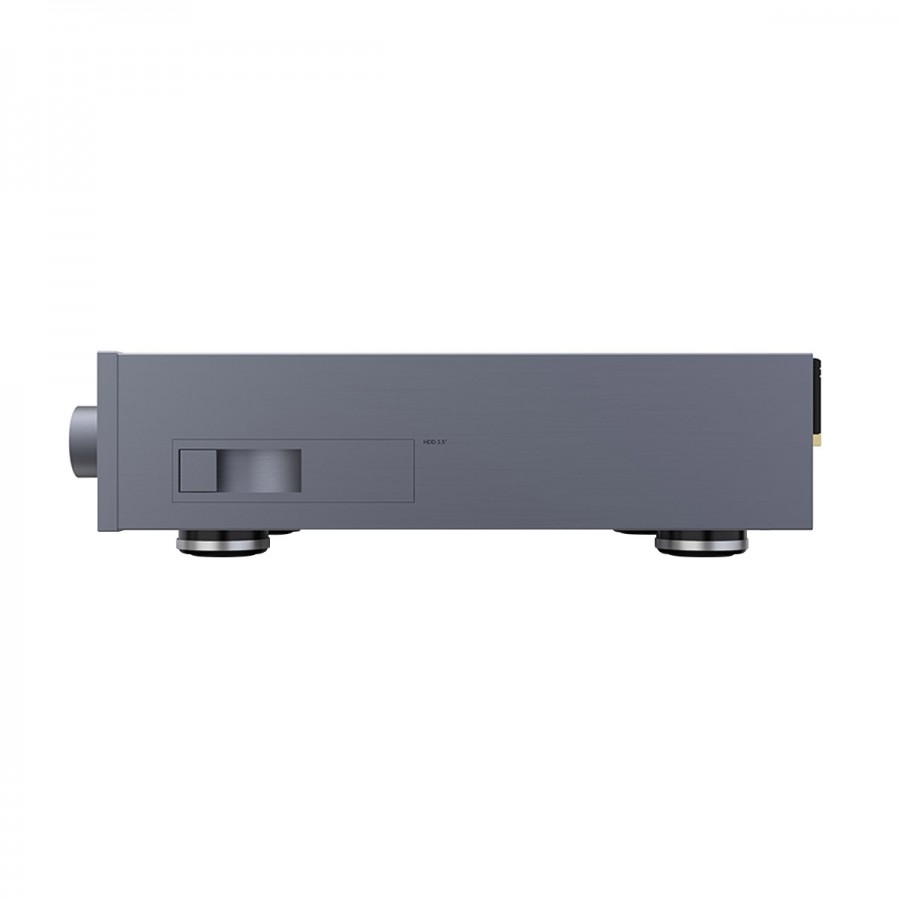

An internal 3.5" bay can accommodate a hard drive with a capacity of up to 16TB (not included). A storage extension to enjoy a large music library.

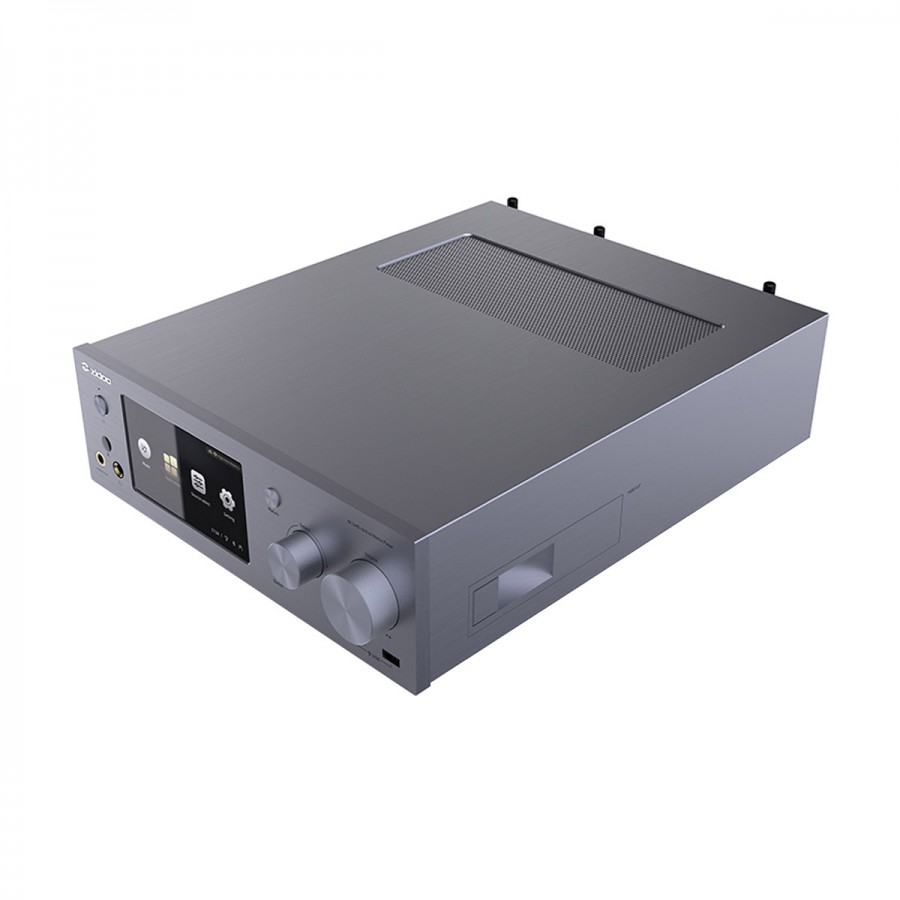

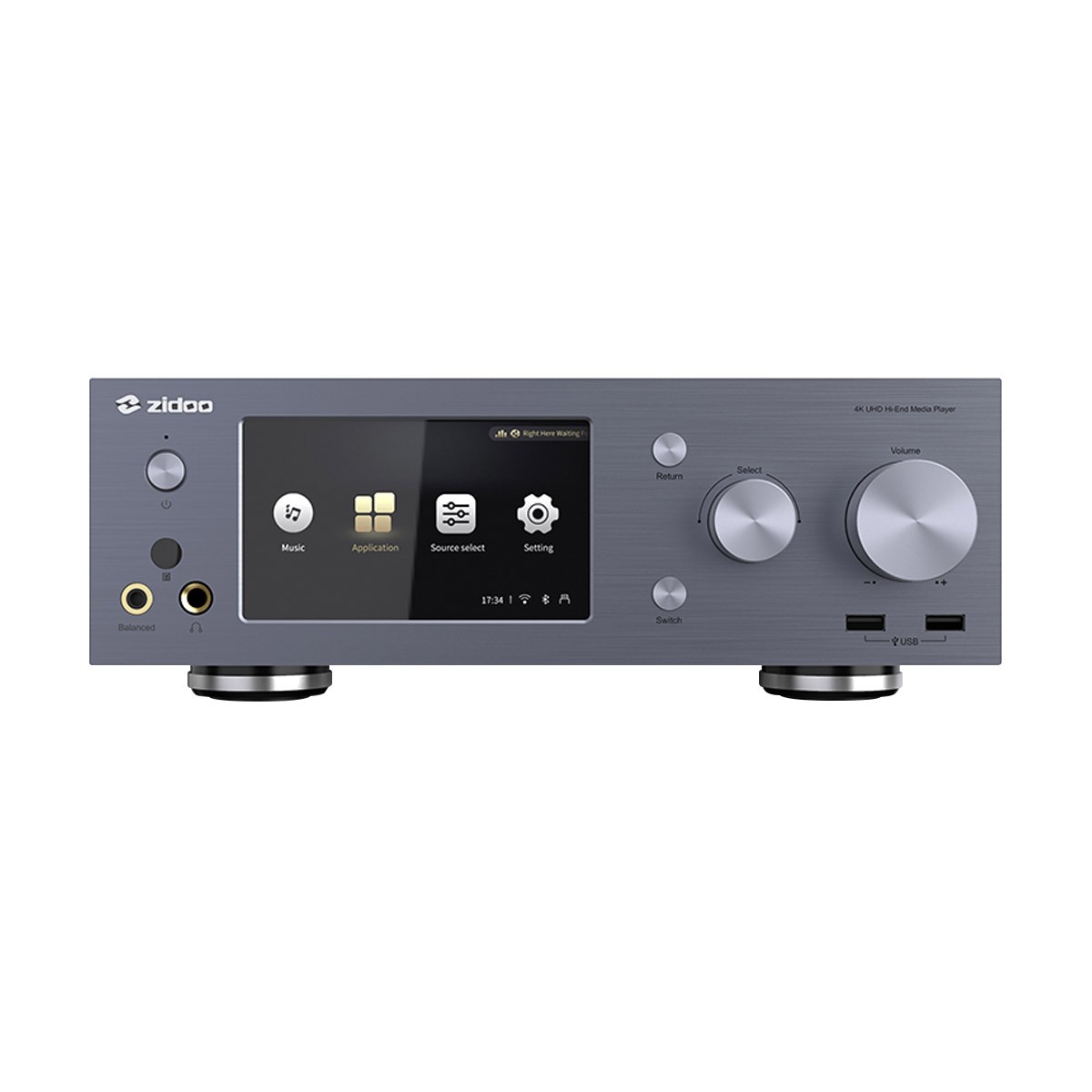

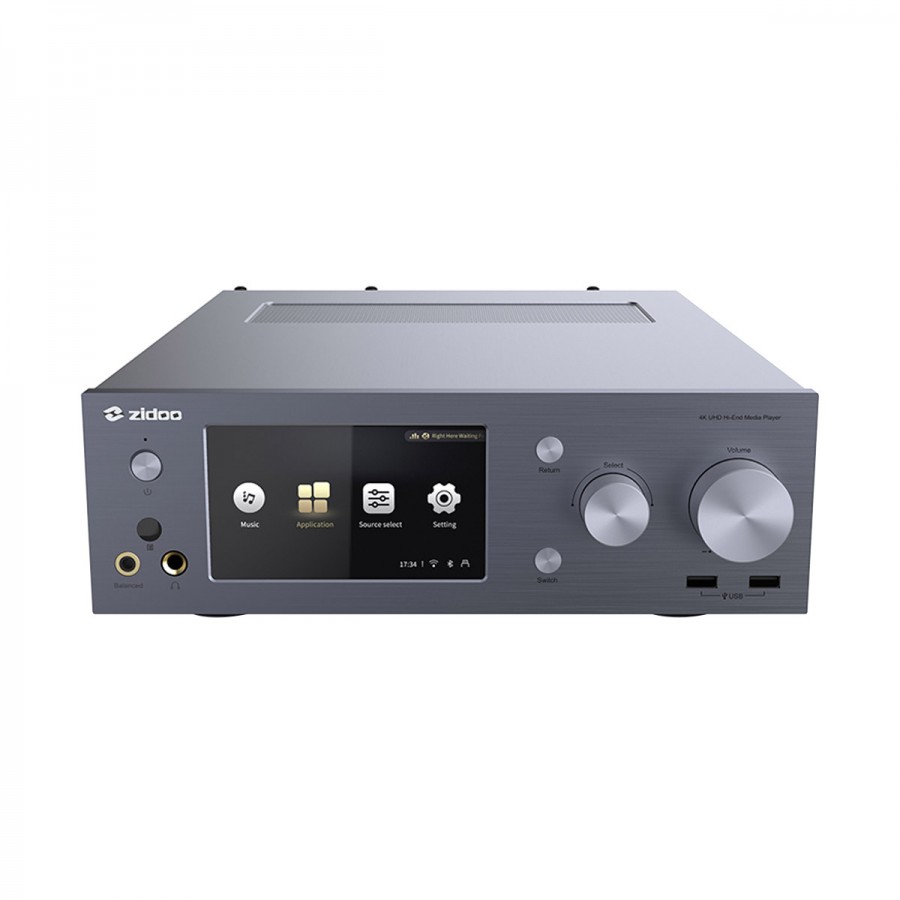

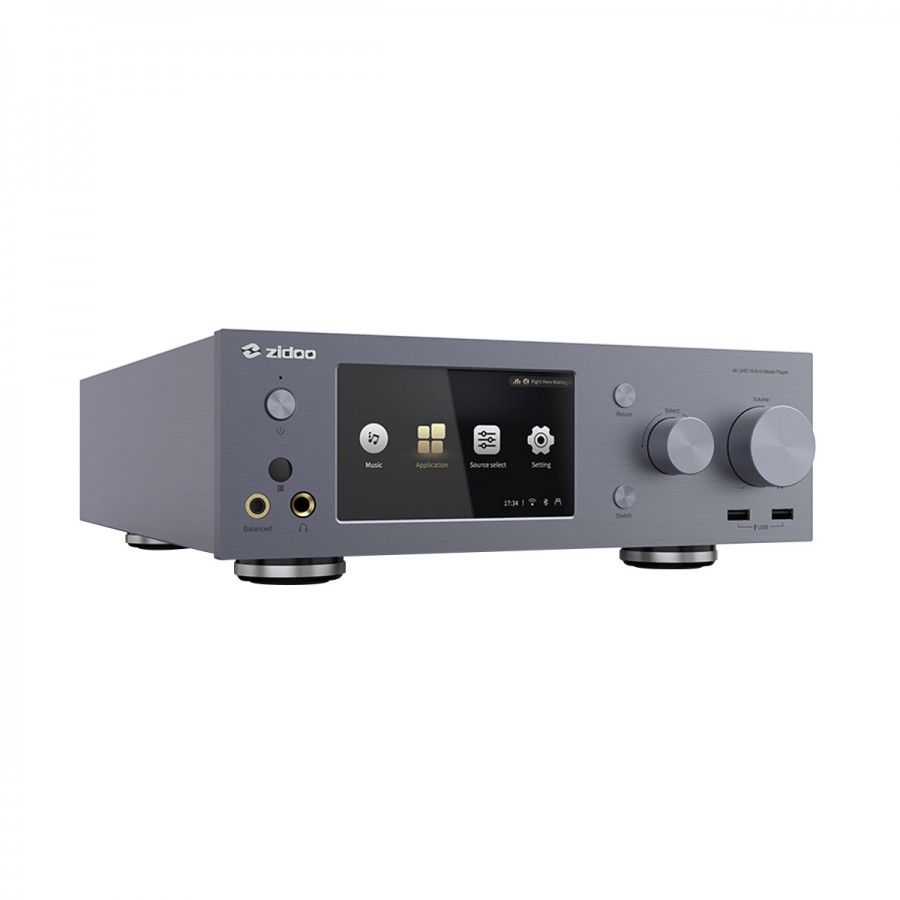

The Neo X features a beautiful 5" OLED touchscreen, allowing access to the various functions of the device, whether it is playback, different applications or settings. The front of the player is also equipped with buttons for convenient access at any time to essential functions such as volume level adjustment or source selection.
The Neo X is capable of decoding and processing 4K HDR HEVC/H.265 and UHD 60Hz 384*2160px video streams. It supports HDR and BT.2020 allowing for a wide color gamut and accurate images.
Advanced Dolby Vision dynamic metadata processing technology is supported, providing brightness and color information for each scene on a frame-by-frame basis with greater dynamic range and contrast. At the same time, 12bit output is also supported for more vivid, balanced colors and natural dynamic transition.
In addition to native Dolby Vision support, the Neo X is also equipped with the Dolby VS10 image processing engine. It provides an excellent experience for any format (Dolby Vision, HDR, HLG, SDR, etc.) and display devices.
The Neo X incorporates HDR10+ technology, capable of displaying up to 4000nits of brightness and processing metadata accurately for each image. In other words, colors and brightness levels are obtained frame by frame and scene by scene to achieve high dynamic contrast and richer colors.
Neo X supports automatic and accurate switching of the original resolution and display frequency (23.976, 59.94, 25, 30, 50 and 60). The new algorithm allows the frame rate switching to be performed in advance to ensure smooth and full playback of videos.
The Zidoo Neo X supports Gigabit network transmission, allowing access to a NAS LAN server via NFS, SMB v1/v2/v3 and UPnP. The SMB transfer function can share files from a connected hard drive with the Neo X and other devices.
The Neo X supports a wide range of video formats and blu-ray playback. BD and UHD blu-ray menus are played back just like in the cinema.
The Zidoo Neo X not only supports analog outputs. It is also compatible with the digital outputs of Dolby and DTS audio technologies. This allows you to enjoy immersive multi-channel playback.
The Zidoo Controller app can be used to control the Neo X remotely. It is compatible with iOS and Android smartphones and tablets. It allows you to browse files on a NAS or hard drive.
cIntelligent control ports such as IR input, RS232, HDMI CEC and HTTP (WOL) can be used for integration with many intelligent control systems. The trigger input and output can be used to quickly and easily turn on and off your entire audio system.
Specifications | |
---|---|
Product type | Streamer / DAC |

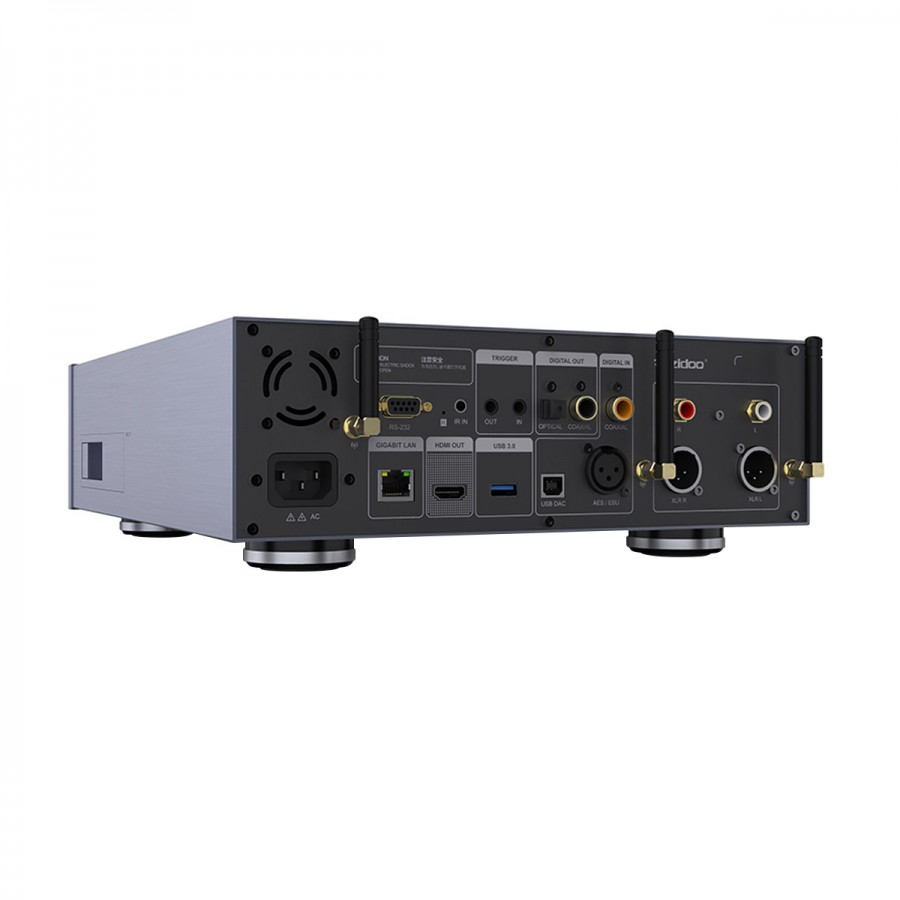

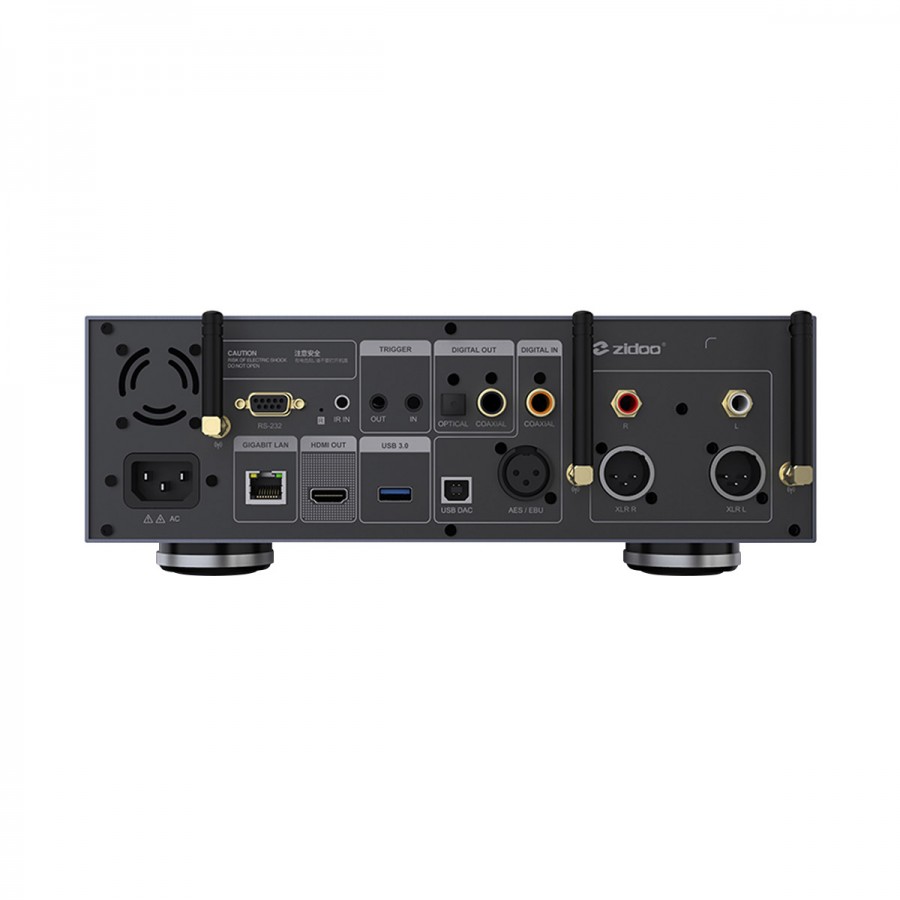

Inputs | WiFi 1x Ethernet RJ45 Bluetooth 5.0 1x Coaxial 1x AES/EBU 1x USB-B 1x USB-A (USB Host) |
Outputs | 1x HDMI 2.0a (4K@60fps/12bit/HDR/BT2020/YCbCr 4:4:4:)(audio passthrough support) 1x Optical Toslink 1x Coaxial 1x Single-ended stereo RCA 1x Balanced stereo XLR 1x Balanced Jack 4.4mm headphone output 1x Single-ended Jack 6.35mm headphone output 1x SATA 3.0, HDD 3.5" bay (HDD not included) |
Network | WiFi 2.4/5G dual band, 802.11a/b/g/n/ac 2T2R MIMO 867Mbps 1x Ethernet RJ45 (10/100/1000Mbps) Bluetooth 5.0 |
Control ports | 1x IR Input 1x RS232 1x Trigger 12V input 1x Trigger 12V output TCP/IP Control (WOL) |
CPU | Realtek RTD1619DR ARM Cortex-A55 (Hexa-Core) |
GPU | ARM Mali-G51 MP3 |
DAC | ES9038Pro |
Bluetooth chip | CSR8675 |
Screen | OLED HD 5" touchscreen |
Video decoding | 4K@60p HEVC/H.265 12bit HDR10, HDR10+, Dolby Vision |
Supported sampling rates | PCM up to 32bit 768kHz Native DSD up to DSD512 MQA |
Supported Bluetooth codecs | SBC, AAC, aptX, aptX LL, aptX HD, LDAC |
Headphone impedance | 16-300Ω (low gain mode: 16-32Ω / high gain mode: 32-300Ω) |
Balanced XLR output | Output level : 4.1Vrms THD+N -110dB (0.00031%) Noise : 2µVrms SNR : 118dB (20Hz-20kHz) Frequency response : 20Hz-20kHz ±0.25dB Crosstalk : -126dB (1kHz, Fs=44.1kHz) Dynamic range : 118dB |
Single-ended RCA output | Output level : 2.2Vrms THD+N -109dB (0.00035%) Noise : 1.7µVrms SNR : 120dB (20Hz-20kHz) Frequency response : 20Hz-20kHz ±0.25dB Crosstalk : -131dB (1kHz, Fs=44.1kHz) Dynamic range : 118dB |
Balanced Jack 4.4mm headphone output | Output level : 3Vrms Output power : 410mW @ 32Ω THD+N -110dB (0.00032%) Noise : 1.7µVrms SNR : 120dB (20Hz-20kHz) Frequency response : 20Hz-20kHz ±0.25dB Crosstalk : -131dB (1kHz, Fs=44.1kHz) Dynamic range : 118dB |
Single-ended Jack 6.35mm headphone output, low gain mode | Output level : 1.5Vrms Output power : 110mW @ 32Ω THD+N -108dB (0.0004%) Noise : 3.2µVrms SNR : 112dB (20Hz-20kHz) Frequency response : 20Hz-20kHz ±0.25dB Crosstalk : -128dB (1kHz, Fs=44.1kHz) Dynamic range : 110dB |
Single-ended Jack 6.35mm headphone output, high gain mode | Output level : 2.6Vrms Output power : 42mW @ 300Ω THD+N -108dB (0.0004%) Noise : 3.3µVrms SNR : 114dB (20Hz-20kHz) Frequency response : 20Hz-20kHz ±0.25dB Crosstalk : -132dB (1kHz, Fs=44.1kHz) Dynamic range : 108dB |
General | |
---|---|
Supply voltage | 110-240VAC 50/60Hz (dual linear power supply) |
Dimensions | 395 x 291 x 110mm |

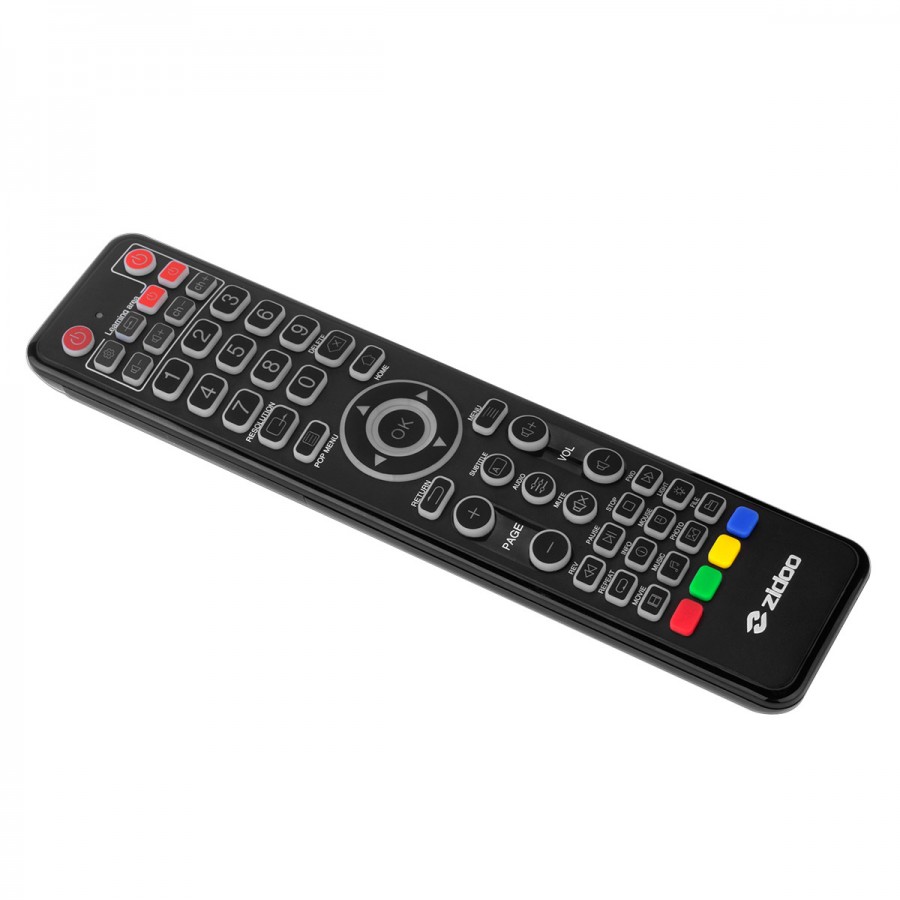

Package | 1x Zidoo Neo X 1x Remote control 1x Power cable 3x Antennas 1x User Manual |
Input | RJ45 |
Input | SATA |
Input | USB |
Input | Bluetooth |
Input | WiFi |
Input | AES/EBU |
Input | SPDIF |
Output | Jack 6.35mm |
Output | Optical Toslink |
Output | XLR |
Output | HDMI |
Output | Jack 4.4mm |
Output | RCA |
Output | Coaxial SPDIF |
DAC / ADC Chip | ES9038PRO |
Max sampling rate | DSD512 |
Max sampling rate | 768kHz |
Color | Gray |
Remote Control | Yes |
