DAYTON AUDIO AMT2-4 Speaker Driver AMT Tweeter 15W 4 Ohm 92.5dB 2500Hz - 22kHz

DAYTON AUDIO AMT2-4 Speaker Driver Ribbon Tweeter 15W 8 Ohm 92.5dB 2500Hz - 22kHz
The Dayton Audio AMT2-4 tweeter has a round design and is equipped with an AMT (Air Motion Trasnformer) transducer offering wide sound dispersion and excellent high-frequency reproduction that is clear, sparkling and dynamic.

Average votes for this product
5.0 / 5

By buying this product you get 9 loyalty points


Reference : 13707
New product

99,00 €tax incl.

82,50 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 29-03-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

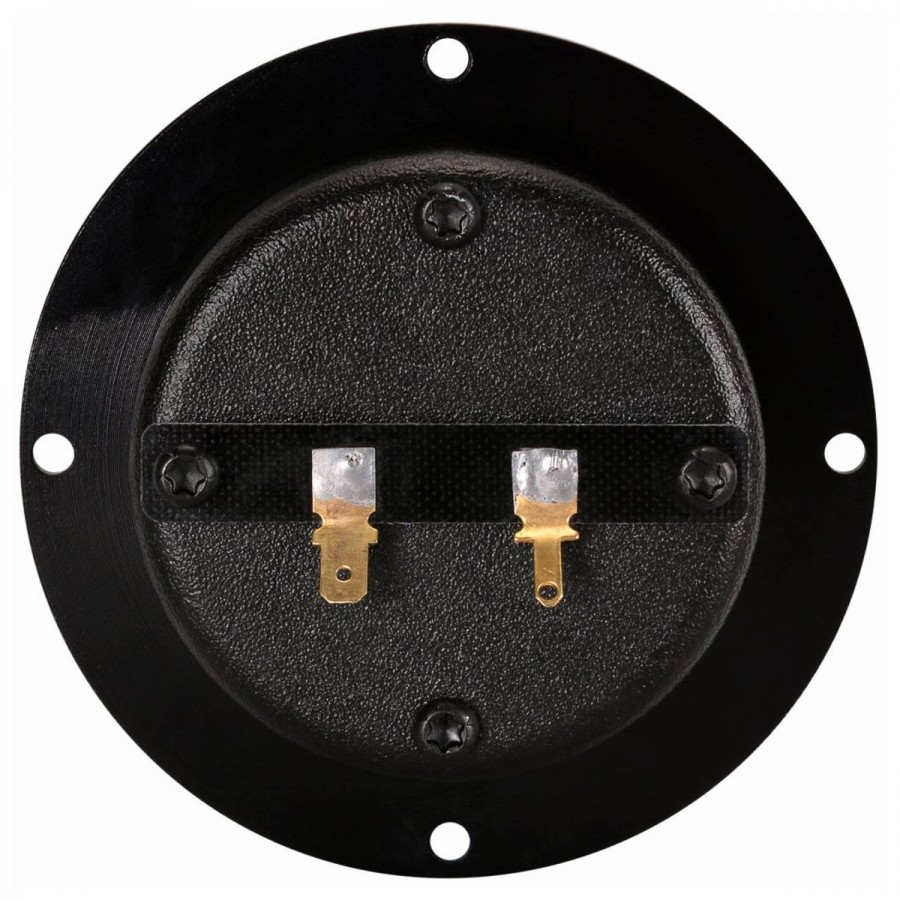

Dayton Audio AMT2-4

Speaker Driver AMT Tweeter 15W 4 Ohm 92.5dB 2500Hz - 22kHz

Dayton Audio AMT2-4 Haut-Parleur Tweeter AMT 15W 4 Ohm 92.5dB 2500Hz - 22kHz

The Dayton Audio AMT2-4 tweeter has a round design and is equipped with an AMT (Air Motion Transformer) transducer offering wide sound dispersion and excellent high-frequency reproduction that is clear, sparkling and dynamic. The closed rear chamber allows the AMT2-4 not to require a specific internal chamber in the speaker body.

Dayton Audio AMT2-4 Haut-Parleur Tweeter AMT 15W 4 Ohm 92.5dB 2500Hz - 22kHz

Technical characteristics

Specifications
Speaker driver typeAMT Tweeter
PowerRMS : 15W
Max : 30W
Impedance4 Ohm
Frequency response2500Hz - 22kHz
Sensitivity92.5dB 2.83V/1m
Thiele-Small Parameters
DC Resistance (Re)3.5 Ohm
Mechanical quality coefficient (Qms)2.92
Total quality coefficient (Qts)2.86
Surface area of cone (Sd)8.91cm²
Mounting informations
Overall outside diameter90mm
Baffle cutout diameter65mm
Depth28.5mm
Number of mounting holes4

Data sheet
Speaker Power (W RMS)15.0
Speaker TypeAMT Tweeter
Impedance (Ω)4
Loudspeaker diameter (mm)N/A
Diaphragm typeN/A
Efficiency / Sensitivity (dB)92.0
Max Linear Excursion (Xmax) (mm)N/A
Lowest frequency (Hz)2500
Highest frequency (Hz)22000

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Très bonne surprise.
Mesure de l'impédance de 20 à 20.000Hz des 2 HP commandés, l'un a une valeur de 3,0 ohm et le second de 3,1 ohm. Cette différence est normale, car il y a des tolérances dans la fabrication.
Pour l'impédance de 3 ohm, ce n'est pas un soucis car dans la très grande majorité des cas pour ne pas dire la totalité on ajoute une résistance en série pour atténuer le tweeter.
Mesure en réponse en fréquence, la courbe relevée est un peu plus régulière que celle annoncée par le constructeur.
Comparaison d'écoute entre ce tweeter et un similaire d'une marque réputée (qui sont beaucoup plus cher).
Les tweeters étaient filtrés avec un condensateur de la même marque.
Entre les 2 HP, j'ai retrouvé les mêmes sensations, définition, précision toujours sans aucune agressivité.
Pour le filtrage, il faut au minimum une fréquence de 4KHz en ordre 1 & 3,5KHz en ordre 2 environ.
Sa tenue en puissance n'est pas très élevée, mais pour une utilisation domestique, cela suffit amplement.
Je recommande ce produit.
Cordialement.
