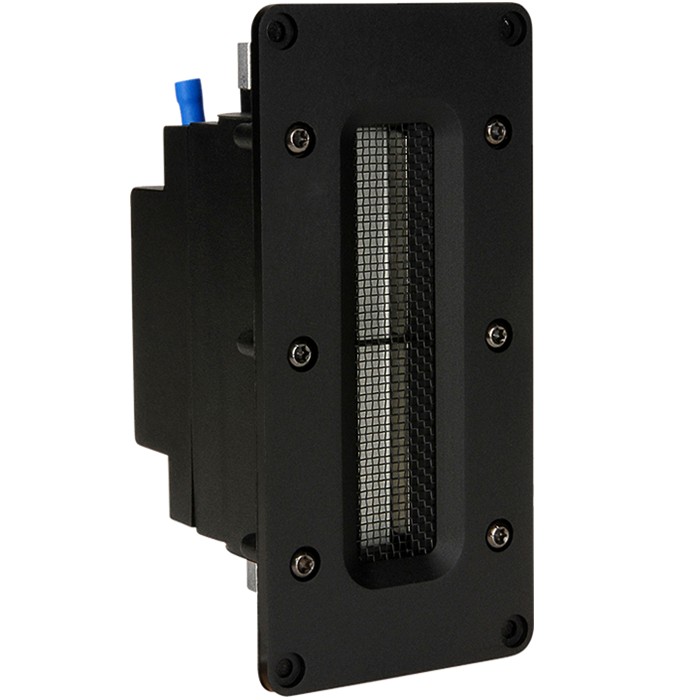

FOUNTEK NEO X3.0 Speaker Driver Ribbon Tweeter 30W 8 Ohm 95dB 1200Hz - 40kHz

FOUNTEK Neo X3.0 Tweeter à ruban

Average votes for this product
5.0 / 5

By buying this product you get 15 loyalty points


Yes, notify me when available !
Reference : 8722
New product

155,00 €tax incl.

129,17 € tax excl.
Including 0,30 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Fountek is a manufacturer of ribbon tweeters.
The manufacture of these tweeters is of high quality, with cushioning under the front, neodymium magnets, high efficiency and linear frequency response.
TheFountek ribbon tweeters are equipped with a transformer to allow the ribbon, which has only 0.02 Ohm of original impedance to be connected to an amplifier with a correct impedance.

The series Neo-Fountekhas a thick ribbon (0.02mm) and can be used with a 12dB / oct filter.


Features:

  • Front panel colour: black
  • Sensitivity: 9 5 dB / 1m / 2.83 V
  • Power: 30W nominal, 50 W max
  • Frequencies: 1,200-40,000Hz
  • Impedance: 8 ohm
  • DCR: 0.02 ohm
  • Dimensions: 12mm x 80mm x 0.015mm
  • Effective ribbon zone: 960 m²
  • Ribbon Weight: 36 mg
  • Height Gap: 13 mm
  • Recommended cut-off frequency: 2,000Hz with 2 orders
  • Net weight: 1,015 g

https://www.audiophonics.fr/images2/8722/8722_fountek_Neo_X3_2.jpg

https://www.audiophonics.fr/images2/8722/8722_fountek_Neo_X3_4.jpg


Data sheet
Speaker Power (W RMS)30
Speaker TypeRibbon tweeter
Impedance (Ω)8
Loudspeaker diameter (mm)N/A
Diaphragm typeN/A
Efficiency / Sensitivity (dB)95.0
Max Linear Excursion (Xmax) (mm)N/A
Lowest frequency (Hz)1200
Highest frequency (Hz)40000

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Perfekt
Pleasant Faithful Speech. Details and space. Better recognize the recording quality.
 (1)
 (0)
This review has been posted for FOUNTEK NEO X3.0 Speaker Driver Ribbon Tweeter 30W 8 Ohm 95dB 1200Hz - 40kHz
Note :
 5/5
Date :
NEO X3
Excellent tweeter.excellent rapport qualité prix.filtre 12 db 0,345 mh mundorf et condo mundorf silver gold 2,7micro farad: le son est époustouflant.
 (2)
 (0)
This review has been posted for FOUNTEK NEO X3.0 Speaker Driver Ribbon Tweeter 30W 8 Ohm 95dB 1200Hz - 40kHz
