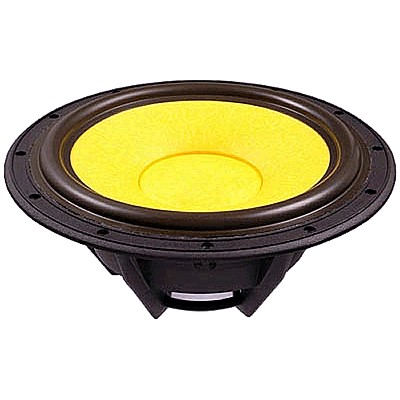

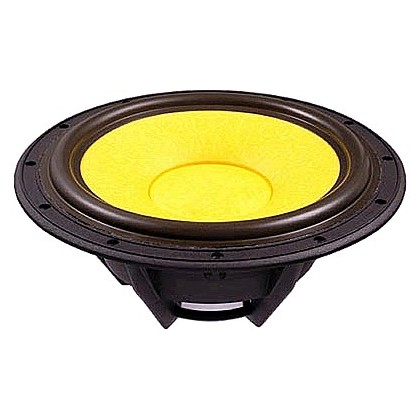

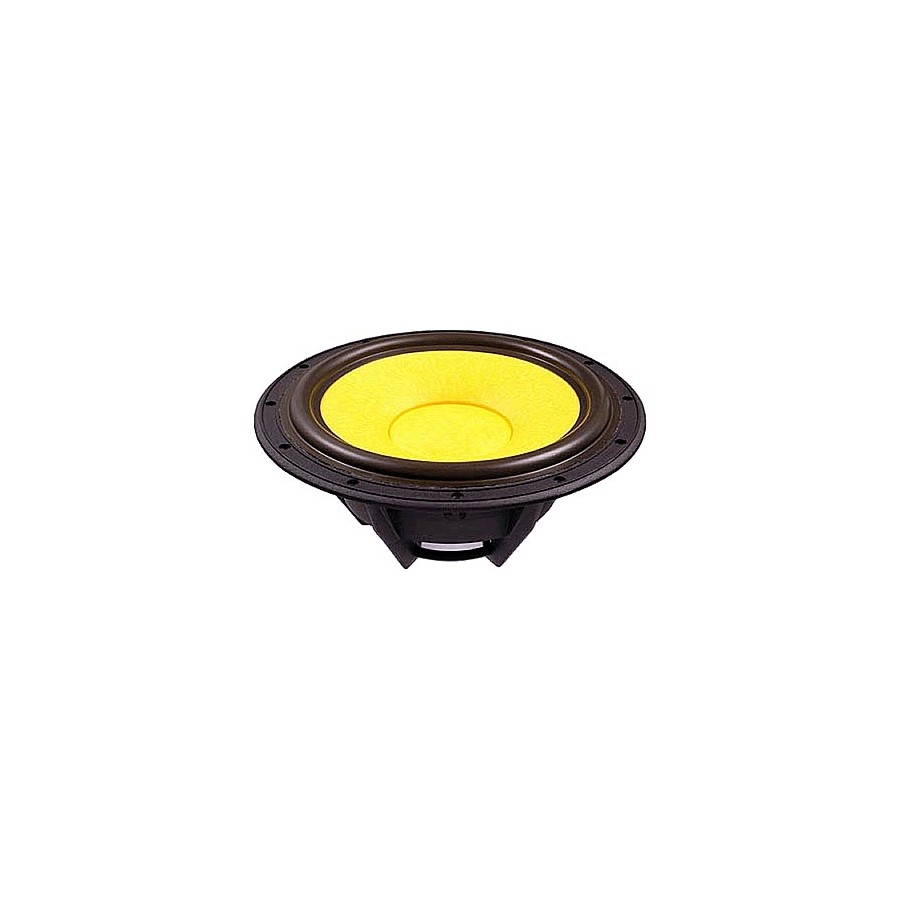

HiVi SWANS D10G Kevlar 10 "Speaker

HiVi's "D" speaker range is a synthesis of all the technological advances made in recent years in the field of electroacoustics.

It is also the expression of the extraordinary know-how of a team of engineers and music lovers resolutely in the forefront.

What is immediately noticeable in view of this D10G is of course its superb gold-colored membrane which one will not be able to tell if it is extravagant or refined

This cone is the result of a new weaving of Kevlar and paper,a mesh of which the integrity and the rigidity does not seem to be able to be harmed.

Coupled with mobile part with large diameter wound on an aluminum support, and excited by means of a Magnet Oversized Neodymium , this crew does wonder in the exploration of low frequencies.

Specifications:

• Nominal Impedance:8Ω
• Resonant Frequency: 26Hz
• Rated Power:150W
• Maximum Power Output:300W
• Sensitivity (2.83v / 1m): 89dB
• Resistance DC:/ Strong>6.5Ω
• Diameter Coil: 100mm
• Length Coil:23.5mm
• Mounting Type:Kapton
• Composition Coil:Aluminum Wires Copper Plated
• Number of Layers:2
• Composition Magnetic Circuit:Magnet Neodymium
• Magnetic Shielding:/ Strong>Yes
• BL:13.2
• Hey :7.0mm
• XmaX:8.3mm
• Cms:443.9
• Qms:6.64
• Qes:0.60
• Qts:0.46
• Mms:82.3g
• Sd:0.0430m2
• Vas:117.3L
• Recommended Type of Load: Bass Reflex
• Recommended Load Volume: 65L
• Recommended Cut-Off Frequency -3dB: 32Hz
• Weight:4.0kg

HiVi D10G:Dimensions

HiVi D10G:Frequency Response

HiVi D10G:Impedance Curve
