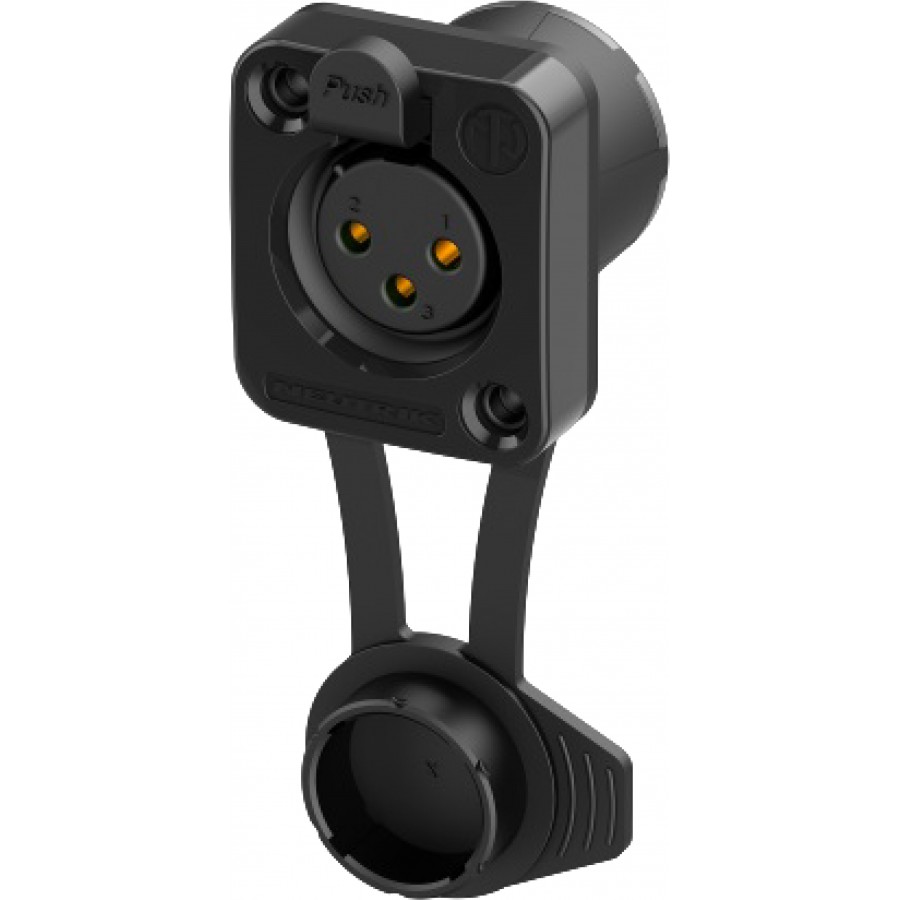

NEUTRIK NC3FD-TOP 3-Pole Female XLR Connector
The Neutrik NC3FD-TOP is a female XLR connector with 3 poles designed for front mounting on chassis, relying on a sealed TOP construction to ensure reliable operation in outdoor environments.
No customer reviews yet, login to write a review.
No loyalty points for this product.
Reference : 22170
New product
![[GRADE B] DAYTON AUDIO MKSX4 Low Profil Subwoofer Speaker 160W Ø20cm](https://www.audiophonics.fr/72897-thumb_default/dayton-audio-mksx4-low-profil-subwoofer-speaker-160w-o20cm.jpg)
![[GRADE S] SHANLING M6 PRO HiFi DAP Compact Music Player DAC 2x AK4497 32bit 768kHz DSD128 Titanium](https://www.audiophonics.fr/72951-thumb_default/shanling-m6-pro-hifi-dap-compact-music-player-dac-2x-ak4497-32bit-768khz-dsd128-titanium-sbs.jpg)
![[GRADE S] SHANLING M0 PRO Compact HiFi Digital Audio Player DAP DAC 2xES9219C Bluetooth 5.0 aptX LDAC 32bit 384kHz DSD Green](https://www.audiophonics.fr/72945-thumb_default/shanling-m0-pro-compact-hifi-digital-audio-player-dap-dac-2xes9219c-bluetooth-50-aptx-ldac-32bit-384khz-dsd-green-sbs.jpg)

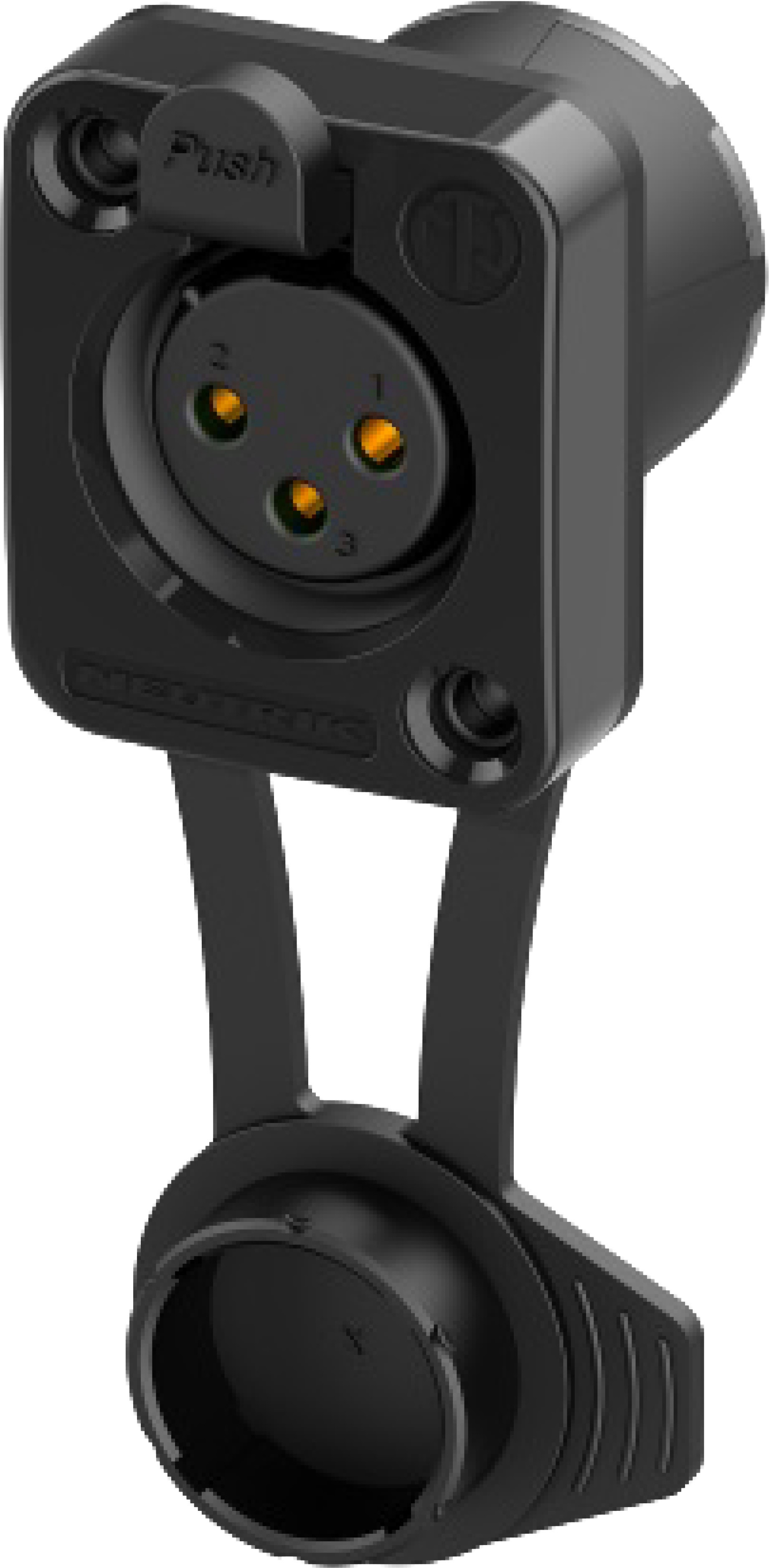

Neutrik NC3FD-TOP 3-Pole Female XLR Connector for Chasis Gold Plated
The Neutrik NC3FD-TOP is a female XLR connector with 3 poles designed for front mounting on chassis, relying on a sealed TOP construction to ensure reliable operation in outdoor environments.
KEY POINTS:
- The airtight construction prevents air ingress, ensuring the internal integrity of the connector.
- The IP65/IP67 rating protects against dust and water splashes, ensuring operation in outdoor conditions.
- The design for demanding environments ensures mechanical robustness suitable for intensive use.
- Flame-retardant materials (UL94 V0) limit flame propagation in case of incident.
- The die-cast alloy body ensures rigidity and resistance to mechanical stress.
- The front mounting facilitates access and maintenance.
Technical specifications
| Specifications | |
|---|---|
| Product type | XLR connector |
| Connector | 3-pole female XLR |
| Contact material | Brass |
| Contact plating | Gold |
| Capacitance between contacts | ≤ 4pF |
| Contact resistance | ≤ 5mΩ |
| Dielectric strength | 1.5kVdc |
| Insulation resistance | > 5GΩ |
| Rated current per contact | 16A |
| Rated voltage | < 50V |
| Insertion/withdrawal force | ≤ 40N |
| Lifetime | > 1000 cycles |
| Standards | UL94V0 IEC 60068-2-20 IP65 & IP67 |
| Temperature range | -30°C to +80°C |
| General | |
|---|---|
| Packaging | Sold individually |
| Max cable diameter (mm) | N/A |
| Mounting type | To weld |
| Connectic | Female |
| Contacts number | 3 |
| Max panel thickness (mm) | N/A |
| Connector | XLR |
| Contacts Material (Connector) | Copper Alloy |
| Contacts Plating (Connector) | Gold |
