ALLO USBRIDGE SIGNATURE Audio Streamer Raspberry Pi Compute 3+ Ultra Low Noise USB Interface

ALLO USBRIDGE SIGNATURE Audio Streamer Raspberry Pi Compute 3+ Ultra Low Noise USB Interface
The Allo USBridge Signature is a network drive based on an SBC Raspberry Pi Compute 3+ and the DietPi operating system. It allows to reduce the noise of the Pi Compute and all the circuits to a minimum, thus enjoying the purest and most transparent reproduction possible.

Average votes for this product
5.0 / 5

By buying this product you get 27 loyalty points


Reference : 14122
New product

279,00 €tax incl.

232,50 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Allo USBridge Signature

Audio Streamer Raspberry Pi Compute 3+ Ultra Low Noise USB Interface

Lecteur Réseau Raspberry Pi Compute Diet Pi Interface USB Faible Bruit

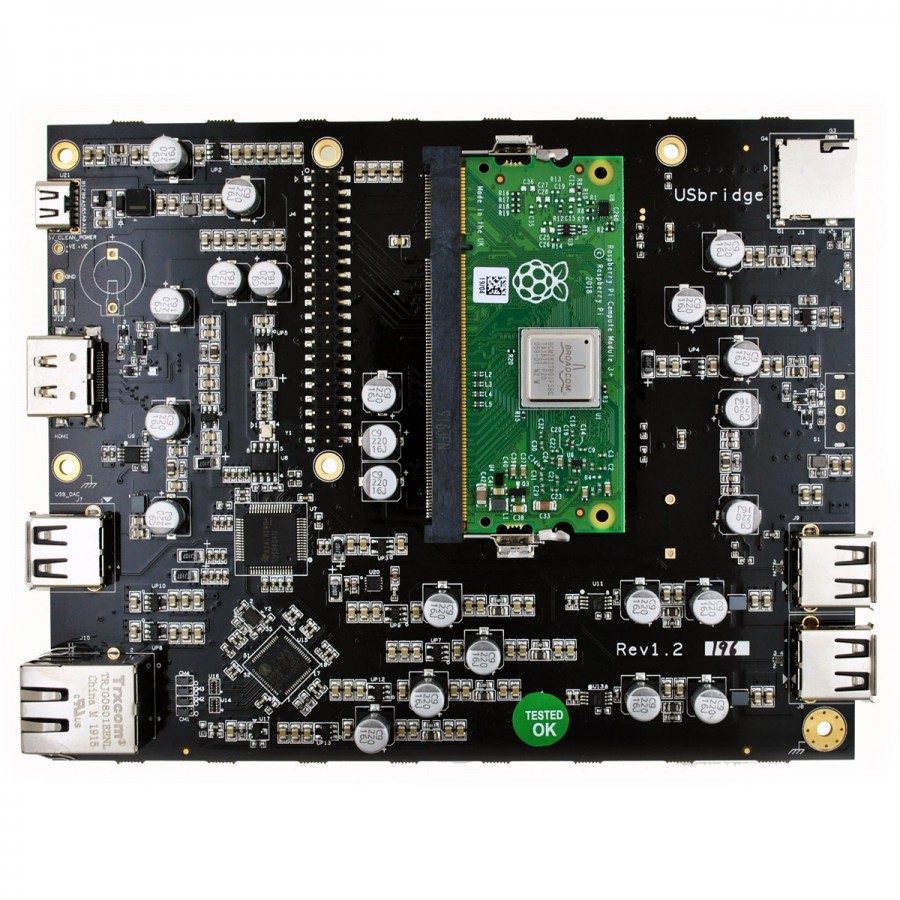

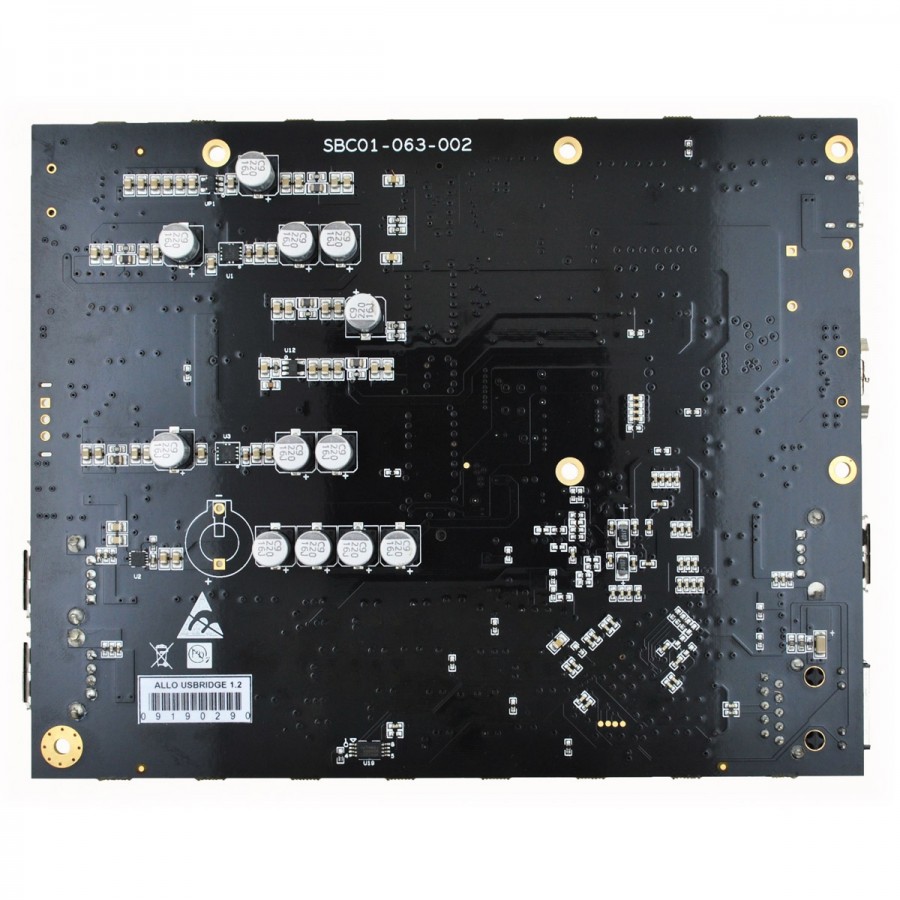

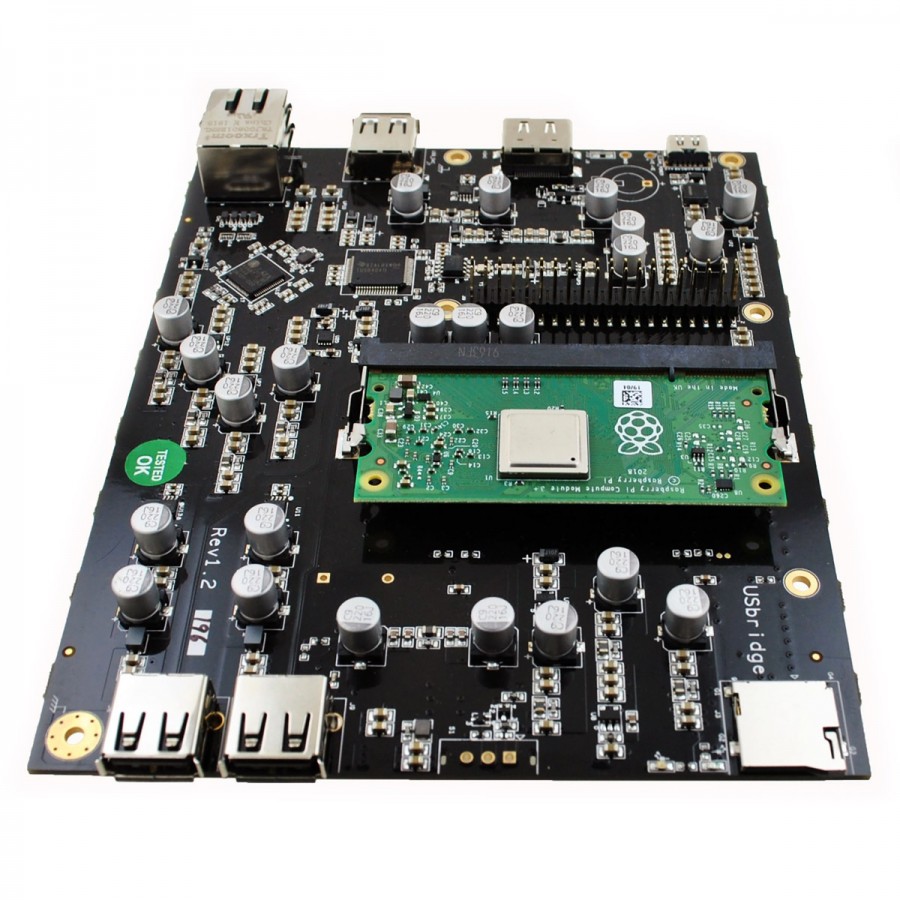

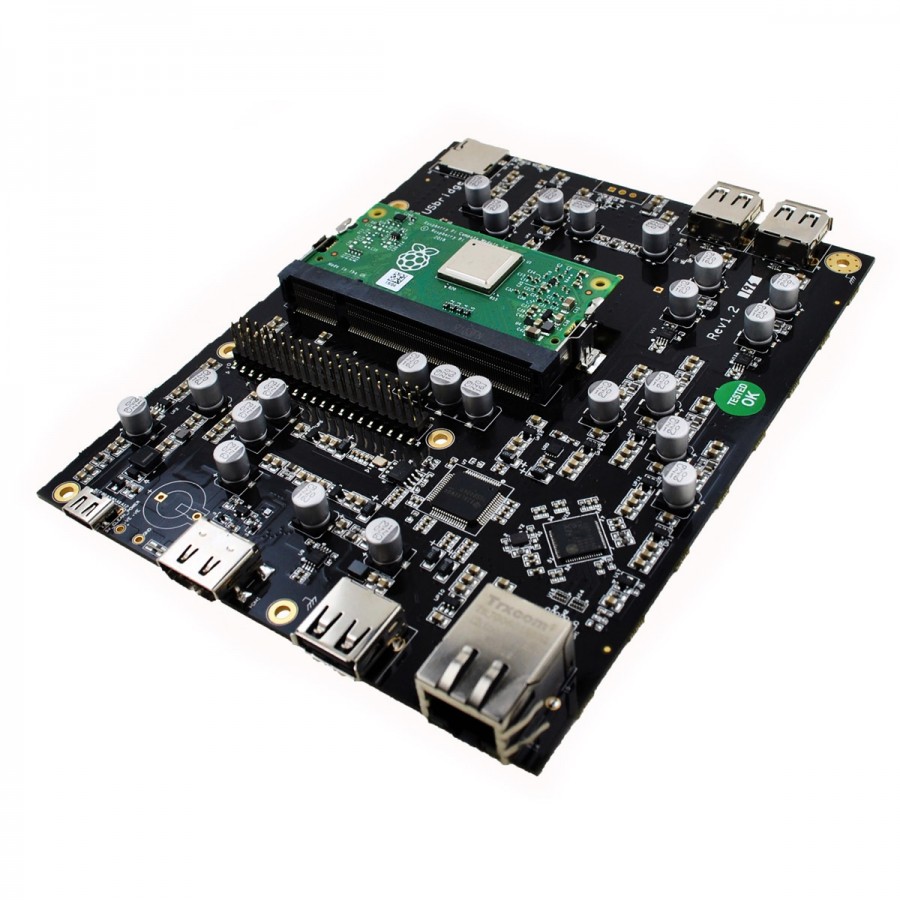

The Allo USBridge Signature streamer is based on a Raspberry Pi Compute Module 3+ SBC (Single Board Computer), offering this system great versatility. The DietPi operating system is pre-installed, and will allow you to easily access your entire audio library on the network or locally (USB storage).

The purpose of this module is to reduce noise on the USB bus as much as possible in order to provide the purest, most accurate and richest sound reproduction possible. For this purpose, the USBridge signature carries an excellent USB control chip from TI and the Ethernet circuit is completely separate from the USB circuit, thus limiting interference. In addition, noise has been reduced on each power rail through the use of more than 30 LDO controllers. Even the power rail of the Micro SD port has its own LDO. Thus, the module does not include any switching elements that can generate noise.

As the USBridge Signature is based on a Pi Compute, Allo has chosen to integrate all the available connectivity on a standard Raspberry Pi, namely a GPIO port, USB-A, HDMI and a Micro SD slot. Therefore, anything that works with a Raspberry Pi will work with the USBridge Signature. For example, it is quite possible to use the digital interface Allo DigiOne or DigiOne Signature (sold separately) to extend the connectivity of the USBridge Signature.

Lecteur Réseau Raspberry Pi Compute Diet Pi Interface USB Faible Bruit

Review and presentation by The Hans Beekhuyzen Channel



Technical characteristics

Specifications
Product typeStreamer
SBCRaspberry Pi Compute Module 3+
OSDietPi (On MicroSD Card)
Inputs3x USB-A 2.0 Host
1x Gigabit Ethernet RJ45
1x Slot Micro SD
Outputs1x USB-A (delivers up to 900mA)
1x HDMI
Supported sampling ratesPCM up to 768kHz / DSD up to DSD512 (DSD1024 theoretically possible)
Ethernet ChipsetAX88179
Ethernet bandwidth330Mbs
USB protectionAll USB Host ports include overload protection
Power supply5V 3A via USB-C
Dimensions150 x 119mm
CertificationsFCC
CE

Data sheet
InputMicro SD
InputRJ45
OutputHDMI
DAC / ADC ChipNC
Max sampling rateDSD512
Max sampling rate768kHz
Max sampling rateDSD1024
ColorBlack
Streaming services & Network protocolsSpotify Connect
Streaming services & Network protocolsWeb radios
Streaming services & Network protocolsAirPlay
Streaming services & Network protocolsRoon / Roon Bridge / Roon Ready
Streaming services & Network protocolsSpotify
Streaming services & Network protocolsDLNA
