TINYSINE TSA8800C Amplifier Module
By buying this product you get 6 loyalty points
![[GRADE B] AUDIOPHONICS MPC6 V2 Power Distribution Case 6 ports Black Aluminium](https://www.audiophonics.fr/62549-thumb_default/audiophonics-mpc6-v2-power-distribution-case-6-ports-black-aluminium.jpg)
![[GRADE A] CRINEAR DAYBREAK In-Ear Monitors IEM Dynamic Balanced Armature Planar Magnetic 20 Ohm 105dB 2Hz-40kHz](https://www.audiophonics.fr/74194-thumb_default/crinear-daybreak.jpg)
![[GRADE S] SHANLING M6 PRO HiFi DAP Compact Music Player DAC 2x AK4497 32bit 768kHz DSD128 Titanium](https://www.audiophonics.fr/72951-thumb_default/shanling-m6-pro-hifi-dap-compact-music-player-dac-2x-ak4497-32bit-768khz-dsd128-titanium-sbs.jpg)
![[GRADE A] SHANLING CD-S100 (23) CD Player DAC AK4493 Sanyo HD850 USB 32bit 384kHz DSD512 Black](https://www.audiophonics.fr/69128-thumb_default/shanling-cd-s100-23-cd-player-dac-ak4493-sanyo-hd850-usb-32bit-384khz-dsd512-black.jpg)
![[GRADE A] SABAJ A20D 2023 DAC AK4499EX Headphone Amplifier TPA6120A2 XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA](https://www.audiophonics.fr/69108-thumb_default/sabaj-a20d-2023-dac-ak4499ex-headphone-amplifier-tpa6120a2-xmos-xu316-bluetooth-50-32bit-768khz-dsd512-mqa.jpg)
![[GRADE A] GUSTARD X26III DAC 2x ES9039SPRO NOS Streamers LAN Roon Airplay UPnP 32bit 768kHz DSD512 Black](https://www.audiophonics.fr/70815-thumb_default/gustard-x26-iii-black-sba.jpg)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

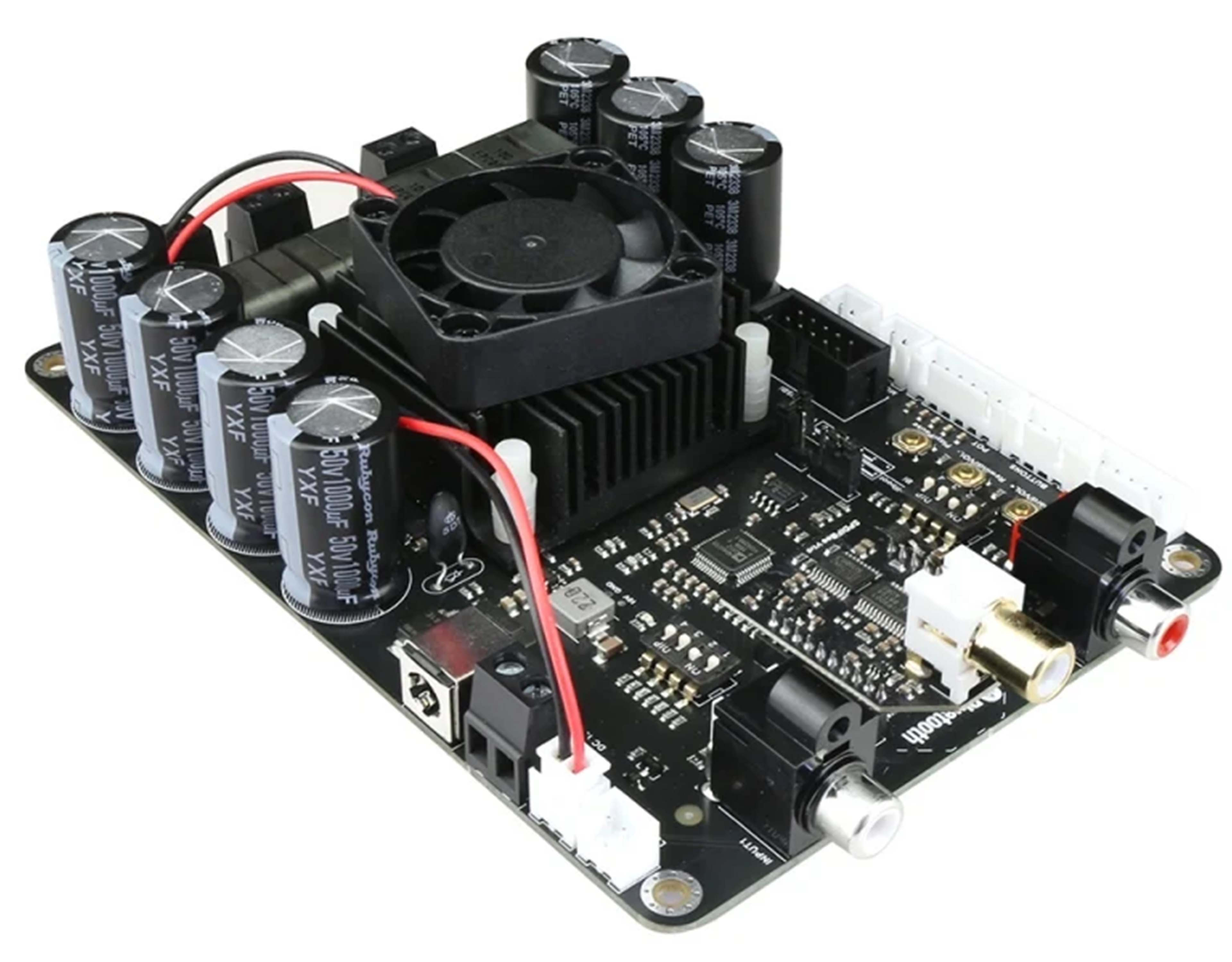

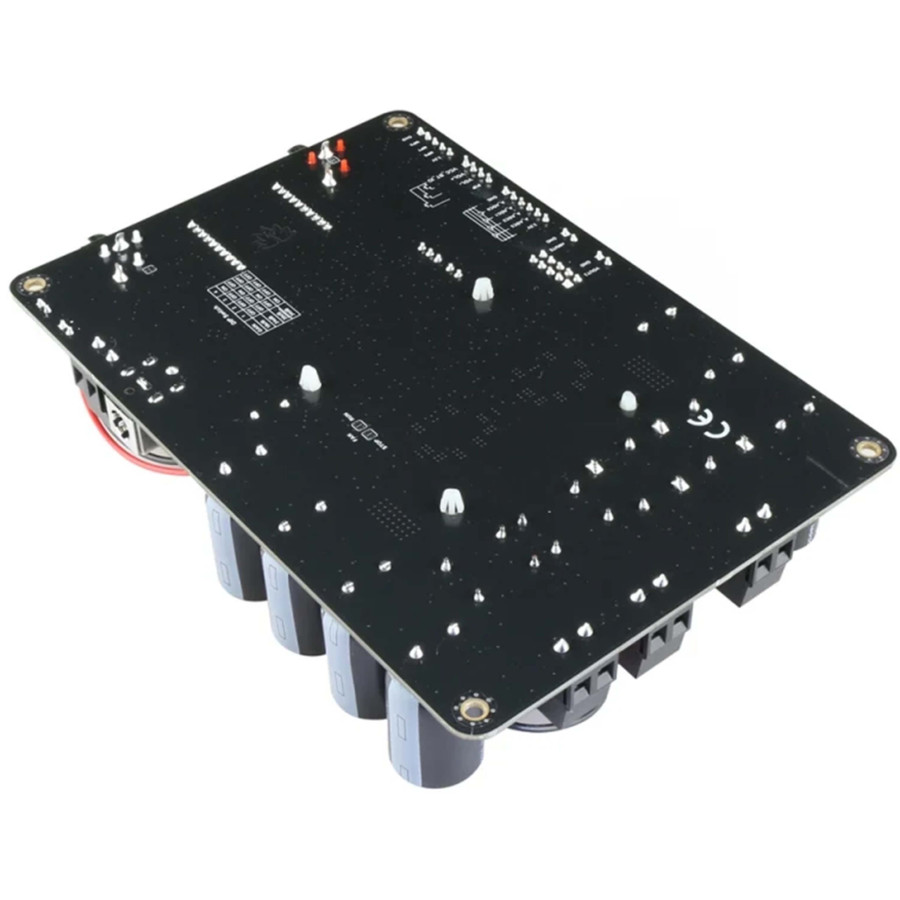

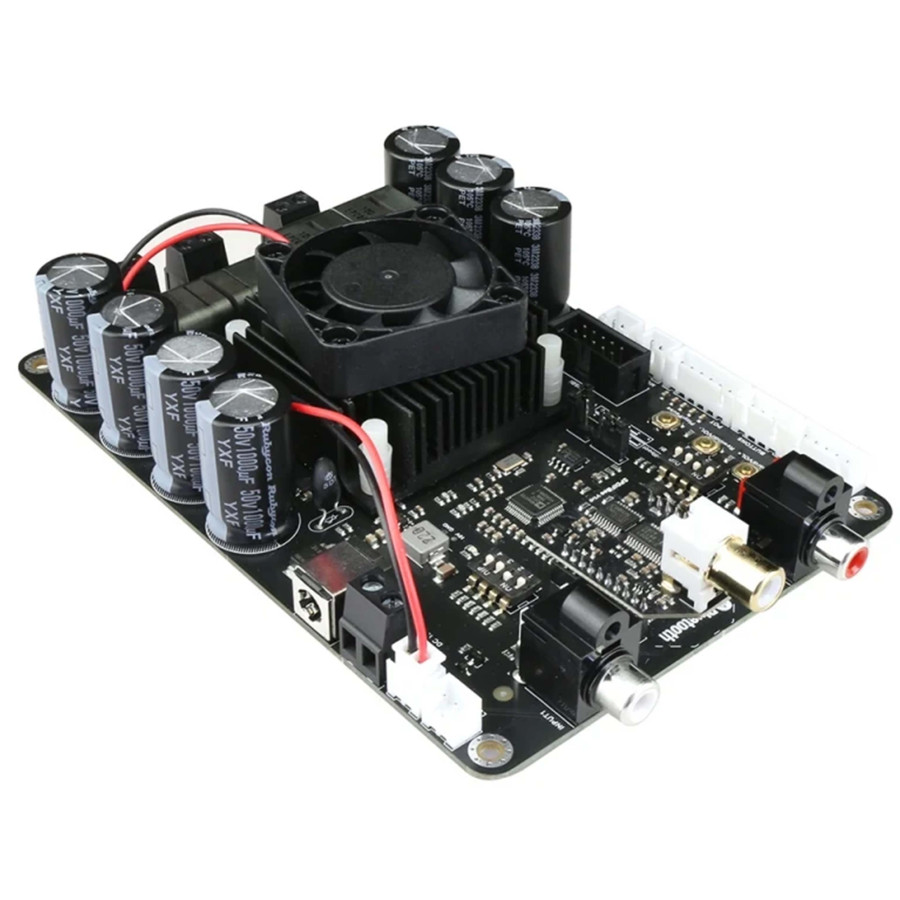

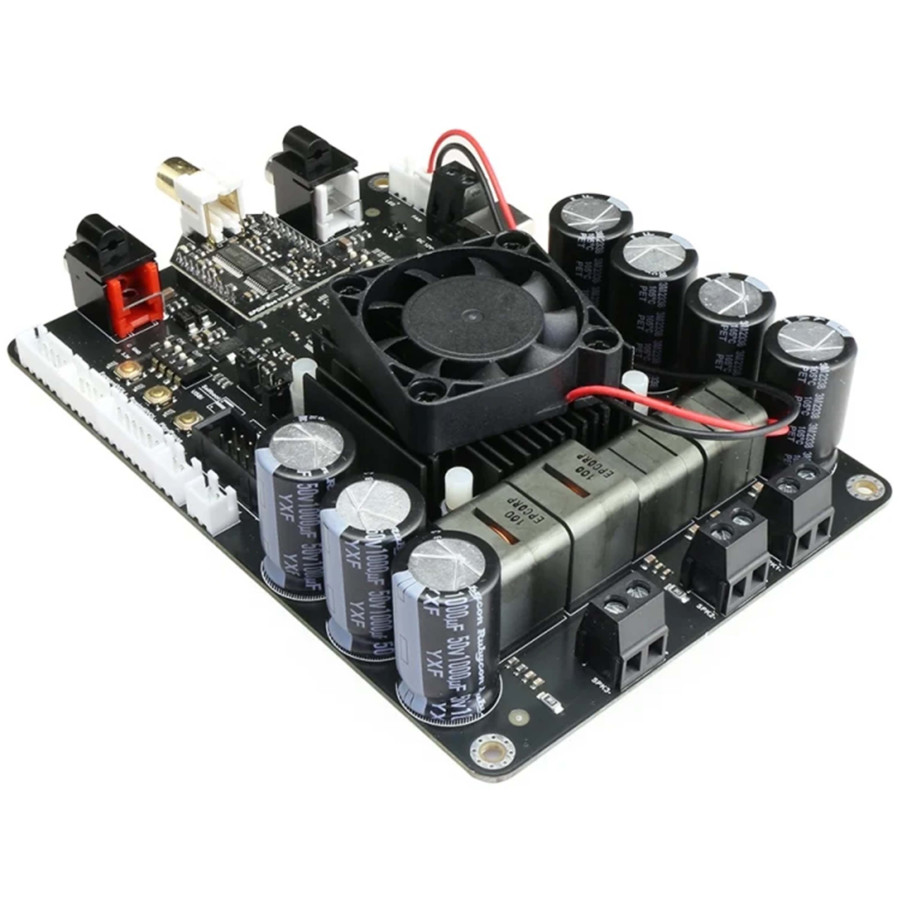

TinySine TSA8800C Class D 2.1 TPA3221 DAC DSP ADAU1701 SPDIF 24bit 96kHz 2x100W + 200W 4 Ohm Amplifier Module

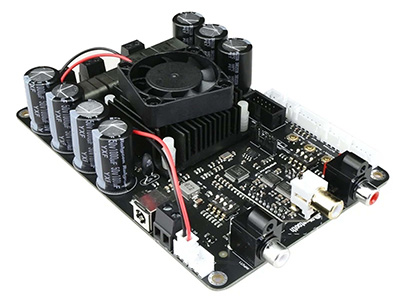

The amplifier module TinySine TSA8800C combines the functions of a 2.1-channel Class D amplifier, and a DAC / DSP with an SPDIFBee receiver converting the signal to I2S. It is capable of delivering up to 2x100W of power and features a 200W subwoofer output. To achieve this, it uses TPA3321 amplification chips. DAC / DSP signal processing is handled by an ADAU1701 chip, allowing tone adjustment for each channel. In addition to the SPDIF input, a stereo RCA input is also available.
The ADAU1701 DSP chip features a preloaded program allowing gain, bass, midrange and treble adjustment in the Sigma Studio DSP program/interface. A debugging port is available for Sigma Studio. To access advanced features, the user can program the TSA8800C via the TinySine USBi programmer. The available advanced functions include equalization, crossover, bass enhancement, multiband dynamic processing, delay compensation and more.
The TSA8800C amplifier module is powered by 12V-30V DC and can drive passive speakers with an impedance of 2Ω, 4Ω or 8Ω.

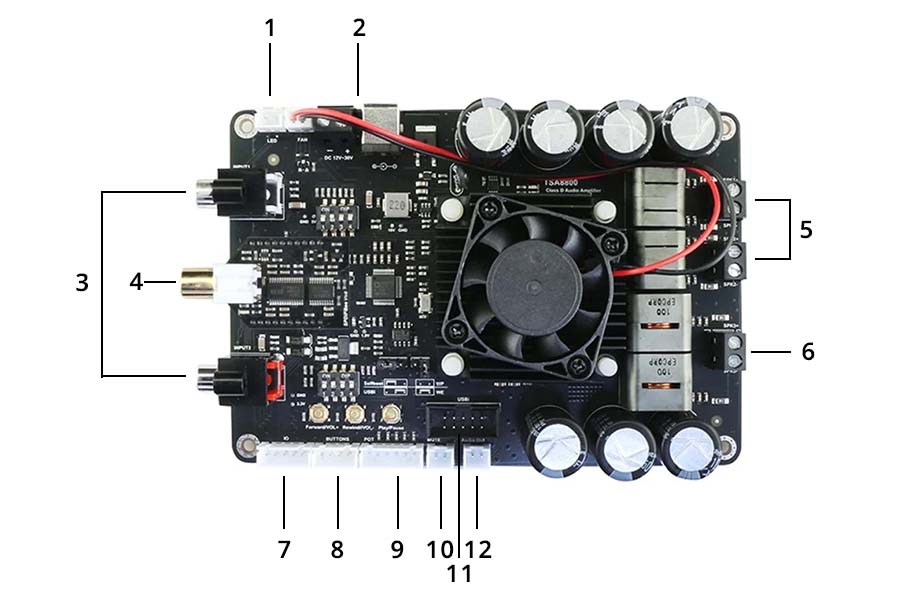

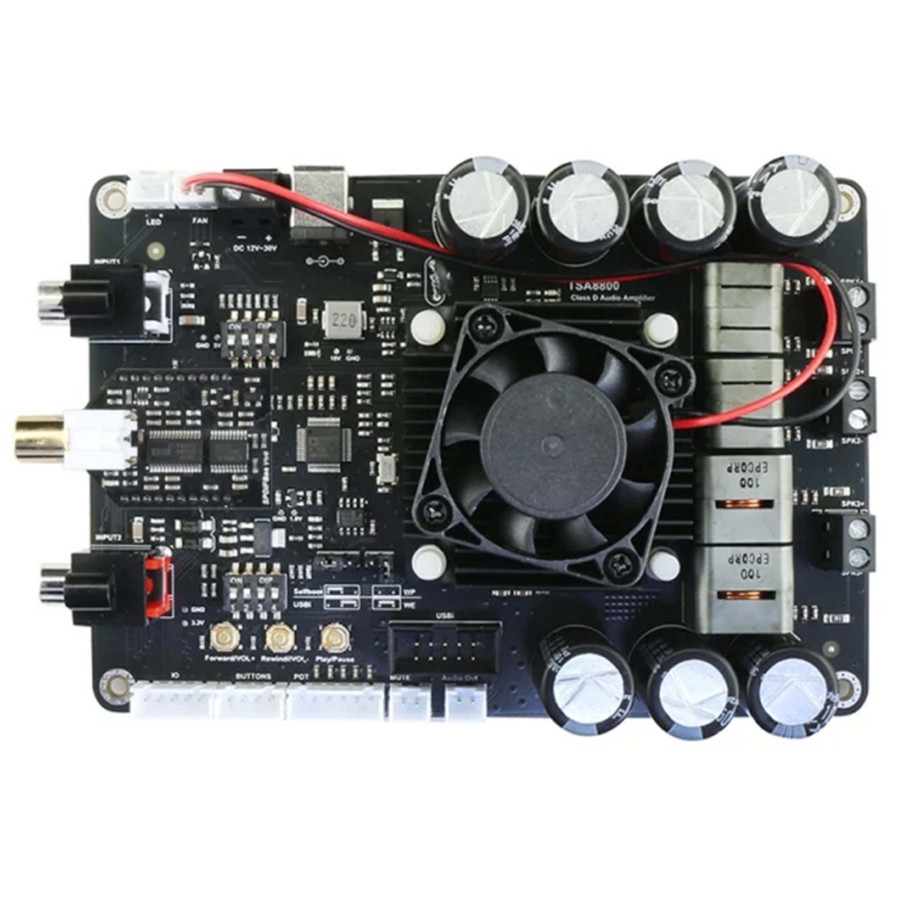

TinySine TSA8800C Amplifier Module Overview
| 1 | External LED port |
| 2 | 12-30V DC power input |
| 3 | RCA input |
| 4 | SPDIF input (SPDIFBee module) |
| 5 | 2x100W speaker output |
| 6 | 200W mono subwoofer output |
| 7 | DSP input/output |
| 8 | Port for external buttons |
| 9 | Port for potentiometers |
| 10 | Mute port |
| 11 | DSP programming port |
| 12 | Audio output port |
Description of the different ports
DSP input / output port
Three input / output pins are available for the ADAU1701 DSP chip: MP6, MP7, MP0. It is possible to develop a DSP program to meet different requirements. With the default firmware, if you connect these pins to GND, the TSA8800C will output a 1kHz sine wave.
Port for external buttons
There are three buttons on the module that can control the volume, play / pause, etc... It is also possible to connect external buttons using the dedicated port.
Pinout :
- P/P : play / pause button
- VOL + : volume increase and fast forward
- VOL - : volume decrease and fast rewind
- 3.3V
Port for potentiometers
External potentiometers (5K-20K) can be connected to the module to control the master volume, treble, midrange and bass. The DSP software must first be updated. A specially adapted potentiometer kit is sold separately.
Pinout :
- ADC0: master volume
- ADC1 : bass volume
- ADC2 : midrange volume
- ADC3 : treble volume
DSP programming port
The TSA8800C DSP detects both the Bluetooth signal and the RCA signal, but the default program gives higher priority to Bluetooth. If the Bluetooth signal is detected, the TSA8800C will output a Bluetooth audio source; otherwise, the RCA output will take over. It is also possible to develop a DSP program to meet different requirements, then load the new DSP program using the USBi JTAG Sigma DSP programmer (sold separately).

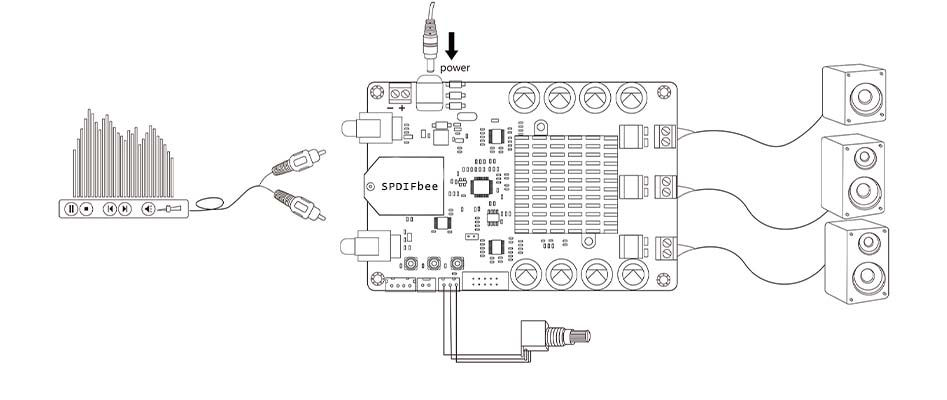

Connection modes and buttons
Technical Specifications
| Specifications | |
|---|---|
| Product Type | Amplifier module |
| Amplification Type | Class D |
| Channels | 2.1 |
| Power (stereo output) | 2x 112W @ 3Ω, 10% THD+N 2x 105W @ 4Ω, 10% THD+N 2x 100W @ 3Ω, 1% THD+N 2x 88W @ 4Ω, 1% THD+N |
| Power (subwoofer output) | 208W @ 2Ω, 10% THD+N |
| Inputs | 1x SPDIF Coaxial 1x Stereo RCA |
| Outputs | Speaker output on screw terminals Subwoofer output on screw terminal |
| Supported SPDIF Sampling Rate | 16/24bit 96kHz |
| I2S Sampling Rate | 16bit 48kHz |
| Amplification Chip | TPA3221 |
| DSP Chip | ADAU1701 |
| THD+N | 0.02% @ 1W |
| SNR | 108dB @ A-wt, gain=18dB |
| Dynamic Range | 109dB @ A-wt, gain=18dB |
| Minimum Load Impedance | 3-4Ω |
| Gain | Min : 18dB Typ : 24dB Max : 34dB |
| Efficiency | 90% @ 100W, 4Ω |
| Input Impedance | 48kΩ @ 18dB 24kΩ @ 24dB 12kΩ @ 30dB 7.7kΩ @ 34dB |
| Protections | Overvoltage Undervoltage Overcurrent Thermal protection |
| General | |
|---|---|
| Power Supply Voltage | 10-30V DC (power supply sold separately) |
| Dimensions | 145 x 100 x 34mm |
| Package | 1x TinySine TSA8800C Module |
| Input | SPDIF |
| Input | RCA |
| Output | Subwoofer |
| Output | Screw terminals |
| Channel | 2.1 |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | TPA3321 |
| Power (W) | 100.0 |
