IFI AUDIO NEO IDSD DAC Preamplifier Headphone Amplifier Bluetooth 5.0 MQA XMOS Balanced 32bit 768kHz DSD512

IFI AUDIO NEO IDSD DAC Amplifier Bluetooth 5.0 MQA XMOS Balanced 32bit 768kHz DSD512

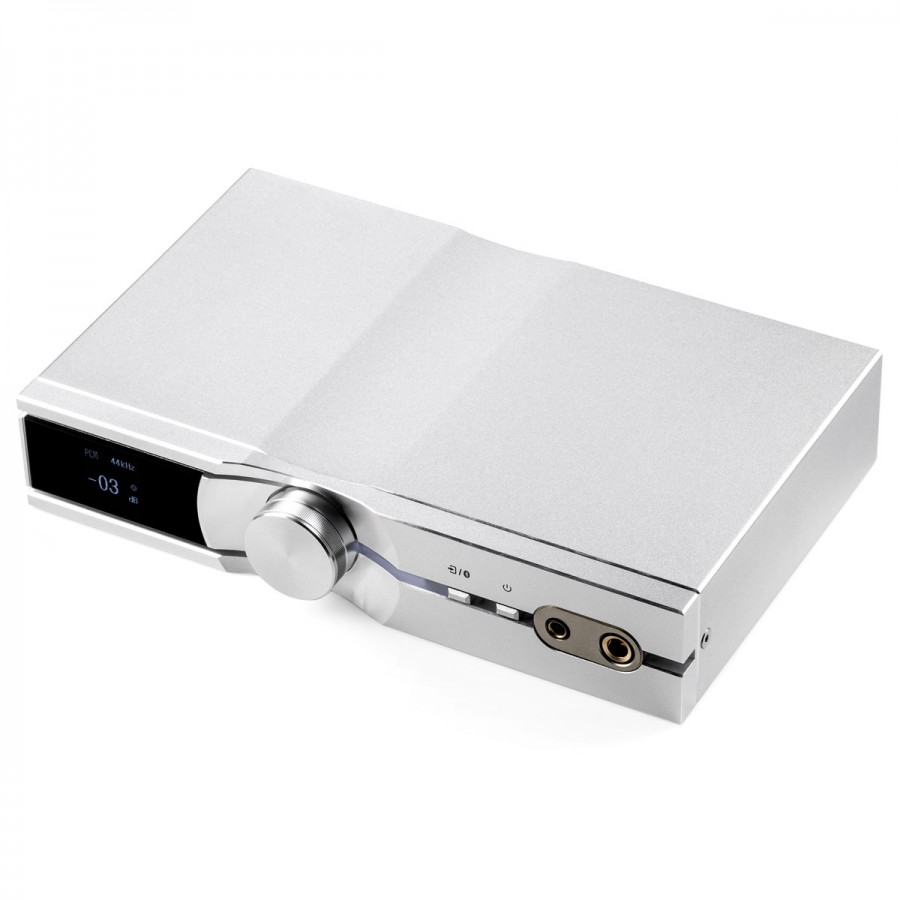

The iFi Audio Neo iDSD is a high-end DAC, preamplifier and headhone amplifier combo offering many features and excellent audio performance. The support of Bluetooth 5.0 or MQA files, the integration of balanced circuits, a particularly complete connectivity and rich and detailed sound reproduction make this Neo iDSD an ideal companion for high quality listening.

No customer reviews yet, login to write a review.

By buying this product you get 62 loyalty points


Reference : 14889
New product

624,17 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 07-12-2021.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

iFi Audio Neo iDSD

DAC Preamplifier Headphone Amplifier Bluetooth 5.0 MQA XMOS Balanced 32bit 768kHz DSD512

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

The iFi Audio Neo iDSD is a high-end DAC, preamplifier and headhone amplifier combo offering many features and excellent audio performance. The support of Bluetooth 5.0 or MQA files, the integration of balanced circuits, a particularly complete connectivity and rich and detailed sound reproduction make this Neo iDSD an ideal companion for high quality listening.

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

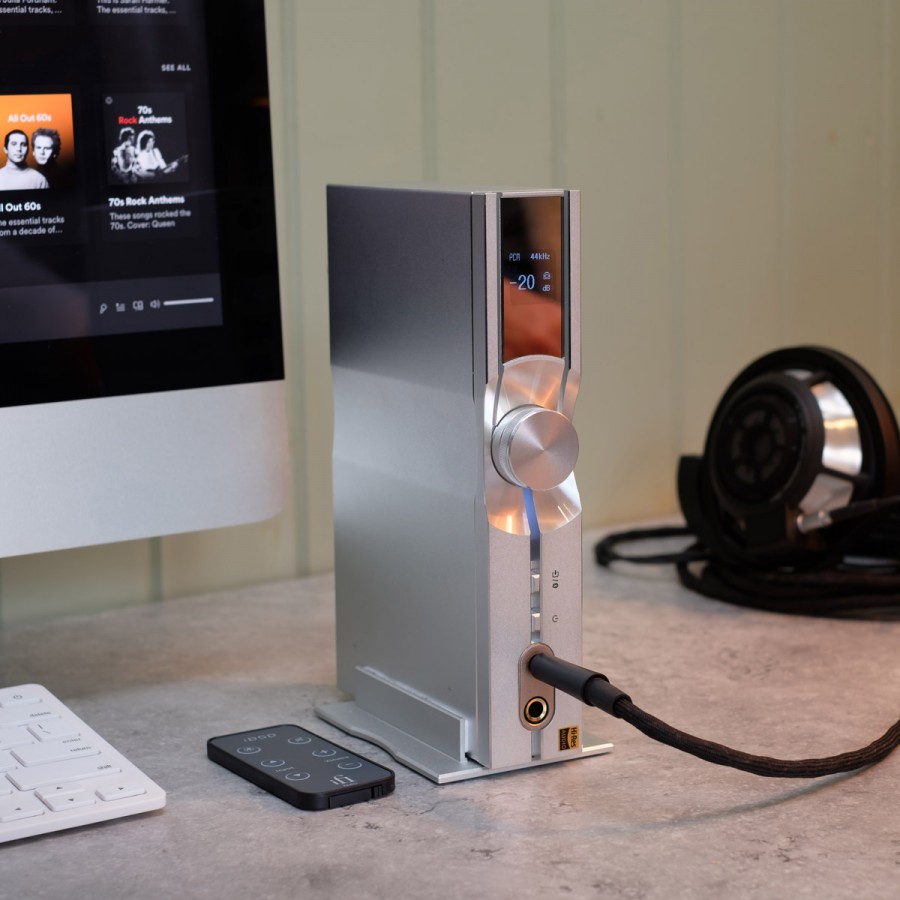

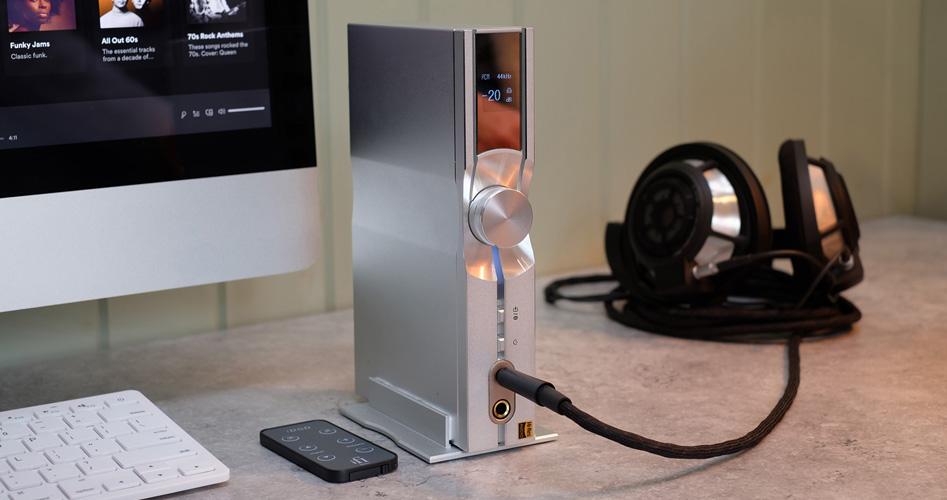

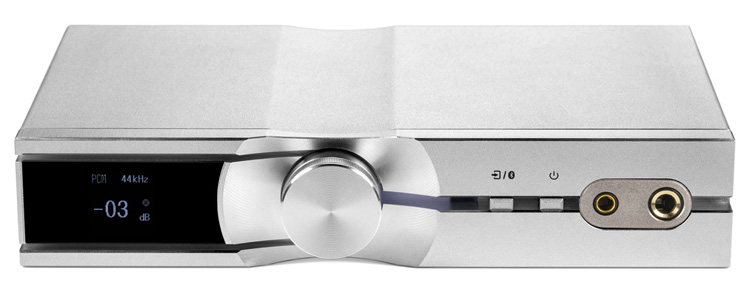

Versatility at any time

The Neo iDSD has 3 modes of use. It can be used as a pure DAC by connecting it to a built-in amplifier or external preamplifier, while using the fixed level analogue output.

It can also function as a DAC combo and preamplifier with variable output level and thus directly accompany a power amplifier or active loudspeakers.

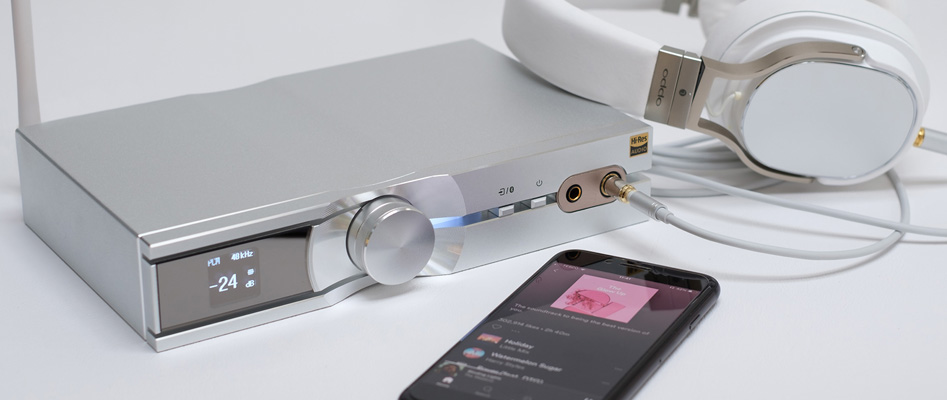

Finally, it is possible to use the Neo iDSD as a headphone amplifier thanks to an excellent amplification stage and a dual balanced and unbalanced headphone output.

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

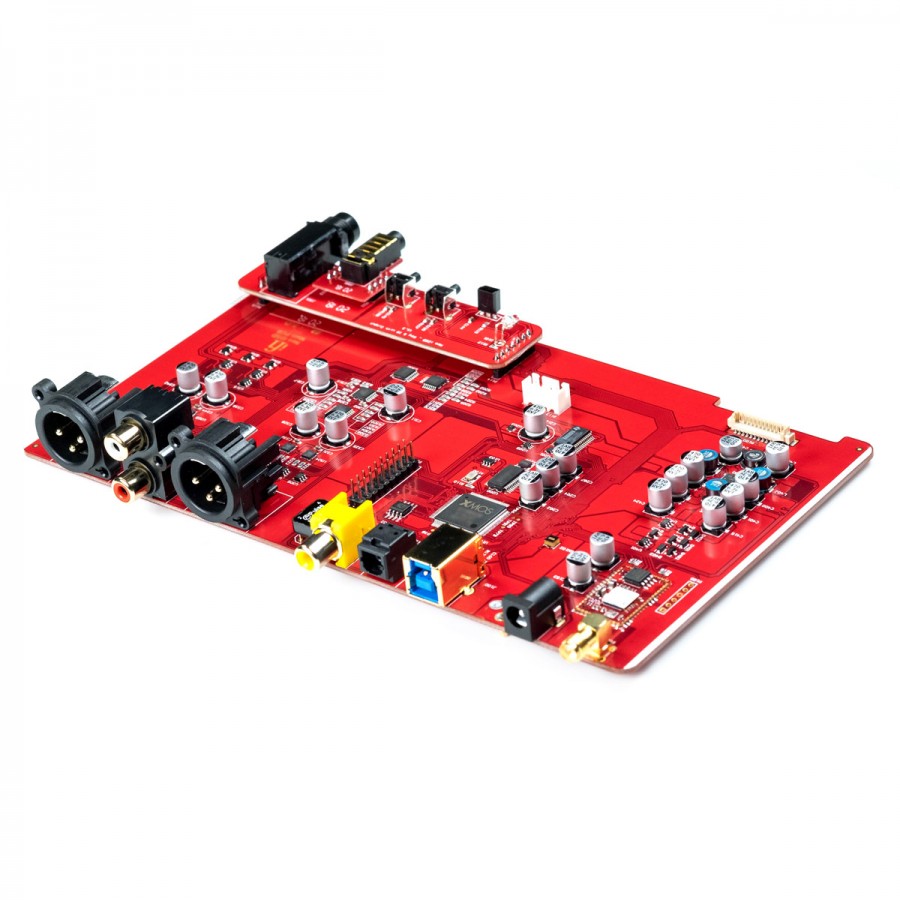

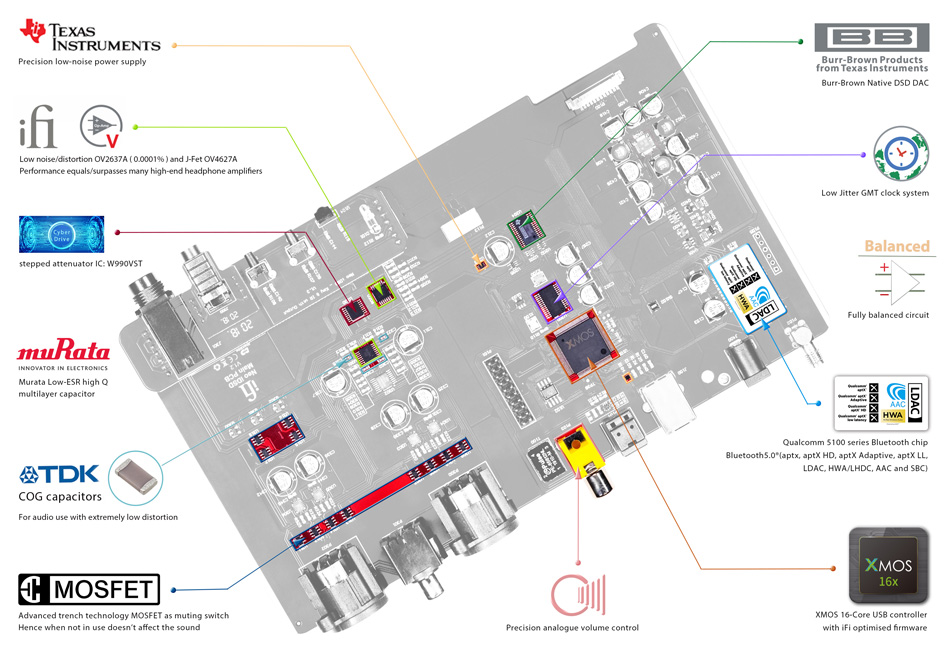

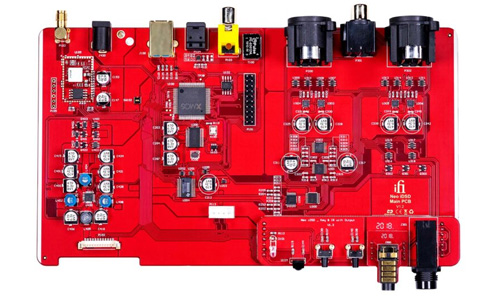

Perfectly designed circuits

At the heart of the Neo iDSD's digital/analogue conversion stage is a Burr-Brown DAC chip capable of decoding high-resolution streams. This chip is associated with a 16-core XMOS microcontroller, which efficiently processes the data transiting through USB and SPDIF. In addition, a high-precision femtosecond GMT clock to eliminate jitter, as well as a memory buffer and GTO filter for optimum performance.

The Neo iDSD uses only high-end components to promote excellent performance. Even the OLED display is designed so that no electronic noise interferes with the audio signal.

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

High resolution at your fingertips

The iFi Audio Neo iDSD supports high resolution files up to 32bit 768kHz PCM, DSD512 and DXDx2. It is also capable of decoding MQA (Master Quality Authenticated) files to ensure playback as close as possible to the original recording.

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512
iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

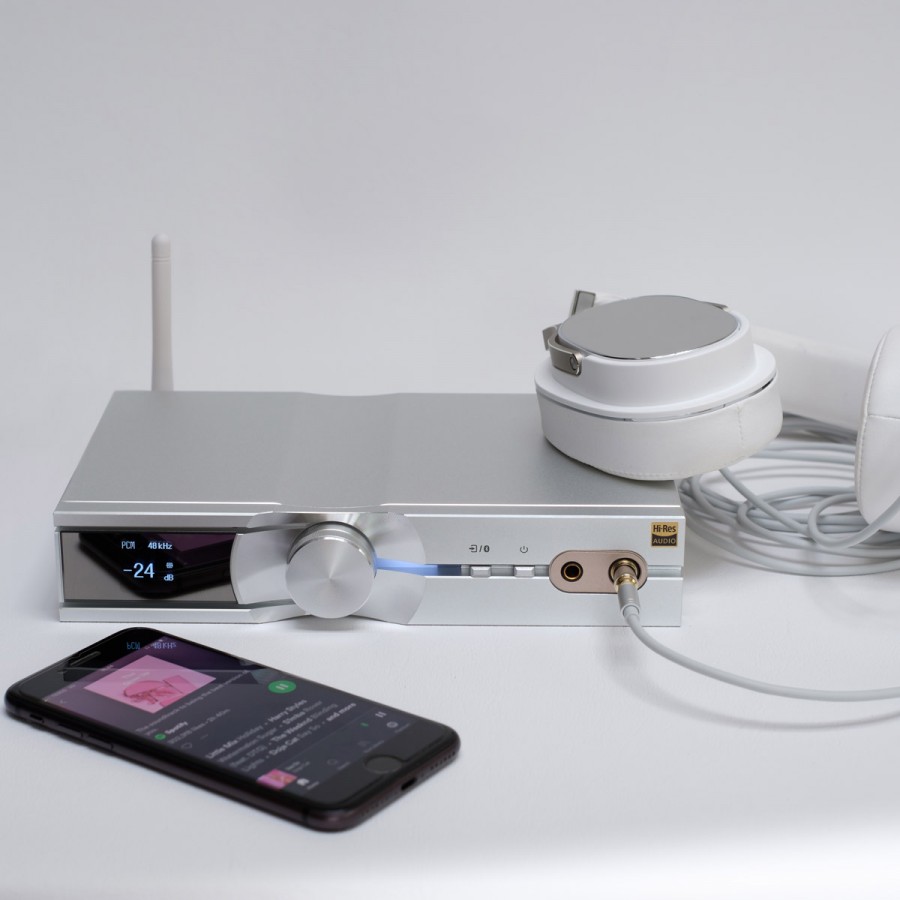

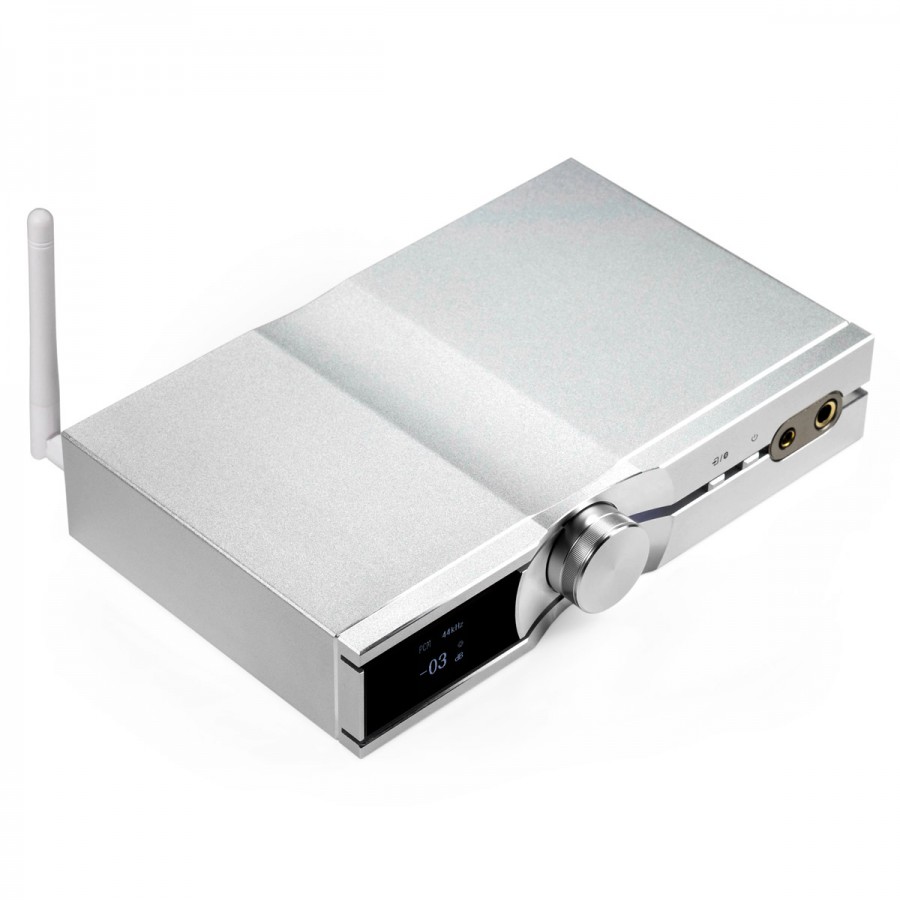

Bluetooth transmission

Embedded with a Qualcomm QCC5100 chip, the Neo iDSD is equipped with Bluetooth reception. This chip also supports the aptX, aptX-HD, aptX Adaptive, aptX LL, LDAC, HWA/LHDC, AAC and SBC codecs for full compatibility and to ensure excellent sound reproduction, even over Bluetooth. In addition, the Neo iDSD is capable of storing up to 7 devices.

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

Balanced Circuit

The balanced analogue circuit design reduces noise and crosstalk in the signal path by completely separating the left and right channels.

PureWave is a new symmetrical dual mono topology with short, direct signal paths. Its name refers to the purity of sound it achieves through exceptional linearity and infinitely low noise and distortion levels.

High quality components are used throughout the circuit, including ultra low distortion operational amplifiers, TDK C0G ceramic multilayer capacitors, MELF resistors and Murata and Taiyo Yuden inductors. Their state-of-the-art qualities, such as low ESR (Equivalent Series Resistance), high linearity and low noise, result in excellent sound quality.

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

MQA

MQA (Master Quality Authenticated) is supported via USB and SPDIF inputs, with full decoding of MQA files up to 384kHz, thanks to the computing power of the XMOS chip. The 3 decoding steps are directly performed by the device.

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

Burr Brown

The Burr-Brown True Native chip allows you to enjoy perfect bit files for sound reproduction that matches the original recording. Burr-Brown chips are also known for their natural and musical sound signature.

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

XMOS

The 16-core XMOS chip processes audio data received in USB and SPDIF. This new low-latency microcontroller has greatly improved computing power and delivers twice the clock speed (2000MIPS) of the previous generation, while having 4 times more memory (512KB).

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

Global Master Timing

The digital stage of the Neo iDSD incorporates technologies that significantly limit jitter, including a femtosecond GMT clock and an intelligent memory buffer.

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

OPA

Built-in OV operational amplifiers contribute to an extremely low noise and distortion level (0.0001%) while ensuring a wide bandwidth.

iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512
iFi Audio Neo iDSD DAC Amplificateur Bluetooth 5.0 MQA XMOS Symétrique 32bit 768kHz DSD512

Technical characteristics

Specifications
Product typeDAC
Preamplifier
Headphone amplifier
DAC ChipBurr Brown
Bluetooth ChipQualcomm QCC5100
USB / SPDIF ChipXMOS 16 cœurs

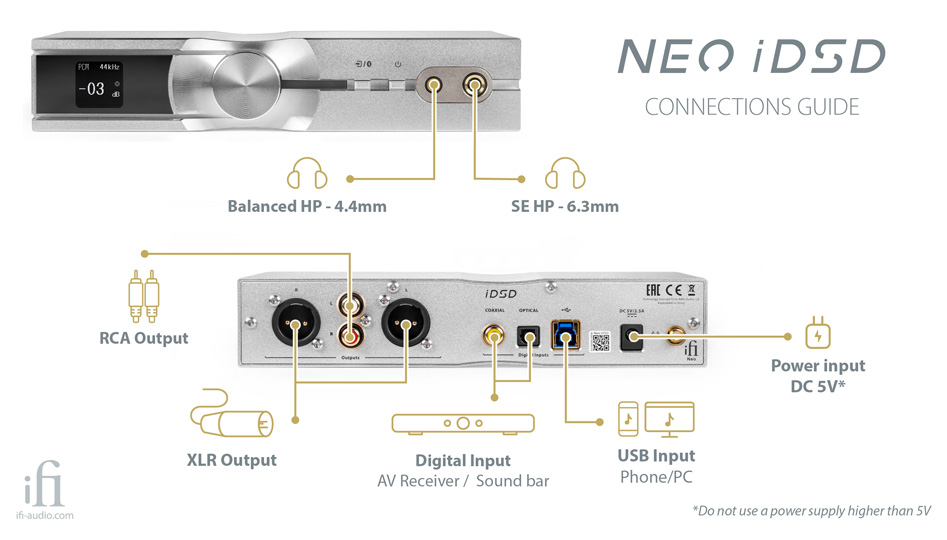

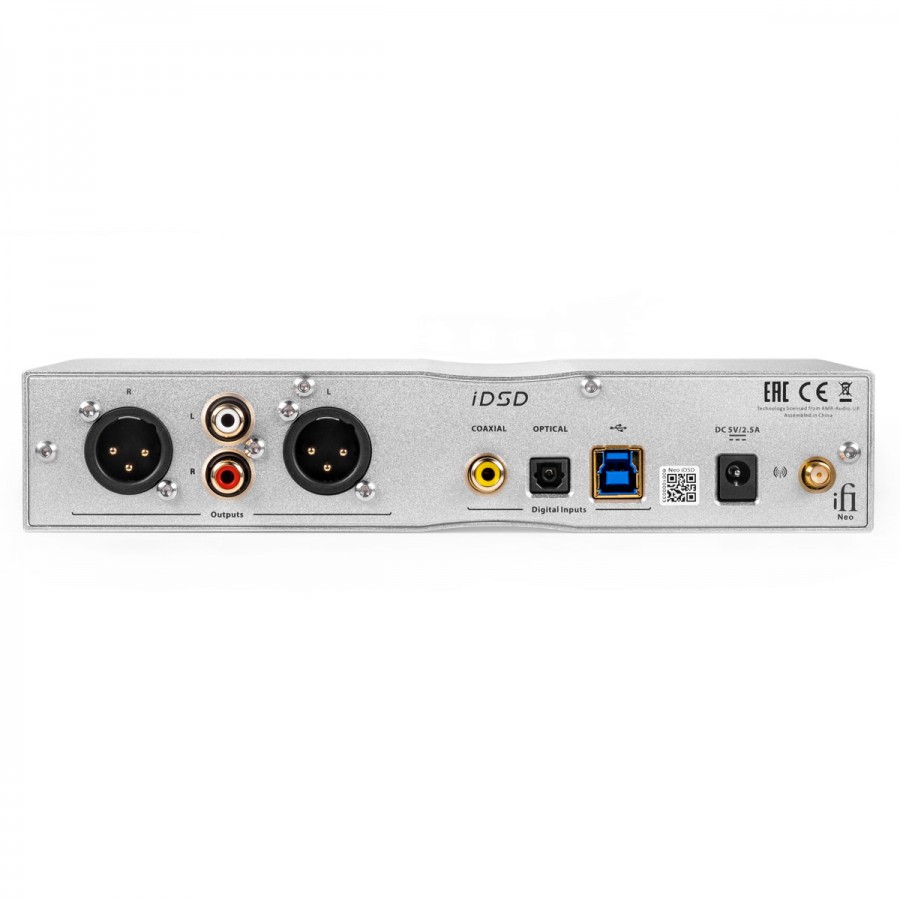

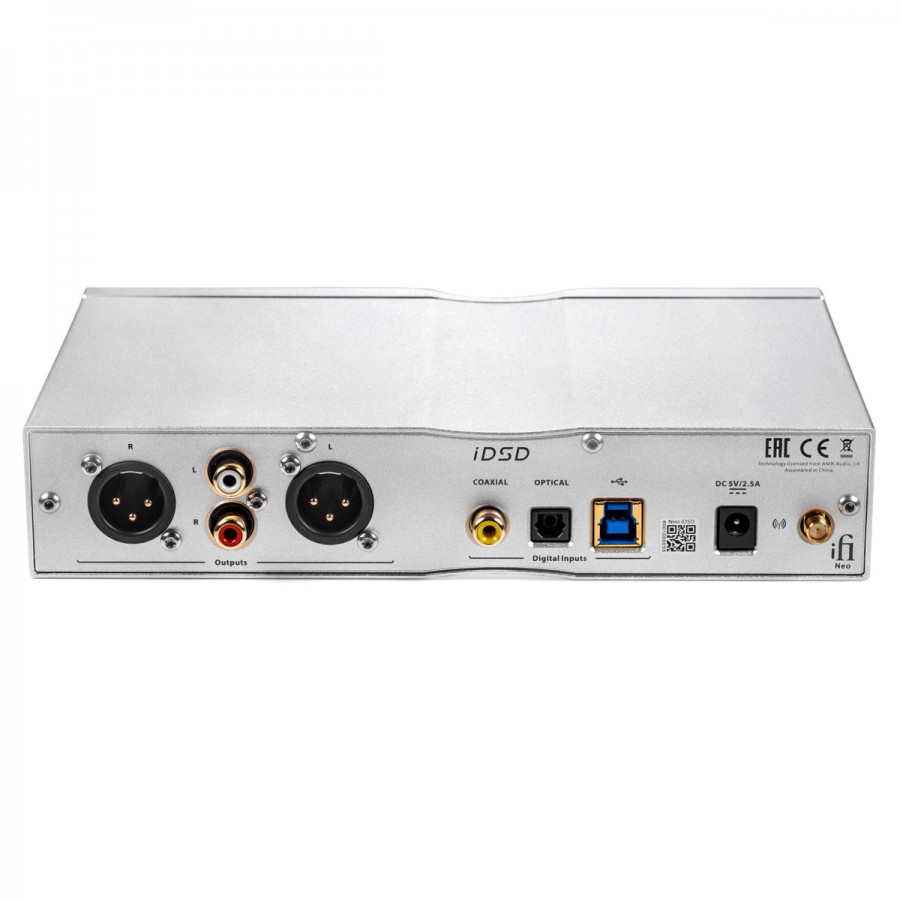

InputsBluetooth
1x USB-B 3.0
1x Optical Toslink
1x SPDIF Coaxial
Outputs1x Single-ended RCA
1x Balanced XLR
1x Balanced Jack 4.4mm headphone output
1x Single-ended Jack 6.35mm headphone output
Output levelsVariable balanced XLR : 6.3V / 7.7V Max
Fixed balanced XLR : 4.4V
Variable single-ended RCA : 3.2V / 3.9V Max
Fixed single-ended RCA : 2.2V
Output impedanceBalanced XLR : ≤ 100Ω
Single-ended RCA : ≤ 50Ω
SNR-112dB(A) @ 0dBFS
Dynamic range> 116dB(A) @ 0dBFS
THD+N< 0.0015% @ 0dBFS
Headphone output powerBalanced Jack 4.4mm : > 6.4V / 68.6mW @ 600Ω, > 5.77V / 1040mW @ 32Ω
Single-ended Jack 6.35mm : > 3.25V / 17.6mW @ 600Ω, > 3V / 295mW @ 32Ω
Headphone output impedance< 1Ω
Headphone output SNR-112dBA (3.3V single-ended / 6.2V balanced)
Headphone output THD+N< 0.0015% (125mW @ 32Ω)
Headphone output dynamic range-120dB(A)
Supported sampling ratesPCM up to 32bit 768kHz
Native DSD up to DSD512
DXD up to 768kHz
MQA
General
Power supply5VDC 2.5A
ConsumptionNo signal : ~ 0.5W
Max signal : ~ 2.5W
Dimensions214 x 146 x 41mm
Weight970g
ColorSilver

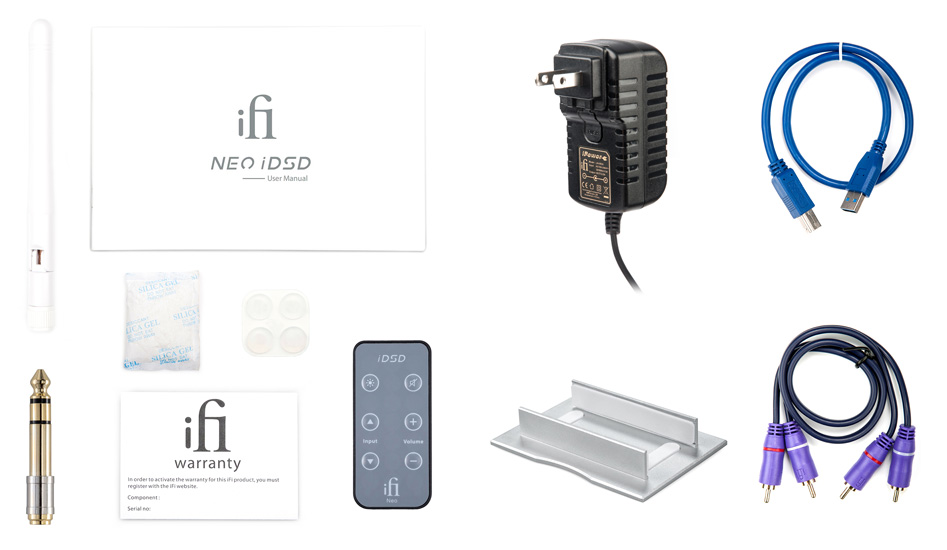

Package1x iFi Audio Neo iDSD

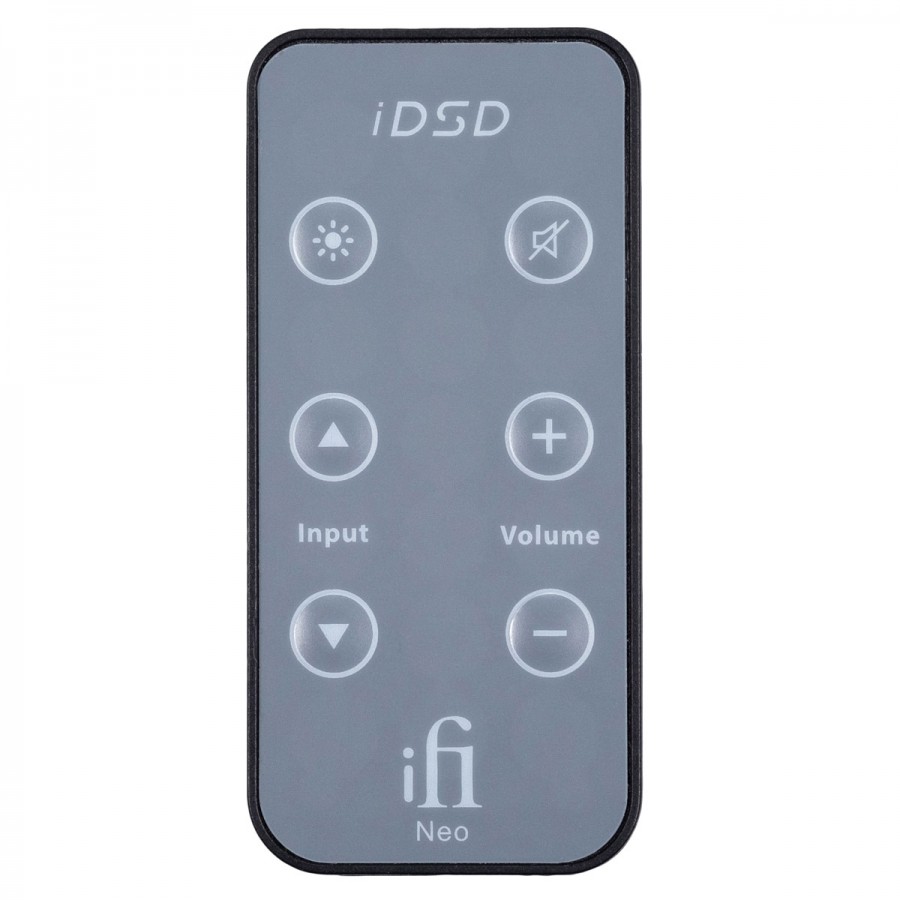

1x Remote control
1x Power supply
1x USB-A to USB-B cable
1x Bluetooth antenna
1x Stereo RCA cable
1x Vertical stand
1x Jack 6.35mm to Jack 3.5mm adapter

Data sheet
InputBluetooth
InputOptical
InputS/PDIF
OutputRCA
OutputXLR
OutputJack 3.5mm
OutputJack 4.4mm
DAC / ADC ChipDSD1793
Max sampling rate768kHz
Max sampling rateDSD512
ColorSilver
NetworkingNo
Remote ControlYes
