IFI AUDIO NEO IDSD 2 DAC Preamplifier Headphone Amplifier

Photo de face du IFI AUDIO NEO IDSD 2
With its NEO iDSD 2, iFI Audio unveils an upgraded version of the NEO iDSD, fulfilling the functions of DAC / Preamplifier / Headphone Amplifier. The NEO iDSD 2 is one of the first DACs to integrate Bluetooth aptX Lossless technology. Versatile and high-performance, the NEO iDSD 2 can be used in a variety of ways: DAC/headphone amplifier, pure DAC coupled to an integrated amplifier, or as a DAC/preamplifier for active speakers or a power amplifier.

No customer reviews yet, login to write a review.

By buying this product you get 89 loyalty points


Reference : 18564
New product

899,00 €tax incl.

749,17 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 28-05-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

IFI AUDIO NEO IDSD 2DAC Preamplifier Headphone Amplifier Bluetooth 5.4 aptX Lossless 32bit 768kHz DSD512 MQA

Front view of IFI AUDIO NEO IDSD 2

With its NEO iDSD 2, iFI Audio unveils an improved version of the NEO iDSD, fulfilling the functions of DAC / Preamplifier / Headphone amplifier. The NEO iDSD 2 is one of the first DACs to integrate Bluetooth aptX Lossless technology, a Bluetooth codec capable of exchanging streams in CD quality. Versatile and high-performance, the NEO iDSD 2 can be used in a variety of ways: DAC/headphone amplifier, pure DAC coupled to an integrated amplifier, or as a DAC/preamplifier for active speakers or a power amplifier. This version of the NEO iDSD boasts vastly improved output power compared to its predecessor. This enables it to drive the most demanding headphones on the market, or to be coupled with a power amplifier.

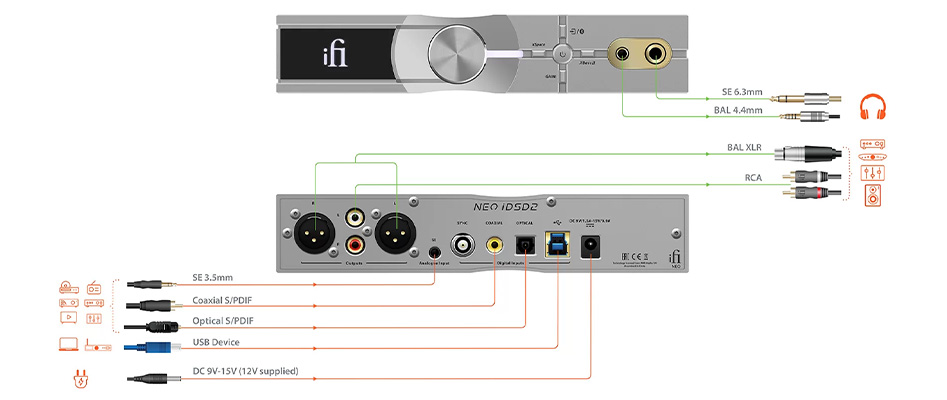

La connectique du IFI AUDIO NEO IDSD 2

iFI Audio NEO iDSD 2 : Bluetooth 5.4

The NEO iDSD 2 incorporates the latest Bluetooth 5.4 technology, enabling it to accept the aptX Lossless codec. This codec enables the exchange of high-resolution lossless streams up to 1200Kpbs. In fact, the aptX Lossless codec uses a compression method that in no way degrades the original information. All this is made possible by the new Qualcomm QCC518x Bluetooth receiver chip. Of course, it also supports Bluetooth codecs aptX, aptX Adaptative, LDAC, LHDC/HWA, AAC and SBC.

Bluetooth aptX Lossless support

iFI Audio Neo iDSD 2 : 5x fois plus de puissance que son prédecesseur

The NEO iDSD 2 is capable of delivering an output power of up to 5551mW (@ 32 Ohm) on these headphone outputs. In fact, the headphone amplifier stage has benefited from numerous improvements, including the addition of a circuit based on the technology used in the brand's Diablo headphone amplifier. Thanks to its output power, the NEO iDSD 2 is capable of driving the vast majority of audio and IEM headphones on the market. In addition, the new XSpace and XBass analog processing modes, plus 4 digital filters, let you fine-tune NEO i DSD settings to suit your headphones and listening preferences.

Photo of IFI AUDIO NEO IDSD 2 with headphones

iFI Audio NEO iDSD 2: An innovative form factor

Thanks to its base, the NEO iDSD 2 can be positioned either horizontally or vertically. This can save space on your desk, for example. The new integrated 2" color display automatically follows the orientation of the NEO iDSD 2.

Photo of the vertical installation of the IFI AUDIO NEO IDSD 2

iFI NEO iDSD 2: Improved circuit design

The circuit design of this DAC / Preamplifier / Headphone Amplifier features PureWave technology: in other words, a dual-mono circuit design, with the shortest possible signal path to achieve very low noise and distortion, and extremely pure sound. The result is SNR >120dB(A), DNR -120dB(A) and THD+N < 0.0015%.

IFI AUDIO NEO IDSD 2 internal circuit picture
Hi-Res audio

Hi-Res audio

Support for 32-bit 768kHz PCM, native DSD up to DSD512, as well as DXD (Digital eXtreme Definition, used by SACDs in particular).

Thanks to the BurBrown DAC, PCM and DSD formats each have an independent path, enabling them to be processed "bit-perfect" without altering the signal.

USB XMOS interface

USB XMOS interface

A 16-core USB XMOS interface enables 2000MIPS clock processing with 512KB buffer memory.

Global Master Timing

Jitter eradication (Global Master Timing)

Jitter eradication technology is built into the NEO iDSD 2's digital stage, comprising a precision femtosecond clock and an intelligent memory buffer. This out-of-the-box digital solution gets rid of jitter problems once and for all.

Burr-Brown Chip

Burr-Brown chipset

A Burbrown chipset has been chosen by iFI Audio to process audio signals in "bit-perfect" mode. The result is rich, natural sound reproduction.

MQA decoding

MQA decoding

The NEO iDSD 2 supports MQA (Master Quality Authentificated) streams via its USB input up to 384kHz. This means that the entire "three-stage" decoding process is carried out by the iDSD 2. We're really talking about MQA decoding here, not MQA rendering.

OV series operational amplifier

OV series operational amplifier

The brand has equipped the amplifier stage with a customized OV series operational amplifier. This first-rate component contributes greatly to the NEO iDSD 2's performance: extremely low noise, low distortion (0.0001%) and wide bandwidth.

MOSFET technology

MOSFET technology

A MOSFET transistor is used as a mute switch. In other words, it absorbs sound-damaging noise and interference when a setting is changed during playback of a track.

iFI NEO iDSD 2 : Dedicated control application

A new control application called iFI Nexis gives you access to a wide range of settings and features to help you get the most out of your NEO iDSD 2, as well as enabling you to update the product via the network.

IFI NEXIS app logo
Photo of Ifi Audio NEO IDSD 2 package contents

Technical characteristics

Specifications
Product typeDAC / Preamplifier / Headphone amplifier
DAC chipBurr Brown
Bluetooth chipQCC518x
USB / SPDIF interface XMOS 16 cores
InputsBluetooth
1x USB-B 3.0
1x Optical Toslink
1x SPDIF Coaxial
Outputs1x Unbalanced RCA
1x Balanced XLR
1x Headphone output 4.4mm balanced jack
1x Headphone output 6.35mm unbalanced jack
LINE OUTPUT MEASUREMENTS
Output levelXLR: 9.5V max. (variable) / 4.4V­ fixed
RCA: 10.5V max. (variable) / 2.2V ­fixed
Output impedanceXLR: ≤100Ω
RCA: ≤50Ω
SNR< -120dB(A) @ 0dBFS
DNR> 120dB(A) @ -60dBFS
THD+N< 0.0015% @ 0dBFS
HEADPHONE OUTPUT MEASUREMENTS
Output level4.4mm balanced headphone output: 3.5V / 19.5V max. (12Ω - 600Ω headphones)
6.35mm headphone output: 4.5V / 9.50V max. (12Ω - 300Ω headphones)
Max. output power4.4mm balanced headphone output: > 19.5V/650 mW (@ 600Ω); > 13.3V/5551 mW (@ 32Ω)
6.35mm headphone output: > 10.5V/184 mW (@ 600Ω); > 9.5V/2832 mW (@ 32Ω)
Output impedance<1Ω
SNR> 120dB(A) (3.3V 6.3mm/6.2V 4.4mm)
DNR-120dB(A)
THD+N< 0.0015% (125mW @ 32Ω)
General
POwer supply9V DC 1.5A / 15V DC 0.9A (A power supply unit must be capable of delivering minimum rated repetitive current)
Power consumptionNo signal: 5W
Max. Signal: 13.5W
Dimensions214 x 158 x 41mm
Net weight916g
Package1x DAC / Preamplifier / Headphone amplifier NEO iDSD 2
1x Remote control
1x Mains adapter
1x Pair of RCA modulation cables
1x USB-A to USB-B cable
1x 3.5mm jack to 6.35mm jack adapter

Data sheet
InputOptical
InputJack 3.5mm
InputSPDIF
InputUSB
InputJack 6.35mm
OutputXLR
OutputJack 4.4mm
OutputRCA
OutputJack 6.35mm
DAC / ADC ChipBurr Brown
Max sampling rate768kHz
Max sampling rateDSD512
Max sampling rateMQA
ColorSilver
ClassClass D / T
NetworkingNo
Remote ControlYes
