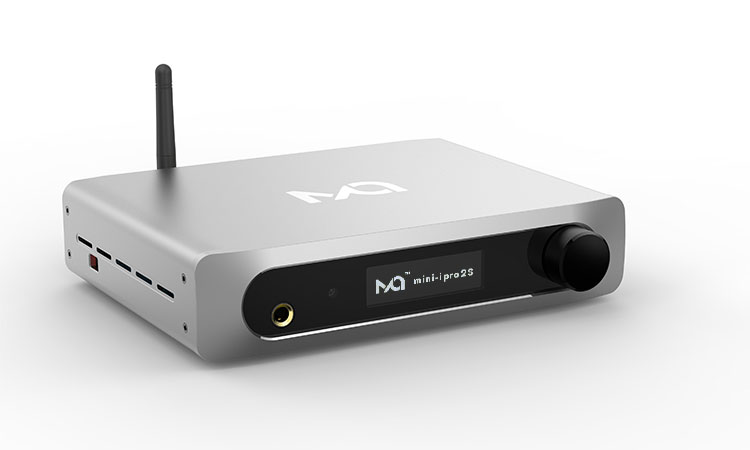

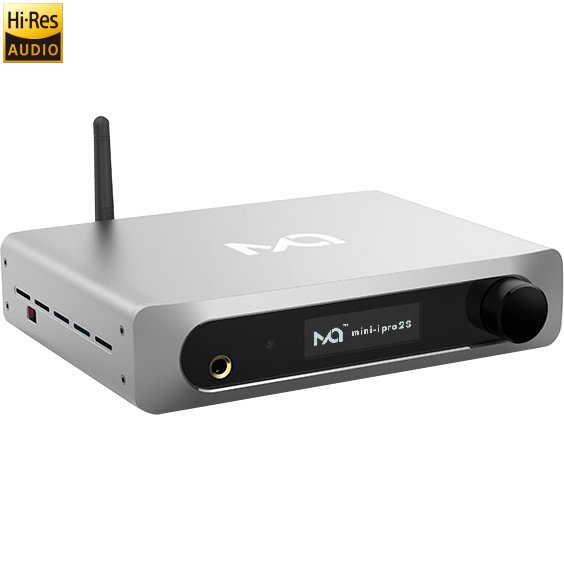

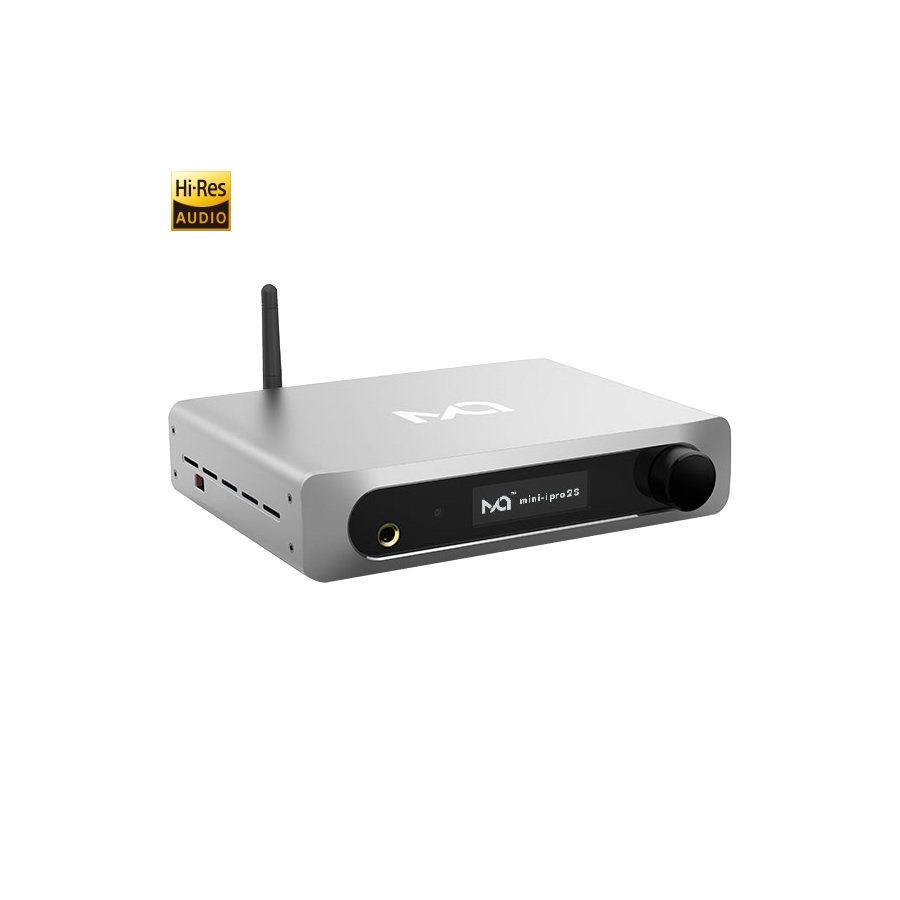

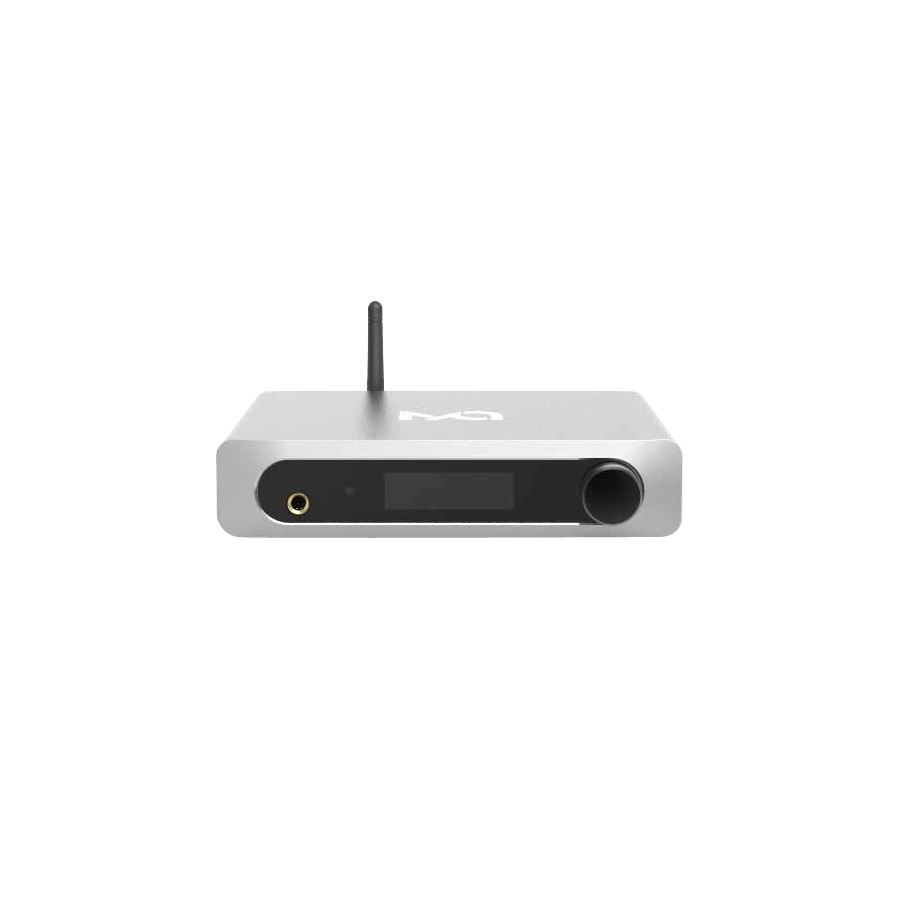

MATRIX MINI-I PRO 2S ES9026Pro DAC 32bit 384kHz DSD DXD & Headphone Amplifier Silver
By buying this product you get 65 loyalty points
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

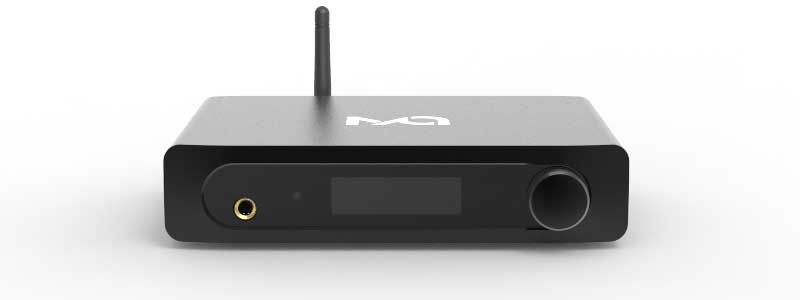

Mini-i Pro 2S
32Bit/384kHz DAC DSD DXD & Headphone amplifier
.jpg)
Ever more efficient
After about a year of waiting, Matrix launches its "S" model which joins the range of Mini-I DAC's. With the same design as the Mini-I Pro 2, it brings a real power boost based on an ES9026PRO converter. This means that the excellent performances already achieved by the Mini-I Pro 1 of the name or by the DAC of the Mini-I series in general can be extended even further.

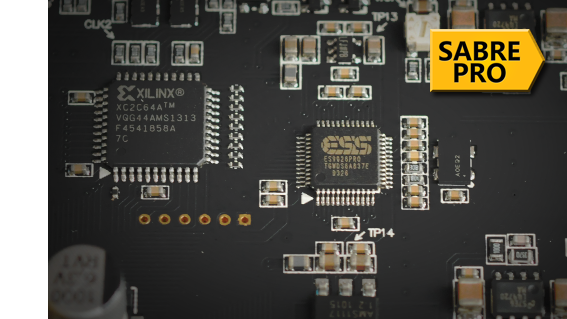

ESS Sabre 9026Pro
The brand new 8-channel ES9026Pro converter provides great optimization of the integrated DSP compared to its predecessor, the ES9016S, while providing a better user experience.

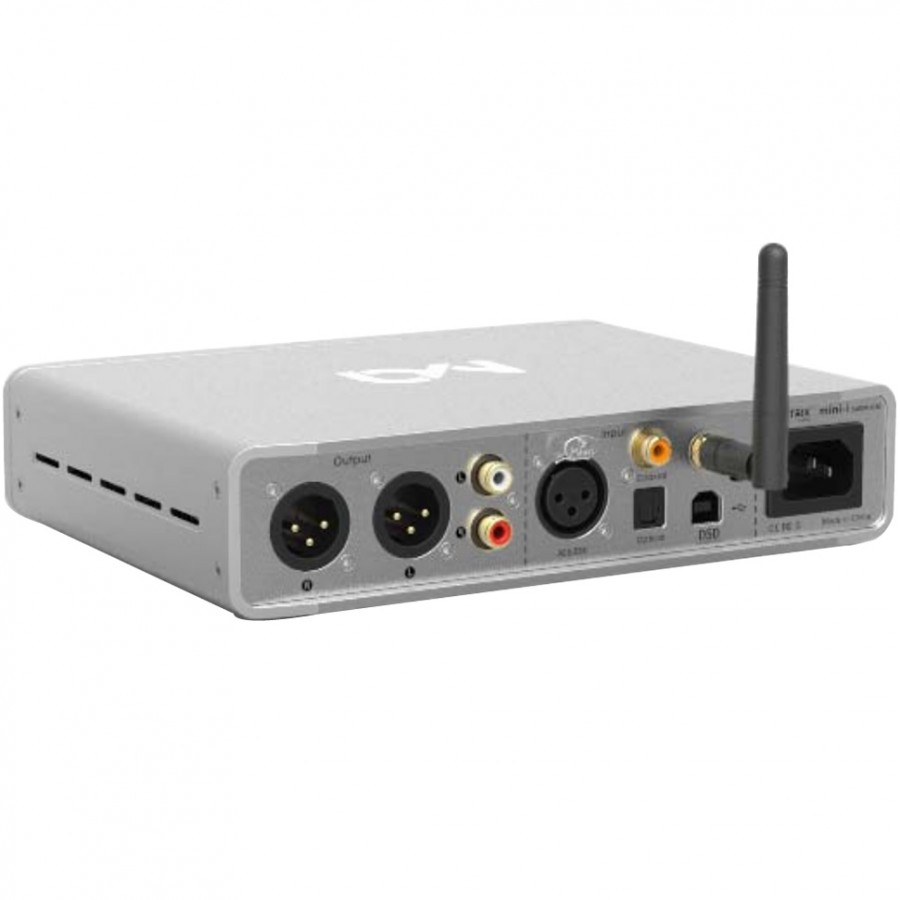

Full DSD Connectors

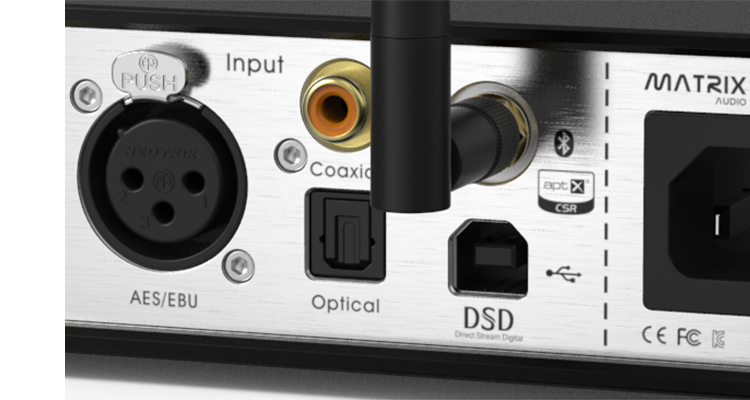

Instead of limiting DSD support only via the USB port, Matrix allows you to take advantage of a full DSD connection right now. Thus, the Mini-I Pro 2S supports DoP support via the Optical, Coaxial and AES/EBU inputs, allowing you to take advantage of the DoP function of your drives.

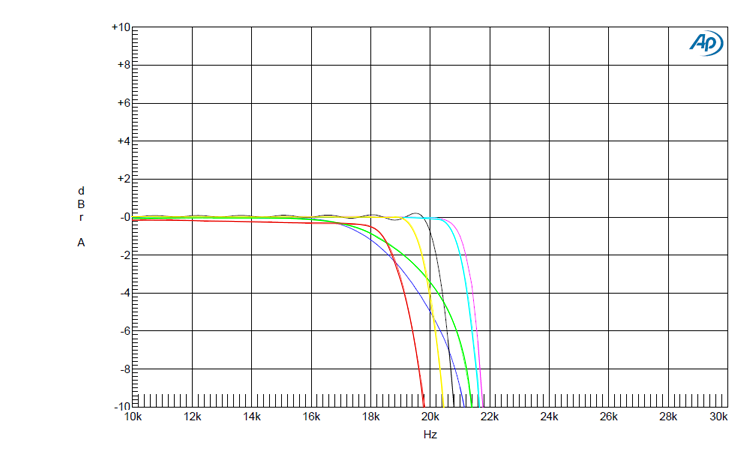

Different filters for different listening
With more than 7 types of PCM digital filters, you can select a filter curve to refine the returned timbre. Thus, everyone can find a mode adapted to their listening needs.

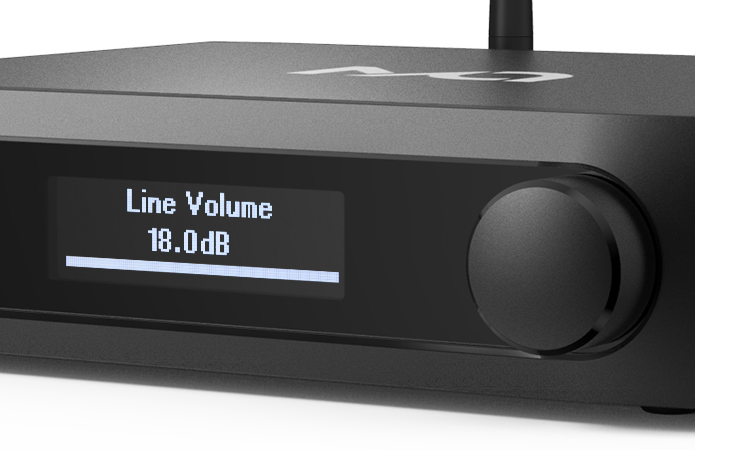

Integrated Preamplifier
The line output can be adjusted with a volume gain up to +18dB. In this way, it is no longer necessary to add an external pre-amplifier to use active low gain speakers. Of course, the Mini-I Pro 2S can work with a power amplifier for a more flexible use and more in accordance with your needs.
Bluetooth aptX
For easy and comfortable listening, the Matrix Mini-I Pro 2S lets you stream your files in Bluetooth. It therefore incorporates the aptX standard, which has the advantage of protecting your files from Bluetooth damage.
An elegant design

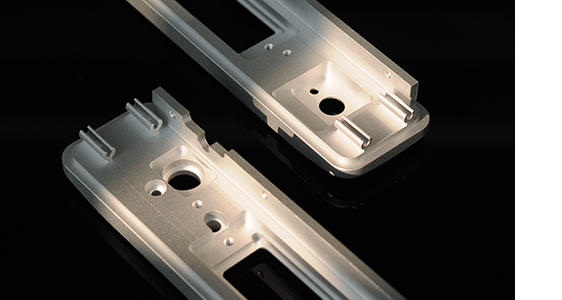

The Mini-I Pro 2S inherits the elegant design of the Mini-I series DACs. CNC-machined with anodized surface, it announces at a glance a quality product.

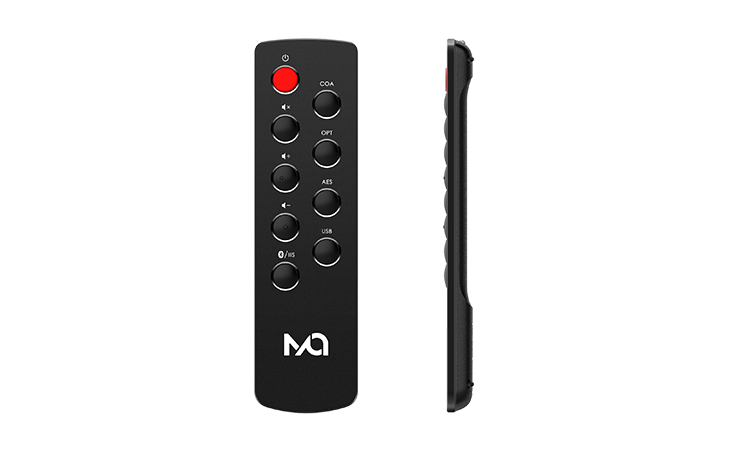

Remote Control
The DAC, supplied with a remote control, wins with this accessory a real plus in terms of ergonomics. This allows you to switch the unit on/off, control the volume or select the active source.
Technical characteristics
| Digital outputs | |
|---|---|
| AES | PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD DSD64 (DoP) |
| Coaxial | PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD DSD64 (DoP) |
| Optique | PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD DSD64 (DoP) |
| USB | PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz DSD DSD64/DSD128 (DoP) DSD64/DSD128/DSD256 (ASIO Native) |
| Bluetooth | PCM 16Bit/48kHz aptX/AAC/SBC |
| Version Bluetooth | 4.0 |
| Bluetooth frequency band | 2.402GHz - 2.480GHz |
| Bluetooth Power | Class II |
| Bluetooth max. operating distance | 10-15m |
| Delay | <20ms |
| Analog outputs | |
|---|---|
| XLR | SNR : > -123dB 20Hz-20kHz A-Weighting THD+N : <0.0003% @ 1kHz A-Weighting Réponse en fréquence : 20Hz - 20kHz (+0.01dB/-0.02dB) Diaphonie : > -130dB @ 1kHz Sortie XLR : 4Vrms fixe at 0dBFS Mode DAC / 0-4Vrms ajustable at 0dBFS Mode Preamp |
| RCA | SNR : > -120dB 20Hz-20kHz A-Weighting THD+N : < 0.0005% @ 1kHz A-Weighting Réponse en fréquence : 20Hz - 20kHz (+0.01dB/-0.02dB) Diaphonie : > -126dB @ 1kHz Sortie RCA : 2Vrms fixe at 0dBFS Mode DAC / 0-2Vrms ajustable at 0dBFS Mode Preamp |
| Headphone output | |
|---|---|
| SNR | >-116dB 20Hz-20kHz A-Weighting |
| THD+N | <0.0007% @ 1kHz A-Weighting à 300ohms 25mW |
| Réponse en fréquence | 20Hz-20kHz (+0dB/-0.1dB) |
| Diaphonie | >-126dB @1kHz |
| Impédance sortie casque | 10 Ohms |
| Puissance sortie casque | 820mW @ 33ohms at THD+N=0.1% 210mW @ 300ohms at THD+N=0.1% 110mW @ 600ohms at THD+N=0.1% |
| General | |
|---|---|
| Compatibility | Windows 7/8/8.1/10 (driver required) Mac OS X10.6.4 and later versions Most of the Android devices can be used with OTG cable iOS devices can be used with Camera Kit |
| Power voltage | 230V position is fit for AC220V-240V 50/60Hz 115V position is fit for AC100V-120V 50/60Hz |
| Power Consumption | < 10W |
| Dimensions | 168 x 205 x 47mm |
| Weight | 1.3kg |
| Accessories | 1x Quick Start Guide 1x RM2 Remote Control 1x Bluetooth Antenna 1x Power Cord 1x USB Cable |
| Input | SPDIF |
| Input | Bluetooth |
| Input | XLR |
| Input | Optical |
| Output | XLR |
| Output | RCA |
| DAC / ADC Chip | ES9026PRO |
| Max sampling rate | 384kHz |
| Max sampling rate | DSD256 |
| Color | Silver |
| Networking | No |
| Remote Control | Yes |
