SILKLINE ZUKI III Balanced DAC 2x AD1955 XMOS XU208 32bit 192kHz Black

New
The Silkline Zuki III is a balanced DAC based on a combination of two Analog Device AD1955 analog conversion chips and an XMOS XU-208 USB interface. This configuration allows it to support sampling rates up to PCM 32-bit 192kHz with the possibility of 8x oversampling up to 768kHz for a most enjoyable listening experience.

No customer reviews yet, login to write a review.

By buying this product you get 66 loyalty points


Yes, notify me when available !
Reference : 21201
New product

669,00 €tax incl.

557,50 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Silkline Zuki III Balanced DAC 2x AD1955 XMOS XU-208 32-bit 192kHz Black

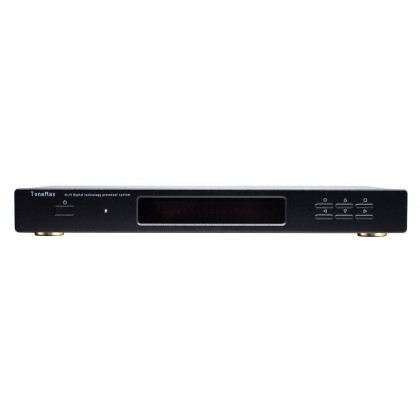

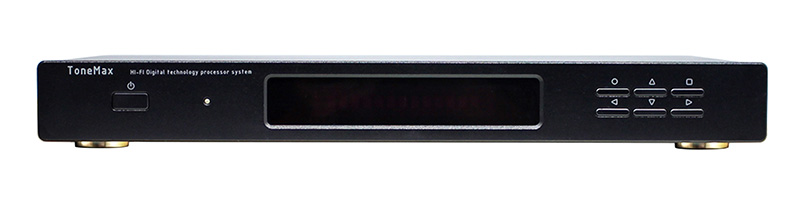

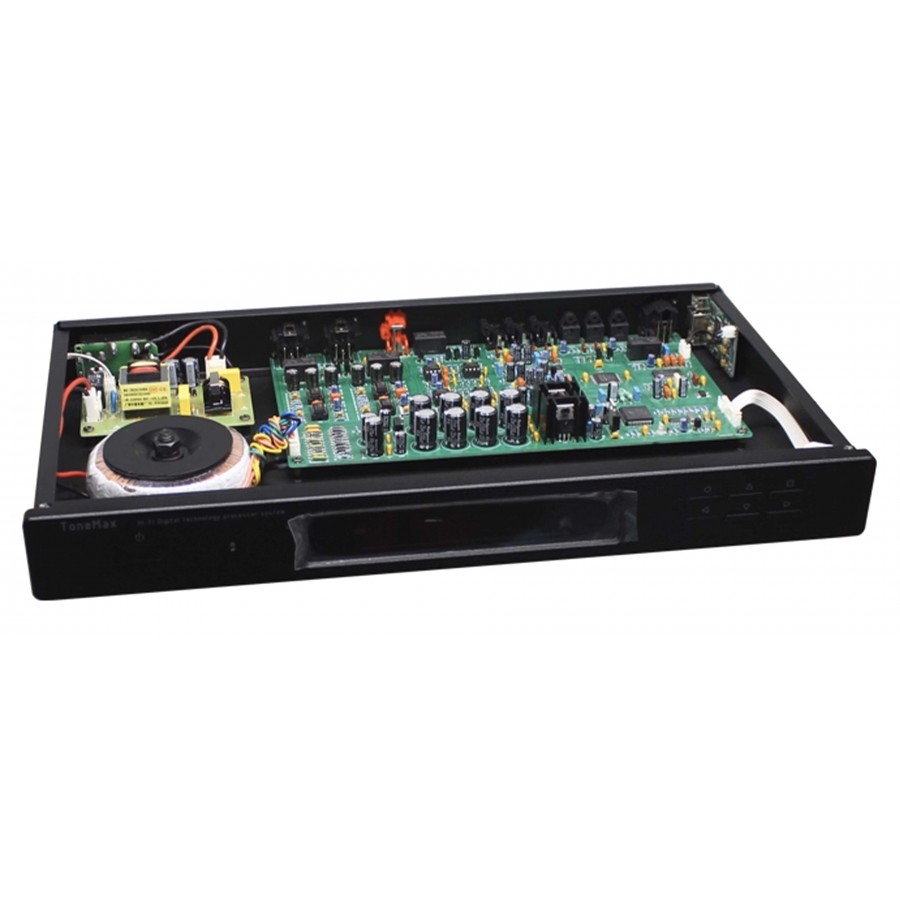

Photo of the SILKLINE Zuki III

The Silkline Zuki III is a balanced DAC based on a combination of two Analog Device AD1955 analog conversion chips and an XMOS XU-208 USB interface. This configuration allows it to support sampling rates up to PCM 32-bit 192kHz with the possibility of 8x oversampling up to 768kHz for a most enjoyable listening experience. It also incorporates audiophile-grade OPAs, including low-noise Burr Brown OPA2134PA with the speed and sound quality of JFETS. The whole unit is powered by an ALTERA MAX II CPLD, which optimizes jitter. Moreover, it features an attractive display on the front panel and a comprehensive remote control that allows you to control all of the Zuki III's functions for a simplified user experience. In terms of connectivity, it is quite complete with a USB-B input, three Toslink optical inputs, three coaxial SPDIF inputs, an AES/EBU input, as well as an RCA output and a balanced XLR output.

The components of the SILKLINE Zuki III

Silkline Zuki III: A high-quality chipset

Each channel of the Silkline Zuki III has its own dedicated AD1955 DAC chip for fully balanced signal conversion. This effectively eliminates interference to deliver a clean signal to the amplifier. This fully balanced operation also offers improved dynamics, reaching 123dB. The signal input to the Zuki III is via an XMOS XU-208 USB interface or a Cirrus Logic SPDIF optical interface for stable processing upstream of the conversion performed by the DAC.

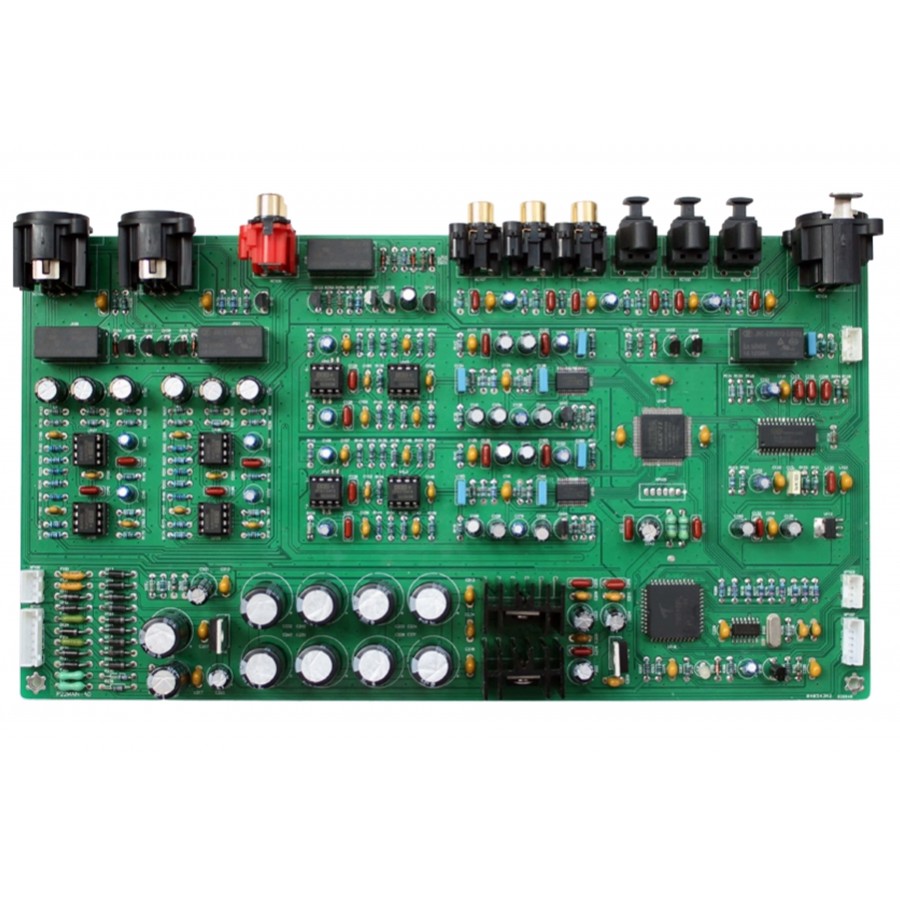

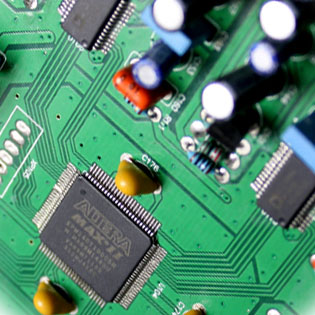

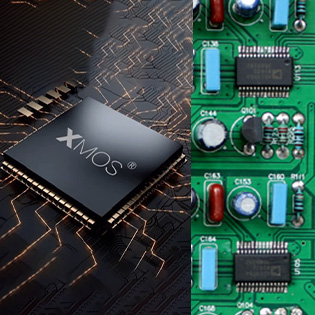

The chipset of the SILKLINE Zuki III
SILKLINE Zuki III oversampling function

Silkline Zuki III: 8x Oversampling

The AD1955 DAC chips in the Silkline Zuki III also offer 8x oversampling, which pushes noise and distortion beyond the audible range of the human ear and achieves an SNR of 120dB. This process does not add any new musical information, but it facilitates digital and analog signal processing. In addition to eliminating noise and distortion and improving jitter, it allows for the use of a much smoother and more gradual analog output filter for greater signal transparency and a much cleaner, smoother, and more detailed overall sound.

Silkline Zuki III overview

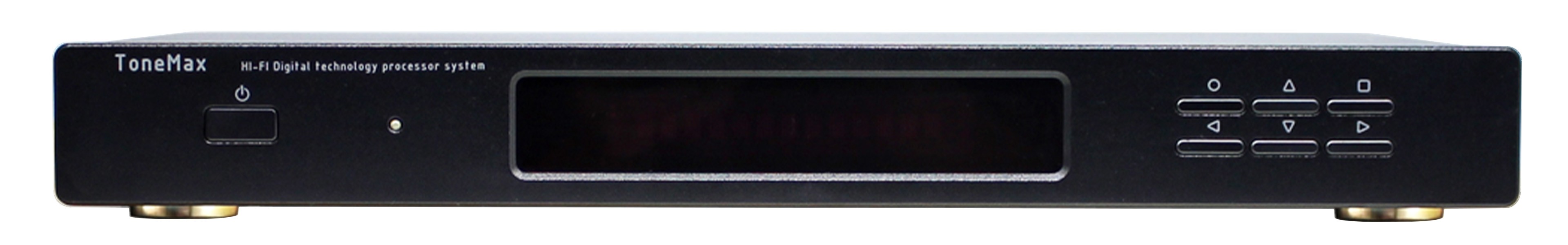

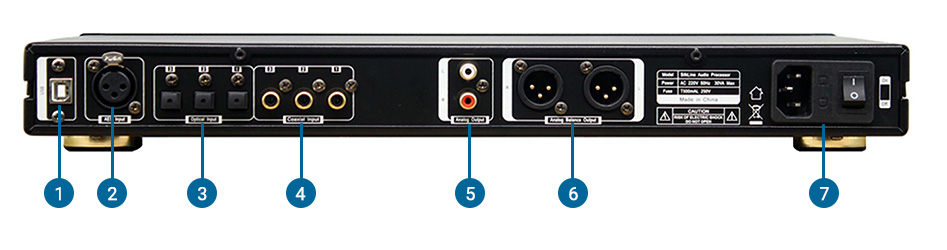

Overview of the SILKLINE Zuki III
1USB-B input
2AES/EBU input
33x Toslink optical input
43x Coaxial Input
5RCA output
6Balanced XLR output
7Power supply IEC

Technical characteristics

Specifications
Praduct typeDAC
DAC chip2x AD1955
USB interfaceXMOS XU-208
Inputs1x USB-B
1x AES/EBU
3x Toslink optical
3x Coaxial
Outputs1x Single-ended RCA
1x Balanced XLR
Supported sample ratesPCM up to 32bit 192kHz
(Please note: does not support lossy compressed Dolby/DTS audio)
VFD Screen
Remote control
Output power2000mV
Input sensitivity2000mV/0dB
SNR> 90dB
Crosstalk> 90dB
Frequency response10Hz to 50kHz (+/- 1dB)
THD< 0.005%
General
Power supply220V AC (50/60Hz)
Standby power consumption< 1W (normeCE)
Dimensions430 x 48 x 240mm
Weight4kg
ColorBlack
Package1x DAC Silkline Zuki III
1x Remote control
1x Power cable

Data sheet
InputSPDIF
InputAES/EBU
InputUSB
InputOptical
OutputXLR
OutputRCA
DAC / ADC ChipAD1955
Max sampling rate192kHz
ColorBlack
NetworkingNo
Remote ControlYes
