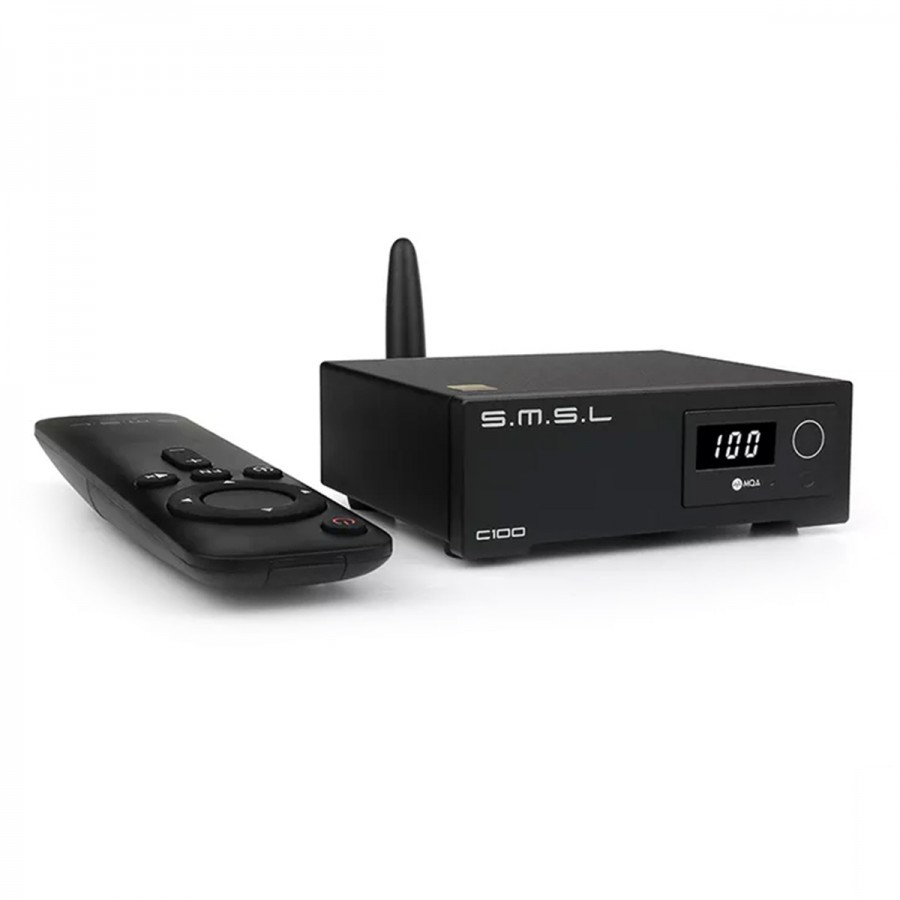

SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32 bit 768kHz DSD512 MQA

SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.032 bit 768kHz DSD512 MQA
The SMSL C100 presents itself as a compact and affordable DAC, but with the same care given to the more expensive models of the brand. Its components are indeed specially selected for their quality and efficiency, allowing the C100 to provide a precise sound reproduction. It adds to this a complete connectivity and a Bluetooth wireless connectivity for a foolproof versatility.

Average votes for this product
5.0 / 5

By buying this product you get 11 loyalty points


Reference : 17084
New product

115,00 €tax incl.

95,83 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 23-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

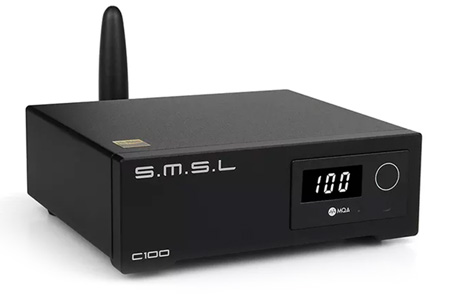

SMSL C100

DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

The SMSL C100 presents itself as a compact and affordable DAC, but with the same care given to the more expensive models of the brand. Its components are indeed specially selected for their quality and efficiency, allowing the C100 to provide a precise sound reproduction. It adds to this a complete connectivity and a Bluetooth wireless connectivity for a foolproof versatility.

SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

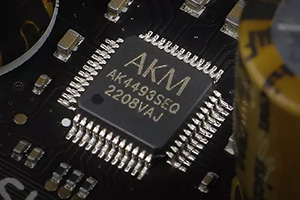

AKM AK4493S DAC

The digital / analog conversion stage of the SMSL is based on the use of a AKM AK4493S DAC chip. This model ensures excellent performances with notably a THD+N reaching here 0.00013% for a restitution at the same time precise, rich and dynamic.

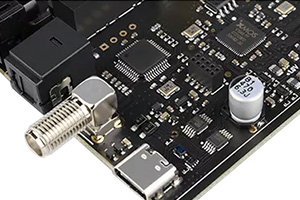

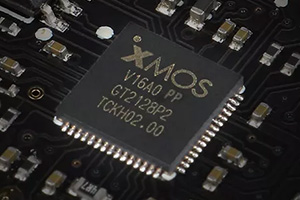

XMOS XU316 USB Interface

The use of a USB XMOS XU316 interface allows the C100 to read high resolution files for the most faithful sound reproduction possible. It supports audio streams up to PCM 32bit 768kHz and DSD512 via its USB-B input.

SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

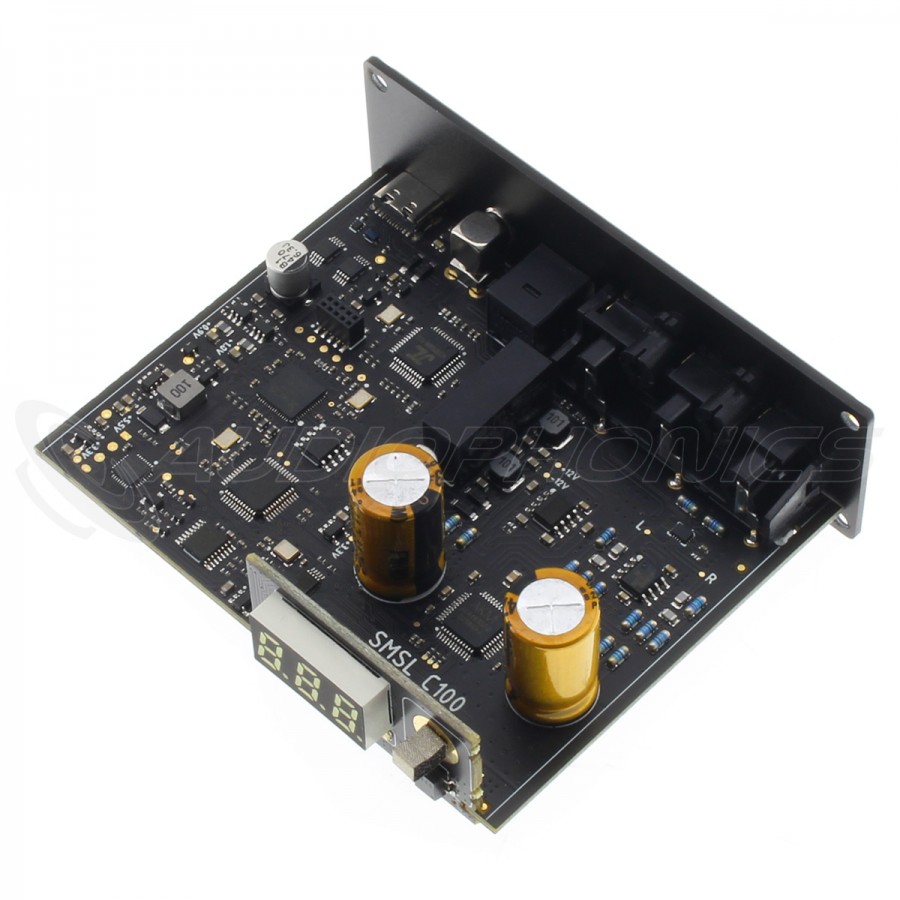

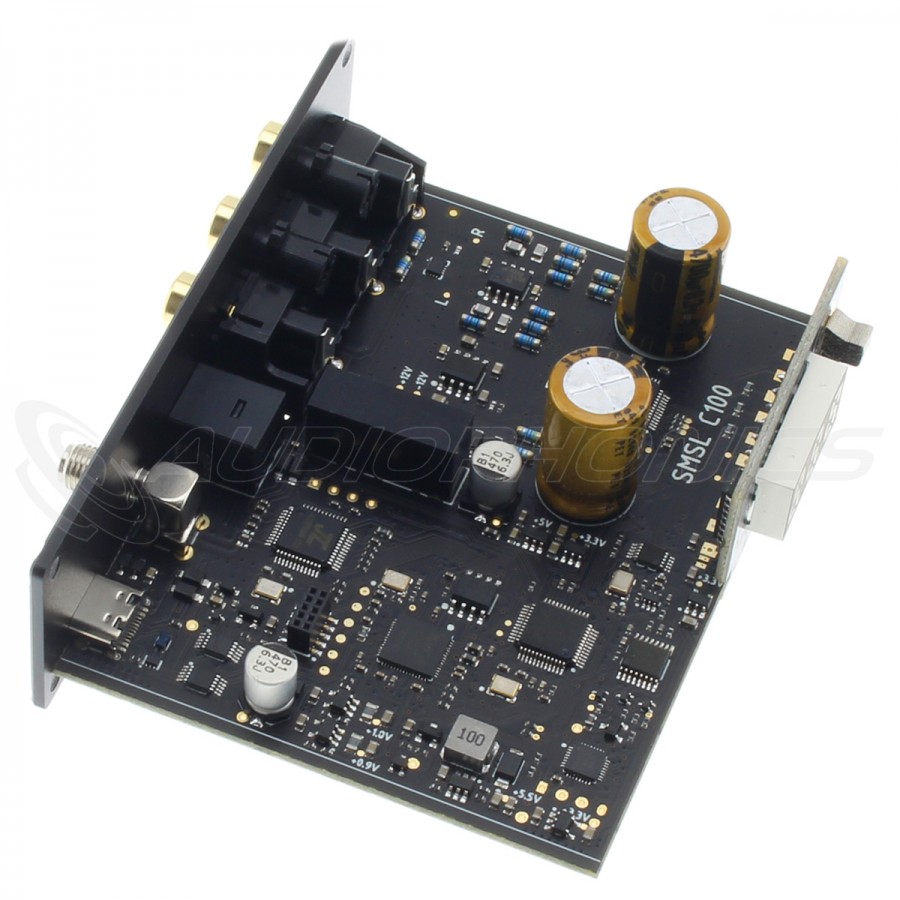

CK-03 Clock Circuit & Filtered Power Supply

Like the vast majority of SMSL devices of this generation, the C100 embeds the proprietary CK-03 clock circuit, allowing excellent synchronization of the clock signals for the lowest possible jitter. On the other hand, the power supply circuit benefits from an efficient filtering system, allowing to provide a clean and stable power supply to all the audio circuits from a single USB-B port.

MQA Decoder

In addition to supporting high resolution PCM and DSD streams, the SMSL C100 is able to decode MQA (Master Quality Authenticated) files. These files allow to enjoy a very high sound quality, as close as possible to the original signal captured in a recording studio.

SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA
SMSL C100 DAC AK4493S XMOS XU316 Bluetooth 5.0 32bit 768kHz DSD512 MQA

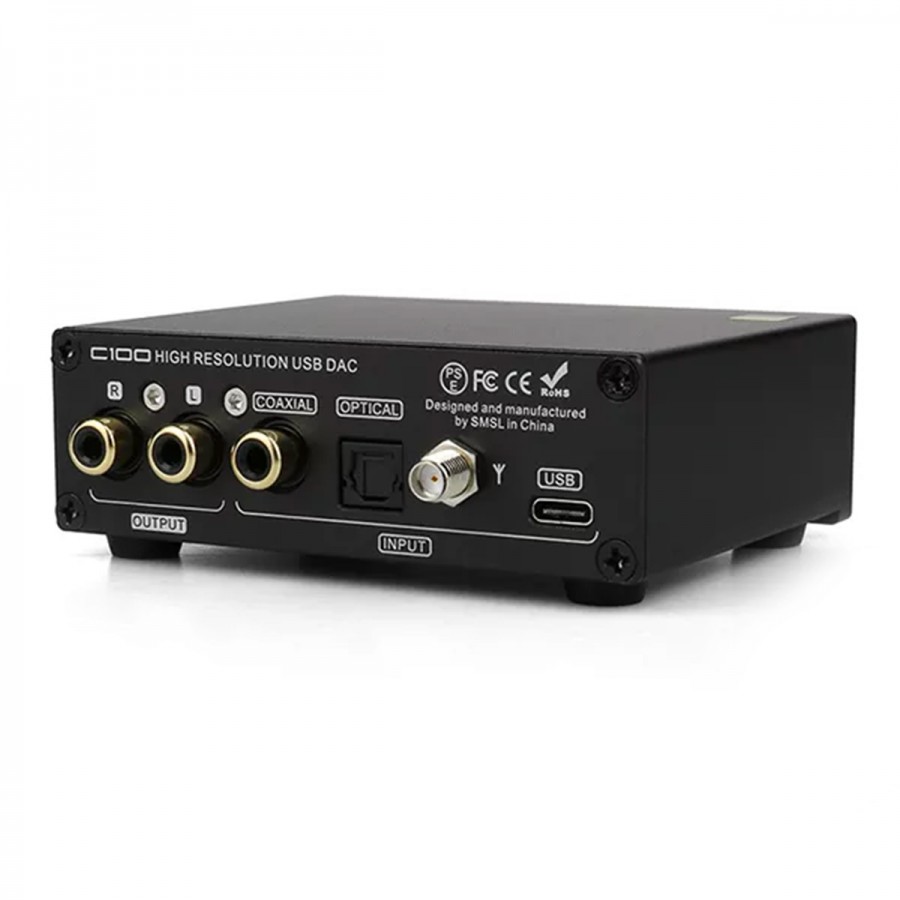

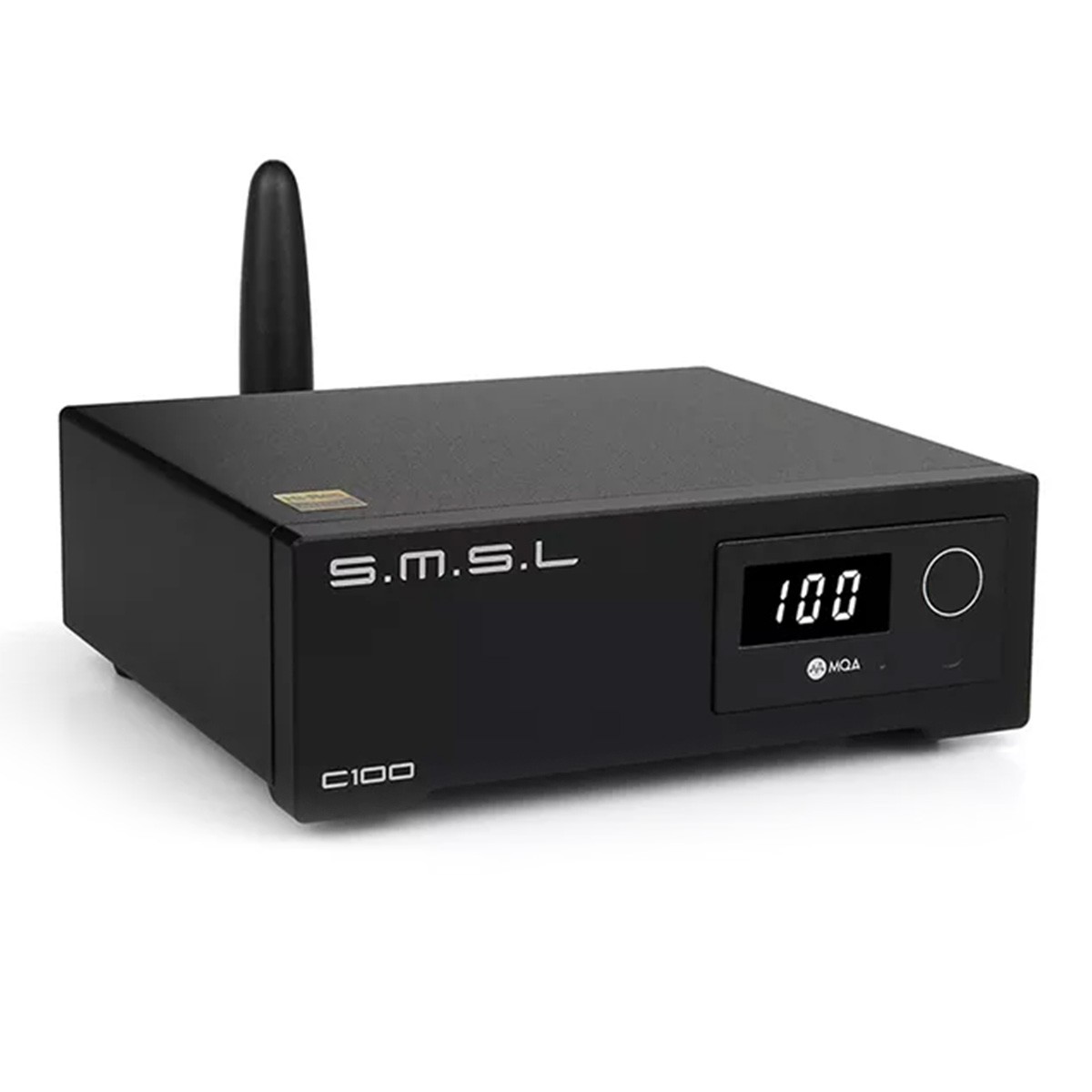

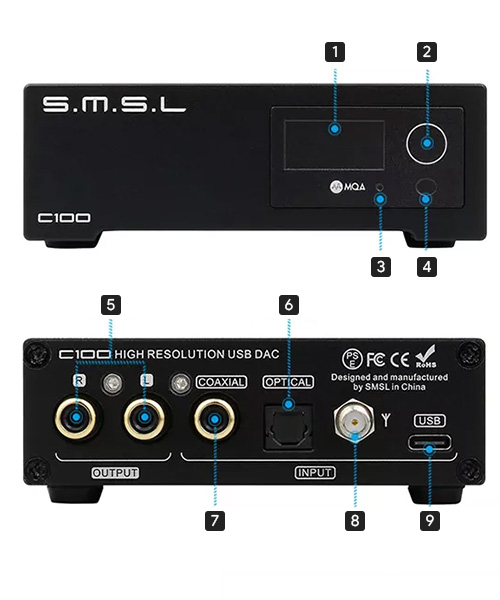

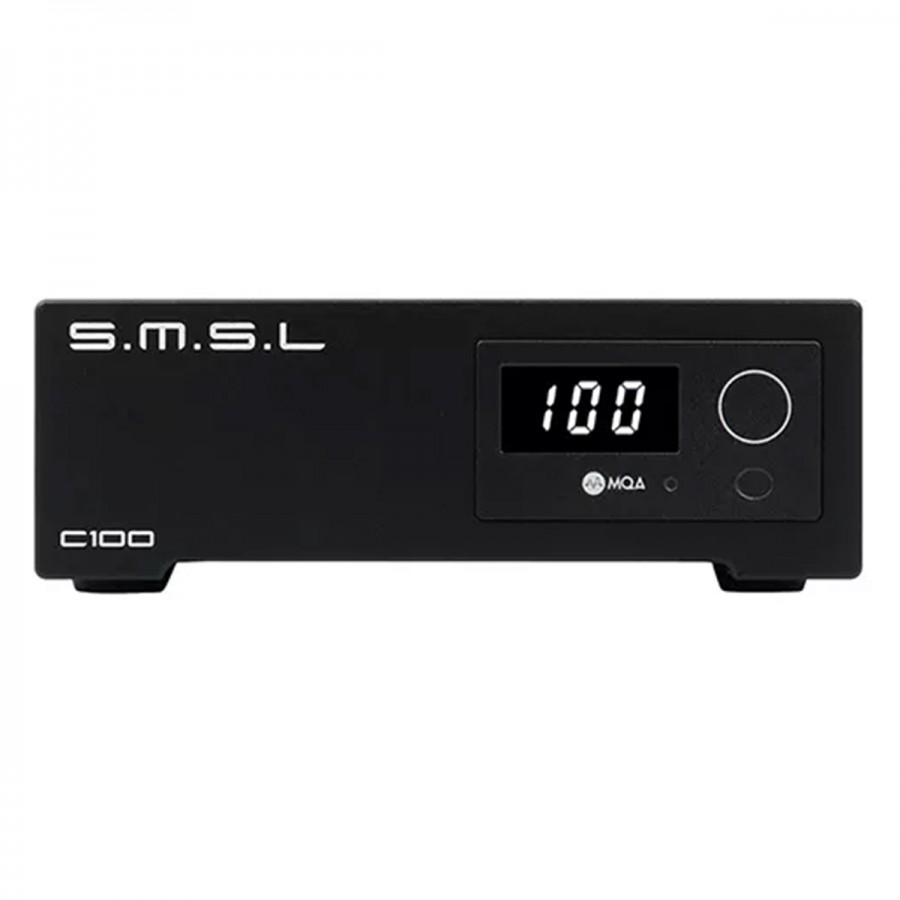

1Screen
2Touch button
3MQA LED indicator
4IR receiver

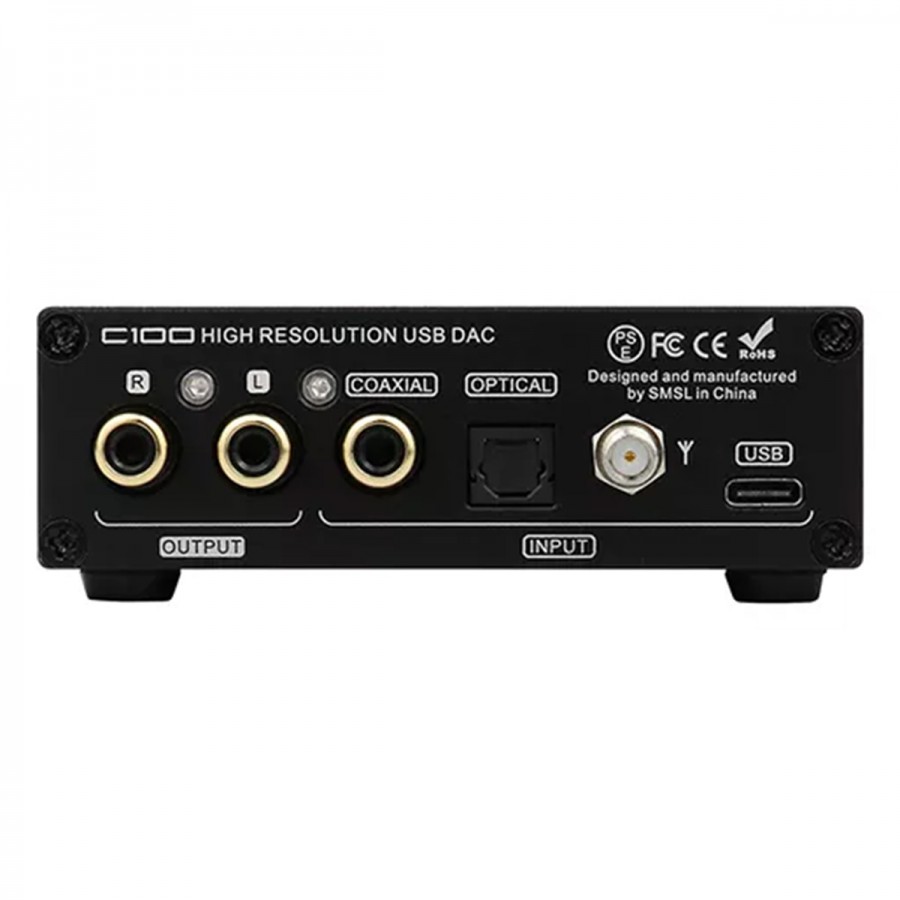

5Stereo RCA output
6Optical Toslink input
7Coaxial input
8Bluetooth antenna
9USB / power supply input

Technical characteristics

Specifications
Prodcut typeDAC
DAC chipAKM AK4493S
InputsBluetooth 5.0
1* USB-C
1* Optical Toslink
1* Coaxial
Outputs1* Stereo RCA
USB transmission modeAsynchronous
USB compatbilityWindows 7 / 8 / 8.1 / 10 / 11
Mac OSX 10.6 or later
Linux
Output level2Vrms
THD+N0.00013% (-117dB)
Dynamic range121dB
SNR121dB
Supported sampling ratesUSB : PCM up to 32bit 768kHz, Native DSD up to DSD512
Optical / Coaxial : PCM up to 24bit 192kHz
General
Consumption< 5W
Standby consumption< 0.1W
Dimensions (W*D*H)77.5*95*32mm
Weight190g
Housing materialAluminum
ColorBlack

Data sheet
InputUSB
InputOptical
InputSPDIF
InputBluetooth
OutputRCA
DAC / ADC ChipAK4493S
Max sampling rateDSD512
Max sampling rateMQA
Max sampling rate768kHz
ColorBlack
NetworkingNo
Remote ControlYes

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
DAC audiophile a prix mini
C’est mon troisième DAC Smsl. J’ai commencé par un Su9 couplé à un ampli casque. Puis un C200 couplé à un ampli classe D pour des enceintes bibliothèque. Et maintenant ce C100 pour la tv. Donc en gros prix 400€ / 200€ / 100€. Clairement le SU9 est beaucoup plus précis et défini. Mais le C100 a des graves impressionnants (différence puce AK versus ES ?). C’est le moins cher des Dac que j’ai trouvé avec une entrée optique, une télécommande et des composants audiophiles. Dans les inconvénients : alimentation non fournie, prévoir un chargeur USB. Alors que ses grands frères ont un câble secteur. Les aigus sont aussi moins bon mais le boîtier est plus compact. 5 étoiles pour les performances versus le prix mais selon le besoin le modèle au dessus peut être plus adapté… ou pas !
