SMSL R1 DAC Headphone Amplifier Silver
By buying this product you get 7 loyalty points
SMSL R1 DAC Headphone Amplifier ES9018K2M 32bit 768kHz DSD512 Silver
The SMSL R1 is a high-performance headphone amplifier and DAC with a unique look. It uses an ES9018K2M DAC chip for high-quality digital-to-analog conversion. It also offers several additional features, such as four equalization modes and bass and treble controls, allowing you to tailor the sound to your preferences. In terms of connectivity, it is not to be outdone, with several digital inputs (USB-C, Toslink optical, coaxial), as well as an RCA line output and two headphone outputs: 3.5mm single-ended jack and 4.4mm balanced jack. This set of connections is completed by a 3.5mm MIC input, perfect for a gaming setup. Specially designed for headphone listening, the SMSL R1 has an output power of up to 500mW under 32 ohms.
SMSL R1: A high-performance DAC amplifier
The ES9018K2M DAC chip inside the SMSL R1 enable it to perform high-quality digital-to-analog conversion. In addition, its amplifier stage allows it to drive IEMs or headphones with an impedance of 32 to 600 ohms. In fact, it delivers up to 120mW under 32Ω.
SMSL R1: EQ and tone control
Additional features such as 4 equalization modes allow you to sculpt the sound. Three faders also allow you to adjust the microphone volume or bass and treble tones from -9dB to +9dB.
SMSL R1: A retro design

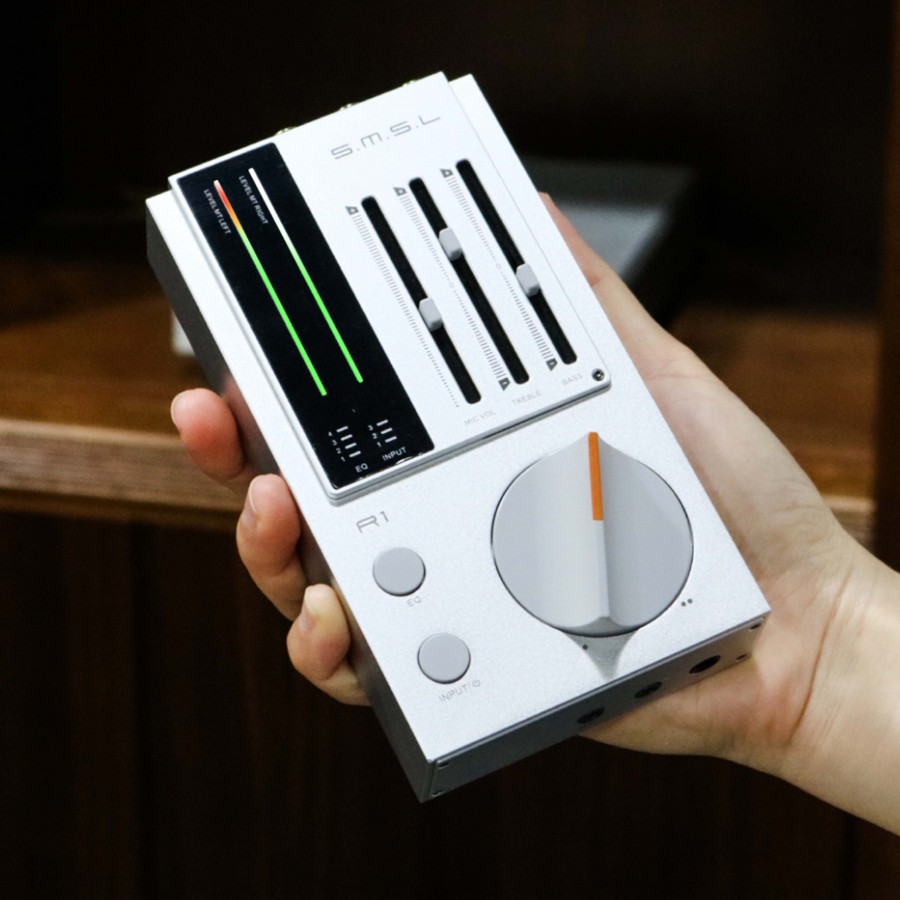

On the front panel, there are three faders, an input level indicator, and a vintage potentiometer for headphone volume control. All of these elements combine to create a sleek, retro look that SMSL R1 users are sure to love.
SMSL R1 overview
| 1 | Input level indicator |
| 2 | Microphone volume |
| 3 | Treble |
| 4 | Bass |
| 5 | EQ adjustment |
| 6 | Power on / input selection |
| 7 | Headphone output volume control |
| 8 | RCA line output (1.5Vrms) |
| 9 | Coaxial input |
| 10 | Optical input |
| 11 | USB-C input |
| 12 | 5V USB-C power port |
| 13 | Microphone input |
| 14 | 3.5mm single-ended headphone jack output |
| 15 | 4.4mm balanced headphone output |
Technical characteristics
| Specifications | |
|---|---|
| Product type | DAC and headphone amplifier |
| DAC | ES9018K2M |
| USB interface | XMOS XU316 |
| Inputs | 1x USB-C 1x Toslink optical 1x Coaxial |
| Outputs | 1x 3.5mm single-ended headphone jack output 1x 4.4mm balanced jack output 1x RCA line output |
| Other connectors | 3.5mm Microphone Jack |
| Supported sample rates | PCM 32bit 768kHz, DSD512 |
| Line output level | 1.5Vrms |
| THD+N (non-weighted) | 0.009% (-80dB) |
| Dynamic range (non-weighted) | 98dB |
| SNR (non-weighted) | 98dB |
| Channel separation | 95dB |
| Headphone impedance | 32 ohms |
| Headphone output power | 120mW @ 32 ohms |
| Bass and treble adjustment | -9dB/+9dB |
| General | |
|---|---|
| Power supply | 5V via USB-C |
| Dimensions | 76 x 34.6 x 143.8mm |
| Weight | 316.4g |
| Color | Silver |
| Package | 1x SMSL R1 1x 3.5mm headphone microphone splitter cable 1x USB-C/A to USB-C cable |
| Input | SPDIF |
| Input | USB |
| Input | Optical |
| Output | RCA |
| Output | Jack 4.4mm |
| Output | Jack 3.5mm |
| DAC / ADC Chip | ES9018K2M |
| Max sampling rate | NC |
| Color | Silver |
| Class | N/A |
| Networking | No |
| Remote Control | No |
