TOPPING DX3 Pro DAC 2x AK4493EQ XMOS XU208 32bit/768kHz Headphone amplifier Bluetooth apt-X HD Black

TOPPING DX3 Pro DAC AK4493EQ XMOS XU208 32bit/768kHz Headphone amplifier Bluetooth apt-X HD Black
15%
Topping's DX3 Pro fulfills both functions of DAC and headphone amplifier. It offers excellent performance when connected to a digital source by wire or Bluetooth. Multiple operating modes available support an integration into a more complex chain as well.

Average votes for this product
5.0 / 5


Reduced price!
Reference : 13453
New product
Limited special offer

182,50 €

-15%

155,13 €tax excl.

Including 0,04 € for green tax
This product is no longer in stock
Produit garantie 2 ans

Accessories for this product


More info

Topping DX3 Pro DAC & Headphone Amplifier

XMOS XU208, Duo AK4493EQ, OPA1612 / 768kHz 32-bit DSD512 native / Bluetooth apt-X HD


DX3 Pro Topping

Compact DAC with many features


Topping's DX3 Pro fulfills both functions of DAC and headphone amplifier. It offers excellent performance when connected to a digital source by wire or Bluetooth. Multiple operating modes available support an integration into a more complex chain as well.

Its traditional use is that of a DAC + headphone amplifier. An additional line output is available and allows a connection with analog devices such as active speakers. Conversely, it is also possible to disable the preamplifier stage, which isolates the DAC signal in order attack an external preamplifier.

High-fidelity components


Definitely designed for high fidelity, the DX3 Pro only integrates components recognized for their audio performance.

As USB interface, a U208 XMOS chip drives the USB input. The latter supports high-frequency digital audio streams and offers a native DSD compatibility as well.

The digital to analog conversion is processed by two AK4493EQ 32-bit DAC chip. This is a modernised version of the AK4490EQ which enjoys a distortion and a signal to noise ratio more favorable than its parent while retaining all the technologies that have established its success. It includes the famous Velvet Sound with increasingly accurate digital filters.

DX3 works with high accuracy and low harmonic distortion OPA1612 operational amplifier. This OPA brings precise and fine sound thanks to its low electronic noise (1.1-nV / √Hz) and low distortion (0.000015% @ 1kHz). This model especially offers a swing of 600mV at a load of 2 kΩ, which enables the DX3 to drive most advanced heaphones while providing large dynamic range, stable gain and wide headroom to preserve THE spatial depth of your high-definition music.

Unpacking and features detail

Video French / English

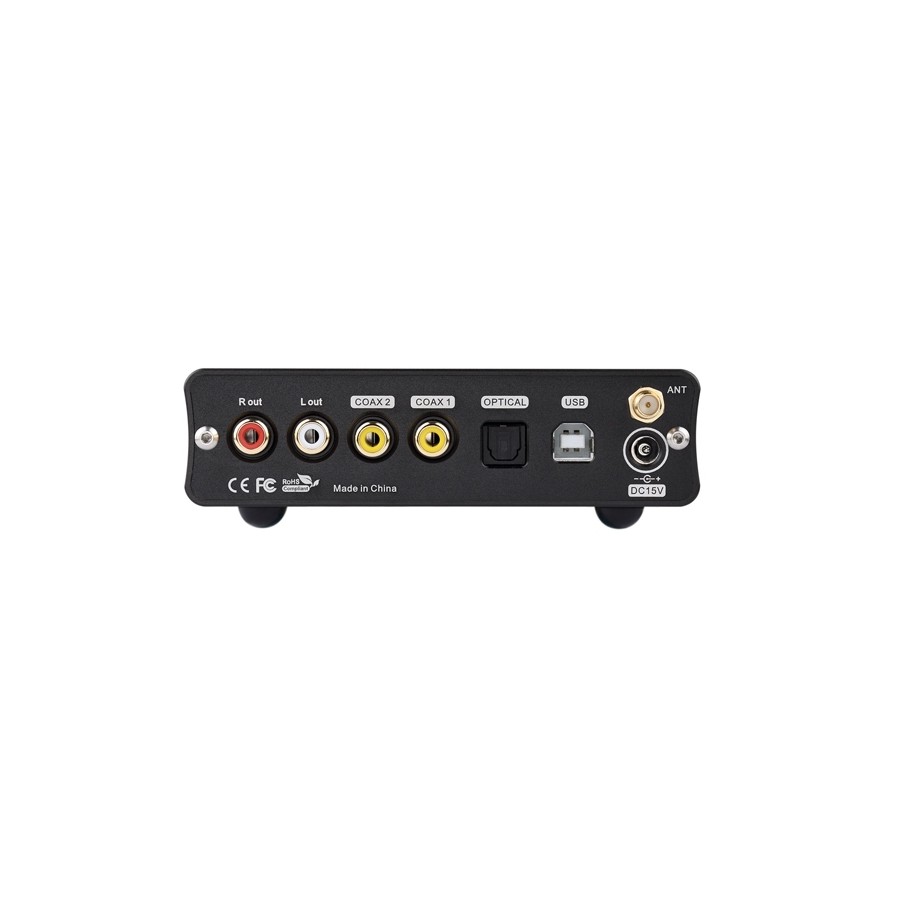

Connectivity

Connectivity Topping DX3PRO


The DX3 Pro is equipped with a USB input 32bit768kHz (XMOS U208), two coaxial inputs and an input optics 24bit192kHz (AK4493EQ).

As output, the DX3 Topping displays a 3.5mm jack and a line-out. The output stage develops 2x1000mW @ 32Ω or 2x125mW @ 3000Ω.

The distant connectivity is not left behind since the device is equipped with a Bluetooth receiver which supports SBC ACC, apt-X, apt-X II, apt-X HD.

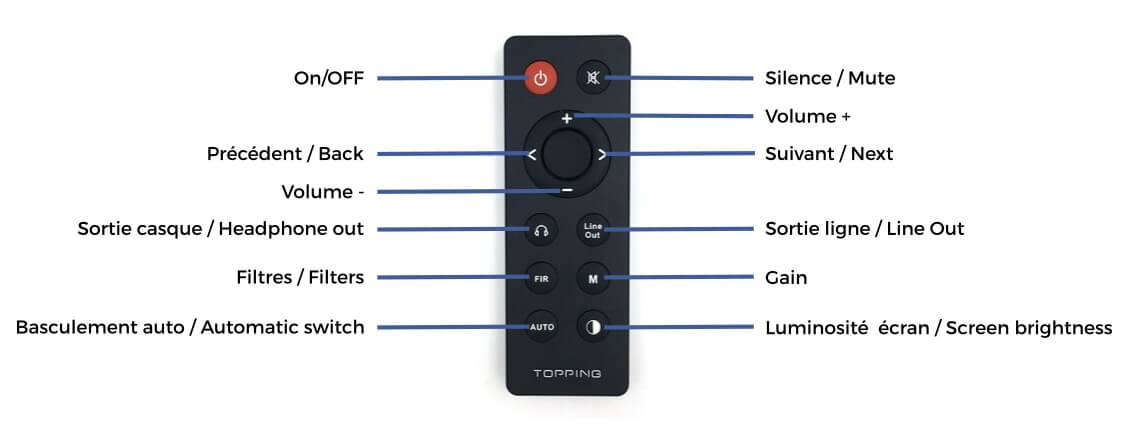

Remote control included

Remote control Topping DX3. Pro


The DAC DX3 Topping is delivered with a black compact remote. The latter allows to remotely control the volume, select tracks, outputs, filters...etc.

This remote support is one of the few devices to combine function & DAC Preamplifier / remote control headphone amplifier in this price range.Thanks to this remote control compatibility, Topping's DX3 pro is one of the few devices from this price range to combine function of DAC, Preamplifier, headphone amplifier and remote control.

Test by Audio Science Review

Audio Logo science review




The DX3 Pro was the subject of a detailed comparative analysis on the part of the platform of Audio Science Review studies (in English).

Click here to access it.

Specifications
TypeDAC
headphone amplifier
DAC chip2x AK4493
SPDIF ChipAK118
OPAOPA1612
OPA2140
InputsOptical
Coaxial
Bluetooth
USB-A
Outputs3.5mm (headphone)
RCA line output
Bluetooth SupportSBC / ACC / apt-X / apt-X II / apt-X HD
Headphone Output Power2x1000mW @ 32Ω
2x125mW @ 300Ω
Output level2Vrms @0dBFS
THD+N<0.0004% @ 1kHz
<0.0005% @ 20Hz-20kHz
Frequency response20Hz-20kHz (+/- 0.35dB)
SNR>120dB @ 1kHz
Output ImpedanceLess than 0.1Ω
Dimensions120 x 165 x 40mm
ColorBlack
Power SupplyDC15V 1A via Jack DC 5.5/2.1mm
Parts supplied
DX3 PRox1
Power Supply 15VDC 1A via Jack DC 5.5/2.1mmx1
USB cablex1
Bluetooth antennax1
Remote control (Battery CR2032)x1

Data sheet
InputSPDIF
InputBluetooth
InputUSB XMOS
InputOptical
OutputRCA
OutputJack 3.5mm
DAC ChipAK4493EQ
Max sampling rateDSD512
Max sampling rate768kHz
ColorBlack
MaterialAluminium
Channel2 channels (Stereo)

Delivery
