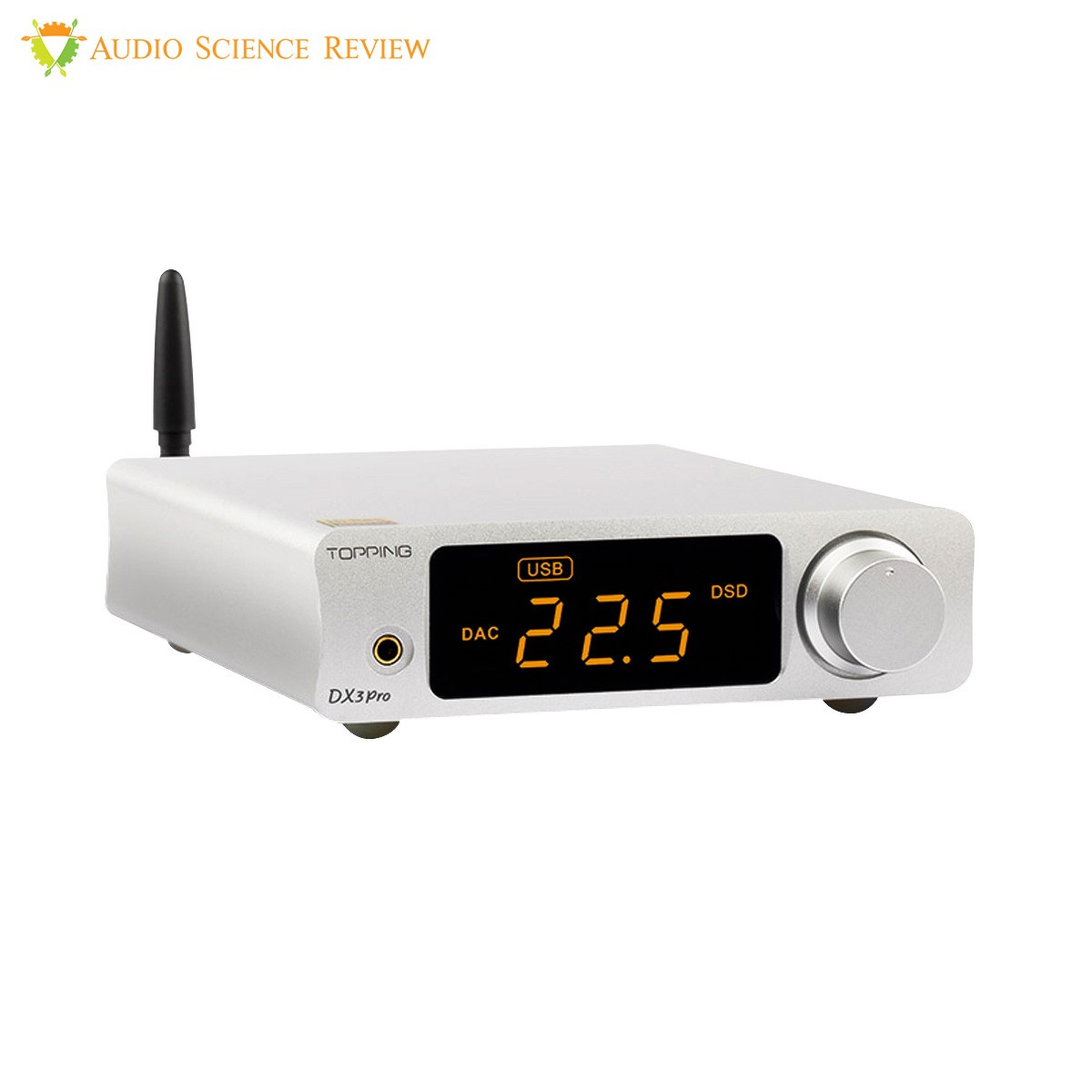

TOPPING DX3 PRO DAC 2x AK4493EQ XMOS XU208 32bit/768kHz Headphone amplifier Bluetooth aptX HD Silver

TOPPING DX3 Pro DAC 2x AK4493EQ XMOS XU208 32bit/768kHz Headphone amplifier Bluetooth aptX HD Silver
10%
Topping's DX3 Pro fulfills both functions of DAC and headphone amplifier. It offers excellent performance when connected to a digital source by wire or Bluetooth. Multiple operating modes available support an integration into a more complex chain as well.

Average votes for this product
5.0 / 5


Reduced price!
Reference : 13478
New product
Limited special offer

182,50 €

-10%

164,25 €tax excl.

Including 0,04 € for green tax
This product is no longer in stock
Produit garantie 2 ans

Accessories for this product


More info

Topping DX3 Pro

DAC 2x AK4493EQ XMOS XU208 32bit/768kHz Amplificateur casque Bluetooth aptX HD Argent

Topping DX3 Pro DAC 2x AK4493EQ XMOS XU208 32bit/768kHz Amplificateur casque Bluetooth aptX HD Argent

Compact et riche en fonctionnalités

The DX3 Pro from Topping performs both DAC and headphone amplifier functions. While it already offers excellent results when connected to a digital source via cable or Bluetooth, several operating modes also allow it to be integrated into more complex chains.

Its classic use is that of a DAC + headphone amplifier. An additional line output is available and makes it possible to connect to analog devices such as active speakers. Conversely, it is also possible to disable the preamplifier stage, which allows the DAC to be isolated and an external preamplifier to be operated.

High-Fidelity Components

Definitely designed for high fidelity, the DX3 Pro incorporates components known for their audio performance. As a USB interface, an XMOS U208 chip drives a USB input equipped with high-frequency digital stream support and native DSD compatibility.

The digital to analog conversion is performed by a 32-bit AK4493EQ chip pair. This modernized version of the must-have AK4490EQ benefits from a more advantageous distortion rate and signal-to-noise ratio than its parent, while retaining all the technologies that have made it so successful. In addition, there is the famous Velvet Sound with increasingly accurate digital filters.

An OPA1612 operational amplifier, high precision and low harmonic distortion. The latter is illustrated by its very low electronic noise (1.1-nV/√Hz) and a distortion rate (0.000015% @1kHz). This AOP model offers above all a 600mV output signal excursion under a load of 2 kΩ, it will thus be able to drive most of the advanced headphones while offering controlled dynamics, a stable gain and an ideal power reserve to bring out the full spatial depth of your high definition music.

Connectivity

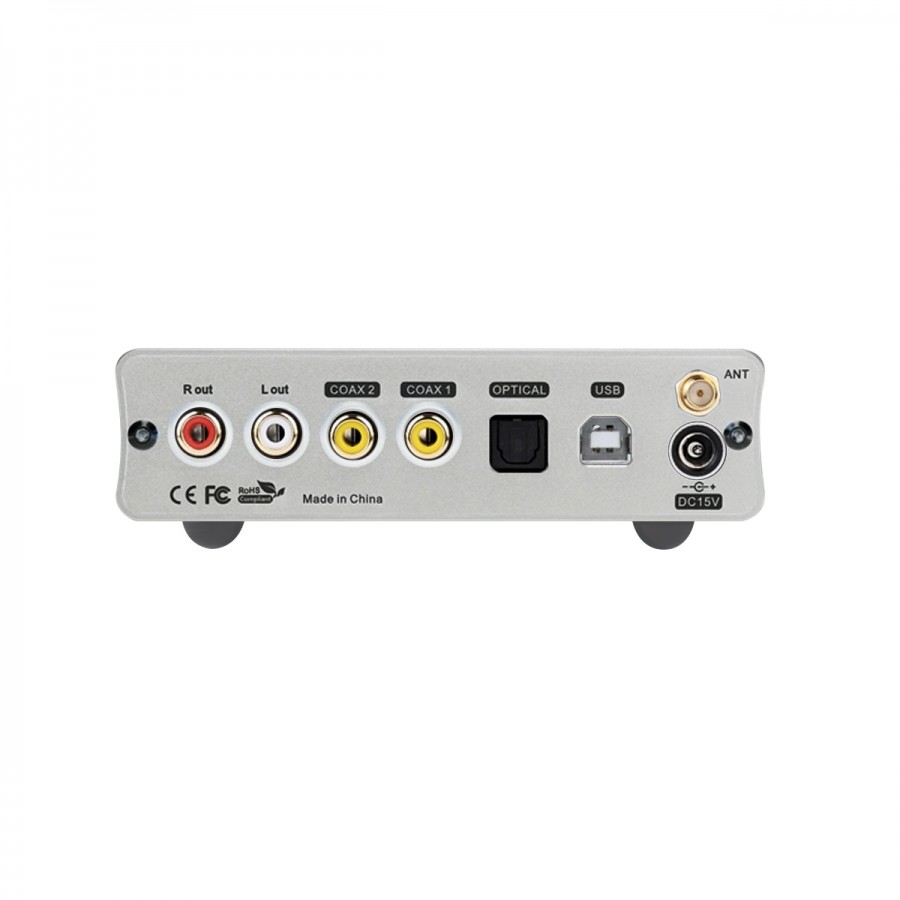

The DX3 Pro is equipped with a 32bit768kHz USB input (XMOS U208), two Coaxial inputs and a 24bit192kHz Optical input (AK4493EQ). At the output, the Topping DX3 has a 3.5mm jack and a line output. The output stage develops 2x1000mW @ 32Ω or 2x125mW @ 300Ω. The dematerialized connection is not to be outdone since the device is equipped with a Bluetooth receiver with SBC, ACC, aptX, aptX II, aptX HD support.

Topping DX3 Pro DAC 2x AK4493EQ XMOS XU208 32bit/768kHz Amplificateur casque Bluetooth aptX HD Argent

Included remote control

The Topping DAC DX3 is supplied with its remote control. Sober and compact, the latter offers to navigate in the tracks, adjust the volume, change the output, filters, etc. This remote control holder makes it one of the few devices to combine a DAC & Preamplifier / Headphone Amplifier function with remote control in this price range.

Topping DX3 Pro DAC 2x AK4493EQ XMOS XU208 32bit/768kHz Amplificateur casque Bluetooth aptX HD Argent

Test Audio Science Review

The DX3 Pro has been the subject of a detailed comparative analysis by the Audio Science Review study platform.

Topping DX3 Pro DAC 2x AK4493EQ XMOS XU208 32bit/768kHz Amplificateur casque Bluetooth aptX HD Argent Read the review

Technical characteristics

Specifications
Product typeDAC and Headphone amplifier
DAC Chip2x AK4493
SPDIF ChipAK118
OPAOPA1612
OPA2140
OutputsJack 3.5mm (headphone)
Line RCA output
Bluetooth supportSBC, ACC, aptX, aptX II, aptX HD
Headphone output power2x1000mW @ 32 Ohm
2x125mW @ 300 Ohm
Output level2Vrms @ 0dBFS
THD+N< 0.0004% @ 1kHz
< 0.0005% @ 20Hz-20kHz
Frequency response20Hz - 20kHz (+/-0.32dB)
SNR> 120dB @ 1kHz
Output impedanceMoins de 0.1 Ohm
General
Dimensions120 x 165 x 40mm
Weight400g
ColorSilver
Power supplyDC 15V 1A (included)
Package1x DX3 Pro
1x Power supply
1x USB Cable
1x Bluetooth antenna
1x Remote control (CR2032 battery)

Data sheet
InputBluetooth
InputUSB 2.0
InputUSB XMOS
InputOptical
InputUSB-B
InputSPDIF
OutputJack 3.5mm
OutputRCA
DAC ChipAK4493EQ
Max sampling rate768kHz
Max sampling rateDSD512
ColorSilver
Channel2 channels (Stereo)

Delivery
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Un appareil attachant
Un son proche du tube, très "analogique",convivial, facile à utiliser.
Peut-être moins "punchy" que les puces ESS mais avec une écoute plus agréable à mon goût.
La possibilité du mode direct DAC est très appréciable (c'est ce que j'utilise)
Le Blue Tooth sonne très bien. Essais sur casque studio Audio Technica de 100 ohms. Malgré cette impédance plutôt élevée la réserve de puissance reste acceptable.
La télécommande est un vrai plus.
Des essais ont été faits avec des fréquences d'échantillonnage de 44 à 705. Tout passe.
Il reste parfois des clocs dans les enceintes au moment des changements de fréquence (pas systématique).
Les filtres proposés ne modifient pas vraiment le rendu (ou bien je n'ai pas tout compris ...)
Très commode l'écran d'affichage.
Petit plus (non documenté) : en USB le DX3 pro se met sous tension dès l'allumage du PC.
Le packaging est complet (même si il est mieux de changer le câble USB) et les entrées et sorties sont munies de bouchons plastique, ce qui permet de protéger celles qui ne sont pas utilisées.
En place sur un système plutôt haut de gamme (enceintes Leedh E2 Glass, électroniques à tubes, ...) le DX3 pro ne démérite pas.
Il me reste à essayer avec une alimentation 15 v "de course".

www.living-leedh.com
 (0)
 (0)
This review has been posted for TOPPING DX3 PRO DAC 2x AK4493EQ XMOS XU208 32bit/768kHz Headphone amplifier Bluetooth aptX HD Silver
Note :
 5/5
Date :
World of difference
Befor plugging this little beauty into my iMac, i was listening with my m50x cans directly plugged with jack or using my old Soundblaster USB dac. Thought i had the best sound ever. No. I did not. This DX3pro opened my ears.

There is so much detail, and at the same time the listening experience is smoother. I can turn the volume very low and still hear all details. Which my former soundblaster usb-dac did not provide.

The volume button is lovely with little metal clicks you feel when turning. Just look after yourself because the sound is so clean, you will forget your loud volume easily. But the same is true for the opposite: you can turn it very low and still enjoy detailed full music.

Just hooked the usb cable to my iMac and MacOS automatically added the external audio device. Plug and play, no problems. Just enjoy.
 (0)
 (0)
This review has been posted for TOPPING DX3 PRO DAC 2x AK4493EQ XMOS XU208 32bit/768kHz Headphone amplifier Bluetooth aptX HD Silver
