AUDIO-GD HE-7 MK2 Balanced R2R DAC ACSS 8xPCM1704 32bit 384kHz FPGA Amanero Accusilicon

AUDIO-GD HE-7 MK2 Balanced ACSS DAC 8xPCM1704 24bit 192kHz Amanero
Audio-GD offers with its HE-7 MK2 a massive R2R DAC benefiting from a high-end design, based on very high quality components and an extremely well thought architecture. It features a conversion stage based on eight PCM1704UK DAC chips, discrete audio circuits, Accusilicon femtosecond clocks, FPGA-based clock management, isolated Class A power supplies in a regenerative system.

No customer reviews yet, login to write a review.

By buying this product you get 316 loyalty points


Reference : 15570
New product

3 165,83 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 08-12-2021.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product


More info

Audio-GD HE-7 MK2

Balanced R2R DAC ACSS 8xPCM1704 32bit 384kHz FPGA Amanero Accusilicon

Audio-GD HE-7 MK2 DAC Symétrique R2R ACSS 8xPCM1704 32bit 384kHz FPGA Amanero Accusilicon

Audio-GD offers with its HE-7 MK2 a massive R2R DAC benefiting from a high-end design, based on very high quality components and an extremely well thought architecture. It features a conversion stage based on eight PCM1704UK DAC chips, discrete audio circuits, Accusilicon femtosecond clocks, FPGA-based clock management, isolated Class A power supplies in a regenerative system. Its main features are:

  • Use of a servo stabilized discrete power supply to power the digital circuitry to ensure extremely low noise and low operating temperature. The clock and analog circuitry is always powered by a Class A regulated power supply for best sonic results.

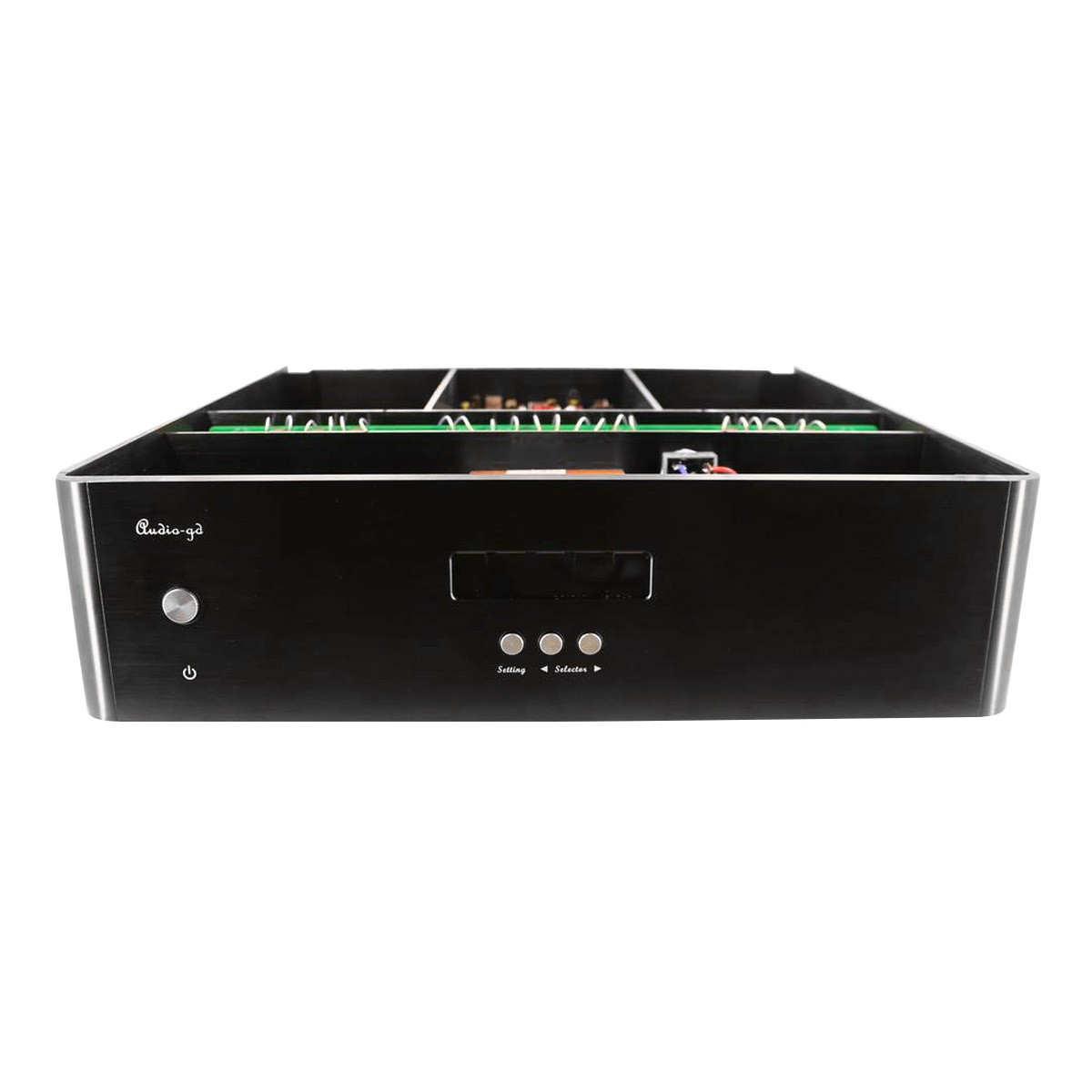

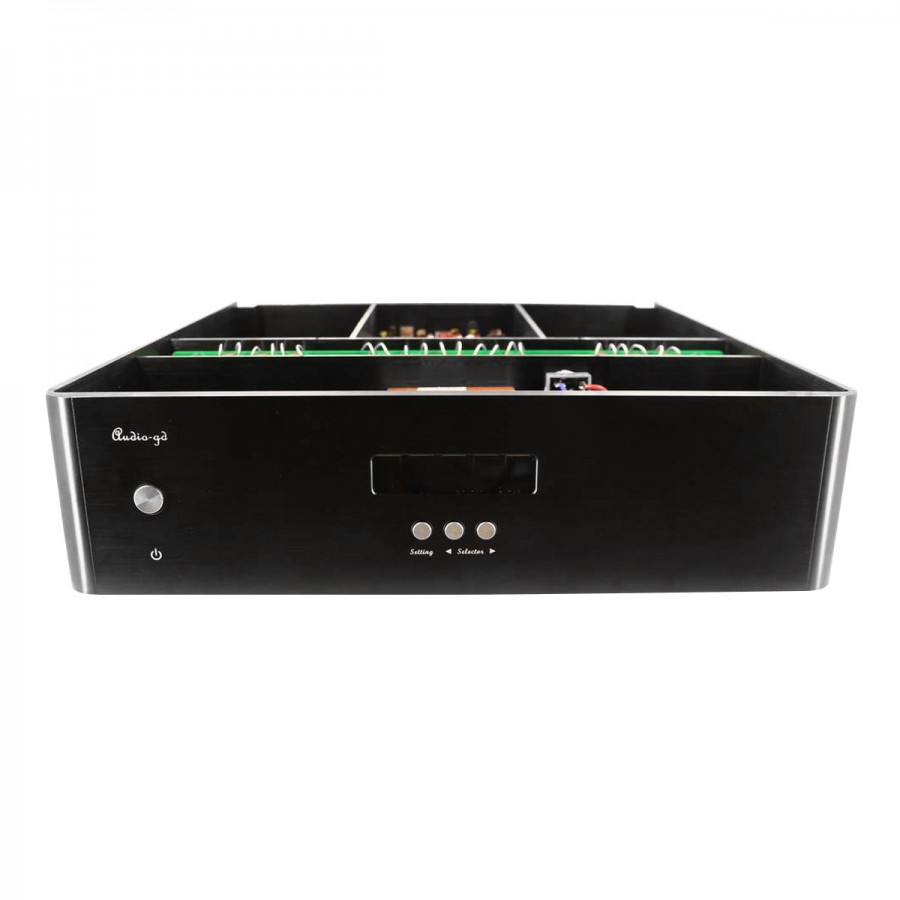

  • Possibility to enjoy an analog type sound restitution thanks to a selectable option on the front panel.
  • Both the USB and HDMI inputs are equipped with isolators and two sets of linear power supplies to power the USB and HDMI modules separately before the isolators, to avoid source interference.
    The USB uses a bidirectional transmission isolator, which not only transmits the I2S signals to the FPGA processor, but also receives the synchronous clock signal sent by the FPGA processor. The USB interface itself is no longer equipped with clocks. The synchronous clock is used to achieve a more accurate transmission and to take the sound quality to a whole new level.
    The HDMI module is equipped with an independent isolator to improve the sound quality of the HDMI input.
  • Display of the sampling rate of the input signal.
  • The 10MHz clock input allows the use of an external clock generator.
  • The FPGA operates using a parallel data processing mode. The I2S signal allows the transmission of data in series. Each data bit requires one clock cycle. One frame of data from the left and right channels requires 64 clock cycles. Stability over 64 clock cycles is therefore required.
    Parallel mode requires only one clock to transmit and process the 32bit data from the left and right channels, which greatly improves processing speed and stability.
    The I2S input data (USB and HDMI) is reorganized into two parallel 32bit data sets upon input. Once the SPDIF signal is demodulated, it is also sent to the next level of processing, via two parallel 24bit data sets.
    The parallel processing mode results in a clearer, more neutral sound with better dynamics and a more analog signature.
  • The clock management design of this architecture makes the clock operation more table-like, which brings greater transparency and detailed sound.

Analog regenerative power supply

The integrated regenerative power supply works like an electrical generator. It blocks most of the disturbances in the power line, providing a clean power supply to the amplifiers and thus reproducing a neutral and analog sound. This architecture allows the AC current to pass through the regenerative input transformer, which is then converted to DC and directed to a Class A power supply and then to the regenerative wave generator and the gain stages.

A regenerative regular wave generator produces a very low distortion 50Hz wave that passes through the gain amplifiers and output stages. The regenerative transformers produce a clean AC power supply that feeds the separate Class A power supplies for the left and right channel preamplifiers.

The Class A parallel connection power supply has a very high input impedance to prevent interference through the PSU from affecting the signal, and a low output impedance with very high speed and linearity.

Audio-GD HE-7 MK2 DAC Symétrique R2R ACSS 8xPCM1704 32bit 384kHz FPGA Amanero Accusilicon

R2R PCM1704UK DAC

The R2R digital to analog conversion stage of the HE-7 MK2 is based on no less than eight PCM1704UK DAC chips. The R2R architecture does not convert the clock signal into an output signal, is not sensitive to jitter and provides a more accurate output signal than a Delta-Sigma DAC. The PCM1704UK chips support high resolution audio streams, up to 32bit 384kHz PCM.

PCM1704UK DACs do not support DSD playback. DSD files must be converted to PCM from the source.

FPGA & CPLD

The HE-7 MK2 integrates an FPGA and three CPLDs to separate the different configured circuits and avoid interruptions. The internal components are fully controlled by a complex software layer. A significant advantage of using an FPGA is the ability to easily upgrade it to improve the performance of the device, bringing flexibility to the device.

In the HE-7 MK2 the high performance SPDIF interface of the FPGA replaces the traditional SPDIF interface chips whose performance is inferior to that of an FPGA.

The reclocking process with FIFO design is applied to all inputs. This way, the output data remains fully synchronized with the clock signal to reject jitter.

The HE-7 MK2 features 2x / 4x / 8x oversampling modes and built-in digital filters, as well as four different NOS modes, to suit your listening style and system.

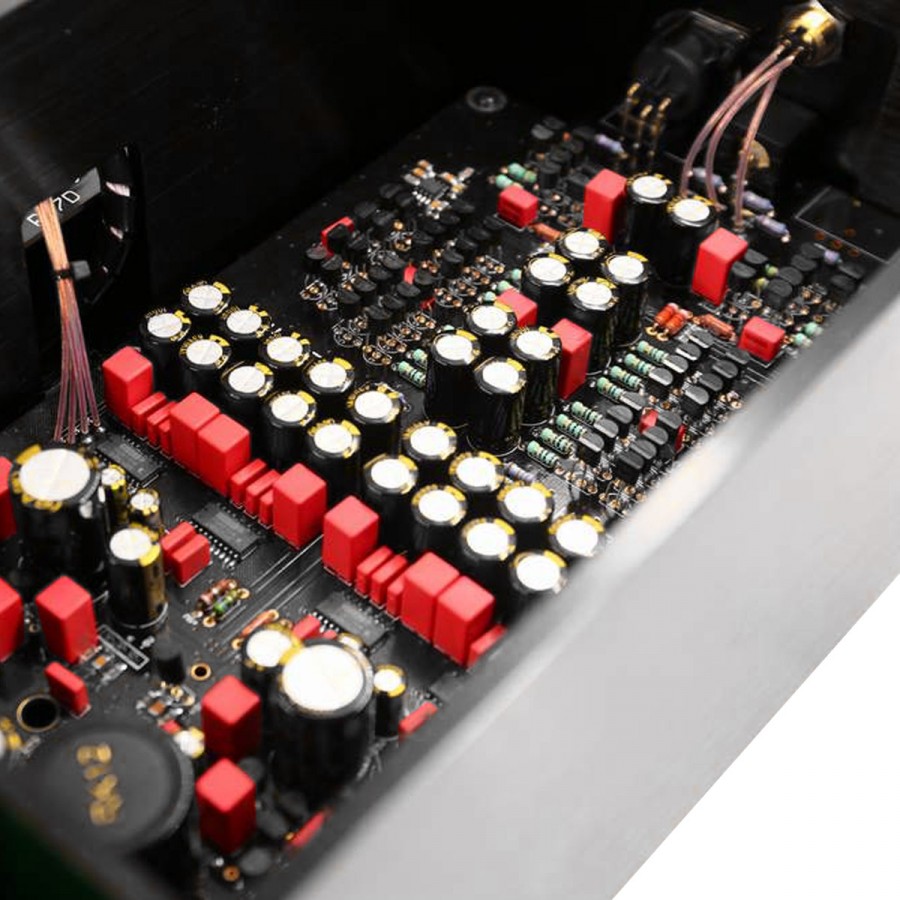

Discrete output stages

The last signal stage is the analog output stage, which can have a considerable impact on the sound quality of the DAC. After digital to analog conversion by the R2R DAC modules, the analog signal is carried by fully discrete matched transistor output stages. The DC-coupled design uses no surface mount components. The output buffers are single-ended FETs. Two stages are connected in parallel to achieve a very low output impedance. All output stages operate in pure Class A, without any feedback, to achieve the purest and most transparent sound reproduction possible.

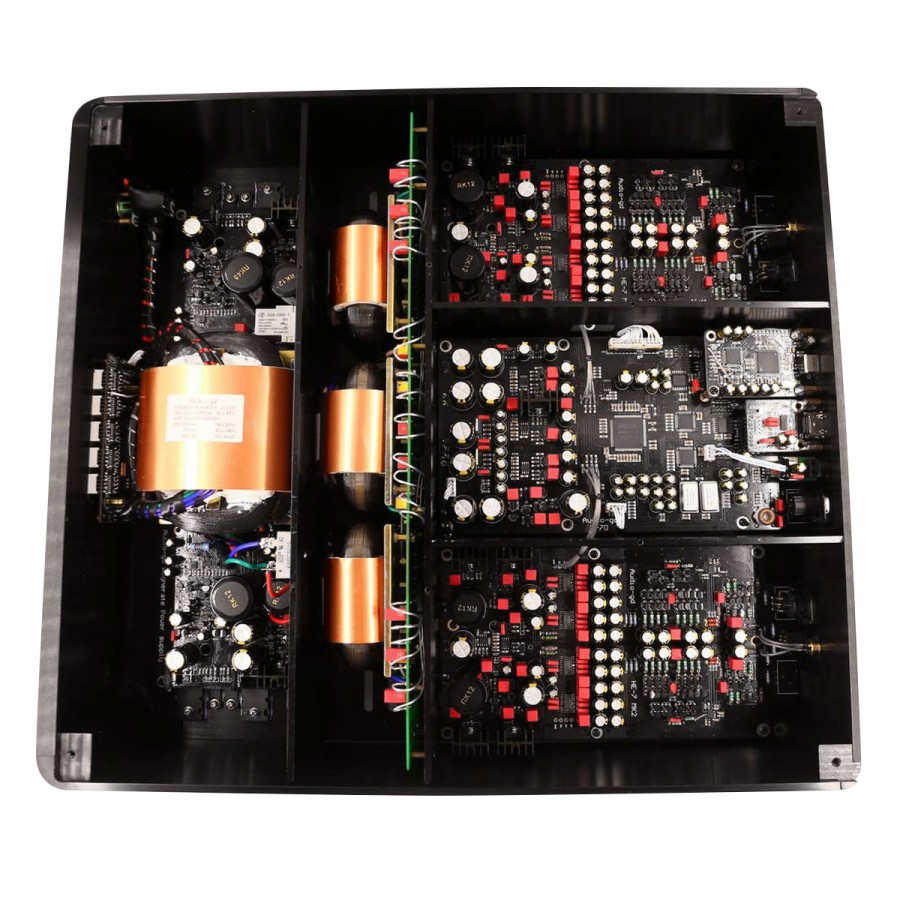

Optimized power supply

The HE-7 MK2 features an impressive power supply stage. It uses four high-performance R-Core transformers with a total power of 295W, as well as over 70,000µF of filter capacitors to ensure a clean and stable electrical signal. 10 sets of discrete servo stabilized power supplies and 7 sets of ultra-high speed linear stabilized power supplies provide separate power to the digital circuitry. The Class A parallel regulated power supply supplies the regenerative stage and each analog section separately.

Technical characteristics

Specifications
Product typeR2R DAC
DAC Chips8x PCM1704UK

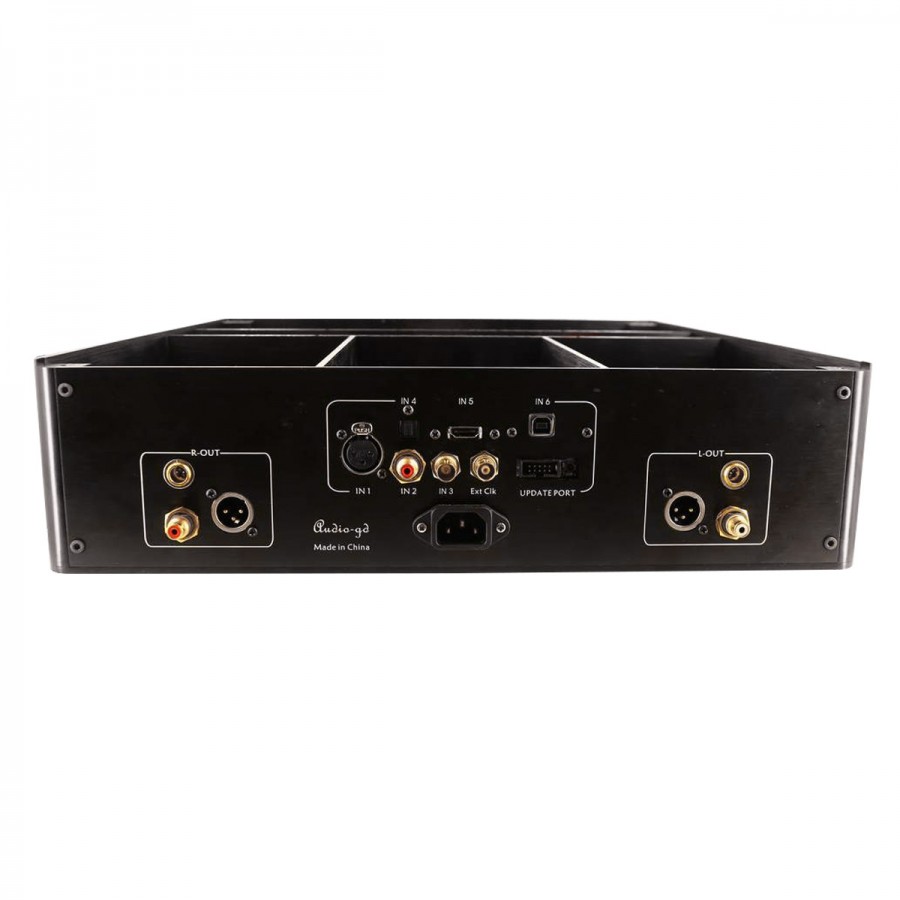

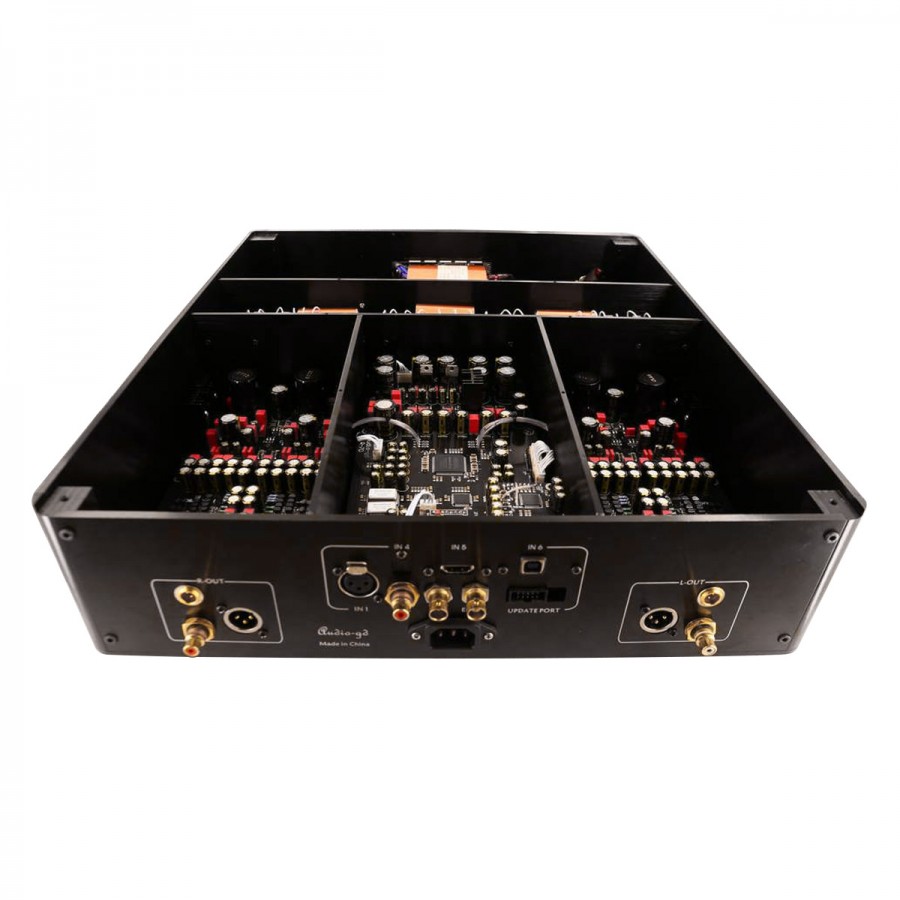

Inputs1x AES/EBU
1x Optical Toslink
1x Coaxial
1x BNC
1x I2S via HDMI LVDS
1x USB-B
1x BNC (for external clock)
1x Port for software update
Outputs1x Single-ended RCA
1x Balanced XLR
1x Balanced ACSS
SNR> 120dB
Output impedance< 5Ω
Output levelRCA : 2.5V
XLR : 5V
ACSS : 2+2mA
Frequency response20Hz - 20kHz
THD< 0.01%
Input sensitivityCoaxial 75Ω : 0.5Vp-p
Optical : 19dBm
Compatible OS (USB)Windows, OSX, Linux, ISO
Supported sampling ratesUSB, I2S : PCM up to 32bit 384kHz
Coaxial, Optical : PCM up to 24bit 192kHz
General
supply voltage220-240V AC 50/60Hz
Consumption61W
Dimensions430 x 450 x 125mm
Weight19kg
ColorBlack
Package1x Audio-GD HE-7 MK2
1x Power cable
1x USB Cable

Data sheet
InputOptical
InputBNC
InputUSB
InputSPDIF
InputI2S via HDMI
InputAES/EBU
InputRCA
OutputRCA
OutputACSS
OutputXLR
DAC / ADC ChipPCM1704UK
Max sampling rate384kHz
ColorBlack
StructureAluminium
ClassClass A / AB
NetworkingNo
Remote ControlNo
