DAC and ADC Dolby Digital DTS 2.0+ Digital Out 24bit 96kHz

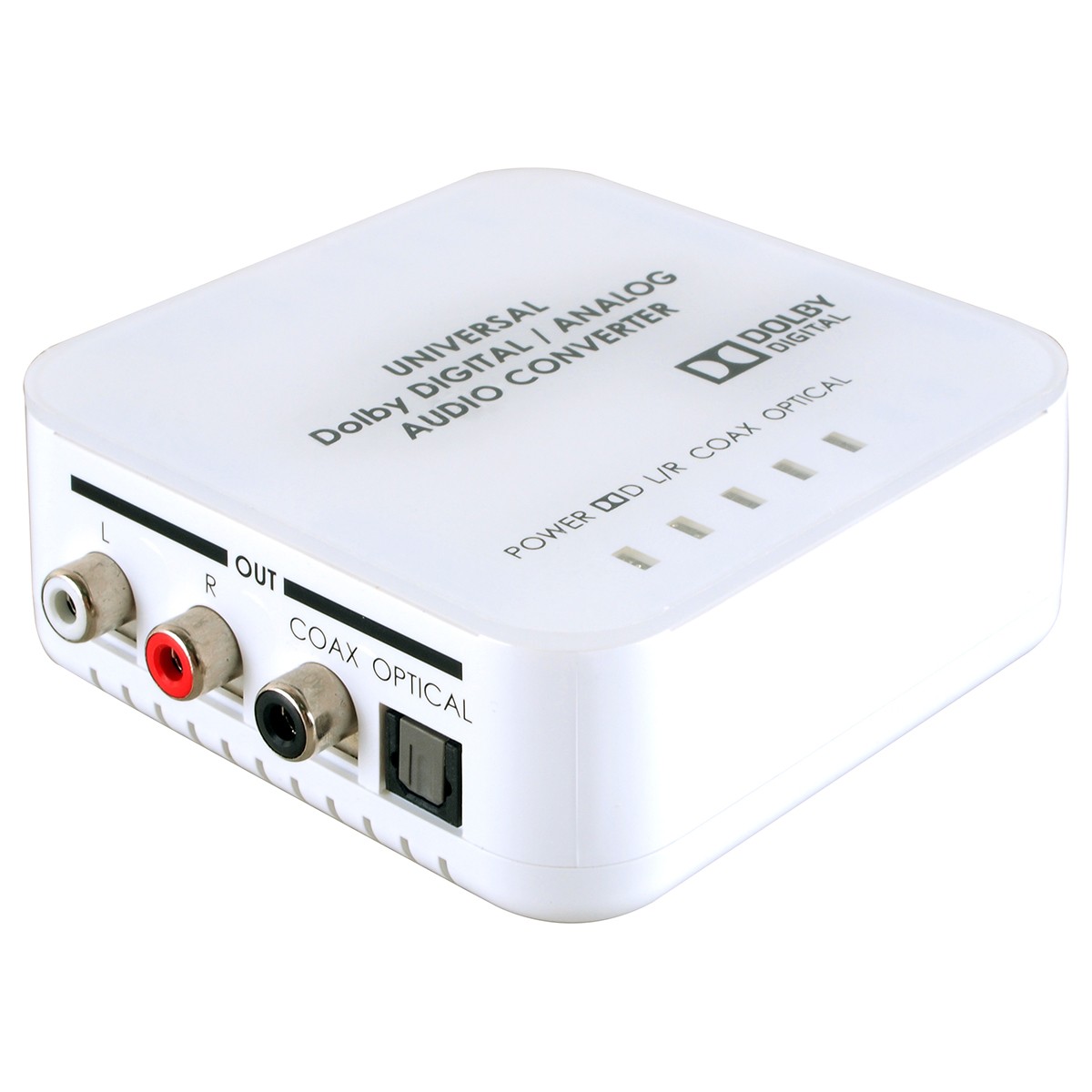

The compact CYP DCT-9DD DAC and ADC will allow you to convert a digital stream into analog and vice versa. It integrates both input and output connections consisting of stereo RCA, coaxial and Toslink optical. The device also supports the simultaneous conversion of audio streams. It is thus possible, for example, to convert an optical input signal to both RCA and coaxial. It also supports Dolby Digital and DTS 2.0+ Digital Out audio formats. Ideal for integration into a home cinema system.
Specifications | |
---|---|
Product type | DAC ADC |

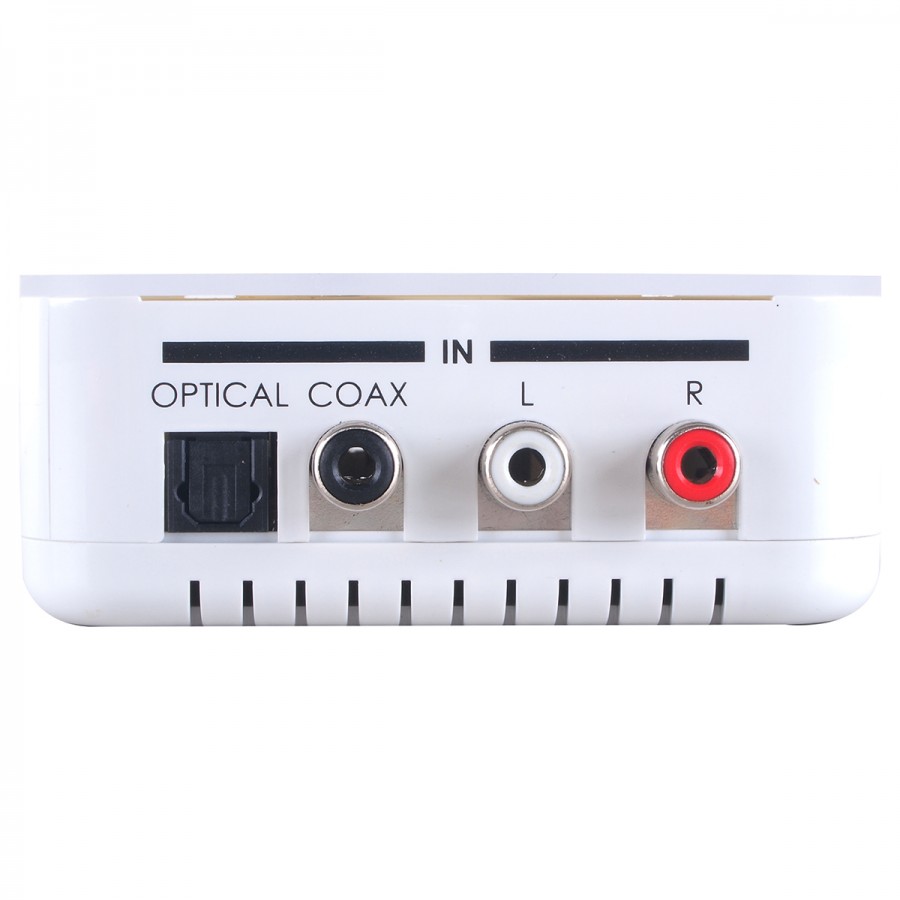

Inputs | 1x Optical Toslink 1x Coaxial 1x Stereo RCA |

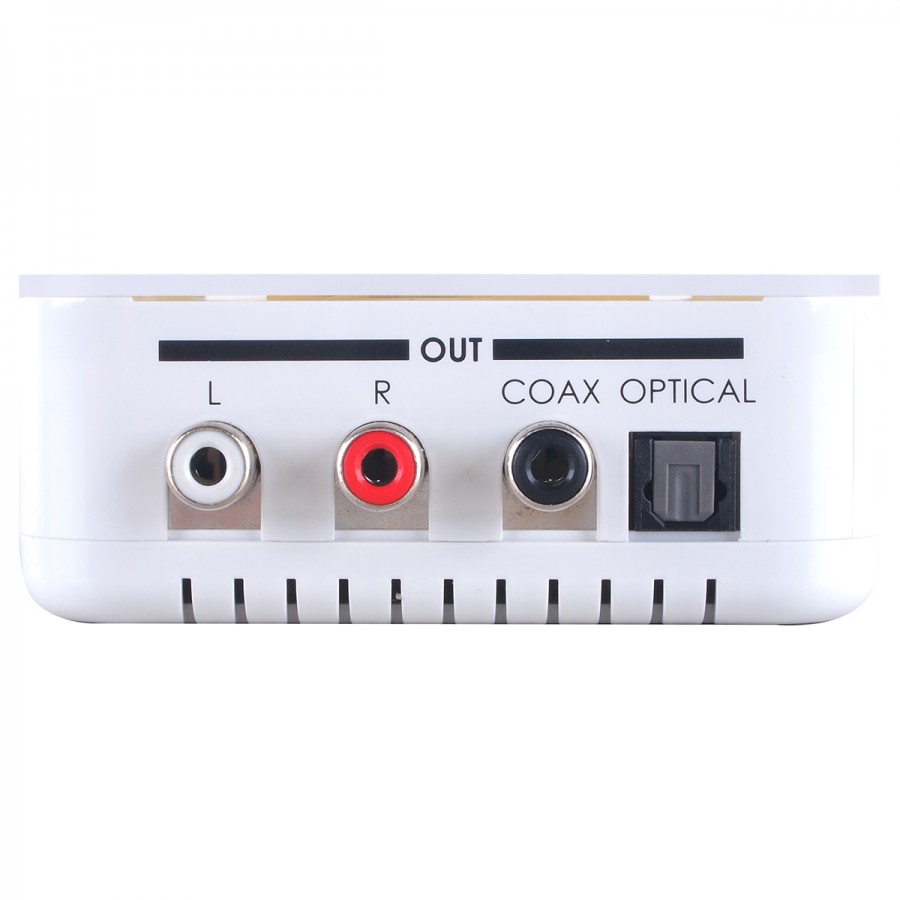

Outputs | 1x Optical Toslink 1x Coaxial 1x Steroe RCA |
General | |
---|---|

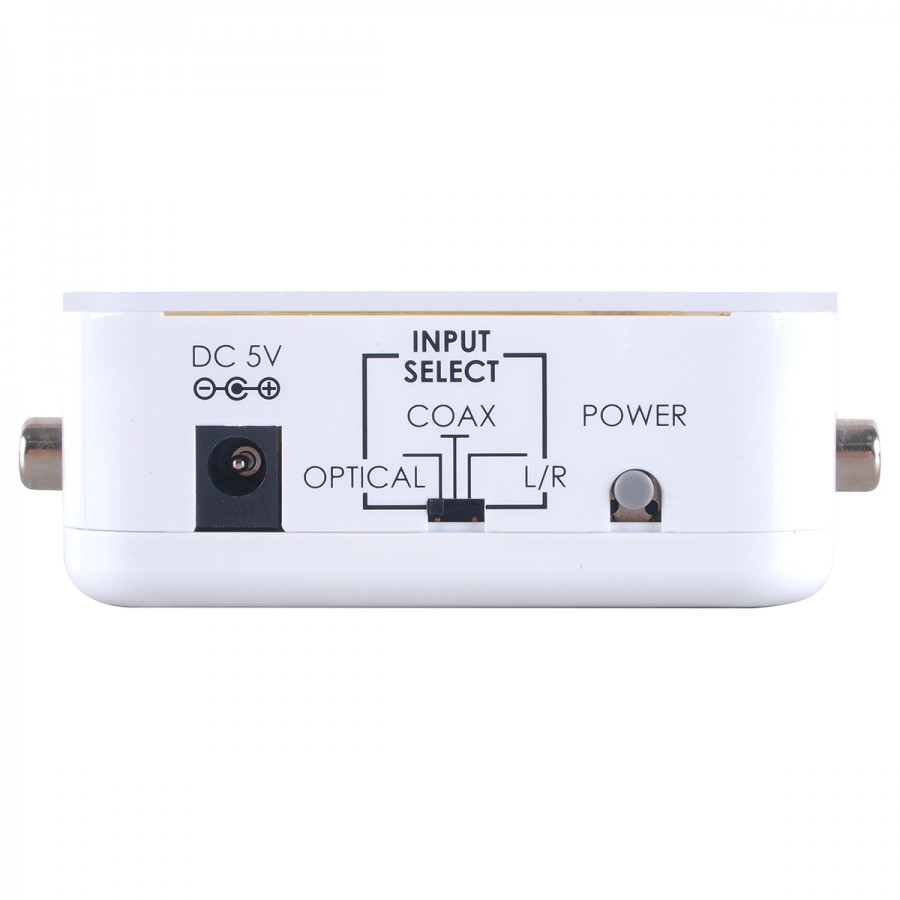

Supply voltage | 5VDC 1A (power supply included) |
Consumption | 2.2W |
Housing material | Plastic |
Dimensions | 85*35*85mm (excluding connectors) 97*35*85mm (including connectors) |
Weight | 108g |
Color | White |
Input | SPDIF |
Input | RCA |
Input | Optical |
Output | Optical Toslink |
Output | Coaxial SPDIF |
Output | RCA |
DAC / ADC Chip | NC |
Max sampling rate | 96kHz |
Color | White |
Networking | No |
Remote Control | No |
