LAIV HARMONY UDAC Discrete Balanced R2R DAC Black

The LAIV Harmony µDAC, little brother of the LAIV Harmony DAC, is also a discreet, balanced R2R DAC. However, it features an ultra-compact form factor, similar to the brand's LEXT interfaces. Like its big brother, it supports high-resolution sampling rates up to PCM 32bit 768kHz and DSD256.

Average votes for this product
5.0 / 5

By buying this product you get 119 loyalty points


Reference : 20614
New product

1 190,00 €tax incl.

991,67 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 04-09-2025.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

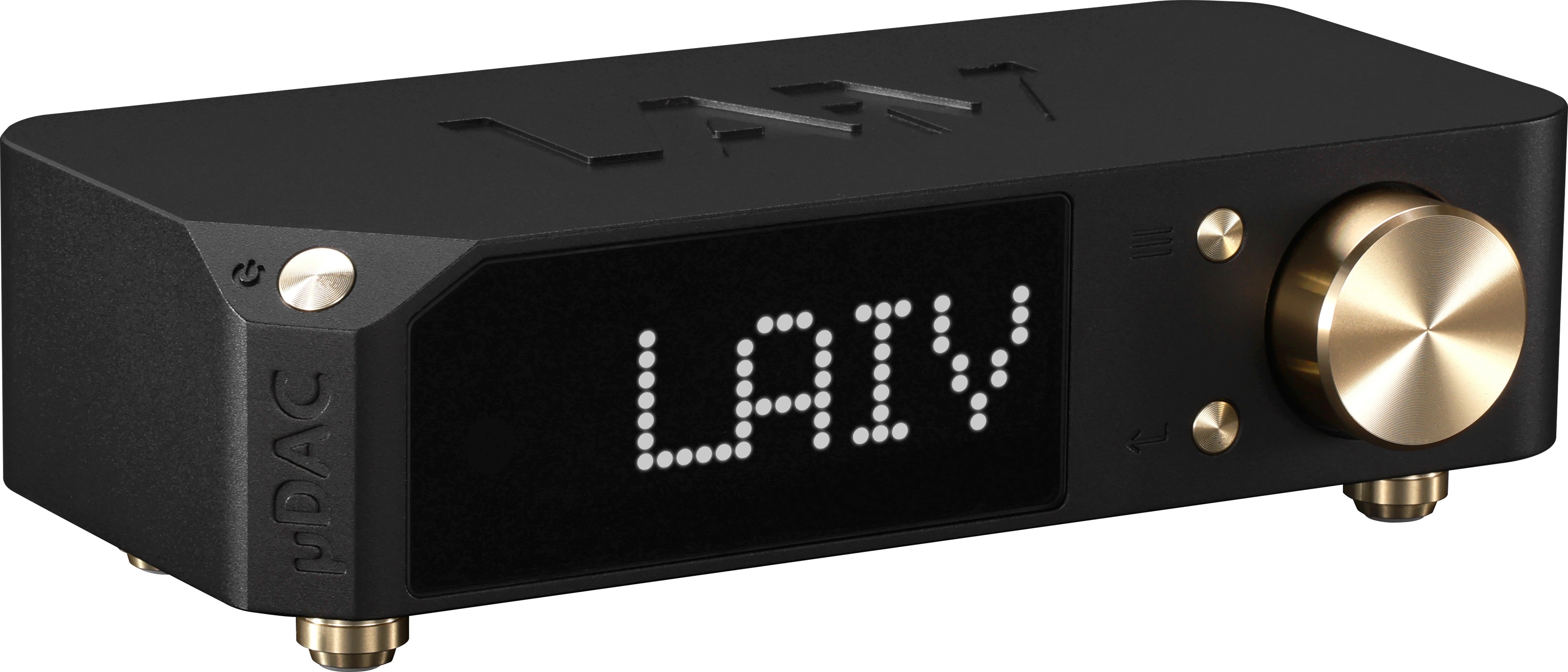

LAIV Harmony µDAC Discrete Balanced R2R DAC 32bit 768kHz DSD256 Black

LAIV HARMONY uDAC photo

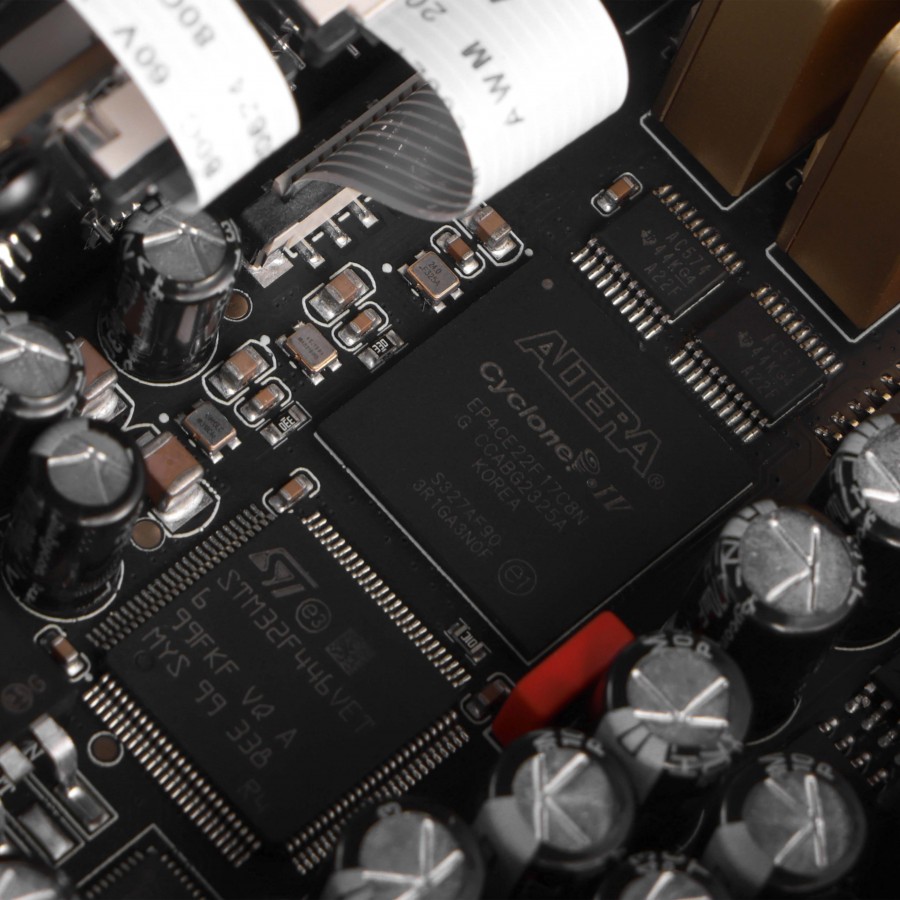

The LAIV Harmony µDAC, little brother of the LAIV Harmony DAC, is also a discrete, balanced R2R DAC. However, it features an ultra-compact form factor, similar to the brand's LEXT interfaces. Like its big brother, it supports high-resolution sampling rates up to PCM 32bit 768kHz and DSD256. LAIV has equipped its device with audiophile components within a high-end design. The digital and analog stages are galvanically isolated, and it features an Altera Cyclone IV CPLD, Accusilicon AS318 Femtosecond oscillators and a Class A discrete output stage for the most authentic and accurate sound reproduction. As well as its elegant looks, the µDAC boasts full connectivity: USB-B input, Toslink optical input, coaxial SPDIF input, I2S clock input via HDMI and balanced XLR output. As you can see, this little device from LAIV offers the very best in digital-to-analog conversion, all in a compact format.

LAIV Harmony µDAC: Balanced R2R DAC

The LAIV Harmiony µDAC is based on the same digital-to-analog conversion circuit as its big brother, namely a discrete balanced R2R circuit designed from audiophile components for precise signal processing. It supports high-definition sampling rates up to PCM 32bit 768kHz and DSD256. Each resistor in the circuit, with a tolerance of 0.05%, is carefully arranged to deliver superior, faithful and immersive sound quality.

The R2R circuit of the LAIV HARMONY uDAC
The LAIV HARMONY uDAC clock

LAIV Harmony µDAC: Clock optimization

The µDAC is based on an Accusilicon AS318 femtosecond oscillator with very low phase noise, guaranteeing uncompromising performance. In addition, an I2S port via HDMI allows integration of an external master clock for even greater performance. This flexible system will be particularly appreciated by the most demanding audiophiles.

LAIV Harmony µDAC: Discrete class A output buffer

The LAIV Harmony µDAC's Class A output buffer uses discrete components for precise impedance matching, to avoid signal degradation and ensure optimum transfer to an amplifier. The fact that it's in Class A ensures constant linearity and low noise, for the smooth, warm sound performance so highly prized by audiophiles.

LAIV HARMONY uDAC output buffer

LAIV Harmony µDAC: Galvanic isolation

The µDAC's digital and analog circuits are galvanically isolated to avoid ground loops and guarantee a clean, interference-free path for the sound signal.

Galvanic isolation of LAIV HARMONY uDAC circuits

LAIV Harmony µDAC overview

Overview of LAIV HARMONY uDAC
1Power button
2Display
3Menu button
4Return button
5Multifunction button
6Balanced XLR output
7I2S input via HDMI (accept MCLK clock)
8Coaxial input
9Toslink optical input
10USB-B input
1115V 2A power supply via DC jack

Technical characteristics

Specifications
Product typeDAC R2R
Inputs1x USB-B input
1x Coaxial input
1x Toslink optical input
1x I2S input via HDMI
Output1x Balanced XLR output
ProcessorAltera Cyclone IV
Supported sampling ratesPCM up to 32Bit 768kHz
Native DSD up to DSD256
External clock via I2S HDMI
General
Power supply15V 2A via jack DC
Package1x LAIV Harmony µDAC
1x Power adapter

Data sheet
InputSPDIF
InputI2S via HDMI
InputUSB
InputOptical
OutputXLR
DAC / ADC ChipR2R LADDER DAC
Max sampling rate768kHz
Max sampling rateDSD256
ColorBlack
NetworkingNo
Remote ControlYes
