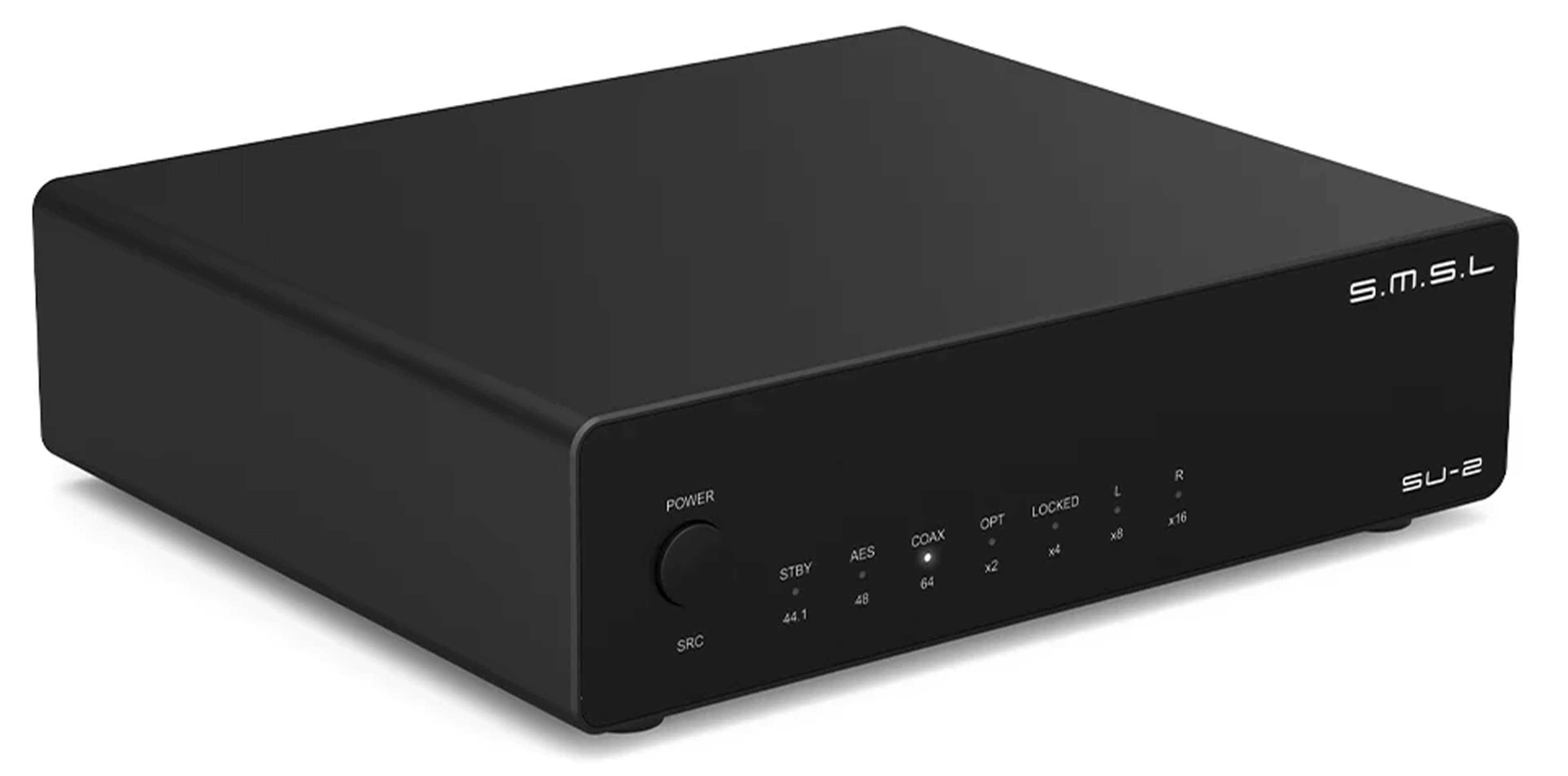

SMSL SU2 DAC ES9039Q2M 24bit 192kHz DSD DoP64

The SMSL SU2 is a compact DAC built around audiophile-grade components. The digital-to-analog conversion is handled by an ESS ES9039Q2M DAC chip, allowing it to support streams up to PCM 24bit 192kHz and DSD DoP64 while delivering excellent technical performance, including a 130dB dynamic range and THD+N as low as 0.00006%.

Average votes for this product
5.0 / 5

By buying this product you get 10 loyalty points


Reference : 21526
New product

109,00 €tax incl.

90,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 14-07-2026.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

SMSL SU2 DAC ES9039Q2M 24bit 192kHz DSD DoP64

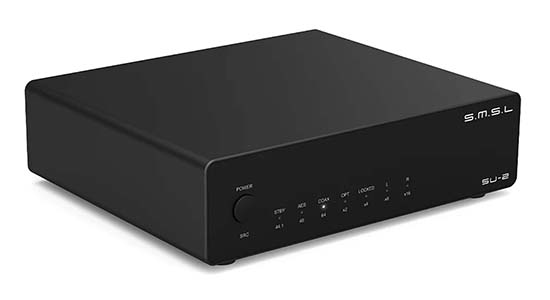

Photo of the SMSL SU2


The SMSL SU2 is a compact DAC built around audiophile-grade components. The digital-to-analog conversion is handled by an ESS ES9039Q2M DAC chip, allowing it to support streams up to PCM 24bit 192kHz and DSD DoP64 while delivering excellent technical performance, including a 130dB dynamic range and THD+N as low as 0.00006%. A set of four OPA1612 op-amps enables the SU2 to deliver an output level of 4.7Vrms via balanced XLR and 2.3Vrms via its RCA output. In terms of inputs, it offers a full range of optical connectivity including Toslink optical, coaxial, and AES/EBU, ensuring perfect compatibility with many sources such as a CD player or digital transport.

Key features of the SMSL SU2

SMSL SU2

SMSL SU1

DAC Chip

ESS ES9039Q2M

AKM AK4493S

USB Interface

-

XMOS XU-316

Inputs

Toslink Optical, Coaxial SPDIF, AES/EBU

USB, Toslink Optical, Coaxial SPDIF

Outputs

RCA, XLR

RCA

MQA

Not supported

Supported

MQA-CD

Not supported

Supported

DSD

DSD DoP64

Supported

Op-Amps

4x OPA1612

1x OPA1612

Jitter Elimination Technology

CK-03 Clock Module

CK-03 Clock Module

Power Supply

AC

USB-C

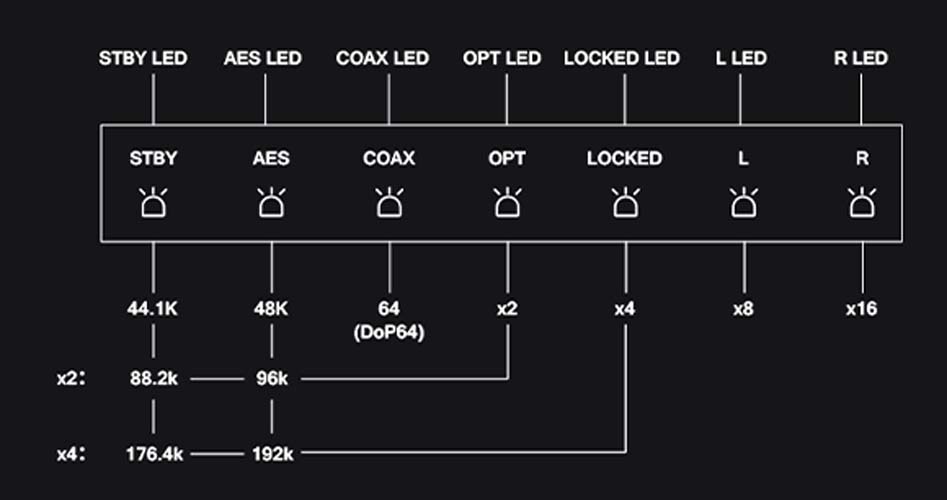

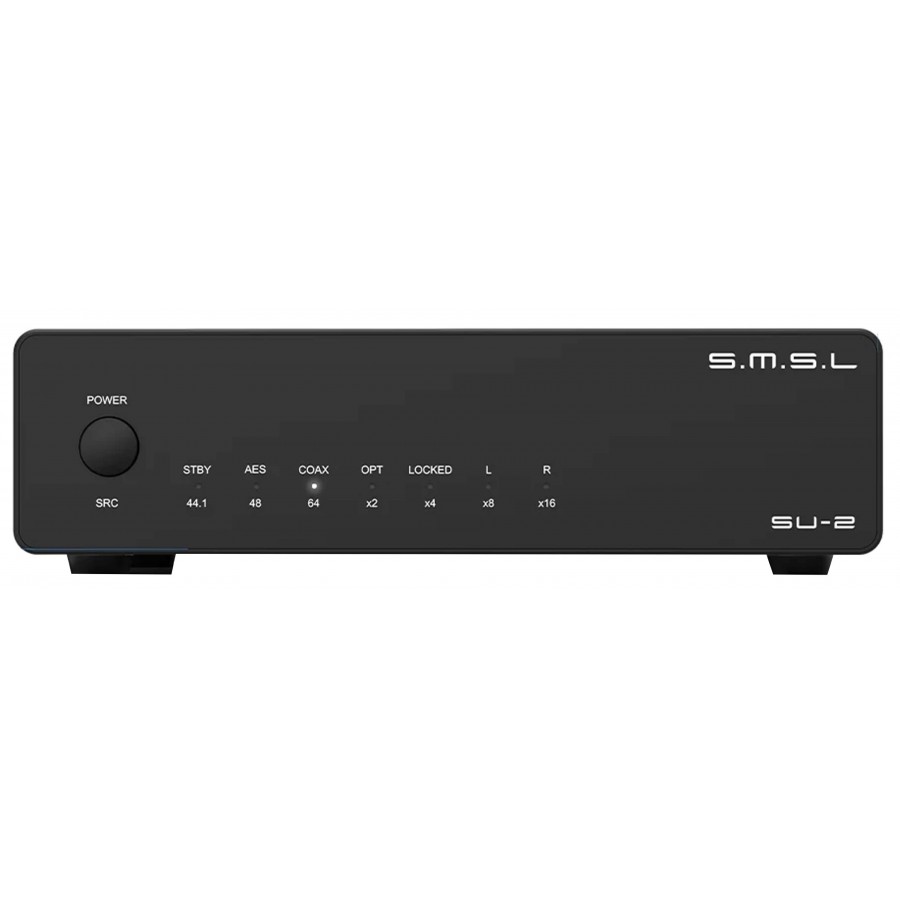

SMSL SU2: LED operating indicator

On the front panel of the SMSL SU2 DAC, there is an intelligent LED indicator system that displays real-time operating information such as selected input type, sampling rate, left and right channels, and more.

SMSL SU2 LED operating indicator system

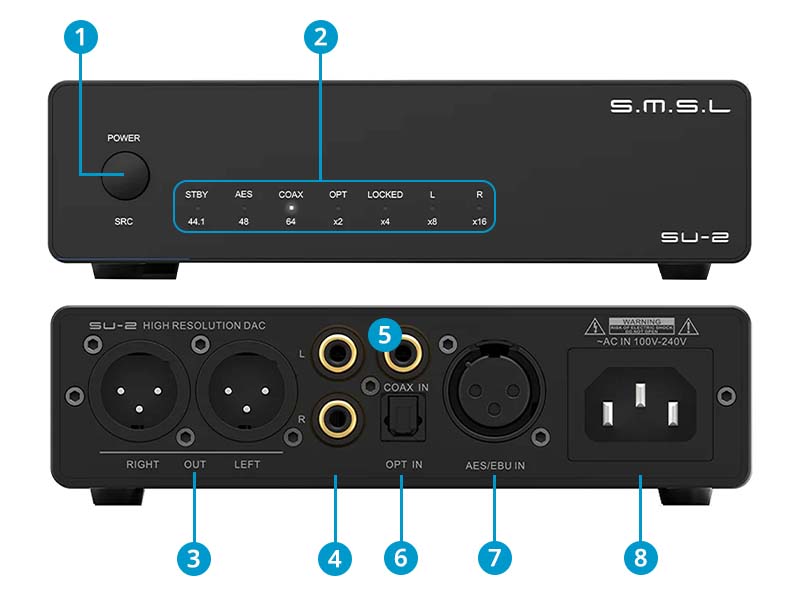

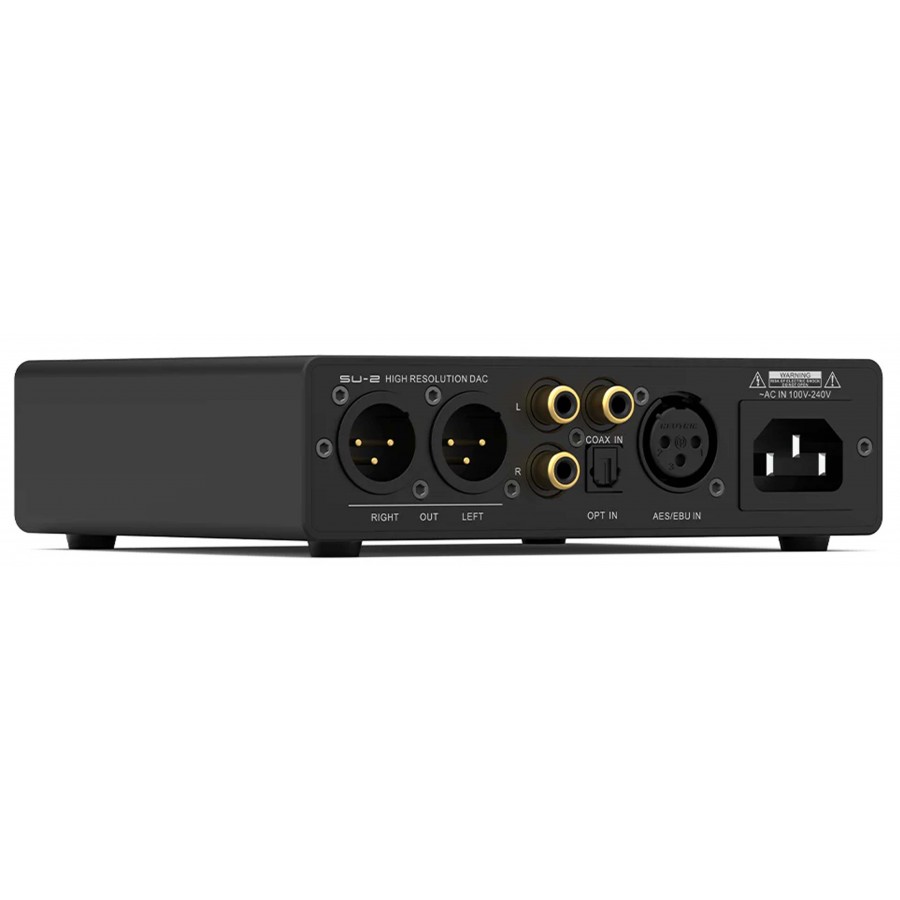

SMSL SU2 Overview

SMSL SU2 overview
1Power / Source selector
2LED indicator
3Balanced XLR output
4Single-ended RCA output
5Coaxial input
6Toslink optical input
7AES/EBU input
8AC power input

Technical Specifications

Specifications
Product TypeDAC
DAC ChipESS ES9039Q2M
Op-Amps4x OPA1612A
Inputs1x Coaxial
1x Toslink optical
1x AES/EBU
Outputs1x Balanced XLR
1x Single-ended RCA
Output LevelXLR: 4.7Vrms
RCA: 2.3Vrms
THD+NXLR: 0.00006% (-123.5dB)
RCA: 0.00008% (-121.5dB)
Dynamic RangeXLR: 130dB
RCA: 126dB
SNRXLR: 130dB
RCA: 126dB
Supported Sampling RatesPCM 24bit 192kHz
DSD DoP64
General
Power Supply100-240V AC
Power Consumption< 2.3W
Standby Power Consumption< 0.1W
Dimensions150 x 42.5 x 133.1mm (W x H x D)
Weight532.6g
Package Contents1x SMSL SU2
1x AC power cable

Data sheet
InputOptical
InputSPDIF
InputAES/EBU
OutputRCA
OutputXLR
DAC / ADC ChipES9039Q2M
Max sampling rate192kHz
ColorBlack
NetworkingNo
Remote ControlNo

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
DAC orienté Batteur
A peu près deux jours qu'il tourne sur des enceintes de monitoring en classe D sur sorties symétriques.
L'écoute reste très analytique sur le haut du spectre qui reste plus concernée. Concernant des Adam audio T7V modestes mais avec un couplage intéressant, l'extension sur les infra fréquences ne sont pas ressentie, pour le moment, mais suffisante pour se faire une idéé du potentiel après rodage.
J'écoute Ethnicolor de JM Jarre en version remastérisé, Voila.
Il y a de la chaleur dans les voix, les samples, avec une certaine étroiteté qui demande de pousser son amplificateur en abaissant la part logicielle ou de la norme EBU R 128 dans mon cas.
La séparation stéréo et la distinction des instruments est bluffante, mais pique parfois, dans mon cas une section differente ou d'une différente impédance pour mes cables de modulations reste nécessaire.
Les transitions entre séquences rythmiques, nappes peuvent parfois surprendre, avec un retentissement plutôt froid uniquement dans le bas registre où l'on demanderait plus de rondeur mais il doit s'agir d'une limitation de mes enceintes.
Les caisses claires sont propres manquant toutefois "d'épaisseur" pour encore une fois revenir sur le maillon a améliorer.
Le suivi et la rondeur des basses sont très lisibles avec parfois une très belle extension emportant le local d'écoute entier !!
Concernant Ethnicolor part I, on redoute la deuxième section du titre qui se veut plus explosive, fracassante, ou bouleversante... autour du crescendo à partir de la 7 minutes,
L'exercice reste, ici, bien maitrisé avec une certaine douceur globale ressentie dans l'ensemble sur les basses slappés sans heurter.
Dans l'ensemble, Il mérite une attention vraiment particulière, le tout ayant été testé sur entrée optique pour moi suffisamment polyvalente pour concerner beaucoup, beaucoup de disques.
