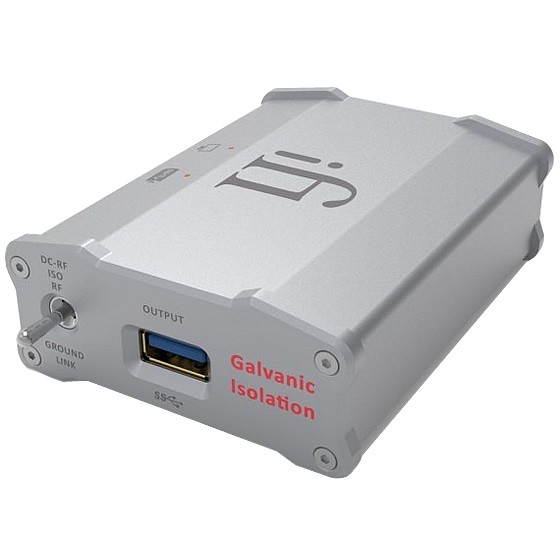

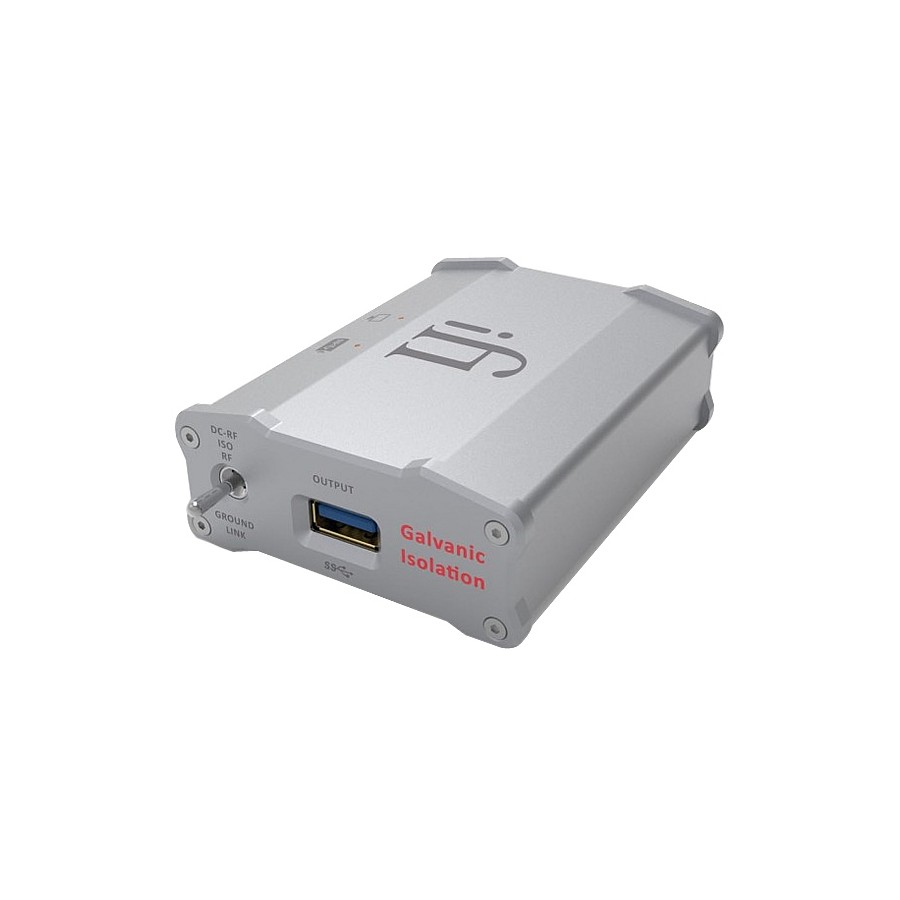

ifi Audio Nano iGalvanic 3.0 USB Generator on USB 2.0 / USB 3.0 port

ifi Audio iGalvanic 3.0 Régénérateur USB sur port USB 2.0 / USB 3.0

The iFi AUDIO USB isolator Galvanic 3.0 is an essential accessory for any user wishing to increase the performance of his dematerialized Hi-Fi installation. Once installed the sound is less tense, less digital, cleaner and looser with real qualities in the more natural harmonics.

STRONG POINTS :

  • True galvanic isolation dedicated Hifi
  • Bi-directional USB 3.0
  • High quality passive components
  • Noise and Ground Link Optimization
  • Zero Delay technology for low jitter latency

Average votes for this product
4.0 / 5

By buying this product you get 36 loyalty points


Yes, notify me when available !
Reference : 12293
New product

365,83 €tax excl.

Including 0,04 € for green tax

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

iFi Audio NANO IGalvanic 3.0

iFi Audio Galvanic 3.0

A design to serve the music

The iFi Audio iGalvanic design for USB 2.0 or USB 3.0 is based on first-class galvanic isolation using audiophile-grade components. Glavan isolation is a process that separates and isolates unwanted noise from the digital and electrical signal. It also corrects the differences in ground potential, currents induced on the voltage.

Arts-excellence-ifi-nano-igalvanic3-0-st

The result is immediate with a better stability of the sound scene, integration of the audio message more realistic, harmonics of better quality eleminating the artificial, digital and acid side of the acute medium.

REGEN 2 / RECLOCK 2 / REBALANCE 2

The bi-directional USB 3.0 technology is used to create a dual digital signal re-energization before and after galvanic isolation ensuring transmit and receive transmission quality.

USB 3.0 5 gbps Super Speed

On the iFi Audio isolator with the separation of the transmission and reception line in USB3.0 the galvanic isolation used actually does not weaken the DATA flow level always optimal.

The bi-directional USB 3.0 technology is used to create a dual digital signal re-energization before and after galvanic isolation ensuring transmit and receive transmission quality.


Power Station Stealh Converter and Zero Delay


Designed to have an extremely low floor noise (0.5uV) using panasonic and OS-CON capacitors, the entire power supply also benefits from galvanic isolation in conjunction with the digital DATA part.


The Zero Delayis an advanced isolation technology without any conversion steps, DSP processors that do not provide jitter and latency.

Technical characteristics

Specifications
Output Voltage5V DC 500mA fully charged
Output currentabove 900 mA (USB 3.0) 500mA
Voltage in entDC4.5V to 5.5V (USB voltage)
Noise floor output0.0000005 V on a load of 500mA
Earth connectionISO, RF, DC-RF
USB 3.0 and USB 2.0 transfer rate
USB 3.0Super Speed ​​5.0 Gbps
USB 2.0 Hi Speed480Mbps
USB 2.0 Full Speed12 Mbps
USB 2.0 Low Speed1.5 Mbps
Internal clock

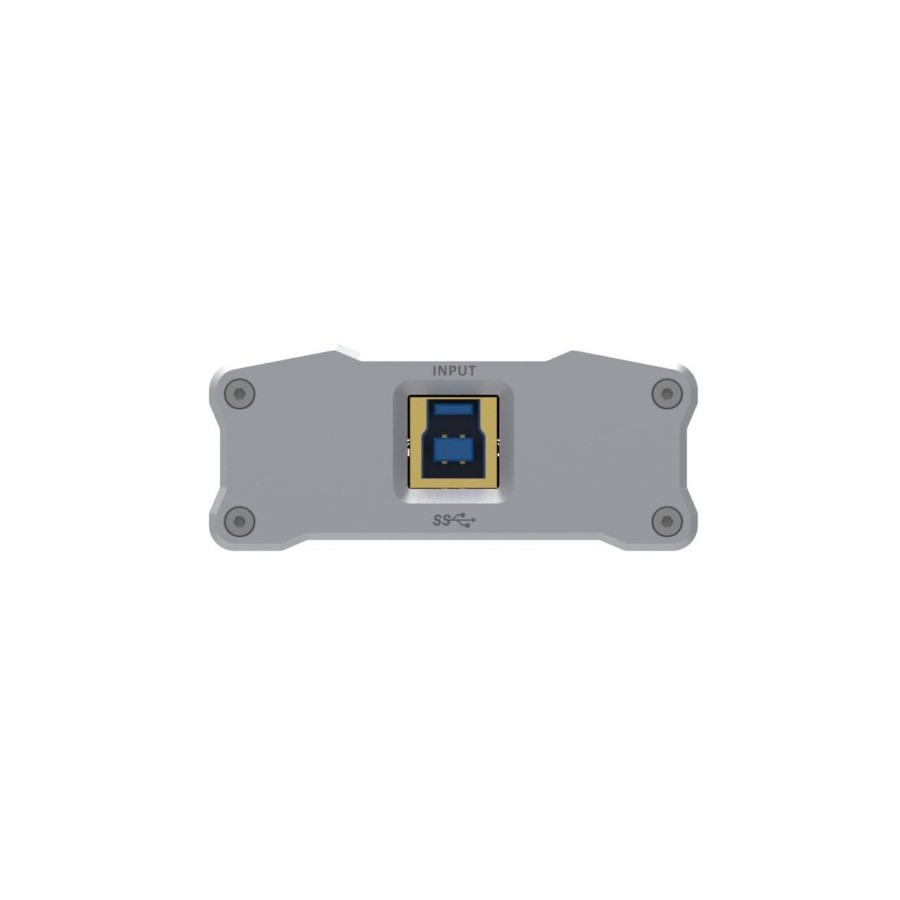

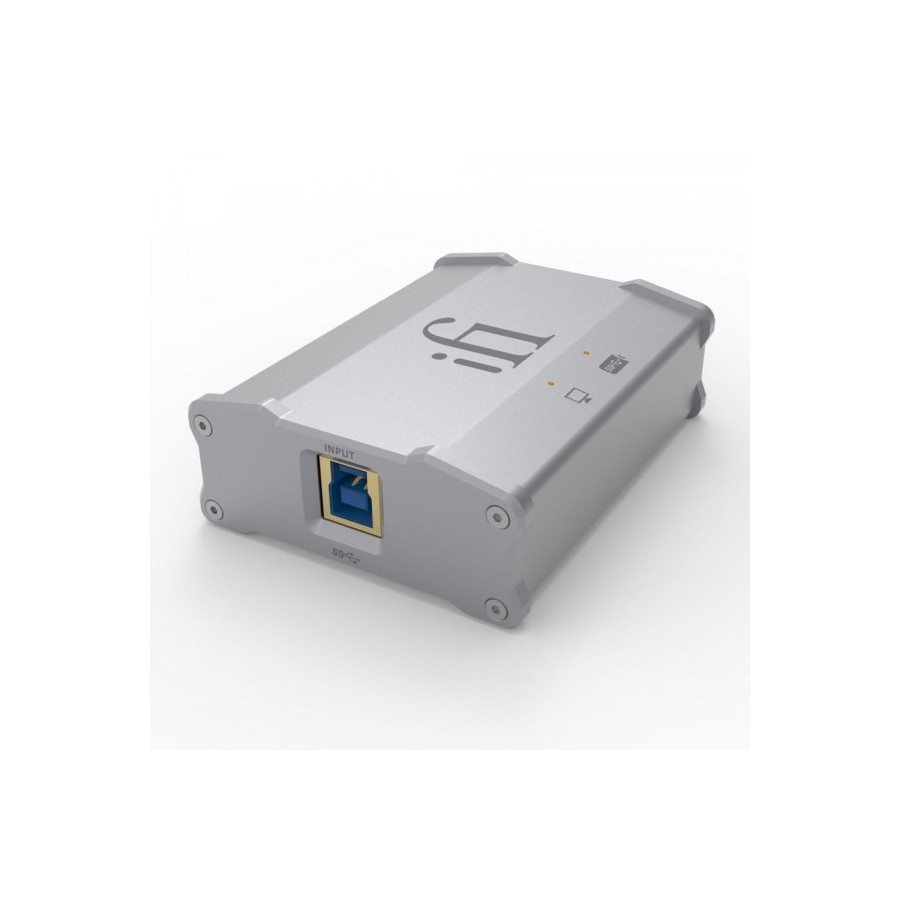

Input host connectorUSB 3.0 B-Type

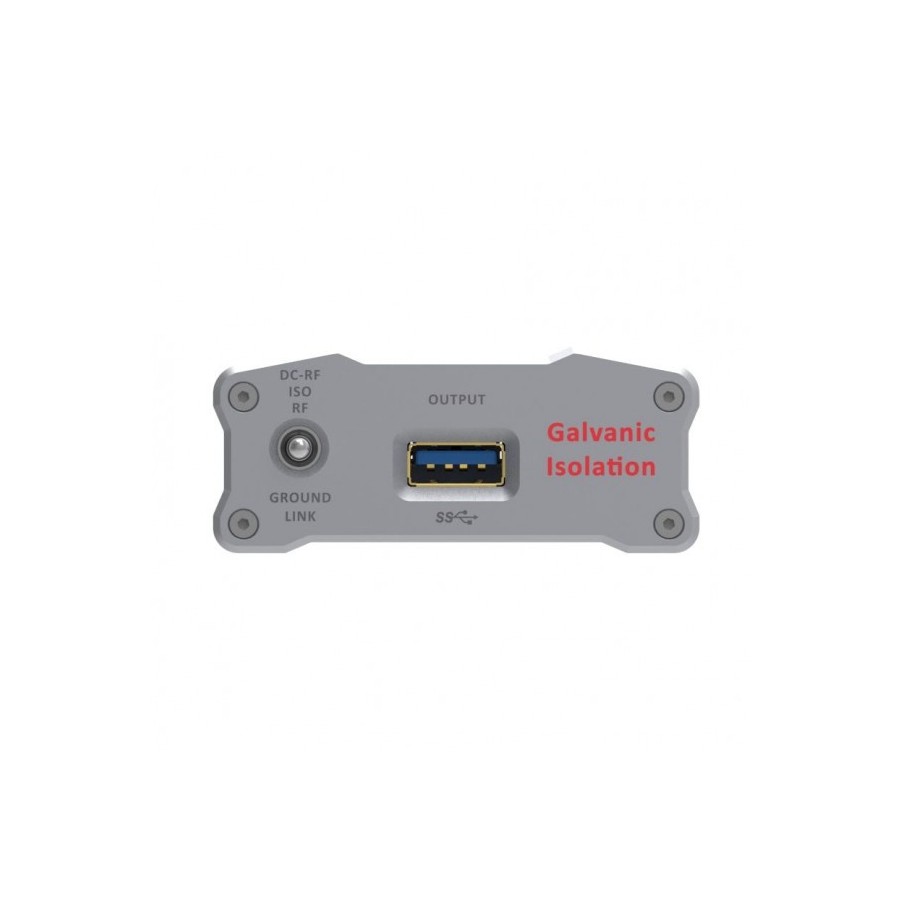

Host output connectorUSB 3.0 A-Type
ur "> 6W
Various
Power consumption
Dimensions93 x 67 x 28mm
Weight128g
Accessories1x USB cable

Data sheet
InputUSB
OutputUSB 3.0
Max sampling rateNC
ColorGray
Interface chipNC
Contacts Material (Connector)N/A

Download

[FR] User Manual

User manual for ifi Audio iGalvanic 3.0 in French.

Download (479.79k)

Delivery
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
4.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 4/5
Date :
Suppression des grésillements USB
Intercalé entre l'ordinateur et le convertisseur numérique-analogique, l'appareil a supprimé les grésillements provenant de l'ordi. Le son est meilleur, propre et bien défini.

Au départ, l'appareil a introduit des instabilités dans mon système audio : perte de connexion, clics et "drop-out" numériques.
iFi audio semble conscient du défaut potentiel et propose des solutions (interrupteur en position "RF soft ground link", réinstallation des pilotes audio) qui se sont révélées insatisfaisantes.
Le problème a été résolu en agissant sur un paramètre d'alimentation avancé de Windows : désactivation de la suspension sélective USB.
