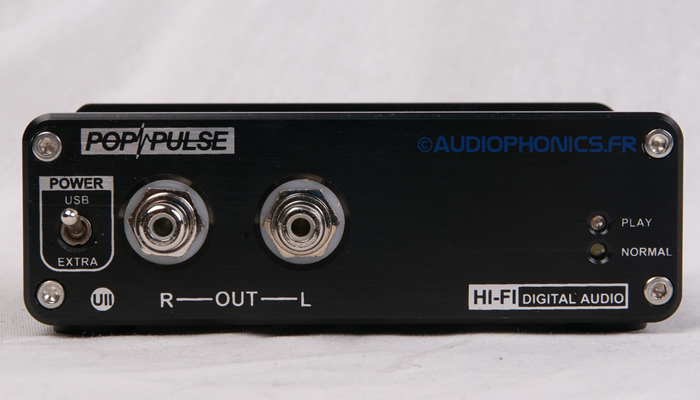

PopPulse UII PC DIGITAL LINK DAC USB Input

POPPULSE UII PC DIGITAL LINK DAC USB input

The UII PC-Link is a high-performance audio interface which, after connecting in USBon its computer, allows very simply and with a minimum of parameterization, to recover the digital signals emitted by the latter, and whose resolution does not exceed 16Bit / 48Khz.

These capacities to convert from a computer source to most digital formats, and analog (RCA stereo) make it the ideal companion of a mobile installation orf = "http://fr.wikipedia.org/wiki/Home_Theater_Personal_Computer">HTPC.

No savings seem to have been made during the design of the PC-Link UII, especially since its very complete connectivity allows it to exploit all these signals under optimal conditions.
We haveppréciera as such the presence of releasede AES / EBU to XLR socket as well as an analog stereo output.
This particularity associated with its ability to be self-powered by USB makes it a stand-alone high-quality DAC ideal for professionals.

Finally, the UII PC-Link is compatible with any computer with a Windows 2000 or later operating system, MAC OS9, MAC OSX Tiger, UBUNTU and does not require the installation of any particular pilot. Simply connect the unit to USB on your machine, and it will be recognized and operational in only a few secondswaves.

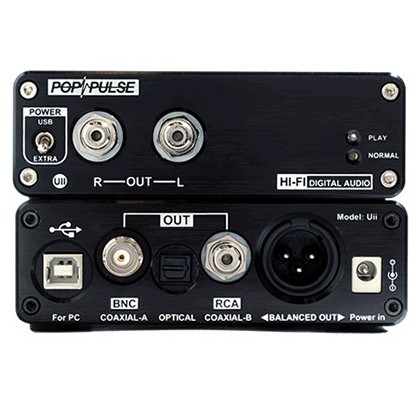

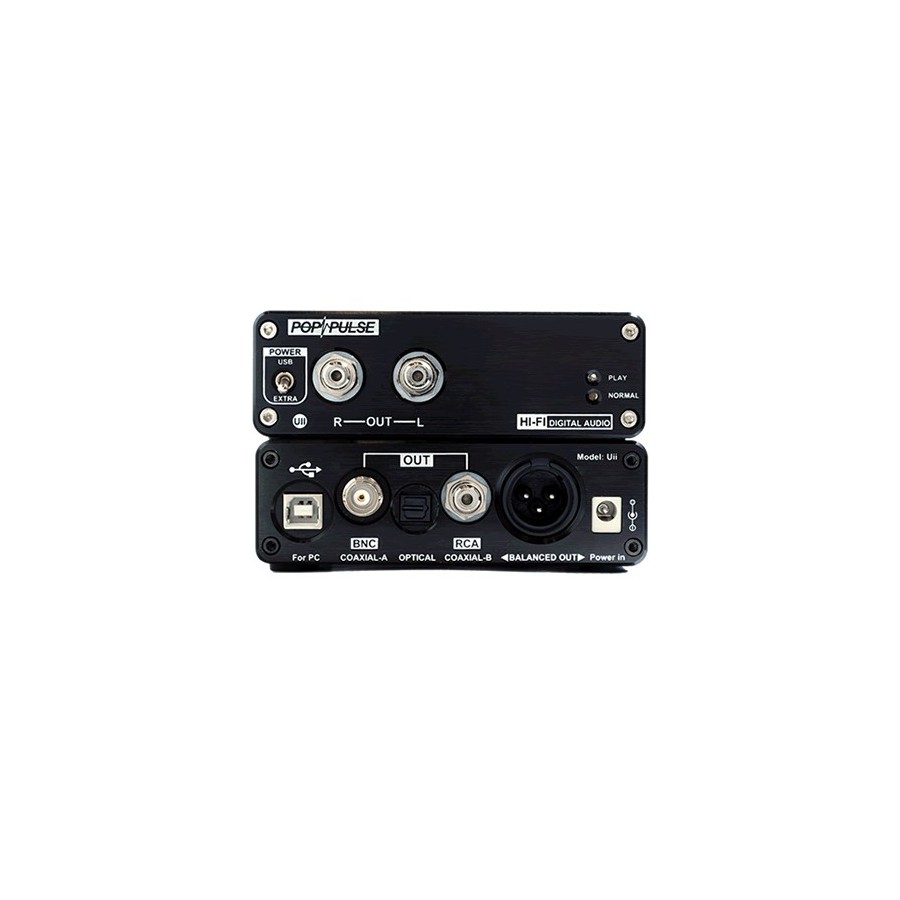

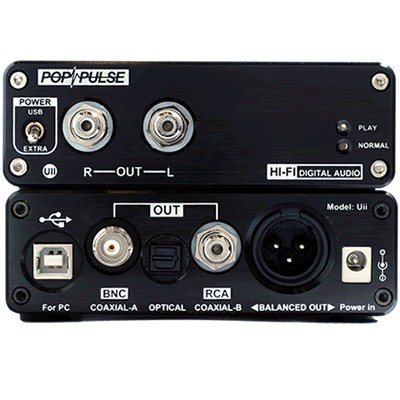

Entries:

• USB input

Exits :

• XLR Symmetrical Output (AES / EBU)
• Coaxial SPDIF BNC output
• RCA coaxial output SPDIF
• Optical Output Toslink
• Stereo analog output

• USB interface: 2.0 (compatible 1.1)

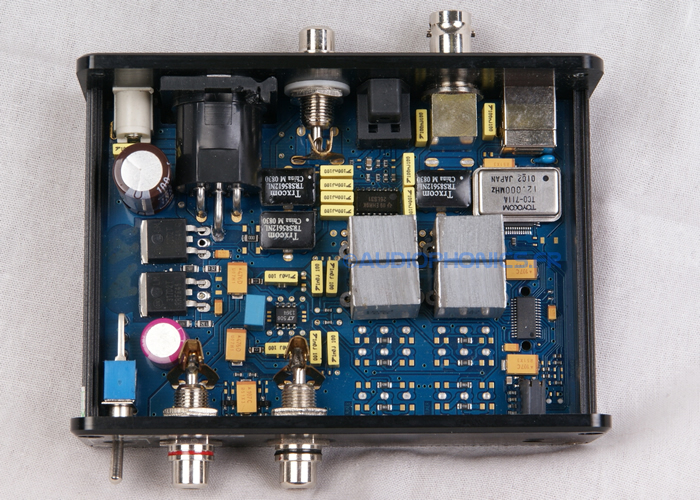

• USB Controller C-Media Electronics CM-108
• Double High Frequency Reverse Circuits 74VHC04 (one CMOS per channel)

• Power supply: 12V or USB
• External Dimensions: 115 x 85 x 40mm (W x D x H)
• Weight: 250 g

Compatible with operating systems:
- Windows 2000 / XP / Vista
- MAC OS 9 and later
- MAC OSX "Tiger"
- UBUNTU
